A 100W 24V driver built to sit outside
The Collingwood PSMDIP10024 is the box that powers a 24V LED installation rather than a light in its own right. It converts the mains supply into a steady 24V DC output, up to 4.17A and 100W. What separates it from the ordinary indoor driver is the sealed IP66 housing, so it can live outdoors, in a plant room or in any damp spot without a separate weatherproof enclosure around it. It is mains dimmable too, which means the dimmer switch already on the circuit carries on doing its job.

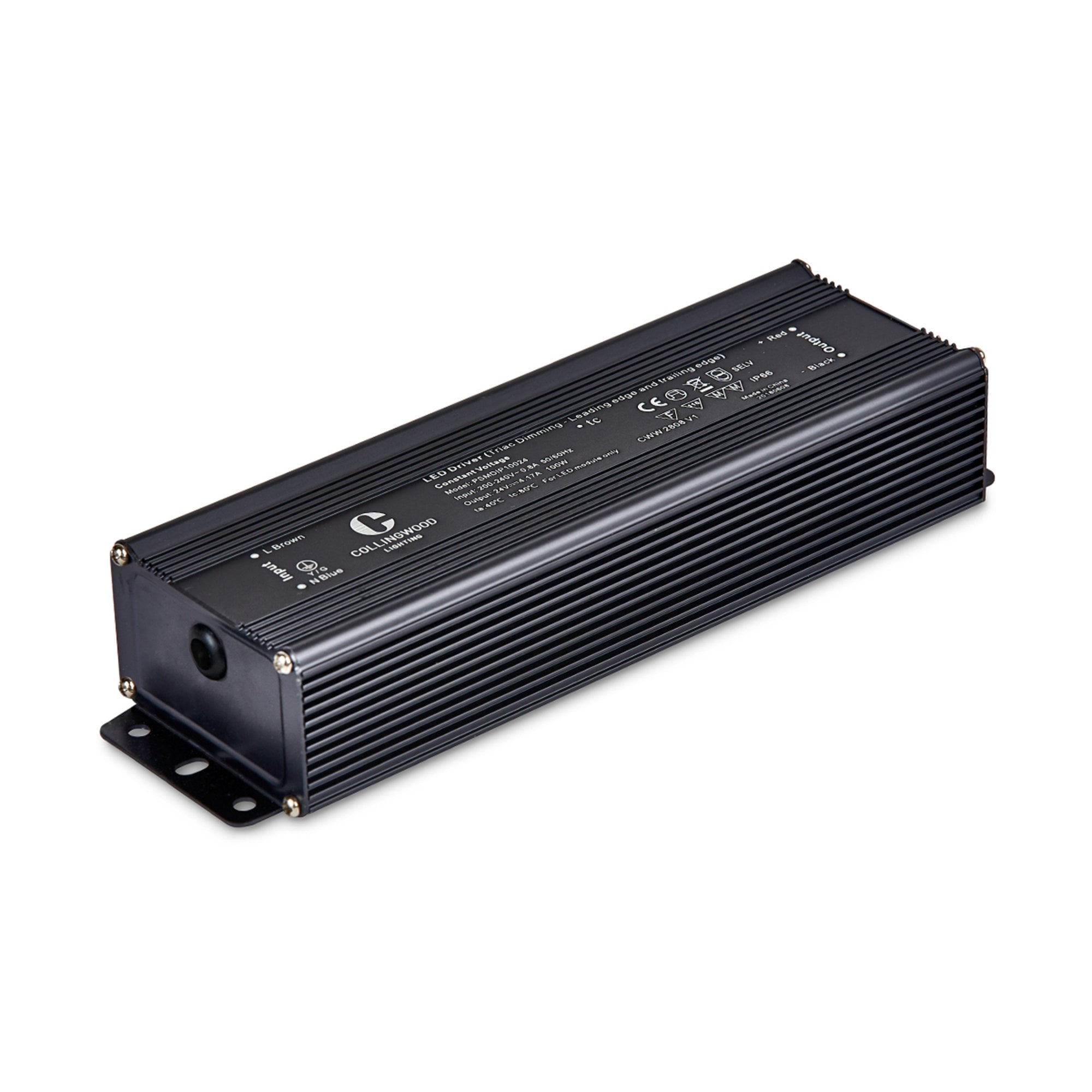

Black finned housing with fixing feet
The case is steel and aluminium, finished in matt black, with deep cooling fins running the whole length of the body. Flat mounting feet at each end carry slotted holes so it can be screwed down and lined up without fuss. Both ends are closed with bolted plates and rubber cable grommets, which is where the seal comes from. The top face is printed with the model, the input and output figures and the certification marks, so an electrician returning years later can read what is fitted without opening anything. It measures 228mm long, 70mm wide and 42mm high, and weighs 1.4kg. This is a piece of gear designed to be tucked away, not admired.
How It Works
It is a constant voltage driver, so it holds 24V and lets the connected load draw the current it needs. The label confirms triac dimming on both leading edge and trailing edge dimmers, which is why it suits a retrofit where the wall dimmer is staying put. Collingwood rates efficiency at around 85% with a power factor of 0.60, and builds in short circuit, overload and overcurrent protection.
Connection is by short flying leads rather than terminals. A 0.25m three core cable takes the mains in, brown for live and blue for neutral, and a 0.25m two core cable carries the output, red positive and black negative. The driver is supplied on its own. LED strip, fittings and any junction boxes are separate purchases. Add up the wattage of everything you intend to run from it and keep the total comfortably under 100W, since a driver run right at its ceiling gets hot and ages faster.
Where It Works Best
This is the driver you reach for when the power supply cannot be kept somewhere warm and dry. Typical jobs include feeding a run of 24V LED strip under a soffit or a canopy, lighting a deck or a garden wall, or supplying strip inside an outbuilding where the driver has to be mounted alongside it. Indoors it earns its place in lofts, garages, utility cupboards and plant rooms, anywhere dust and condensation would trouble a plastic cased unit.
Its IP66 rating also means it is suitable for bathroom use, and our guide to bathroom lighting zones explains which ratings belong where. Mount it on a firm flat surface with the fins clear of insulation and anything else that would trap heat, bring the mains in on one end and take the 24V out of the other, and keep it accessible for future maintenance.
About Collingwood Lighting
Collingwood designs and manufactures its LED products at Sywell in Northamptonshire, and has worked in LED technology and nothing else since 2002. The brand states it was among the earliest to put fire rated, sealed for life and mains dimmable LED products in front of the UK electrical wholesale trade. Collingwood has also been awarded an EcoVadis Gold medal, which places it in the top 5% of all companies assessed worldwide for sustainability.
Good to Know
- Rated output is 100W at 24V DC, with a maximum current of 4.17A.
- Covered by a 1 year warranty.
- IP66 means the housing is sealed against dust and protected against powerful water jets from any direction, which is what allows outdoor and washdown installation.
- Electrical class is Class II, so the driver body itself is double insulated.
- Output is 24V DC SELV, which is safe extra low voltage. It will only run 24V constant voltage LED loads and must never be connected to 12V strip or to a constant current fitting.
- Dimming is done on the mains side using a leading edge or trailing edge dimmer. There is no 1 to 10V or DALI control input on this model.
- Smooth dimming depends on the dimmer as much as the driver. Match the dimmer to the load and test the combination before making everything good.
- Short circuit, overload and overcurrent protection is built in.
- Keep the fins clear and leave air around the case. Wipe the housing clean occasionally and check the cable glands are still tight.
- Moonlight Design recommends installation by a registered NICEIC electrician.
Questions People Ask
What does the Collingwood PSMDIP10024 driver actually power?
The PSMDIP10024 is a constant voltage driver that supplies 24V DC to LED loads such as 24V LED strip and 24V fittings, up to a combined total of 100W. It produces no light itself and the LED products it feeds are bought separately.
Can the PSMDIP10024 be installed outside?
Yes. The PSMDIP10024 is rated IP66, meaning it is fully sealed against dust and protected against powerful water jets, so it can be mounted outdoors or in a damp location without an additional enclosure.
What kind of dimmer works with this driver?
The PSMDIP10024 is mains dimmable and its label specifies triac dimming, so it works with a leading edge or a trailing edge mains dimmer wired into the supply side. It has no low voltage signal input, so 1 to 10V and DALI systems are not compatible with it.
How much LED strip will a 100W 24V driver run?
A 100W 24V driver can supply up to 4.17A, so the total wattage of all the strip and fittings connected to it must stay below 100W. As an example, a 24V strip rated at 10W per metre gives a theoretical maximum of 10 metres, and allowing spare capacity rather than loading it to the limit is better practice.
How big is the PSMDIP10024 and how is it fixed in place?
The PSMDIP10024 measures 228mm long by 70mm wide by 42mm high and weighs 1.4kg. It is screwed down through slotted mounting feet at each end of the finned steel and aluminium housing, and connects using two short flying leads, a three core mains lead in and a two core 24V lead out.
