A 24V Driver You Can Dim From The Wall Switch
Dimming 24V LED strip usually means adding a control system alongside it, a DALI line or a 0 to 10V pair, which is a lot of extra wiring for a single run of cove lighting. The Collingwood PSMD3024 sidesteps all of that. It is a 30W constant voltage driver that responds to an ordinary mains dimmer sitting on its incoming supply, so the switch already on the wall does the dimming and nothing extra needs threading through the circuit.

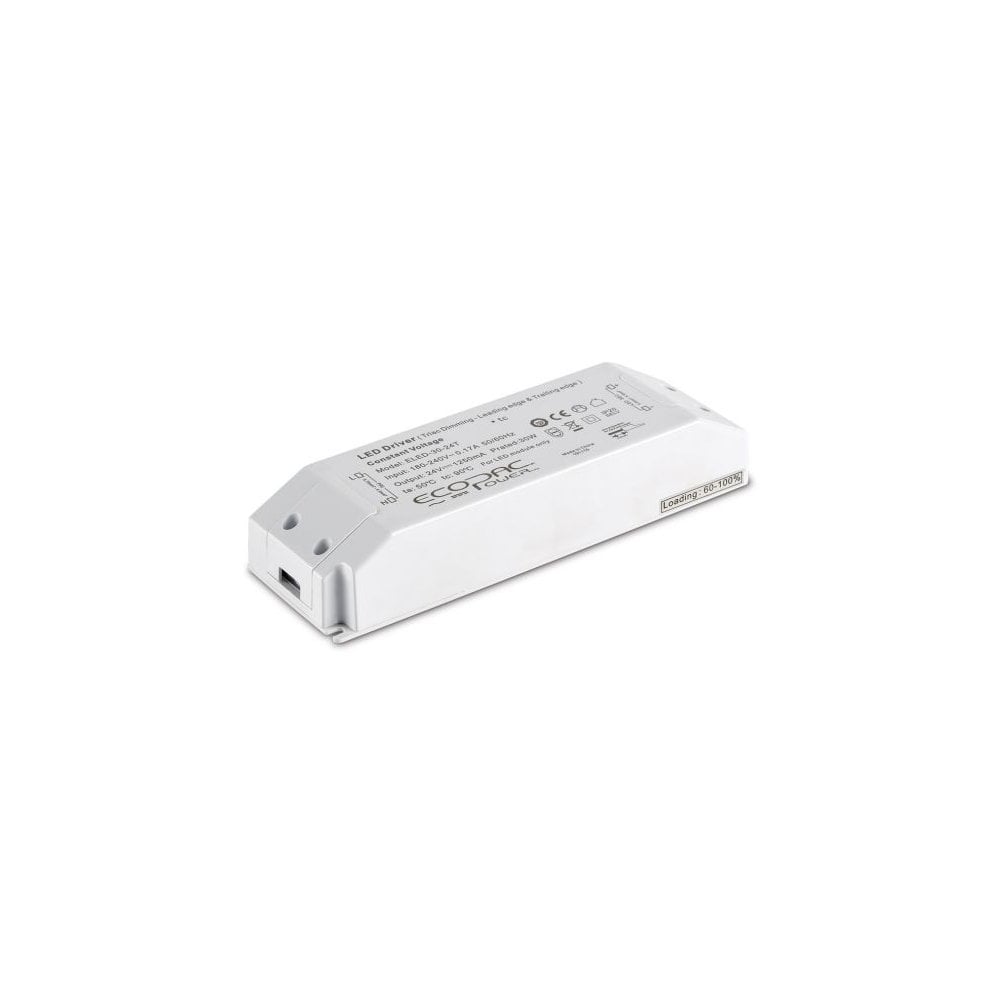

The Unit Itself
It is a plain white plastic case, slimline rather than chunky, 180mm long by 60mm wide and only 35mm tall, weighing 0.5kg. That low profile is the whole point of it. It lies flat in a ceiling void, a shallow cupboard or the back of a joinery panel where a deeper driver would foul the board. A flat lug at each end takes a fixing screw, so it can be secured down properly instead of left rattling loose in a void. The casing is Class II, double insulated, with the terminals sitting behind the end covers.
How It Works
Mains at 180 to 240V AC goes in one end and a steady 24V DC comes out the other, up to 1.25A and 30W in total. Because it is constant voltage rather than constant current, you size it by adding up the wattage of everything it feeds and staying under that 30W ceiling. Collingwood lists it as the driver for their LED strip and for the SL250 path light. The dimming range is 0 to 100%, with a stated loading window of 60 to 100%, so the driver expects to see a decent LED load on the output rather than a token metre of tape. Short circuit, overload and overheating protection are all built in. The input terminals take 0.75 to 4.0mm² and the output terminals 0.5 to 4.0mm². It is supplied as the driver on its own, so the dimmer switch and the LED load are specified separately.
Where It Works Best
This is a driver for indoor, dry positions. IP20 gives it no protection against water at all, so it belongs in a loft void, an airing cupboard, a service riser or a purpose made enclosure, and never outdoors or inside a bathroom zone. Typical jobs are a run of cove or pelmet strip in a living room, under cabinet tape in a kitchen where the client wants the brightness adjustable, a lit wardrobe interior, or feeding SL250 path lights from a dry position indoors while the fittings themselves sit outside. Leave it reachable. The driver is the part of an LED installation most likely to want attention years later, and one buried behind sealed plasterboard turns a ten minute swap into a repair job.
About Collingwood Lighting
Collingwood design and manufacture their LED products in Sywell, Northamptonshire, and have concentrated on LED specifically since 2002, which is early for a British manufacturer. The brand states it was among the first to bring fire rated, sealed for life and mains dimmable LED products to the UK electrical wholesale trade, and a driver like this one is squarely part of that mains dimmable thinking. Collingwood has also been awarded an EcoVadis Gold medal, placing it in the top 5% of companies assessed worldwide for sustainability.
Good to Know
- Covered by a 3 year Collingwood warranty.
- IP20 means protection against solid objects down to finger size but none whatsoever against water. Indoor, dry locations only.
- Class II double insulated construction, so no protective earth connection is needed at the driver.
- Constant voltage 24V DC output with a 30W maximum. Total up your LED load and leave a little headroom rather than running right at the ceiling.
- Mains dimming performance varies between dimmer models, so check your chosen dimmer against the driver before committing to a whole run, and keep the load inside the 60 to 100% window for smooth control.
- Short circuit, overload and overheating protection are built in. Rated for an ambient temperature up to 50°C, so give it air and do not pack insulation tight around it.
- Care is nothing more than keeping it dry and keeping dust off it. There is nothing user serviceable inside the case.
- Moonlight Design recommends installation by a registered NICEIC electrician.
Questions People Ask
Can the Collingwood PSMD3024 be dimmed with a normal wall dimmer?
Yes. The Collingwood PSMD3024 is a mains dimmable LED driver, so it is dimmed by a standard dimmer switch fitted on the 180 to 240V AC supply feeding it, with no DALI or 0 to 10V control cable required. Its dimming range is 0 to 100% with a stated loading window of 60 to 100%.
What can the PSMD3024 power?
The PSMD3024 is a 24V constant voltage LED driver rated at 30W maximum with an output of up to 1.25A, and Collingwood lists it as suitable for their LED strip and for the SL250 path light. The combined wattage of everything wired to its output must stay below 30W.
Can the PSMD3024 be installed outdoors or in a bathroom?
No. The PSMD3024 is rated IP20, which offers no protection against water, so it must be installed indoors in a dry location such as a loft void, a cupboard or a sealed enclosure. It can still power fittings that are themselves outdoors, as long as the driver itself stays dry.
What size is the PSMD3024 and does it need an earth?
The PSMD3024 measures 180mm long, 60mm wide and 35mm high, and weighs 0.5kg. It is a Class II double insulated unit, so a protective earth connection is not required at the driver.
Why might a small run of LED strip dim unevenly on this driver?
The PSMD3024 has a stated loading window of 60 to 100%, meaning it works best when the connected LEDs draw at least around 60% of its 30W capacity, so a very short tape run on a 30W driver can behave poorly at the bottom of the dimming curve. Pairing it with a dimmer switch designed for LED loads also improves low end control.
