Collingwood PSDAL350M 30W 350mA LED Driver - IP20 - DALI Dimmable

A 350mA Constant Current Driver With Serious Dimming Range

The Collingwood PSDAL350M is the box that sits behind the light rather than the light itself. It takes mains power and turns it into a steady 350mA constant current supply for LED fittings, up to 30W of them. What sets it apart from a basic driver is the control side. It answers to DALI, to 1-10V, and to a simple push to make switch, so the same unit can drop into an addressable commercial scheme or a domestic circuit where the client just wants a retractive switch on the wall.

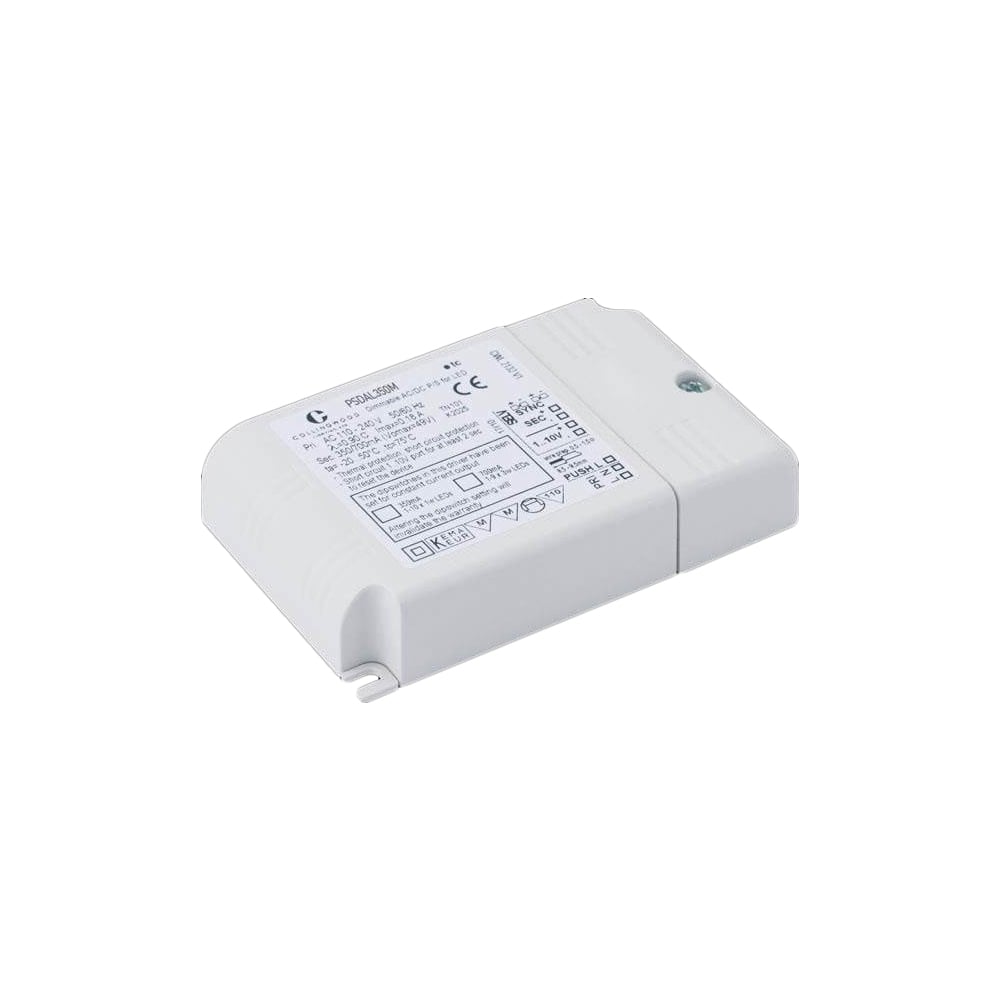

White Polycarbonate, Slim Enough to Hide

The casing is white polycarbonate with a UL94-V0 flame retardant rating, moulded with a slightly ribbed shell and a flat printed label across the top face listing the input and output figures. It measures 123mm long, 79mm wide and only 22mm deep, and weighs 0.1kg. That shallow depth is the useful part. It will lie flat above a plasterboard ceiling or slide into a housing where a chunkier driver would foul the joists. There is no visible finish to match because nothing here is meant to be seen once the job is done.

How It Works

Mains at 110V to 240V goes in, and a regulated 350mA comes out across an output range of 2V to 74V, which is what governs how many LEDs in series it can carry. Collingwood publishes an efficiency figure of 90% and a power factor of 0.95. Terminals accept conductors from 0.5mm² up to 1.5mm². Protection against short circuit, overload and overheating is built in. Collingwood supplies a sync cable with the driver, which lets you link up to 10 units so they dim together as one group instead of drifting apart at the bottom of the curve. The LED fitting itself is bought separately, since this unit produces no light of its own.

Where It Works Best

This is a driver for schemes where the dimming has to be properly controlled. In an office, a retail floor or a hotel corridor running on a DALI bus, it becomes an addressable node on the network. In a house, a shop unit or a small studio with no control system, the push to make input means a single retractive switch handles on, off and level. It gets fitted in the ceiling void above the fittings, inside a plant cupboard, in a bulkhead, or wherever the installer can reach it again for service. Being IP20, it wants a dry, protected position indoors. Do not bury it in insulation and do not put it anywhere it might get wet.

About Collingwood Lighting

Collingwood designs and builds its LED products in Sywell, Northamptonshire, and has been working exclusively in LED since 2002, which is a long run in a sector where plenty of names arrived much later. The brand states it was among the first to put fire rated, fully sealed for life and mains dimmable LED products in front of the UK electrical wholesale trade. It also holds an EcoVadis Gold medal, placing it inside the top 5% of companies assessed worldwide for sustainability.

Good to Know

• Backed by a 5 year warranty from Collingwood.
• Rated IP20, which means it is protected against fingers and solid objects over 12mm but has no water protection at all. It must be installed in a dry indoor location.
• Class II construction, so it is double insulated and needs no earth connection at the driver.
• Fixed 350mA output. It will only run LED fittings designed for a 350mA constant current supply. Check the fitting data before you order.
• Three dimming methods are supported, DALI, 1-10V and push to make. Trailing edge and leading edge mains dimmers are not among them, so do not wire one in ahead of this driver.
• Total connected load must stay within 30W and inside the 2V to 74V output window.
• No maintenance is needed. Leave the unit accessible so it can be reached for testing or replacement later.
• Moonlight Design recommends installation by a registered NICEIC electrician.

Questions People Ask

Can the Collingwood PSDAL350M be dimmed without a DALI system?
Yes. The PSDAL350M accepts three control methods, DALI, 1-10V and a push to make retractive switch, so it can be dimmed on a simple domestic circuit with no control network present.

How many LED fittings can a PSDAL350M run?
The PSDAL350M delivers 350mA at an output voltage of 2V to 74V with a maximum of 30W, so the number of fittings depends on the forward voltage of each one. Add the forward voltages of the LEDs in the series chain and keep the total inside 74V.

Can the PSDAL350M be used in a bathroom?
No. The PSDAL350M is rated IP20, which offers no protection against moisture, so it must be positioned in a dry area away from the bathroom zones even when the fittings it powers are inside them.

Can several PSDAL350M drivers be dimmed together?
Yes. Up to 10 PSDAL350M drivers can be linked with the sync cable supplied in the box so they respond to one dimming command and track at the same level.

What size is the Collingwood PSDAL350M driver?
The PSDAL350M measures 123mm long by 79mm wide by 22mm deep and weighs 0.1kg, a slim enough footprint to sit flat in a ceiling void or inside a luminaire housing.

123mm length x 79mm width x 22mm depth
