Collingwood PR3011 IP20 350mA RGBW Power Repeater (Requires Driver)

The box that keeps a long colour changing run honest

The Collingwood PR3011 is a power repeater, and its whole job is to stop a large RGBW scheme running out of puff. Push a colour changing circuit far enough and the fittings at the end of the line start to lag behind the ones nearest the controller. The PR3011 sits in that line, takes a 24V DC feed and hands out four fresh 350mA outputs, one each for the red, green, blue and white channels. The last fitting on the run then shows the same colour and the same brightness as the first.

The unit itself

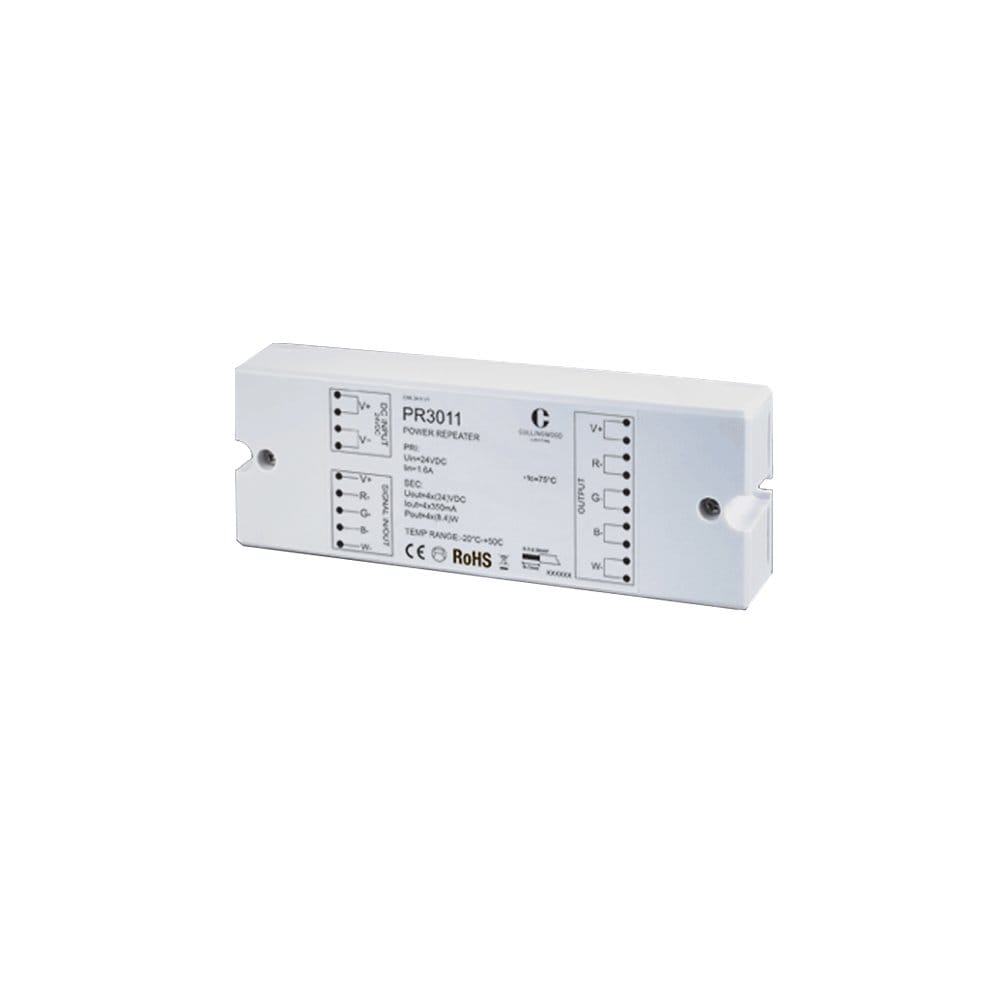

This is a plain white plastic case, 170mm long, 58mm wide and only 28.5mm tall, weighing around 0.2 kg. Nothing about it is meant to be seen. The lid carries its own printed wiring legend, so an electrician can read the terminal layout straight off the box rather than going looking for a manual. Screw terminals sit at both ends, with the DC input and the signal in and out on one side and the V+, R, G, B and W outputs on the other. A moulded fixing lug at each end lets it be screwed down flat.

How It Works

A Collingwood RF controller sets the colour for the zone. Rather than passing that signal through each repeater in turn, the control wiring runs in parallel, so every PR3011 on the system hears the controller directly. Each repeater then drives its own group of fittings with its own current. Collingwood rates up to 100 PR3011 units on a single C100924 controller, which works out at as many as 600 luminaires in one zone.

The repeater does not make its own power. It expects a 24V DC supply from a separate driver, which is why this listing is flagged as requiring one. Input draw is rated at 1.6A, and each of the four outputs delivers 350mA at 24V, so up to 8.4W per channel. Collingwood lists protection against both short circuit and overheating. Wiring is a straightforward terminal job for a qualified electrician, and the unit should be fixed somewhere it can shed a little heat rather than buried in insulation.

Where It Works Best

This is a component, so it lives out of sight. Think of a garden or facade scheme with more RGBW fittings than one controller can carry on its own, where the run needs breaking into groups with a repeater feeding each one. It gets mounted in a dry protected spot, typically a plant room, a service cupboard, a garage, a loft or a ceiling void, and then wired out to the fittings from there.

Because it is rated IP20 it stays indoors itself, or inside a separate weatherproof enclosure, even when everything it feeds is sitting outside in a border or under a canopy. Landscape and architectural installs are the obvious home for it, along with retail and hospitality interiors where a colour changing scheme is zoned across a big floor area.

About Collingwood Lighting

Collingwood designs and manufactures its LED products in Sywell, Northamptonshire, and has worked in LED technology and nothing else since 2002. The brand states it was among the first to bring fire rated, fully sealed for life and mains dimmable LED products to the UK electrical wholesale market. It has also been awarded an EcoVadis Gold medal, placing it in the top 5% of companies assessed worldwide for sustainability. Control gear like the PR3011 is the unglamorous end of that catalogue, and it is built to the same standard as the fittings it drives.

Good to Know

• Four output channels, each 350mA at 24V DC, giving up to 8.4W per channel. Rated input draw is 1.6A.
• Rated IP20. That means protection against solid objects larger than 12.5mm and no protection at all against water, so the repeater must be kept in a dry position or housed inside a weatherproof enclosure.
• Class III. It runs on a safety extra low voltage 24V DC supply rather than on mains directly.
• Requires a separate 24V DC driver. The PR3011 relays and regenerates, it does not convert mains.
• Control signal is wired in parallel, allowing up to 100 repeaters per C100924 controller and up to 600 luminaires per zone.
• The printed rating on the case gives an operating temperature range of minus 20°C to 50°C.
• Collingwood lists short circuit and overheating protection on this repeater.
• Measures 170mm long by 58mm wide by 28.5mm high, weight 0.2 kg. Plastic housing.
• Warranty listed on this product record is 1 year.
• Care is minimal. Isolate the supply, then wipe dust off the case with a dry cloth. No solvents, and keep the terminals clear.
• Moonlight Design recommends installation by a registered NICEIC electrician.

Questions People Ask

Does the Collingwood PR3011 need a separate driver?
Yes. The PR3011 power repeater is not a mains power supply. It takes a 24V DC feed from a separate driver and converts it into four 350mA constant current outputs for the red, green, blue and white channels, which is why it is listed as requiring a driver.

How many PR3011 repeaters can run from one controller?
Collingwood rates up to 100 PR3011 power repeaters on a single C100924 controller. The control signal is wired in parallel rather than passed through each unit in turn, and the resulting ceiling is around 600 luminaires in one zone.

Can the Collingwood PR3011 be installed outdoors?
No. The PR3011 is rated IP20, which gives no protection against water, so it has to be installed in a dry indoor position or inside a separate weatherproof enclosure. It can still feed outdoor rated RGBW fittings further along the circuit.

What is the output of the PR3011?
The PR3011 provides four output channels, each supplying 350mA at 24V DC for up to 8.4W per channel. Its rated input current is 1.6A, and Collingwood lists protection against short circuit and overheating.

Will the PR3011 work with RGB fittings as well as RGBW?
Yes. Collingwood lists the PR3011 as a repeater for its RGBW and RGB products. It is a four channel device, and an RGB fitting uses three of those four outputs with the white channel left unconnected.

28.5mm height x 170mm length x 58mm width
