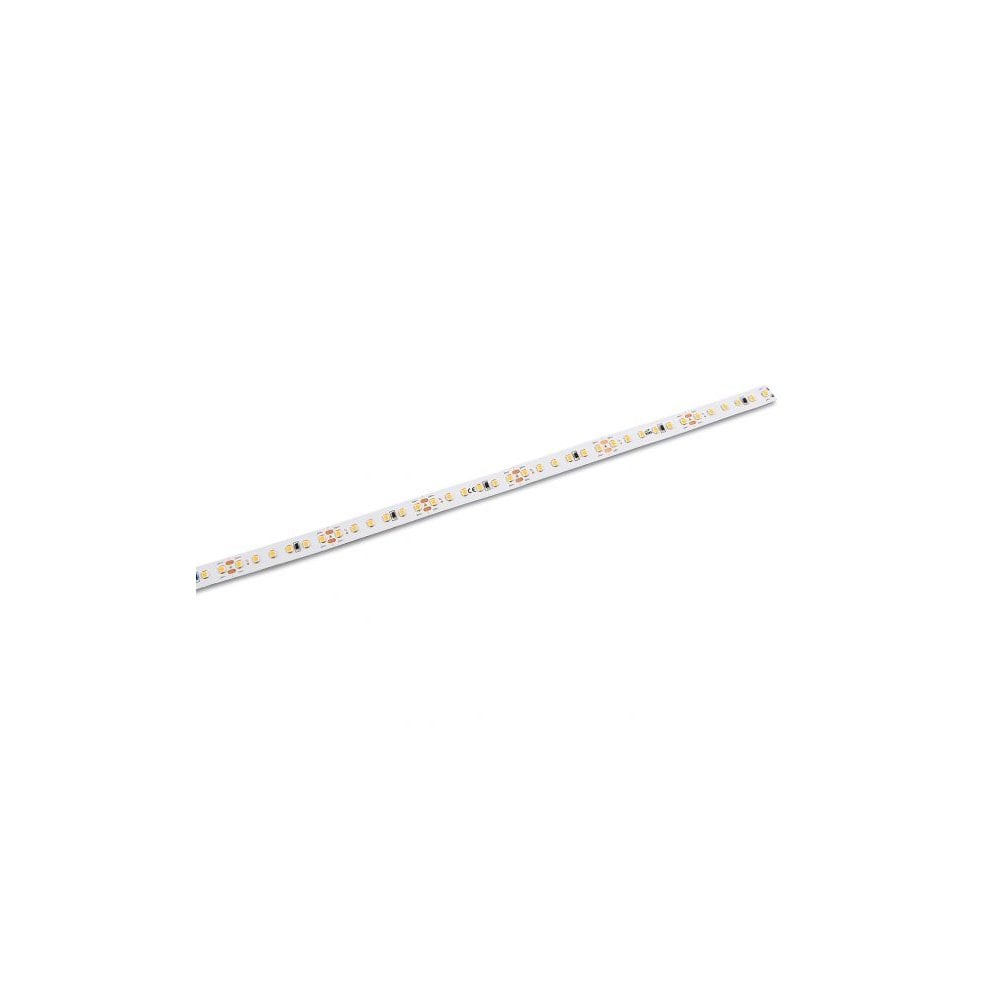

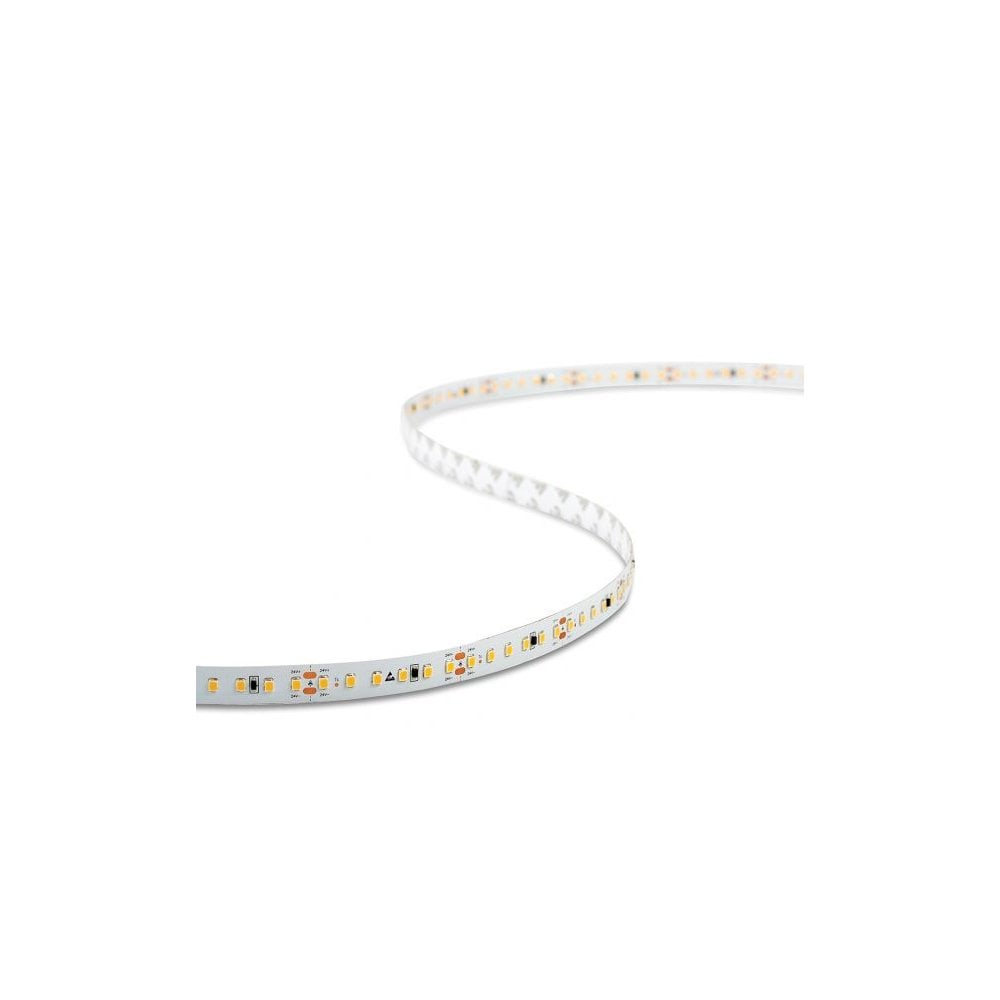

Collingwood LSC05 LED Strip, IP20, 9.6W/m - Bespoke Lengths up to 20m - Low Voltage

A Flexible LED Strip Cut to Your Exact Length

The LSC05 is a 24V constant voltage LED strip that Collingwood can cut to size, up to 20m from a single run. Rather than buying a fixed length and working around it, you tell your supplier the length you need and it arrives ready to fit.

Colour Temperature and Output

It runs at 9.6W per metre and comes in 2700K, 3000K or 4000K, so you can match it to warm, neutral or cool white lighting elsewhere in the room. A CRI of 90 means colours under the strip look accurate and true to life, not washed out or flat.

How It Works

• Runs on 24V DC constant voltage, wired in parallel along its length
• Needs a separate 24V DC driver, which is not included
• Dims smoothly when paired with a driver that supports dimming
• 12mm wide flexible tape, designed to sit inside a profile or channel
• Marked cut points let an installer trim it to the exact length ordered

Where It Works Best

Because it's rated IP20, the LSC05 is built for dry indoor spaces rather than bathrooms or anywhere damp. It's most often hidden inside a profile or channel, tucked behind coving, under a shelf, along a staircase string or inside a skirting board, so you get the glow of light without seeing the strip itself. It works well in living rooms, bedrooms, dining rooms, hallways, offices and stairs, anywhere you want a long, continuous run of light rather than a single point source.

Collingwood Lighting

Collingwood Lighting designs and manufactures its LED products from Sywell in Northamptonshire, and has focused on LED technology since 2002. The LSC05 is part of a wider strip lighting system the brand has built around cutting to length, matched drivers and connectors, so a run like this one can be extended or adapted rather than treated as a single fixed product. Collingwood has also been awarded a Gold medal by EcoVadis, placing it among the top 5% of companies assessed globally for sustainability.

Good to Know

• Comes with a 5 year warranty
• Cut to the exact length ordered, so it's non-returnable
• IP20 rated, suited to dry indoor rooms only
• Needs a separate 24V DC driver, sold separately
• Moonlight Design recommends installation by a registered NICEIC electrician

Questions People Ask

• Does this LED strip come with a driver? No. The LSC05 needs a separate 24V DC driver to operate, and this is sold separately.
• Can I cut the strip myself if I need it shorter? It's supplied already cut to the length you order, with marked cut points along its length, so no further cutting should be needed for a standard install.
• What is the maximum length I can order in one run? Collingwood can supply the LSC05 in bespoke lengths up to 20m from a single continuous run.
• Is the LSC05 suitable for a bathroom? No. It's rated IP20 for dry indoor use only, so it's not suitable for bathrooms or other damp locations.
• Can I dim this strip? Yes, as long as it's paired with a dimmable 24V DC driver. The strip itself doesn't include dimming control.

12mm width

• Collingwood Strip Light Guide 2025
