Collingwood Strip to Driver Connector for LSC04, LSC05 and LSC06 12mm LED Strip

A solder free way to get power onto 12mm LED strip

Joining LED strip to its driver is the fiddly bit of any tape lighting job. This Collingwood connector, code LSK2212SD, takes the soldering iron out of it. One end clamps straight onto the copper pads of 12mm strip. The other end is a twin core flying lead that runs back to the driver. No heat, no flux, no twisted joints hidden behind a plasterboard reveal.

The strip to driver version of the LSK range

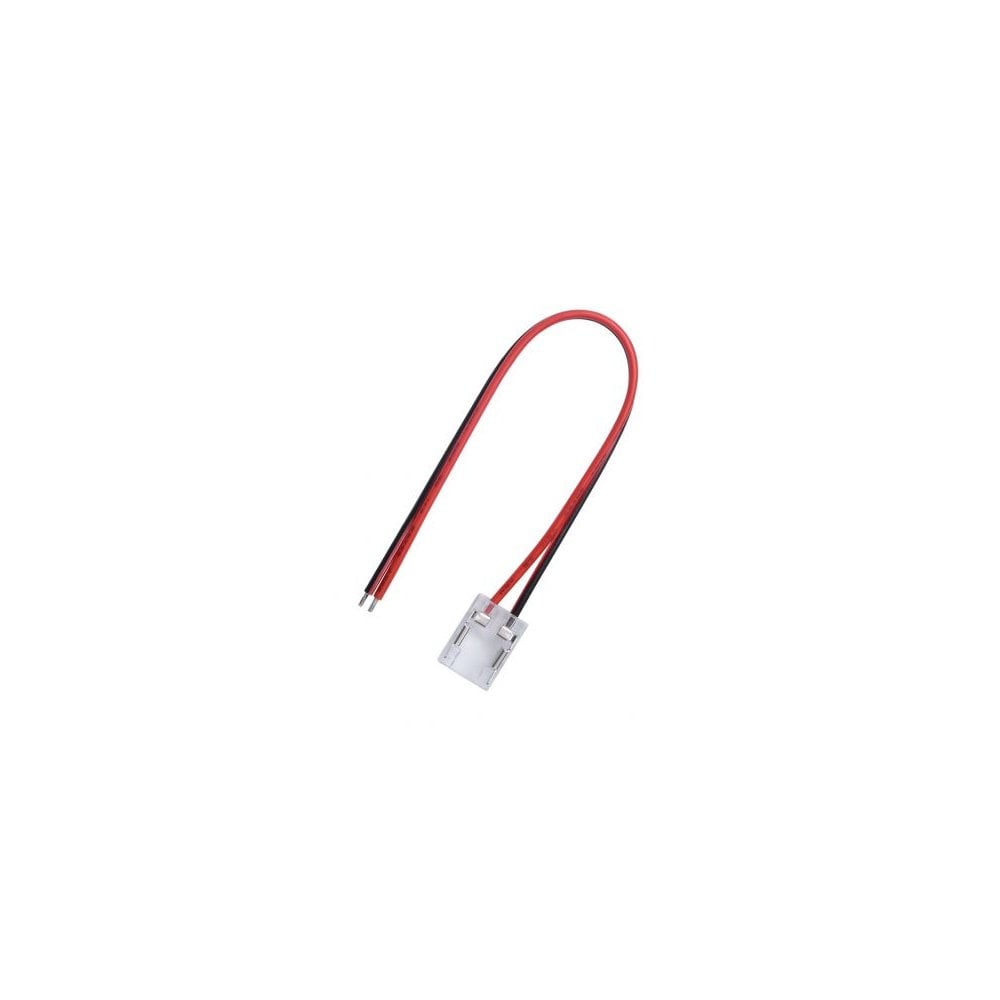

Collingwood makes the LSK connectors in several jobs, including strip to strip, flex bend and L bend. This is the strip to driver one, sized for 12mm wide tape. It is the piece you reach for at the very start of a run, where the tape needs feeding rather than extending or turning a corner. The body is moulded in polycarbonate with copper contacts inside, and the housing is a plain low profile clip rather than anything decorative, because the whole point is that it disappears once the run is fitted. The flying lead is a two core cable, red and black, with tinned bare ends ready to land in a driver terminal.

How It Works

The clip has a hinged lid. Lift it, slide the cut end of the strip in so the two solder pads sit under the sprung copper contacts, then press the lid shut. The contacts bite onto the pads and hold the strip in place. Polarity matters, so match the red core to the positive pad and the black core to the negative one before you close it. From there the two bare tails go into the DC output terminals of the driver. You get one connector with its lead attached. The strip, the driver and any profile are all bought separately.

Where It Works Best

This is the feed point for a Collingwood LSC04, LSC05 or LSC06 run. In practice that means the head end of a kitchen plinth or under cabinet run, a shelf, a stair nosing, a cove detail or a wardrobe interior, wherever the tape has to pick up 24V from a driver tucked in a cupboard, a void or a service riser. Because the connector body is slim it will sit inside most aluminium strip profiles, so the join can stay in the channel with the diffuser over it instead of dangling outside the housing. It is also handy on site when a run has been cut to length and the factory tail is no longer on the piece you actually need.

About Collingwood Lighting

Collingwood designs and manufactures its LED products in Sywell, Northamptonshire, and has worked in LED technology alone since 2002. The brand states that it was among the first to bring fire rated, fully sealed for life and mains dimmable LED products to the UK electrical wholesale market. It also holds an EcoVadis Gold medal, which puts it in the top 5% of companies assessed worldwide for sustainability, and that same attention shows up in the small parts as much as the fittings.

Good to Know

• Backed by a 2 year Collingwood warranty.
• Rated IP20, so it is for dry interior use only. It has no protection against water and must not be used outdoors, in a bathroom zone or anywhere it could be splashed.
• Listed electrical class: Class I.
• Made from polycarbonate with copper contacts.
• Sized for 12mm wide Collingwood strip, specifically LSC04, LSC05 and LSC06. It will not grip 8mm or 10mm tape correctly.
• Dimming is handled by the driver and the control gear, not by this connector. It passes DC through and adds no switching or dimming function of its own.
• Listed as a non returnable item.
• Keep the contacts clean and dry, and avoid repeatedly reopening the clip on the same piece of tape, as the pads can wear.
• Moonlight Design recommends installation by a registered NICEIC electrician.

Questions People Ask

What does the Collingwood LSK2212SD connector do?
The Collingwood LSK2212SD is a strip to driver connector for 12mm LED strip. It clamps onto the cut end of the tape and provides a twin core flying lead that wires into the DC output of an LED driver, so no soldering is needed.

Which Collingwood LED strips does it fit?
The LSK2212SD fits Collingwood's 12mm wide IP20 strip, which covers the LSC04, LSC05 and LSC06 ranges. Collingwood makes separate 8mm and 10mm versions of the LSK connector for its narrower tape.

Do I still need a driver if I use this connector?
Yes. The LSK2212SD only carries power to the strip, it does not supply it. Collingwood's LSC04, LSC05 and LSC06 strips run on 24V DC and need a separate LED driver, which is bought on its own.

Can this connector be used in a bathroom or outdoors?
No. The LSK2212SD is rated IP20, which means it has no protection against moisture, so it is suitable for dry indoor locations only and should not be installed in bathroom zones or in any external position.

Will it fit inside an aluminium LED profile?
The LSK2212SD has a slim low profile body designed to sit inside most LED strip channels, so the connection can be concealed under the diffuser rather than left visible outside the housing.
