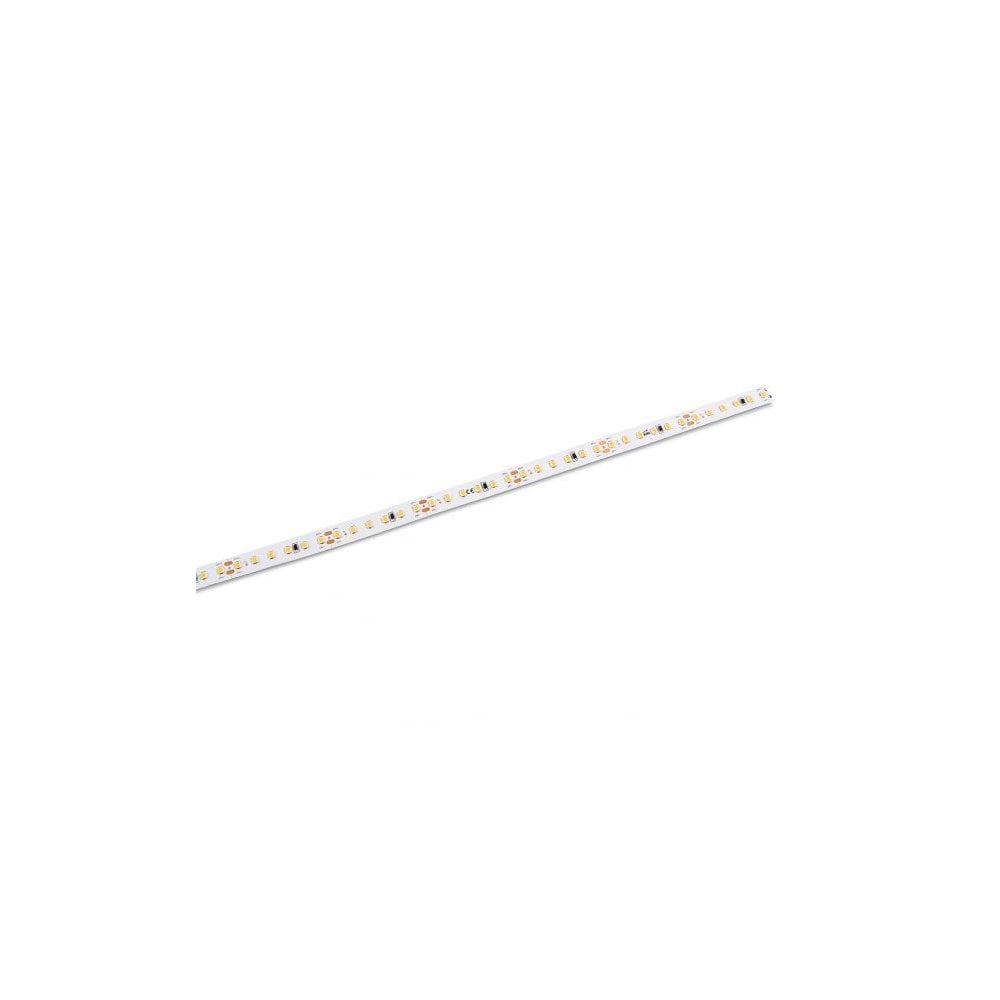

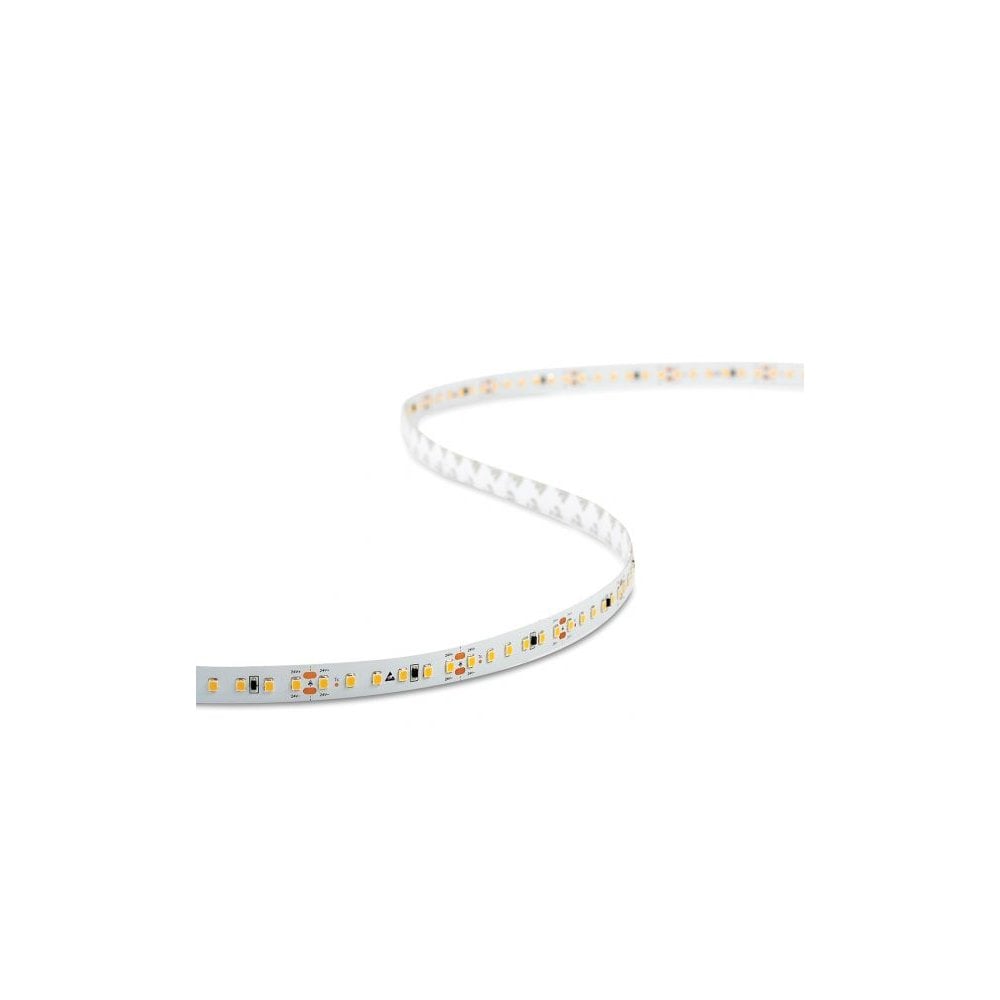

Collingwood LSC04 LED Strip, 14.4W/m, IP20

A Strip of Light Cut Exactly to Your Run

The LSC04 is a flexible LED strip supplied cut to the exact length your project needs, up to 10m from a single reel, so you're not left joining shorter sections together to make up a run. Running at 14.4W per metre with a CRI of 90, it renders colours and skin tones naturally rather than with the flat, slightly grey look cheaper strip can give.

White Tape, Three Colour Temperatures

The LSC04 comes on white flexible tape, 12mm wide, and is available in 2700K, 3000K or 4000K, so you can match the colour temperature to the room it's going into. Because each length is cut to order rather than sold as a fixed reel size, you order the exact metreage you need, from a short accent run up to a full 10m length.

How It Works

This is a 24V constant voltage strip, so it needs a separate 24V DC driver to step the mains supply down. It uses parallel wiring along its length, which keeps brightness even from one end of the run to the other rather than dimming towards the far end, a common issue with cheaper series wired strip. Choose a driver that supports dimming and the LSC04 will dim with it. Rated IP20, it's built for dry indoor use, and is generally run inside a profile or channel that hides the tape itself and diffuses the light output.

Where It Works Best

The LSC04 suits everyday indoor lighting: under kitchen wall units, along a hallway or staircase string, inside coving or a bulkhead in a living or dining room, or as under desk task lighting in an office. Because it comes in three colour temperatures, the same strip can give a warm, relaxed glow in a bedroom or a cooler, more functional light in a study or office, all from one product.

Collingwood: Focused on LED Strip Systems Since 2002

Collingwood Lighting designs and manufactures its LED products, strip like the LSC04 included, from its base in Sywell, Northamptonshire, and has specialised in LED technology since 2002. The brand builds strip, drivers and connectors as a joined up system rather than separate parts, and states it was among the first to bring fire rated, fully sealed and mains dimmable LED products to the UK electrical wholesale market. Collingwood has also been awarded a Gold medal by EcoVadis, placing it in the top 5% of companies assessed globally for sustainability.

Good to Know

14.4W per metre, CRI 90, available in 2700K, 3000K or 4000K
Cut to bespoke lengths up to 10m per reel, 12mm wide, on white flexible tape
Requires a separate 24V DC driver, and is dimmable if the driver supports it
Parallel wired for even brightness along the full run
Rated IP20, suitable for dry indoor spaces only
Made to order for each length, so it's supplied non returnable
Comes with a 5 year warranty
Moonlight Design recommends installation by a registered NICEIC electrician

Questions People Ask

Can I dim this strip?
Yes, as long as it's paired with a 24V DC driver that supports dimming. The strip itself doesn't include a driver.

Can I use this in a bathroom?
No. At IP20 the LSC04 is only rated for dry indoor locations, so it isn't suitable for bathrooms or other damp areas.

Why is it non returnable?
Each length is cut specifically to the order, so unlike a fixed size product it can't be resold if it's returned.

What's the difference between the three colour temperature options?
2700K and 3000K both give a warm white light suited to living spaces, while 4000K gives a cooler, more neutral white better suited to offices or task areas.

Does the brightness drop off towards the end of a long run?
No. The LSC04 uses parallel wiring, which keeps brightness consistent from one end of the strip to the other, even at longer lengths.
