Collingwood 1901 Fixed Square Downlight - All White (Fire-Rated)

A Square Downlight That Sits Flush Into The Ceiling

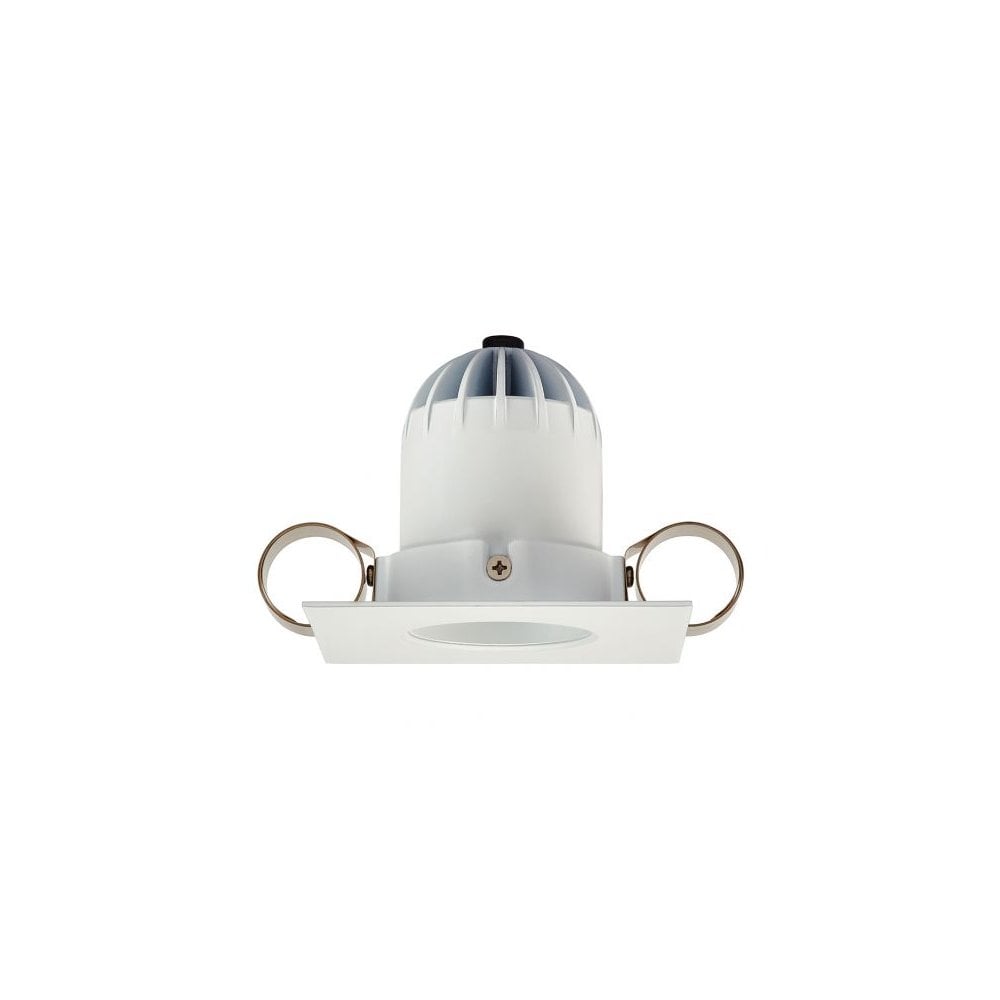

This is the fixed version of Collingwood's 1901 downlight, finished in all white with a straight edged square bezel rather than a round one. Because it's fixed rather than adjustable, it always points straight down, which keeps a row of them looking calm and even across a ceiling.

All White, Fixed, Square Bezel

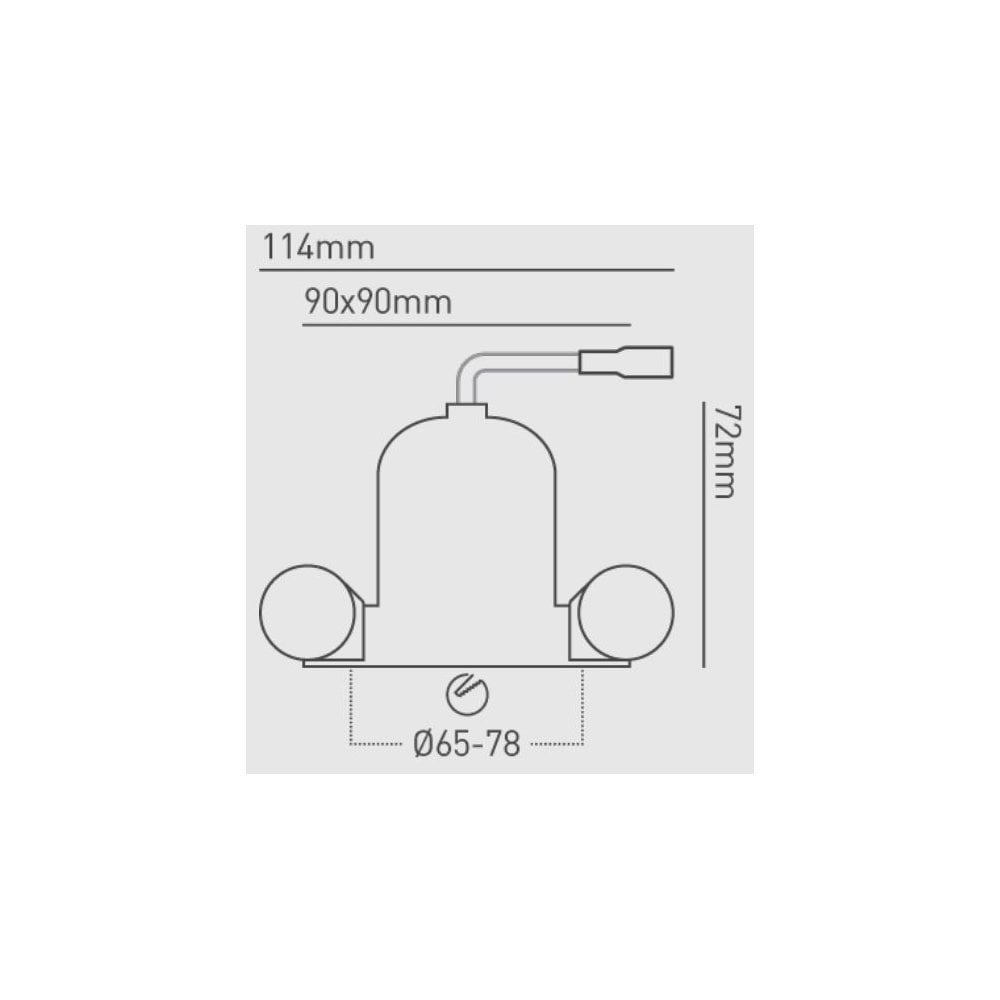

The bezel measures 90 by 90mm, with an overall depth of around 72mm, and it fits into a cutout of 65 to 78mm depending on your ceiling. The finish is a plain matte white that disappears against a painted ceiling, and the square edge lines up naturally with grid layouts or square floor and wall tiling, somewhere a round bezel would look slightly out of place.

How It Works

Each fitting runs at a total of 9.6W and is available in 2700K extra warm white, 3000K warm white, 4000K cool white, or a dim to warm option that shifts from 3000K down to 1800K as you dim it, all rated at CRI90+ for accurate colour rendering. You can choose a 12°, 24° or 50° beam depending on how tight or wide you want the spread of light to be. Dimming is built in via mains, 1 to 10V or DALI control, handled by a driver that's supplied with the fitting and wired in on arrival, so there's nothing extra to source.

Where It Works Best

In IP44, it suits living rooms, kitchens, dining rooms, hallways, offices and stairwells, anywhere you want a clean recessed downlight rather than a visible fitting. Choose the IP65 version and it's also rated for bathroom zone 1, as well as commercial spaces where a higher ingress rating is needed. Read our guide to bathroom lighting zones before deciding which rating your room needs.

About Collingwood Lighting

Collingwood Lighting designs and manufactures its LED products from Sywell in Northamptonshire, and has specialised purely in LED technology since 2002. The brand says it was among the first to bring fire rated downlights like this one to the UK electrical wholesale market, alongside fully sealed and mains dimmable LED products. Collingwood has also been awarded a Gold medal by EcoVadis, placing it in the top 5% of companies assessed globally for sustainability.

Good to Know

• Fire rated to 30 minutes in solid timber, I-joist and metal web ceiling joists.
• Available in IP44 or IP65. Choose IP65 for bathroom zone 1 or anywhere moisture is a concern.
• Certified to Part P and Part L across all versions, with Part C and Part E certification on the IP65 version.
• Backed by a 7 year warranty from Collingwood.
• This product is marked as non returnable, so check beam angle, colour temperature and dimming type carefully before ordering.
• Moonlight Design recommends installation by a registered NICEIC electrician, as this is a mains wired fitting.

Questions People Ask

What's the difference between this and the round version of the 1901 downlight?
This fixed square version has a straight edged bezel rather than a round one, which sits better against square tiling or a grid ceiling layout, and it points straight down rather than tilting like the adjustable version.

Can I dim this downlight down to a warm, candle like glow?
Yes. Choosing the dim to warm colour temperature option shifts the light from 3000K down to 1800K as you lower the dimmer, similar to the warming effect of a dimmed halogen or incandescent bulb.

Does the driver come with the fitting, or do I need to buy one separately?
The driver is supplied with the fitting and wired in via cable, so there's nothing extra to source, whichever dimming type you choose.

Which version do I need for a bathroom?
Choose the IP65 rated option, which is rated for bathroom zone 1. The IP44 version is intended for dry, general purpose rooms rather than bathrooms.
