Collingwood 1901 Double Fixed Trimless Downlight - All White (Fire-Rated)

A double downlight that keeps the ceiling clean

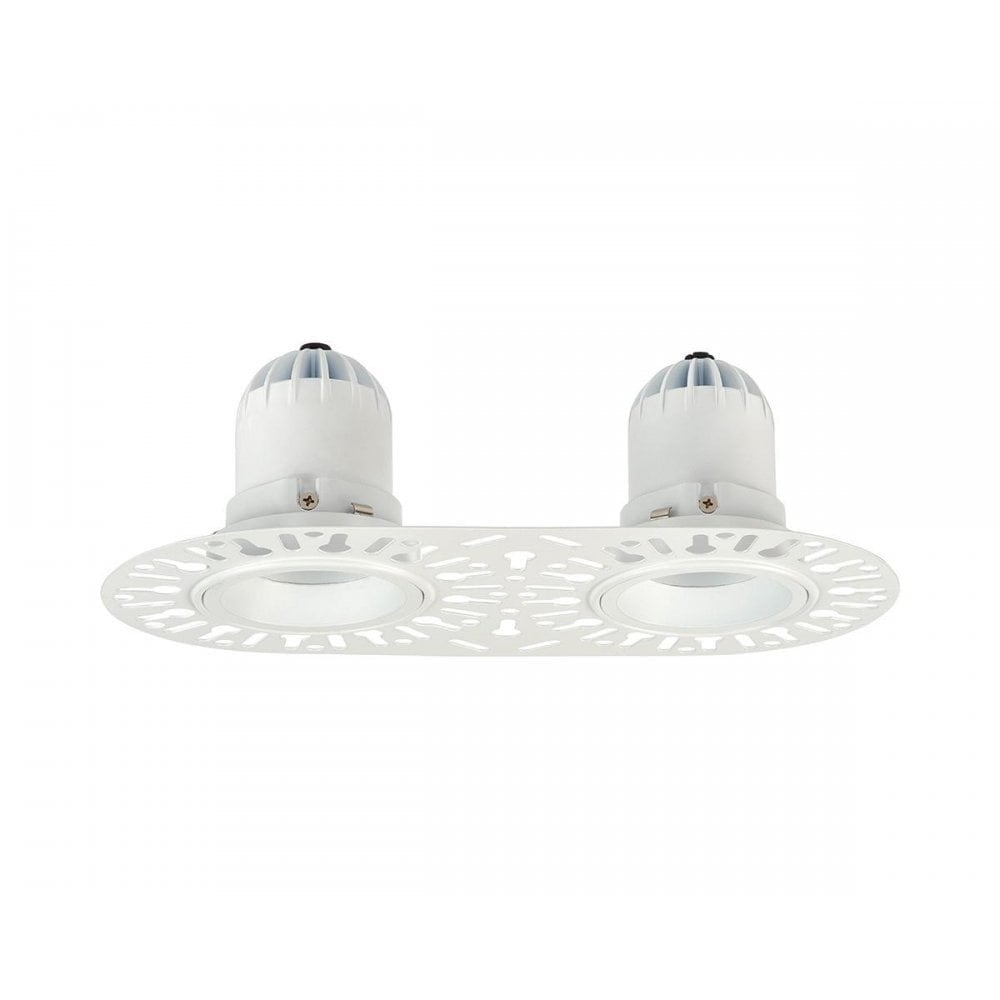

This is the fixed, double head version of Collingwood's 1901 downlight, built as one trimless plate holding two separate LED heads. There's no visible bezel or trim ring, just a clean recess in the ceiling with the two light sources sitting flush. Because the heads are fixed rather than adjustable, they point straight down and stay that way, which suits a tidy, architectural ceiling line more than a fitting you plan to redirect later.

All white, aluminium build

This version comes in an all white finish on an aluminium body, so it sits quietly against a white or light ceiling rather than standing out as a fitting in its own right. Two 9.6W LED engines are built into the single plate, giving 19.2W combined output from one fitting.

How It Works

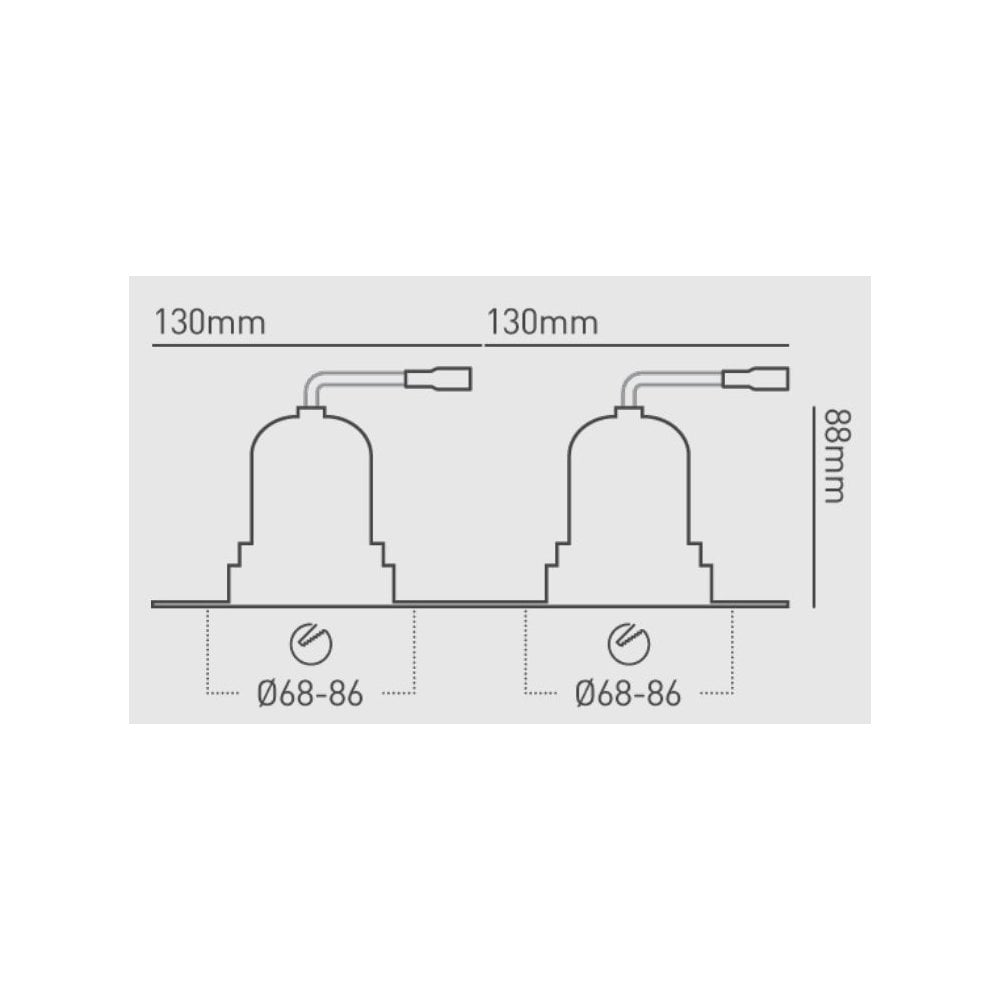

• Each head takes a 70 to 90mm cut out, with the two heads set 130mm apart in one continuous plate.
• Choose 2700K extra warm white, 3000K warm white, 4000K cool white, or a Dim to Warm option that fades down to 1800K as it dims, all at CRI90+.
• Beam angle options are 12°, 24° or 50°, so a narrower spot or a wider spread can be chosen to suit the ceiling height and the job the light is doing.
• Dimming is handled by mains, 1-10V or DALI, depending on the driver variant chosen, with the driver supplied and wired in via cable rather than sold separately.

Where It Works Best

The double head format suits spots where one fitting needs to cover a slightly wider area than a single downlight can, such as over a run of kitchen units, along a hallway, or above a stairwell. It also works well in offices and dining rooms where an even, architectural spread of light matters more than a single strong beam. The IP65 version is rated for bathroom zone 1, so it can go over a shower or bath as well as in the drier zones of a bathroom, kitchen or utility room. The IP44 version is intended for general living spaces such as living rooms, bedrooms and hallways rather than zones where it will be splashed directly.

About Collingwood Lighting

This downlight comes from Collingwood Lighting, which designs and manufactures its LED fittings from Sywell in Northamptonshire and has focused on LED technology since 2002. Fire safety matters a lot in a recessed downlight like this one, and Collingwood says it was among the first brands to bring fire rated, fully sealed and mains dimmable LED products into the UK electrical wholesale market. The company has also been awarded an EcoVadis Gold medal, putting it in the top 5% of companies assessed globally for sustainability.

Good to Know

• Two 9.6W integrated LED engines built into one plate, 19.2W combined, with a 70 to 90mm cut out per head.
• Fixed heads, not adjustable, in an all white aluminium finish.
• Available in IP44 or IP65. The IP65 version is rated for bathroom zone 1, and if you're planning a bathroom install it's worth checking Moonlight's guide to bathroom lighting zones first.
• Fire rated to 30 minutes in solid timber, I-joist and metal web ceiling joists.
• Meets Part P and Part L on all versions, with the IP65 version also meeting Part C and Part E.
• Comes with a 7 year warranty.
• This product is non-returnable.
• Moonlight Design recommends installation by a registered NICEIC electrician, since this is a mains wired fitting.

Questions People Ask

Can the two heads be angled separately?
No. This is the fixed version of the 1901 range, so both heads point straight down and don't tilt. Collingwood also sells an adjustable version of this downlight if you need to redirect the beam.

What size hole do I need to cut?
Each head needs a 70 to 90mm cut out, with the two heads spaced 130mm apart within the single trimless plate.

Is this safe to install in a bathroom?
The IP65 version is rated for bathroom zone 1. The IP44 version is intended for general rooms rather than zones that get splashed or sprayed directly.

What dimming does it use?
Mains, 1-10V or DALI dimming are all available, with the correct driver supplied and wired in depending on which variant is ordered.

Is it fire rated?
Yes, it's fire rated to 30 minutes when installed in solid timber, I-joist or metal web ceiling joists.

• Collingwood 1901 Guide 2025
