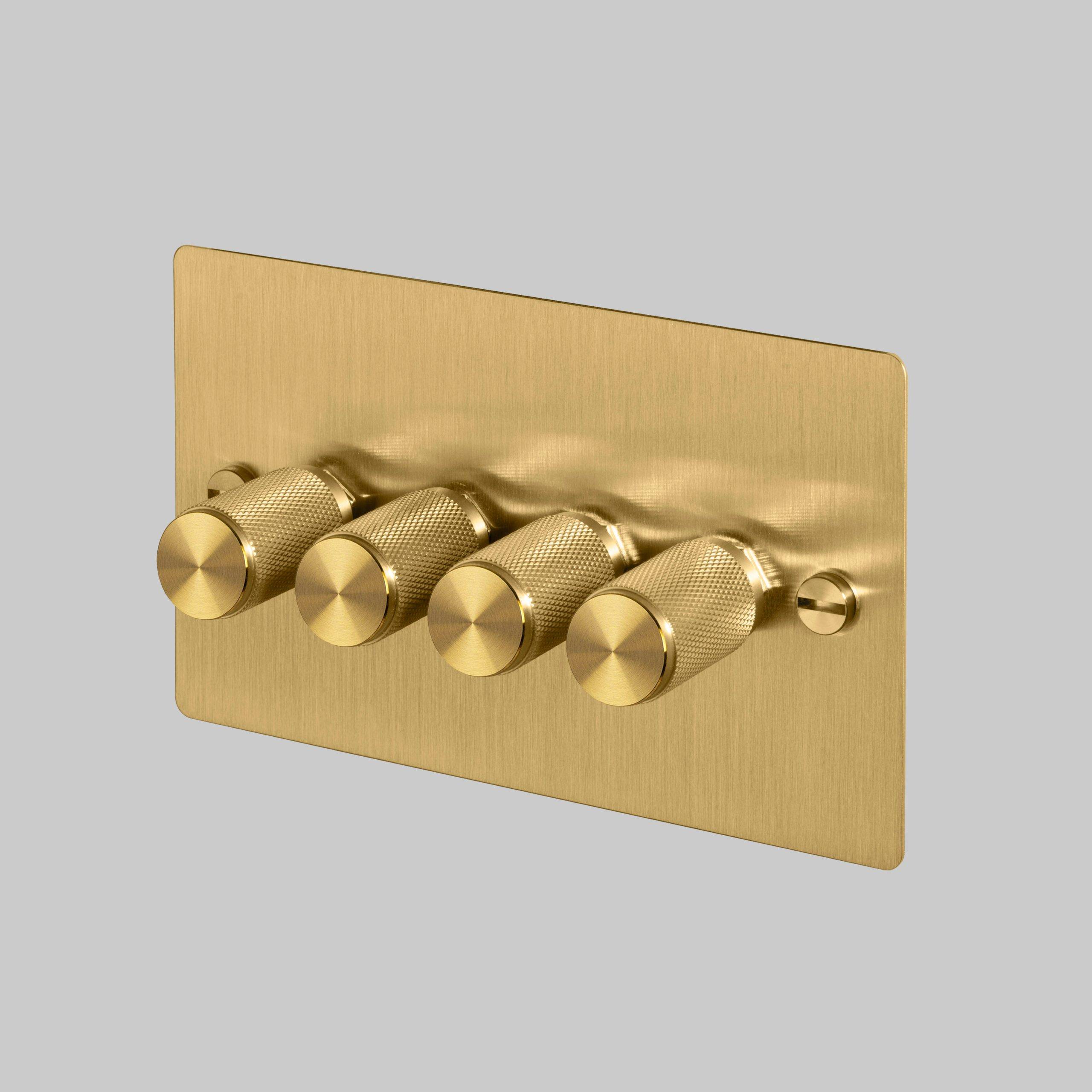

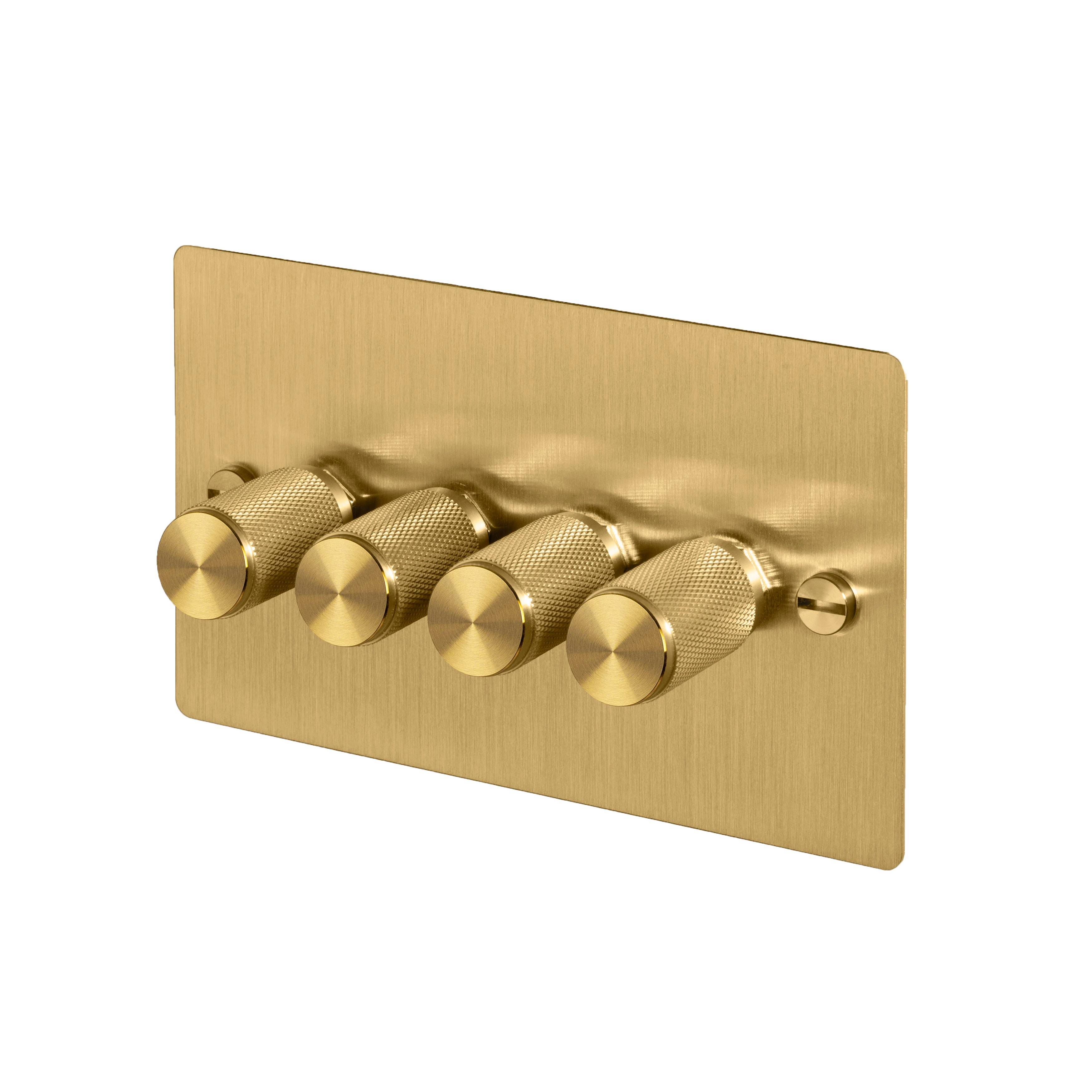

Buster + Punch 4G Dimmer 120W - Cross Knurl - Brass - 2 way

Four Circuits, Solid Brass Throughout

Brass earns its keep on a plate this size, four knurled knobs catching the light differently to a painted finish. This quadruple dimmer is machined from solid metal rather than plated or coated, so the brass tone is consistent all the way through, not just on the surface.

Choose Your Finish

This listing comes in solid brass throughout, plate and all four knobs together, so there's no finish decision to make beyond confirming brass suits the room. It works particularly well against darker paint, timber panelling or existing brass hardware nearby.

How It Works

Four independent rotary dimmer modules sit behind the plate, each push on/off and turn to dim, wired two way at 10AX. Every module runs on standard UK 230 to 240V wiring at 50Hz and dims LED bulbs from 5 to 120W, or incandescent and halogen from 60 to 400W, with electronic soft start easing each circuit up from off.

Where It Works Best

This suits a wall running four genuinely separate circuits, a kitchen and dining space with spots, a pendant, under cabinet lighting and a lamp circuit, for instance. Fewer circuits are better served by the 2G or 3G brass plates, which give the same solid metal build without spare unused knobs.

Made By Buster + Punch

Solid brass like this is central to what Buster + Punch set out to do in 2013: take rare, heavy materials usually reserved for architecture and put them into fittings people touch every day. Founder Massimo Buster Minale had spent years building motorbikes from scratch in a Shoreditch garage before starting the company, and that same insistence on real materials rather than convincing imitations still runs through a plate like this.

Good To Know

• Plate size: 148 x 88mm, 20mm depth, quadruple gang
• Plate material: solid brass
• Switching: four independent two way rotary dimmers, 10AX each
• Electrical rating: 230 to 240V AC, 50Hz per gang
• Dimming range: LED 5 to 120W, or incandescent and halogen 60 to 400W, per circuit
• Finish: solid brass plate, knobs and coin screws

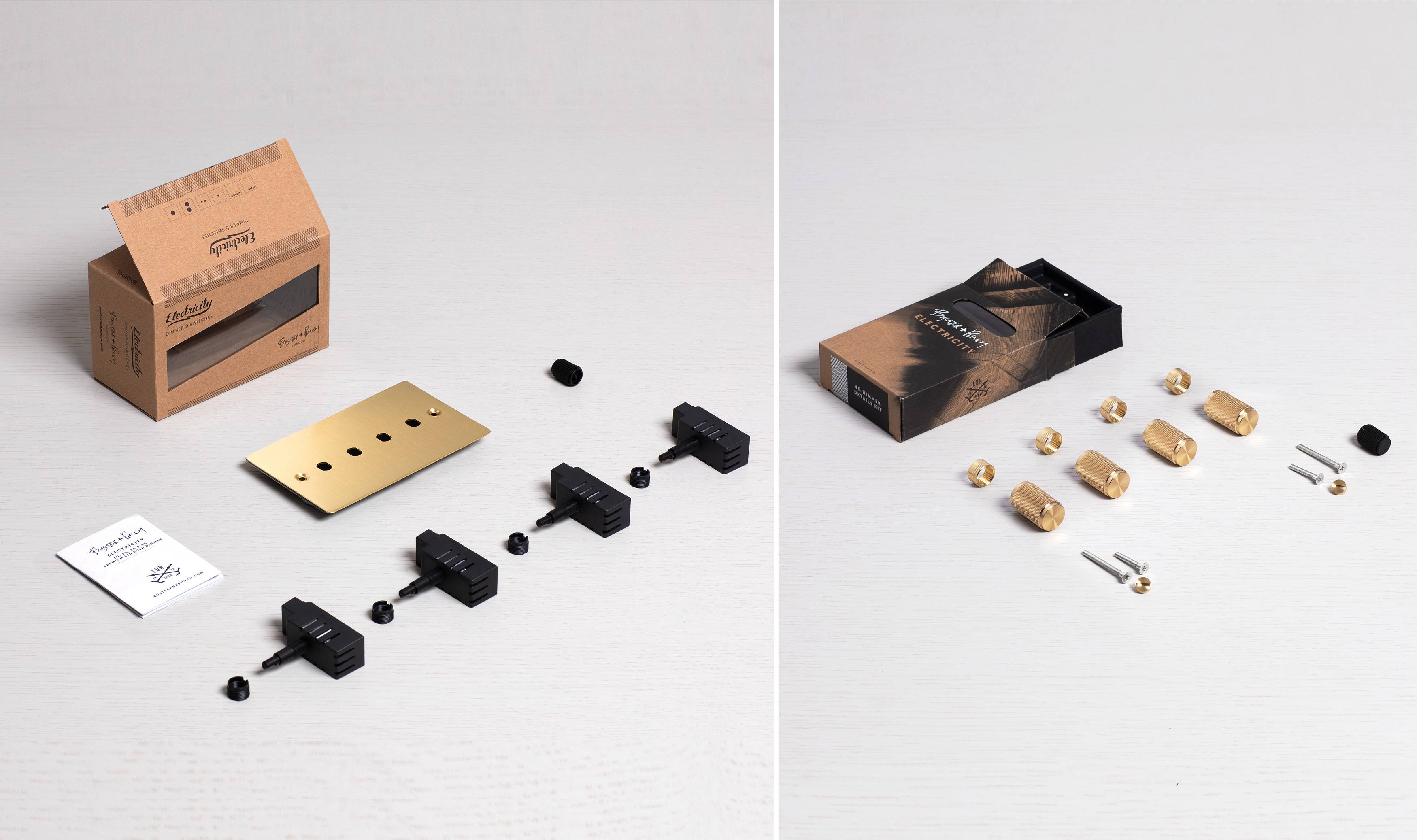

• In the box: one 4G dimmer plate, two 2G detail kits, fixing screws and coin caps
• Rated for dry indoor locations only
• Care: wipe with a dry, lint free cloth, no chemical cleaners. Brass will age and darken naturally with handling over time
• Warranty: two year Buster + Punch manufacturer's warranty as standard

Questions People Ask

Will the brass finish stay bright?
No, solid brass develops a natural patina with handling over time. That ageing is expected and part of the material, not a fault.

Can each of the four dimmers be set independently?
Yes, each module controls its own circuit, so all four can be set to different brightness levels.

What bulbs can I use with this switch?
Dimmable LED from 5 to 120W, or incandescent and halogen from 60 to 400W, per circuit.

14.80 Min Width (cm) X 8.80 Min Height (cm) X 2.50 Internal Depth (cm) X 3.60X External Depth (cm)
