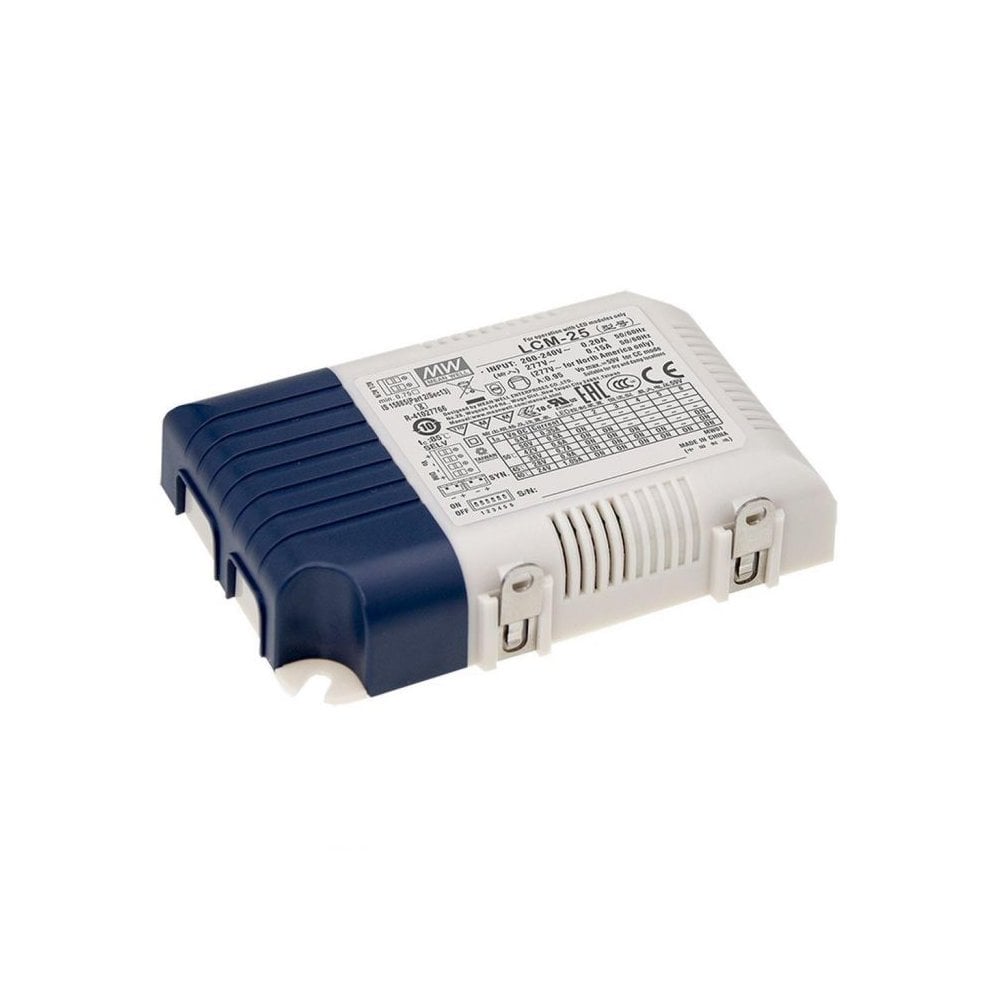

T-D-LCM25 driver - 0-10v dimmable driver - 350mA/700mA/1050mA

A 0 to 10V Dimmable Driver for LuxR and Hunza Lights

The T-D-LCM25 is a 0 to 10V dimmable constant current driver with outputs of 350mA, 700mA and 1050mA. It powers LuxR fittings, which need a driver because they run on low voltage rather than directly from the mains, and it lets you dim them.

How It Works

Choose the output that matches your fittings, then wire them to the driver in series. The driver is suitable for these numbers of fittings:

• LuxR M1: 1 to 14 fittings at 350mA.
• LuxR M2: 1 to 12 fittings at 700mA.
• LuxR M4: 1 to 6 fittings at 700mA.
• Hunza 700mA: 1 to 6 fittings at 700mA.
• Hunza Pureled: 1 to 4 fittings at 1050mA.

Moonlight Design recommends that all lighting should be installed by a registered NICEIC electrician.

Good to Know

• Output: 350mA, 700mA or 1050mA constant current.
• 0 to 10V dimmable.
• Warranty: 2 years.
• Usually ships in 2 to 3 days. If out of stock, allow 3 to 5 weeks.

Questions People Ask

Which LuxR lights can this driver power?

It is suitable for LuxR M1 (up to 14 at 350mA), M2 (up to 12 at 700mA) and M4 (up to 6 at 700mA). It also suits Hunza 700mA and Hunza Pureled fittings, within the numbers listed above.

Can I dim my lights with it?

Yes. It is a 0 to 10V dimmable driver, so the lights it powers can be dimmed.

Why do LuxR lights need a driver?

LuxR LED fittings are low voltage and are powered by a constant current driver rather than connected directly to mains power.

Can I install it myself?

We recommend that all lighting, including the driver, is installed by a registered NICEIC electrician.
