Steinel IS 130-2 with PIR - White

A Motion Sensor for Lights Around the Building

The Steinel IS 130-2 in white is a passive infrared motion detector that switches a connected light on when someone approaches. It is a sensor, not a light, so you wire it to the lighting you want it to control. It covers 130 degrees with a reach of up to 12 metres, and it works indoors and outdoors, which makes it a practical way to add automatic security lighting to a front door, driveway or courtyard.

White Housing with a Swivelling Sensor Head

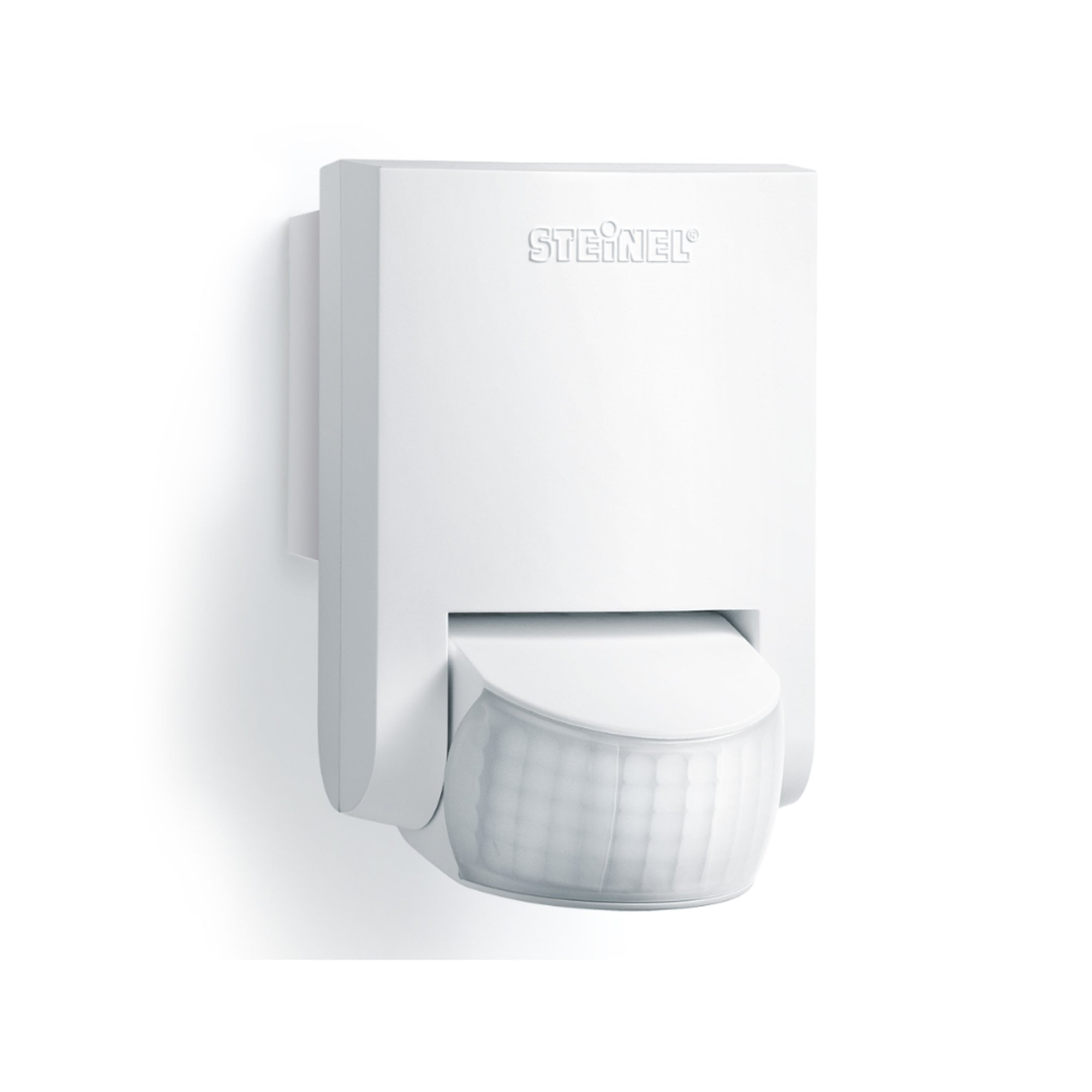

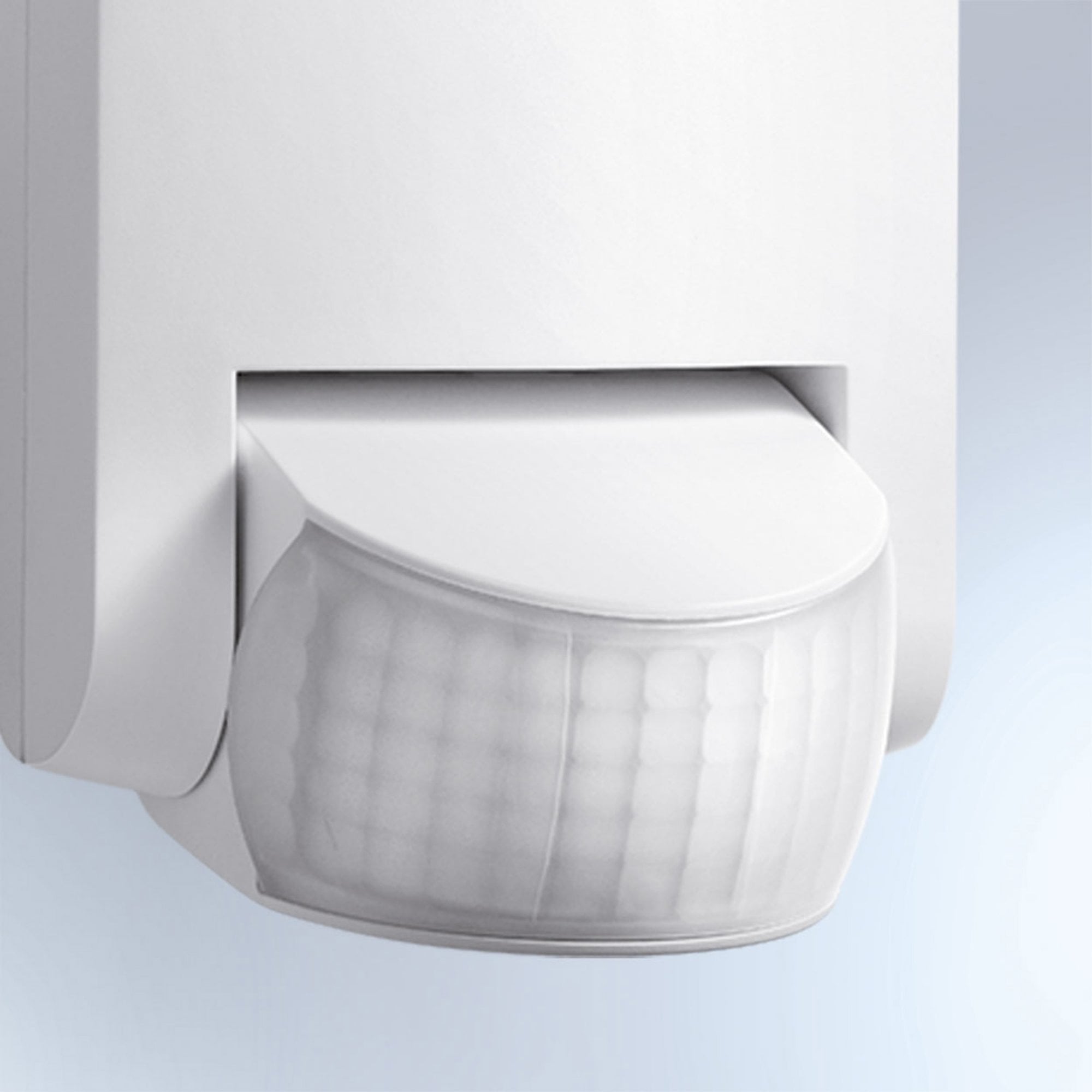

The housing is a compact white block with the Steinel logo on the front, and a frosted white lens below it that holds the sensor. The head turns through 50 degrees and tilts through 90 degrees, so you can aim the detection zone at the path or doorway you want to cover. White blends in on a white or light rendered wall, and the unit is small at 87mm x 78mm x 110mm.

How It Works

The sensor picks up the heat of a person moving across its field of view and switches the connected light on. Two potentiometer dials on the unit set how long the light stays on, from 8 seconds to 35 minutes, and the twilight level it responds to, from 2 to 2000 lux. Detection is strongest when someone crosses the beam, with a reach of up to 12 metres across it and around 3 metres when walking straight towards the sensor. The best mounting height is 1.8 to 3 metres, with 2 metres ideal. It switches loads up to 600W and runs from a 230 to 240V, 50Hz mains supply, connected by cable with surface wiring. It is rated IP54, so it is protected against splashing water from any direction. We always recommend a qualified electrician installs this product.

Where It Works Best

Steinel suggests it for all round the building: front doors, terraces and balconies, courtyards and driveways. It mounts on a wall with surface wiring.

About Steinel

Steinel is a German sensor and lighting brand that began in 1959. The company says it introduced the world's first sensor switched light in 1987, and that it has registered more than 300 patents, utility models and designs. Its products are sold in over 80 countries.

Good to Know

• Passive infrared sensor, 130 degree angle of coverage, reach up to 12 metres.
• Sensor head turns 50 degrees and tilts 90 degrees.
• Time setting 8 seconds to 35 minutes, twilight setting 2 to 2000 lux.
• Switches loads up to 600W. Rated IP54, for indoor and outdoor use.
• Size: 87mm x 78mm x 110mm. White finish.
• We always recommend a qualified electrician installs this product.
• Comes with a 3 year manufacturer warranty.
• You can return this item within 14 days of delivery, provided it is unused, uninstalled and in its original packaging. See our returns policy for full details

Questions People Ask

Does the IS 130-2 include a light? No. It is a motion detector that switches a light you connect to it, up to 600W.

How wide an area does the sensor cover? It has a 130 degree angle of coverage and a reach of up to 12 metres, measured across the sensor's view. Reach is shorter, around 3 metres, when you walk straight towards it.

How long does the light stay on? You choose. The on time can be set anywhere from 8 seconds to 35 minutes with the dial on the unit.

Can I stop it switching on in daylight? Yes. A twilight dial sets the light level it responds to, from 2 to 2000 lux.

Who should install this sensor? We always recommend a qualified electrician installs this product.

Can I return it? Yes. You can return this item within 14 days of delivery, provided it is unused, uninstalled and in its original packaging. See our returns policy for full details.

87 x 78 x 110 mm
