Steinel IR 180 AP easy Surface wiring - Motion Detector

A Motion Sensor Switch for Indoors and Out

The Steinel IR 180 AP easy is a surface mounted infrared motion sensor switch. It turns a light on when it detects movement and off again after a time you set, so it works as an automatic security light switch for a garage, carport, cellar or outdoor area. The sensor covers 180 degrees with a reach of up to 8 metres, and the housing is splashproof at IP54. Note that this is the sensor switch only. It does not include a light.

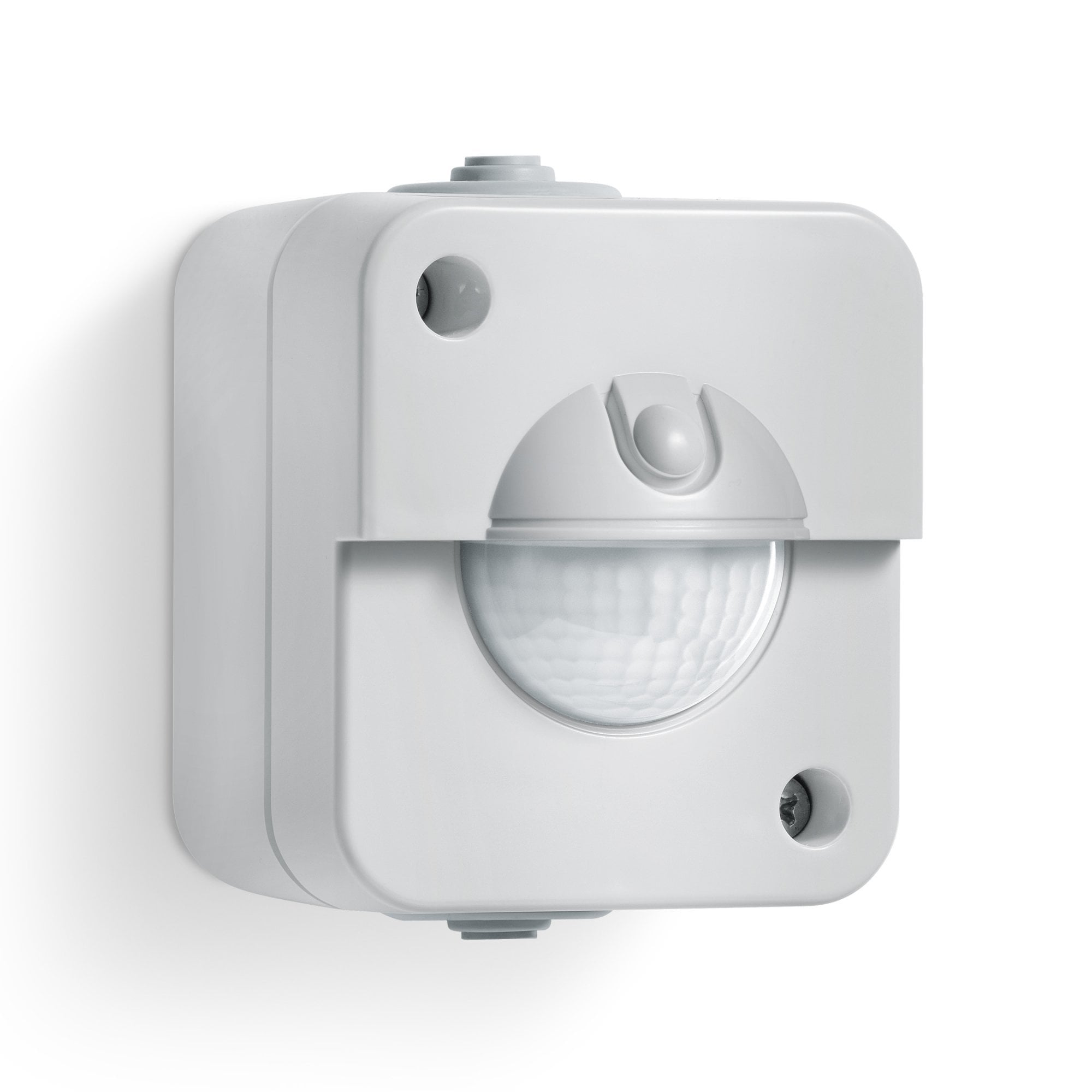

Light Grey Housing with a Dome Sensor

The compact square housing is light grey, with a frosted dome sensor lens set into the front and cable entries at the top and bottom. It measures just 82 x 72 x 67mm, so it sits discreetly on a wall. Steinel says it can switch all types of lamp, and it is designed for surface wiring, which means no need to cut into the wall.

How It Works

A passive infrared sensor detects the heat of someone moving across its 180 degree field. Reach is up to 8 metres when movement crosses the sensor's view, and around 3 metres when someone walks straight towards it. You set the time the light stays on, from 5 seconds to 30 minutes, and the twilight level it responds to, from 2 to 1000 lux, using the two dials on the unit. The best mounting height is 0.9 to 2.2 metres, with 1.1 metres ideal. It works on both 2 wire and 3 wire installations, runs from a 220 to 240V mains supply at 50 to 60Hz, and can switch a load of up to 200W. It is a Class II product. We always recommend a qualified electrician installs this product.

Where It Works Best

Steinel positions it for basements, garages, carports and outdoor areas, as well as damp rooms and corridors. Because it is splashproof it can be used under cover outside or in the open, wired to a wall light, floodlight or any other light you want to come on automatically.

About Steinel

Steinel is a German sensor and lighting brand, founded in 1959. The company says it introduced the world's first sensor switched light in 1987, and that it has registered more than 300 patents, utility models and designs since it began. Its products are sold in over 80 countries.

Good to Know

• Passive infrared sensor, 180 degree detection angle, reach up to 8 metres.
• Time setting 5 seconds to 30 minutes, twilight setting 2 to 1000 lux.
• Maximum load 200W, 220 to 240V mains supply.
• Rated IP54 and Class II, suitable for indoors and out.
• Size: 82mm wide x 72mm high x 67mm deep.
• Sensor switch only, the light is not included.
• We always recommend a qualified electrician installs this product.
• Comes with a 3 year manufacturer warranty.
• You can return this item within 14 days of delivery, provided it is unused, uninstalled and in its original packaging. See our returns policy for full details

Questions People Ask

Does it come with a light? No. The IR 180 AP easy is a sensor switch only. You connect it to a light or lights of your choice, up to a total load of 200W.

How far does the sensor reach? Up to 8 metres when someone moves across its field of view, and around 3 metres when they walk directly towards it. The detection angle is 180 degrees.

How long does the light stay on? You choose. The on time can be set anywhere from 5 seconds to 30 minutes with the dial on the unit.

Can I stop it working in daylight? Yes. A twilight dial sets the brightness level the sensor responds to, from 2 to 1000 lux, so it can be set to work only after dark.

Who should install this product? We always recommend a qualified electrician installs this product.

Can I return it if it is not right? Yes. You can return this item within 14 days of delivery, provided it is unused, uninstalled and in its original packaging. See our returns policy for full details.

82 x 72 x 67 mm
