Orluna Curve Adjustable Downlight - Perfect for Soft Wide Beams

Wide, Soft Light You Can Still Point

The Curve Adjustable takes the gentle, flood like character the Curve range is known for and adds the ability to aim it. It keeps the same refined, edge free bezel as its fixed sibling, so the ceiling still reads as clean and continuous, while the head itself can be tilted toward whatever needs the light most.

Choosing Your Configuration

The Curve Adjustable offers the same breadth of specification as the fixed version, with the added question of how the beam will be aimed.

• Driver: 0-10V Dimming, Dali, Mains Dimming or Non-Dimming, chosen to match the dimming protocol already in use in the building.
• Engine: Origin (General Use), Origin Natural (Highest Quality) for the most accurate colour rendering, Origin Warm Dim for a tunable output across roughly 1800K to 3000K, and Origin loPro for shallower ceiling voids.
• Colour temperature: 2700K or 3000K fixed, or the 1800K to 3000K tunable range with Origin Warm Dim.
• Beam: eleven angles from 19° to 58°. Because the head is adjustable, even the narrower angles can be aimed precisely at a feature, while the wider angles give a broader, softer wash that can still be tilted off vertical.
• IP rating: IP54 for dry interiors, IP65 for wetter zones.
• Bezel finish: supplied in white (RAL 9010).

How It Works

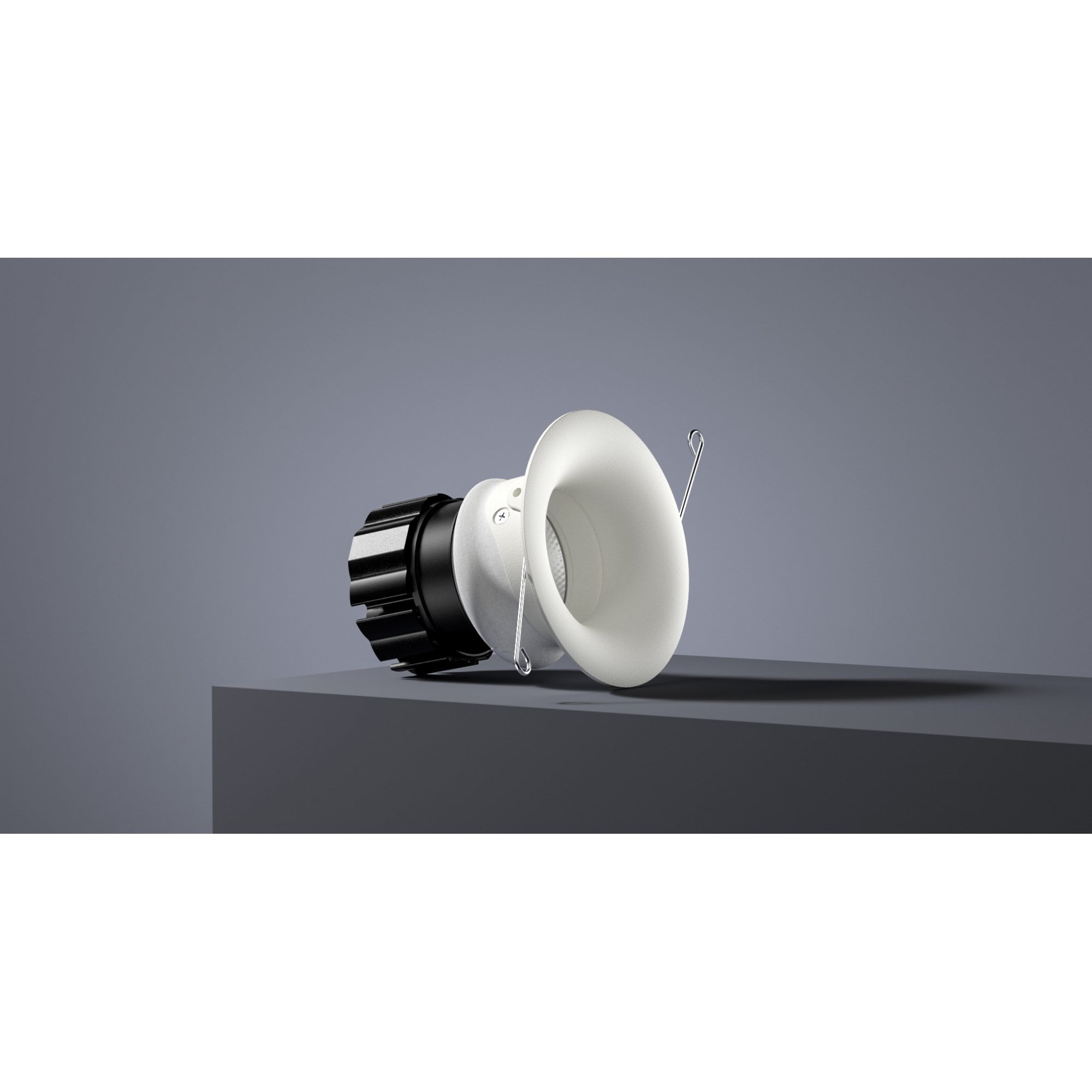

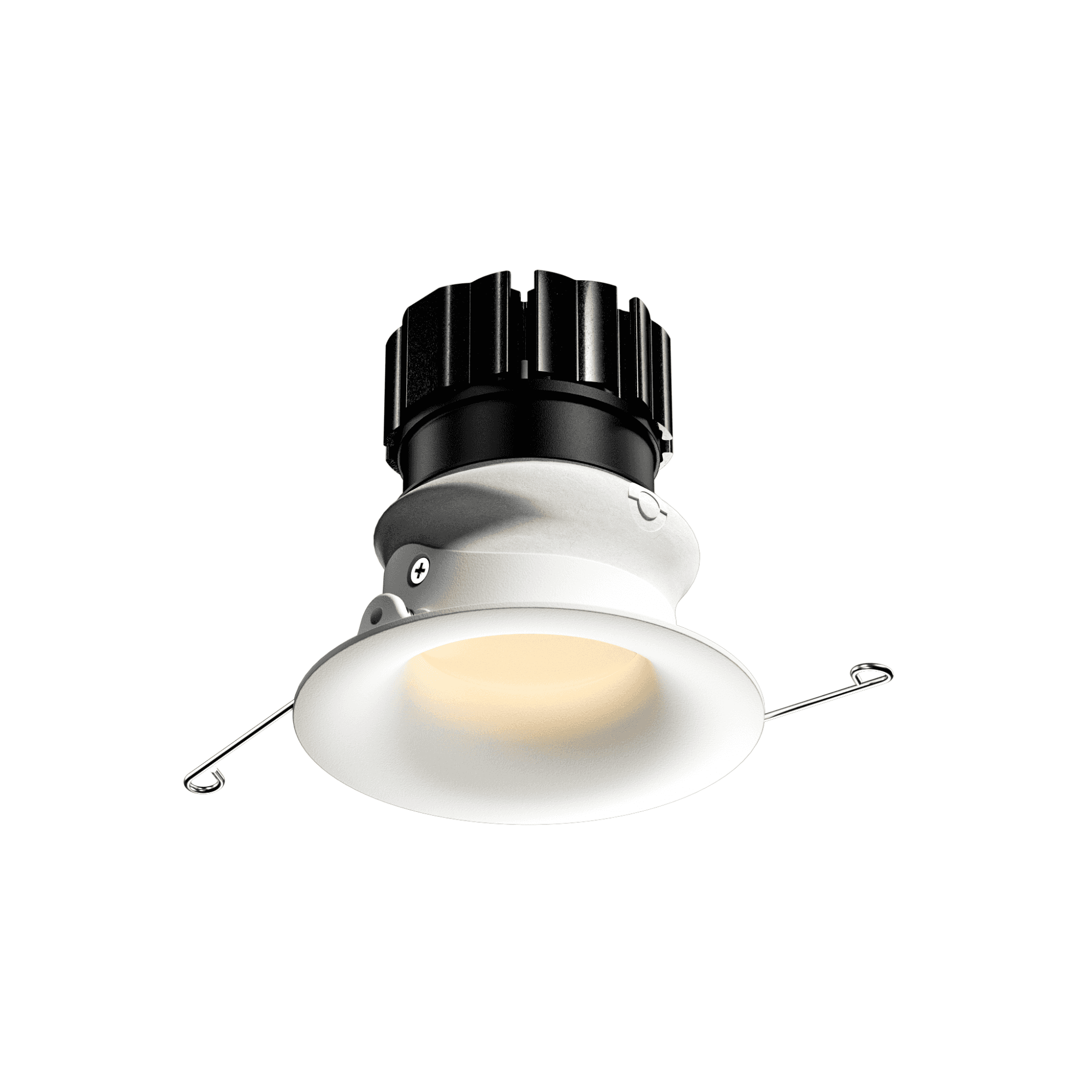

A precision engineered aluminium adjustment mechanism lets the head tilt while keeping the LED engine correctly seated and heat sinked, since aluminium draws heat away from the LED efficiently and protects both colour consistency and long term output. The optical design behind the beam is built for a soft, broad distribution with minimal edge distortion, so even at an angle the light falls in a gentle wash rather than a hard edged pool.

Where It Works Best

The combination of a larger 96mm bezel and an aimable head makes this the Curve variant to choose for washing a feature wall, artwork or display with soft light that still needs some direction, rather than a straight down flood. It sits between the Curve Mini Adjustable, which offers the same aiming flexibility in a much smaller aperture for tighter spaces, and the Curve Fixed, which shares its bezel size and beam character but cannot be aimed at all.

Made By Orluna

Sustainability sits at the centre of how Orluna builds fittings like the Curve Adjustable. Its modular construction, in which bezels, reflectors and LED engines can be replaced individually, underpins a 20 year programme under which fittings can be returned, dismantled, renewed and tested rather than discarded. Orluna describes this as a fully circular approach, reducing virgin materials and packaging while keeping fittings out of landfill, and it is built on a British design and manufacturing base that also supplies architectural lighting projects internationally.

Good To Know

• 96mm bezel, 86mm cut out
• Adjustable head for aimed beam direction
• IP54 or IP65 options available
• Four engine options including Origin Natural and Origin Warm Dim
• Bezel finish: White (RAL 9010)
• Backed by Orluna's 20 year repair, renew and reuse programme
• Made to order and non-refundable
• Moonlight Design recommends installation by a registered NICEIC electrician

Questions People Ask

How does this differ from the Curve Fixed? Both share the same 96mm bezel and soft wide beam character, but the Adjustable version's head can be tilted to aim the light, while the Fixed version points straight down.

Is this suitable for lighting artwork or a feature wall? Yes, the adjustable head combined with the wide, soft beam options makes it well suited to washing a feature or display with directed light.

Can it be paired with the Curve Mini range in the same project? Yes, the Curve family is designed so fixed, adjustable and darklighter variants across both sizes can be combined in one scheme.

96mm bezel diameter (refer to spec for details)
