Orluna Camber Mini Fixed Curved Downlight - Trimless High Output

Camber Mini Fixed: Compact, Consistent, Quietly Powerful

Not every application needs an adjustable beam. Sometimes a small, fixed downlight that lights precisely and disappears into the ceiling is the better answer. Camber Mini Fixed delivers the same 300 lumen output and trimless, curved aperture as Camber Mini Adjustable, without the moving parts.

Choosing Your Configuration

Because the engine in this fitting is fixed rather than adjustable, the choices below are about getting the light quality and control right at order stage, rather than about aiming direction later.

• Driver: choose 0 to 10V dimming, Dali, mains dimming or non dimming, to match the control system already specified for the space.
• Engine: Origin suits general everyday lighting, while Origin Natural is Orluna's highest quality option, built for the most accurate colour rendering where finishes or skin tones need to look their truest.
• Lamp temperature: 2700K reads warmer and more traditional, 3000K slightly crisper and more neutral.
• Beam: the narrower 18° and 20° options suit tight accenting, the wider 30° to 35° options give a softer, more general wash.
• IP rating: IP54 covers standard dry interiors, IP65 adds protection where moisture or dust exposure is a factor.

Bezel and baffle come as Orluna's standard white RAL 9010 bezel with black baffle.

How It Works

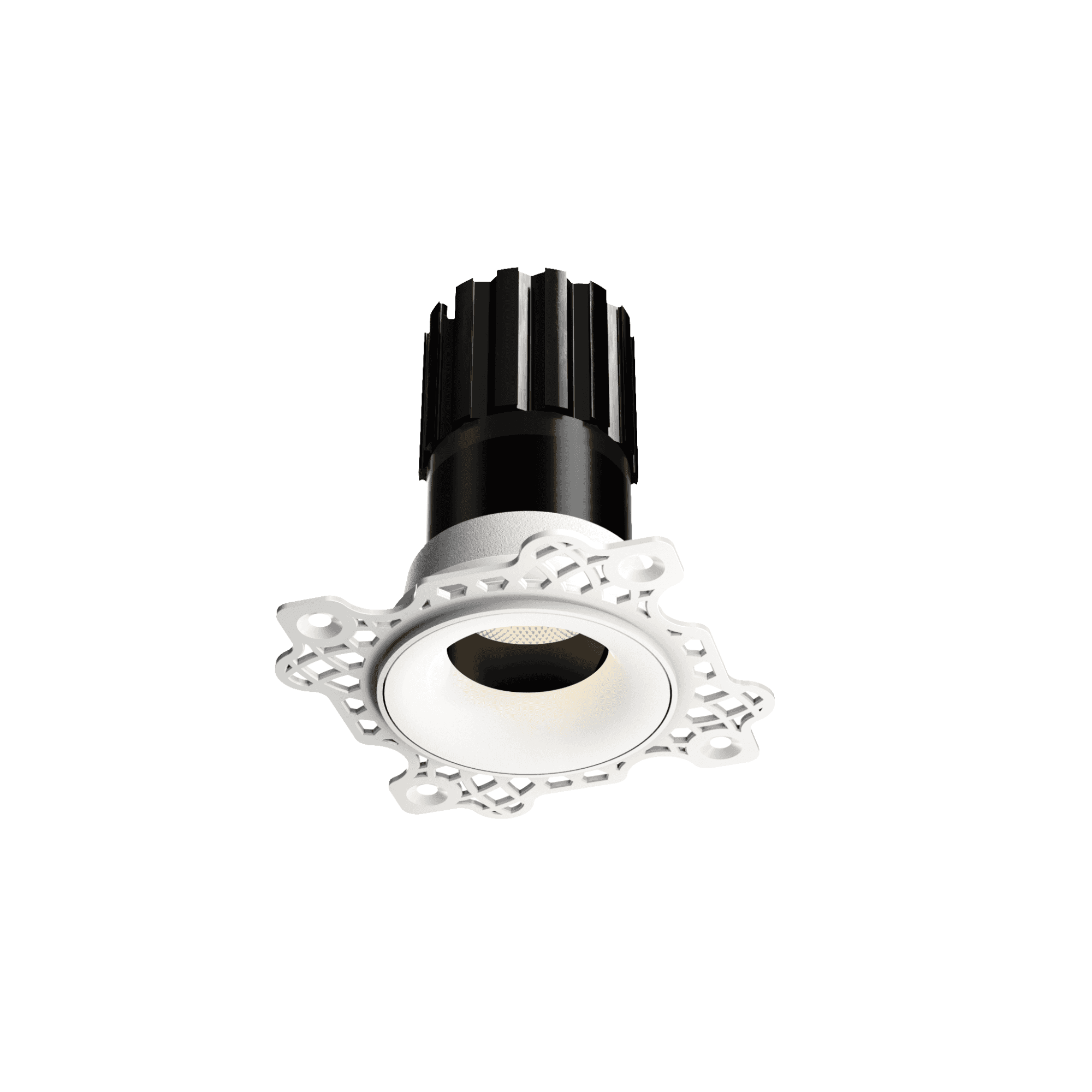

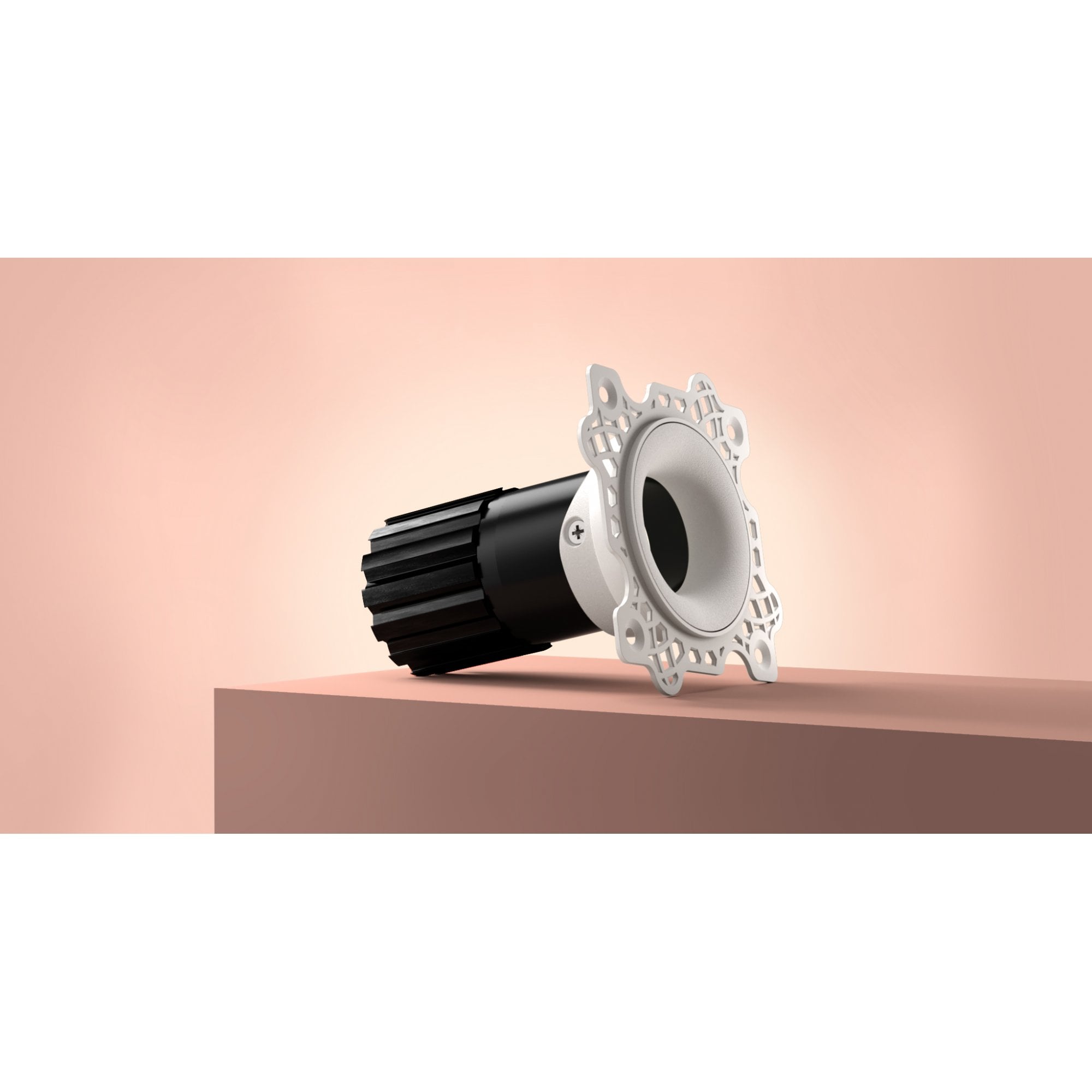

Camber Mini Fixed uses the same curved, trimless bezel and 51mm aperture as the Adjustable version, but the LED engine sits in a fixed downward position within the housing rather than on an adjustable mount. That simplicity suits situations where a uniform, repeatable beam direction across a run of fittings matters more than the ability to redirect an individual light after fitting. An aluminium heat sink manages heat from the LED in the same way as the rest of the Camber family, protecting colour consistency and output over time.

Where It Works Best

Fixed downlights come into their own wherever a grid of fittings needs to read as consistent: corridors, en suite bathrooms, wardrobes, or repeat ceiling patterns in hospitality interiors, where every aperture should throw light in exactly the same direction. Where Camber Mini Adjustable is chosen to redirect a beam onto a specific target, Mini Fixed is the more straightforward, lower complexity choice for simple downward illumination.

Made By Orluna

Orluna's modern identity dates to 2009, when Andrew Kilborn took control of the business and repositioned it toward the high end architectural market. The Quad 50 downlight that followed became an early success and helped establish Orluna's name among international lighting designers, opening the way for the compact architectural families, Camber among them, that came after it.

Good To Know

• 51mm bezel, 55mm cut out
• White RAL 9010 bezel with black baffle
• IP54 or IP65 available
• 0 to 10V driver does not fit through the cut out on this fitting
• Backed by Orluna's 20 year spares, repair and reuse programme
• Made to order, so orders cannot be cancelled or refunded once placed
• Moonlight Design recommends installation by a registered NICEIC electrician

Questions People Ask

Can the beam direction of Camber Mini Fixed be changed on site? No, the engine is fixed within the housing, so beam angle is set by the option chosen at order. Choose Camber Mini Adjustable if on site aiming is needed.

What size cut out does Camber Mini Fixed need? A 55mm cut out, behind a 51mm bezel.

Is Camber Mini Fixed suitable for a bathroom? Specified with the IP65 option, yes.

51mm bezel diameter (refer to spec for details)
