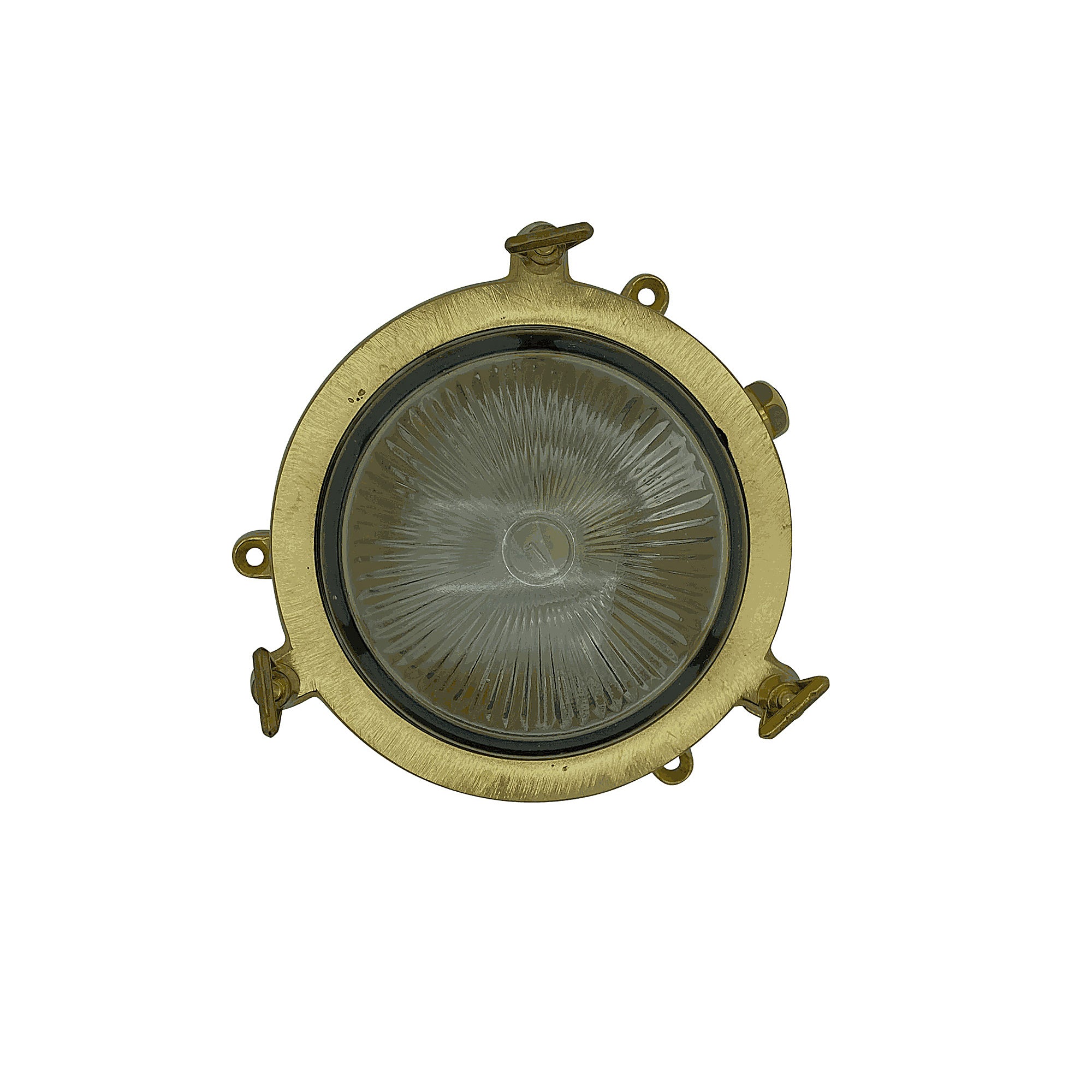

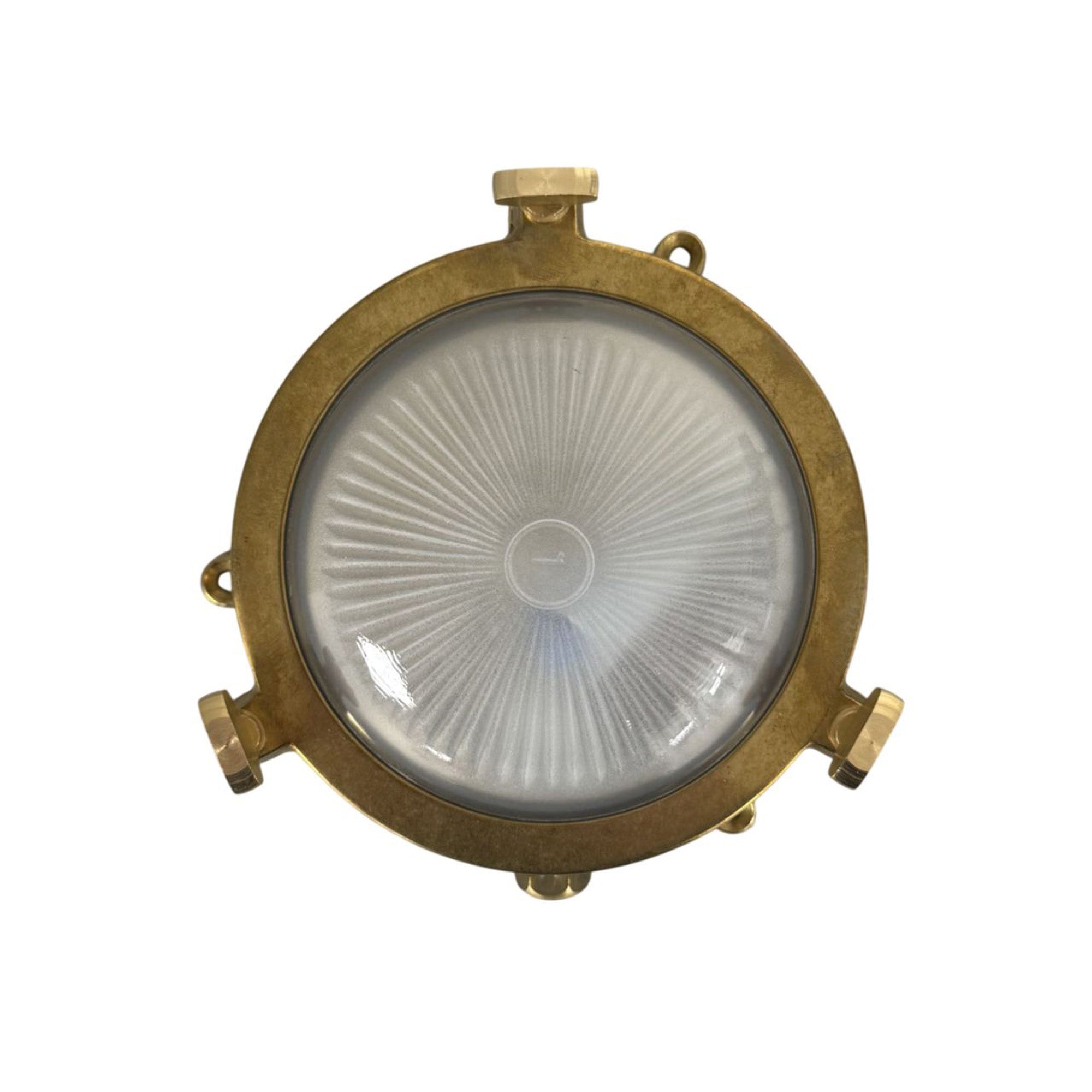

Navigator Mini Compass Bulkhead - Raw Brass

Raw Brass, Left to Find Its Own Character

There's something honest about raw brass. Straight out of the box it has a warm, almost golden glow, and from the moment it meets the outside air it starts to change, slowly deepening to a soft amber and eventually a dark, weathered bronze if you let it run its course. The Navigator Mini Compass Bulkhead in Raw Brass is for anyone who likes that journey, a fixture that looks a little different every year and only grows more characterful the longer it hangs by your door.

How It Works

Underneath the finish this is a simple, solid piece of engineering. The body is cast from solid brass and paired with a ribbed glass diffuser that softens and spreads the light rather than throwing a harsh beam. It takes a single G9 lamp of up to 25W (not supplied), and if you fit a dimmable G9 bulb the fixture works happily on a mains dimmer too. Cabling enters discreetly at the side via a cable gland, and thumb screws hold the glass in place, so changing a bulb is a two minute job with no tools required. The whole fitting carries an IP44 rating, so it's built to shrug off wind driven rain and coastal damp.

Where It Works Best

Raw Brass suits properties where a bit of weathering is part of the appeal, seafront cottages, converted boathouses, gate posts and porches where the metal will catch salt air and slowly earn its patina. Within the Navigator range it sits alongside guarded versions like the Mini Compass Guard Bulkhead, which trade a little light output for extra protection against knocks, so if your Mini Compass will be somewhere more exposed to accidental impact, the guarded sibling is worth a look. Compared with its Satin Nickel and Antique Brass stablemates here, Raw Brass is the only one of the three that will visibly change over time rather than holding a fixed finish.

Good To Know

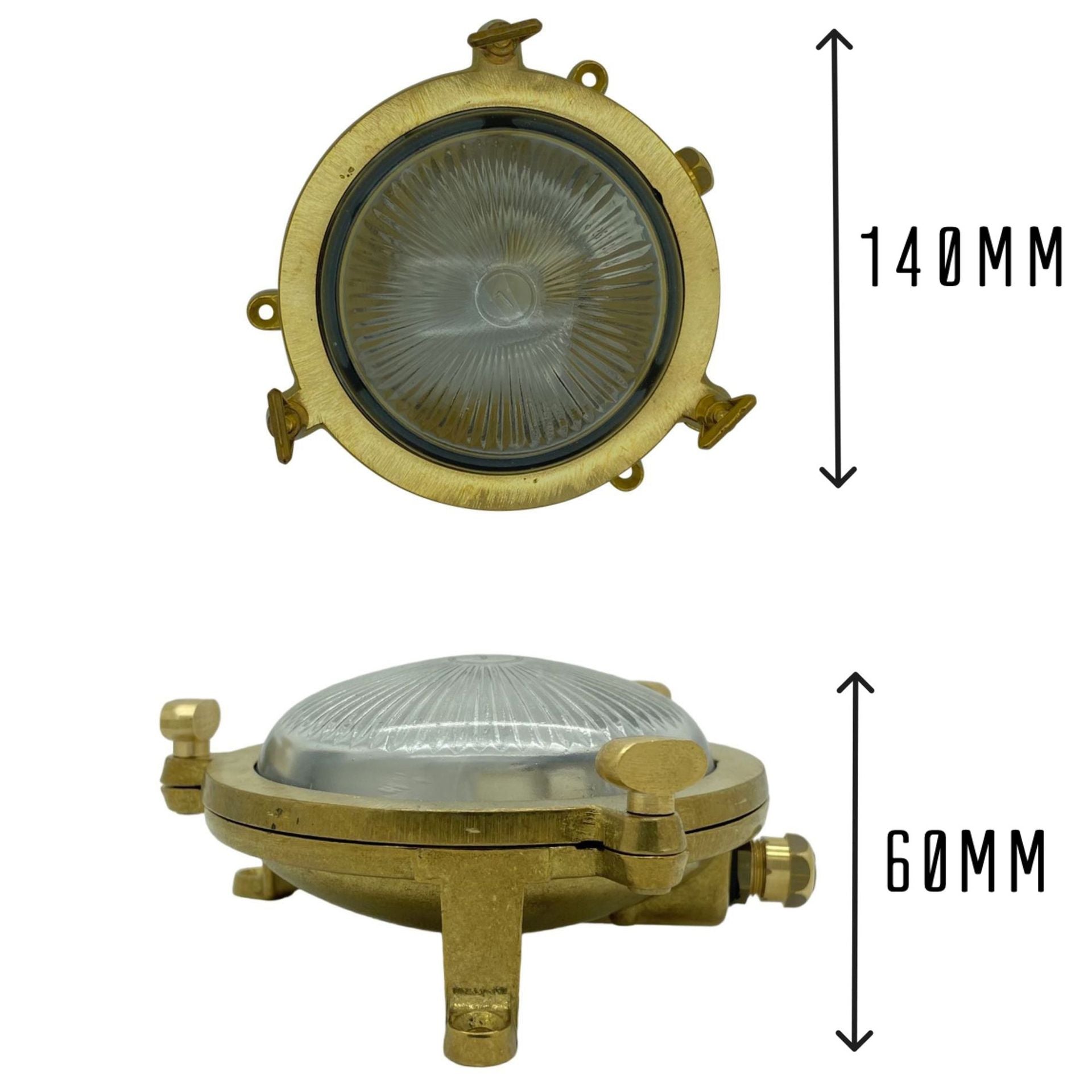

• Dimensions: 140mm diameter x 60mm projection
• Material: solid brass body with ribbed glass diffuser
• Weather rating: IP44
• Light source: 1 x G9 lamp, up to 25W, not supplied, dimmable with a compatible bulb

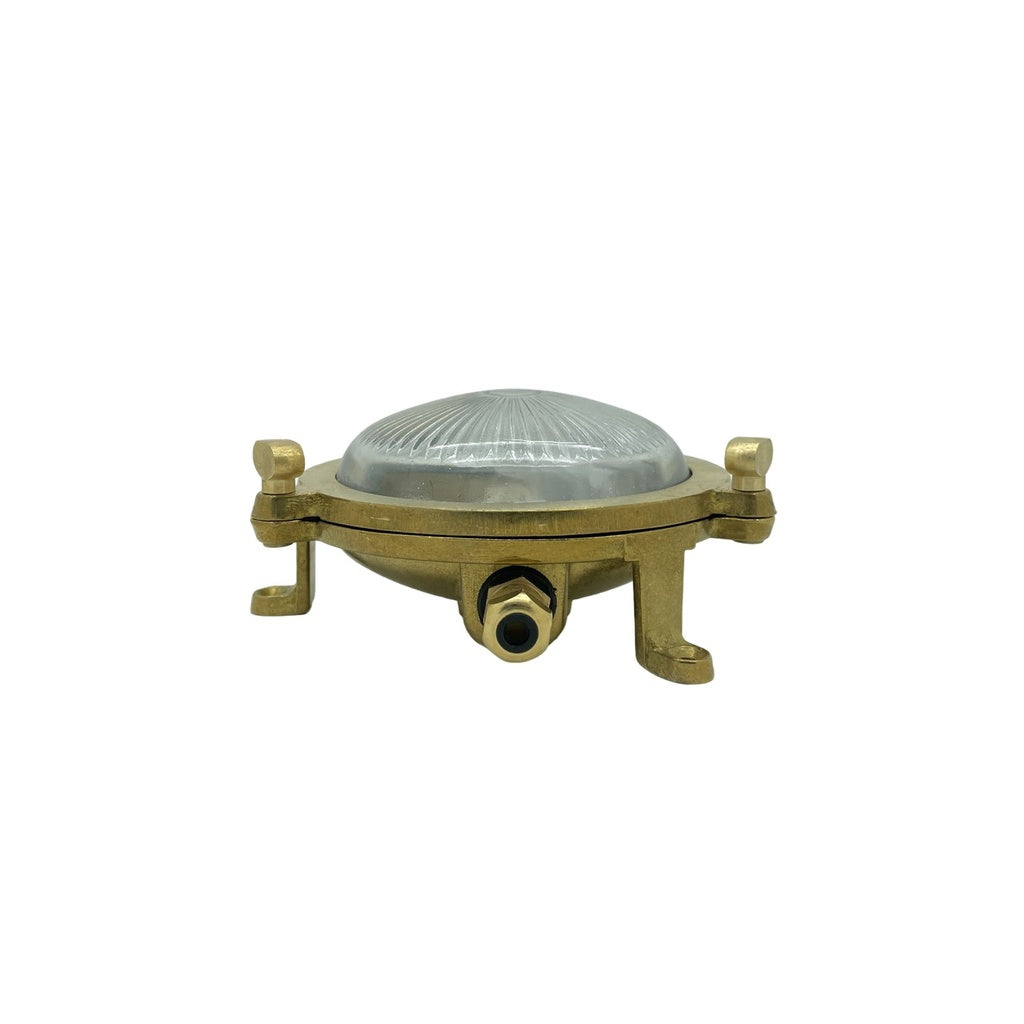

• Cable entry: side mounted cable gland
• Guarantee: 2 years

Questions People Ask

Will the raw brass finish on the Mini Compass Bulkhead tarnish or change colour outside?
Yes, that's the whole point of choosing raw brass. Left unlacquered, it will darken and develop a natural patina as it's exposed to air and moisture, so no two fittings age in quite the same way.

What bulb do I need for the Navigator Mini Compass Bulkhead?
It's designed for a single G9 capsule lamp rated up to 25W. The bulb isn't included, so pick a dimmable G9 if you want to run it from a dimmer switch.

Is this bulkhead light rated for a coastal or seafront home?
Yes, the solid brass construction is specifically suited to salt air environments, and the IP44 rating means it copes well with wind and rain in an exposed outdoor position.

140mm Diameter x 60mm Projection
