LuxR Modux 4 Pond Light (Weighted Base) with 12V Integral Driver - Powder Coat - Low Voltage

A Powder Coated Submersible Pond Light With a Weighted Base

The LuxR Modux 4 Pond Light is a small low voltage light made to sit in a pond or water feature. It has a weighted base and a 12V integral driver, and it comes with 3m of cable. It is submersible up to 9m. The light source is a 4 watt Cree LED with a CRI of 90 plus.

UV Powder Coated Aluminium in Four Colours

This version is UV powder coated aluminium, which gives a smooth, even colour. Choose Matt Black to disappear into dark water, Matt Bronze for a warm tone that suits stone and timber, or Matt White or Matt Dark Grey for a more contemporary look. If you prefer bare metal, the same pond light is also made in copper and marine grade 316 stainless steel.

Choose Your Colour, Beam and Lens

• Powder coat colour: Matt Black, Matt Bronze, Matt White or Matt Dark Grey.

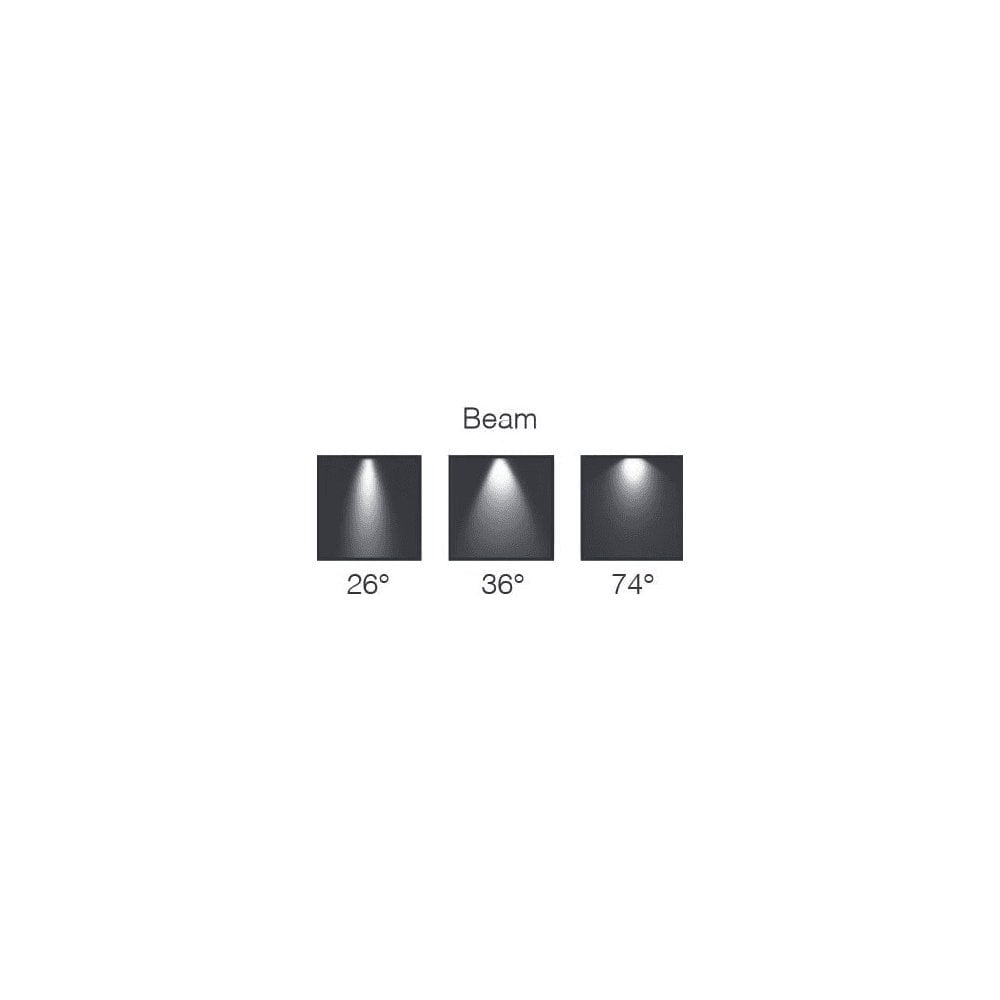

• Beam and colour temperature: choose from 26º, 36º or 74º beams, in 2200K, 2700K, 3000K or 4000K.
• Lens: clear gives the sharpest beam, while frosted softens the edges of the light.

How It Works

Place the light in the water on its weighted base and aim it towards your subject. Because it has a 12V integral driver, it does not use a separate constant current driver. It is installed in parallel with a remote transformer, and it is dimmable when paired with a suitable transformer. The LED can be replaced or swapped for a colour LED, and the optic can be changed to alter the beam width.

Moonlight Design recommends that all lighting should be installed by a registered NICEIC electrician.

Where It Works Best

This is a good choice for garden ponds, water features and bubbling pools, where you want the water or the planting around it to glow. A dark finish keeps the fitting out of sight, while the lighter colours can match nearby stonework. The same design is also available in M1 and M2 sizes.

Good to Know

• Dimensions: body 41mm diameter and 65mm long. Supplied with 3m of H05RN-F cable.
• Rated IP68 and submersible up to 9m.
• 4 watt LED at 90 lumens per watt, low voltage, parallel wiring.
• Warranty: 5 years.
• Made in New Zealand by the makers of Hunza.
• Colours marked Non-Returnable in the colour selector cannot be returned once ordered.
• Colours shown are for guidance only. Physical colour swatches are available on request.
• Usually ships in 2 to 3 days. If out of stock, allow 3 to 5 weeks.

Questions People Ask

How deep can the pond light go?

It is rated IP68 and is submersible up to 9m.

Do I need a separate driver?

No separate constant current driver is needed, because the light has a 12V integral driver. It is installed in parallel with a remote transformer. We recommend a registered electrician installs it.

Which colours can I choose?

Matt Black, Matt Bronze, Matt White and Matt Dark Grey. Matt White and Matt Dark Grey are marked Non-Returnable. Physical colour swatches are available on request.

Which beam angle should I choose?

Choose 26º to light a single feature, 36º for a medium sized area and 74º for a broad wash across planting or a wider stretch of water.

How long is the cable?

The pond light is supplied with 3m of H05RN-F cable.

Body
Diameter: 41mm
Length: 65mm

(refer to spec for more information)

Cable: Supplied with H05RN-F 3m

• M4 Spotlight
