LuxR Modux 4 Large Round Recessed (75mm dia)- Stainless Steel - Low Voltage
Pay in 3 with Klarna
Rated five stars by thousands of customers since 2014 - see our full review history here
10 years (LED 5 years) Warranty
Hassle-Free Returns
20+ Years of Experience
Free UK Delivery*

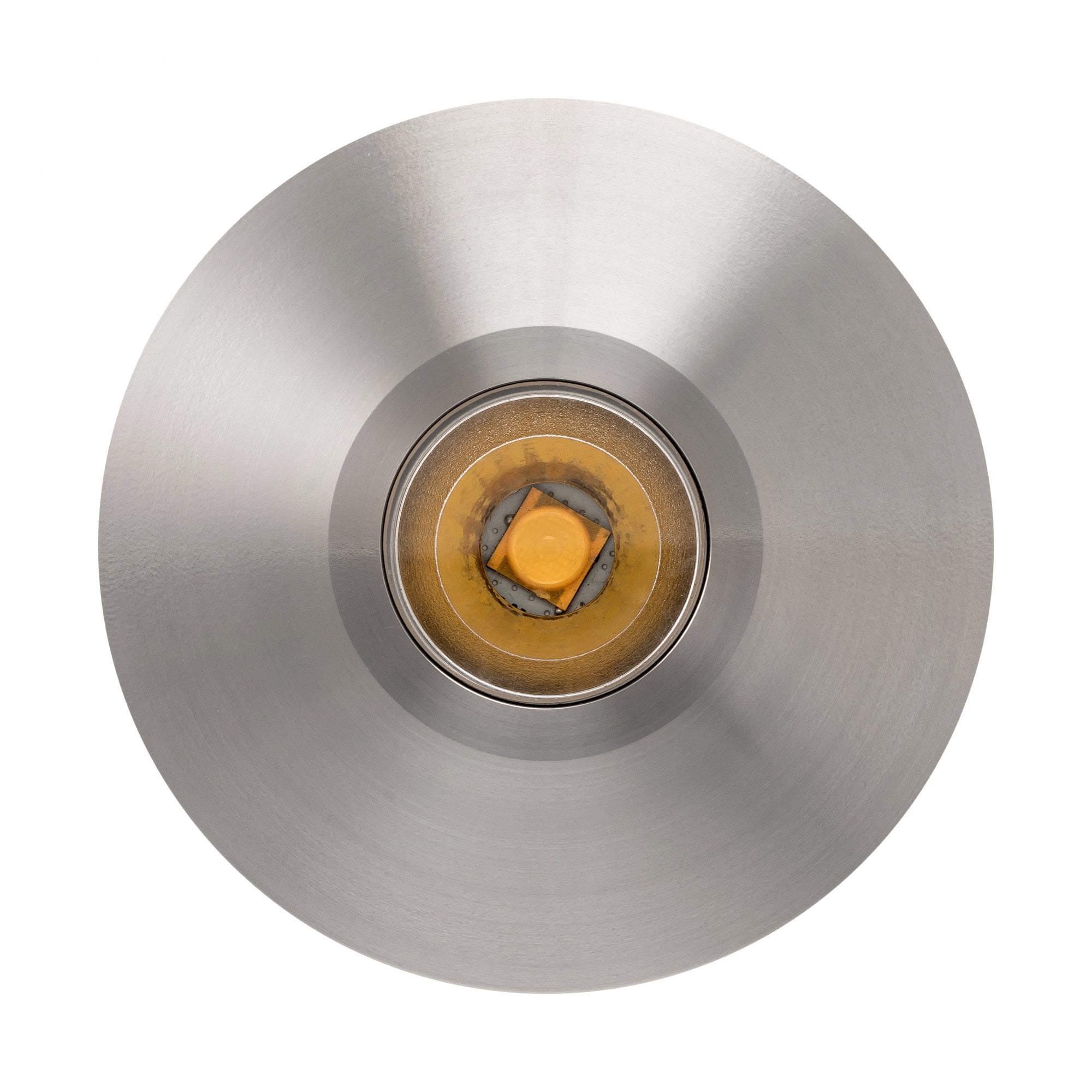

A Larger Stainless Steel Round Spotlight With a 75mm Flange
The LuxR Modux 4 Large Round Recessed is a small low voltage recessed spotlight with a bigger face than the standard round fitting. The flange is 75mm in diameter, compared with 58mm on the regular one. It is useful when the mounting hole is generous or when you want the flange to cover more of the hole edge. This version is machined from marine grade 316 stainless steel.
Marine Grade 316 Stainless Steel
Stainless steel keeps a bright, crisp finish that suits paving, decks and modern walls. The light source is a replaceable 4 watt Cree LED with a CRI of 90 plus.
Choose Your Beam, Colour and Lens

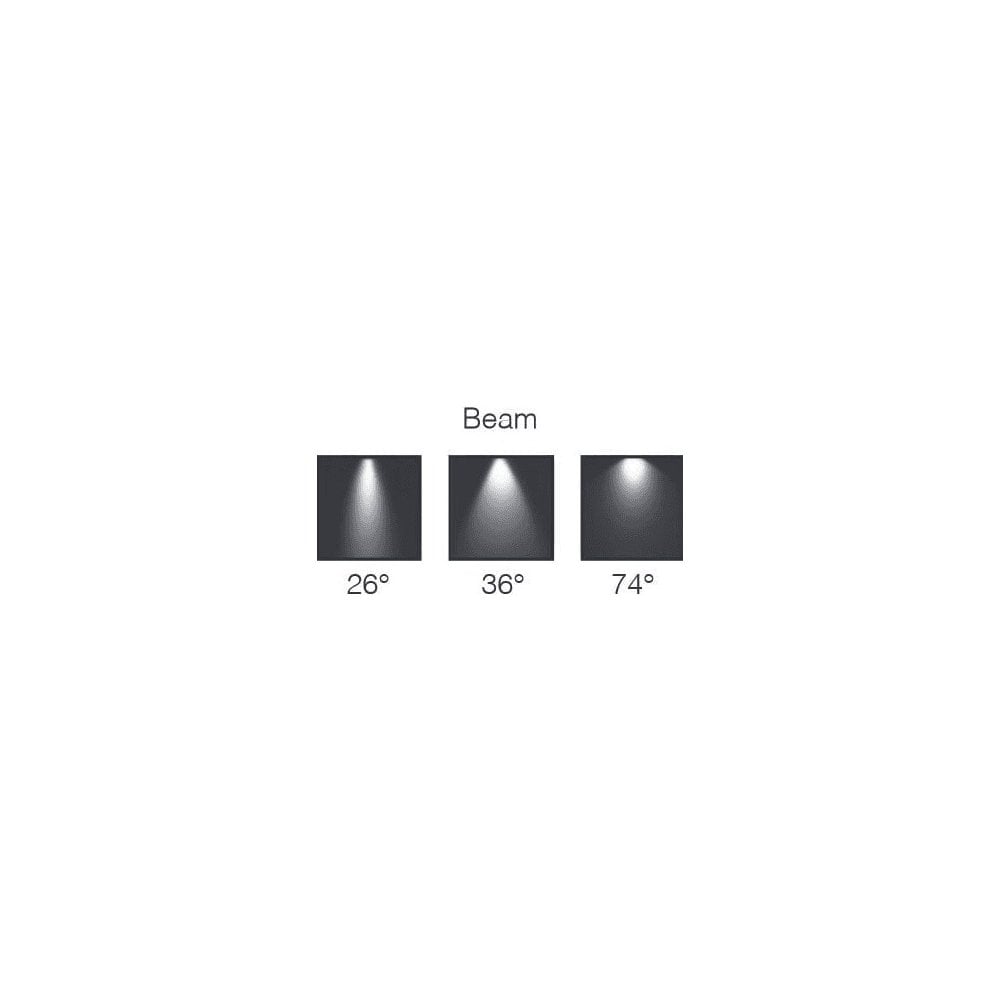

- Beam: 26º is a narrow beam for picking out a single feature, 36º is a medium beam, and 74º is a wide beam for a broader area.
- Colour temperature: 2200K is a very warm glow, 2700K and 3000K are warm white, and 4000K is a crisper neutral white.
- Lens: clear gives the sharpest beam, while frosted softens the edges of the light.
How It Works
Recess the fitting into a 43.5mm cut out in a wall, deck, step or paving. The fitting runs on low voltage, so it needs a suitable constant current driver, which is not included, wired in series. It is dimmable when paired with a suitable dimmable driver. A 1m cable is supplied. The LED can be replaced or swapped for a colour LED, and the optic can be changed to alter the beam width.
Moonlight Design recommends that all lighting should be installed by a registered NICEIC electrician.
Where It Works Best
Use it in paving, decking, steps and walls where you want a clean metal ring to show, or where the hole has been cut a little rough and needs covering. It is also available in M2.
Good to Know

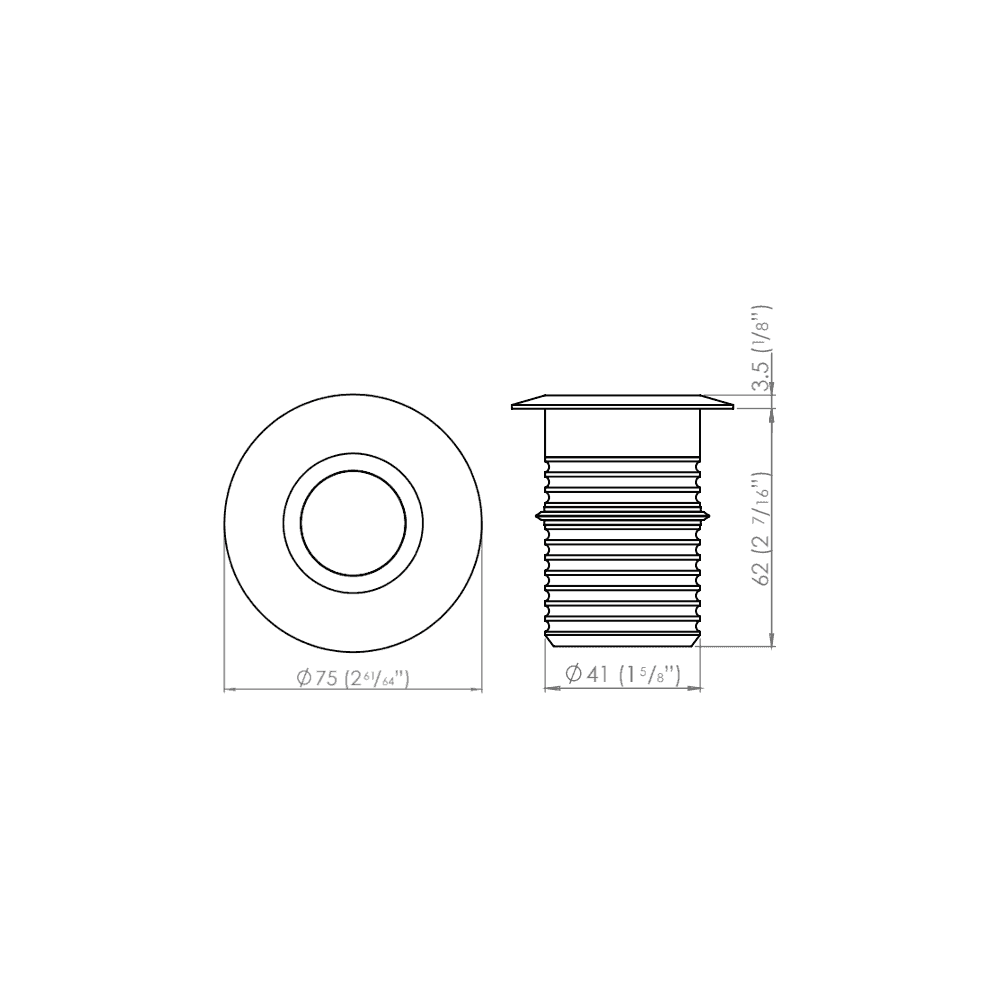

- Dimensions: recessed body 41mm diameter and 62mm long, cut out 43.5mm, flange 75mm in diameter and 3mm deep. Supplied with 1m of H05RN-F cable.
- Rated IP68 for protection against dust and water, so it is built for outdoor use.
- 4 watt LED at 90 lumens per watt, low voltage, series wiring.
- Warranty: 10 years on the body, with 5 years on the LED.
- Made in New Zealand by the makers of Hunza.
- Usually ships in 2 to 3 days. If out of stock, allow 3 to 5 weeks.
Questions People Ask
How much larger is the large round recessed?
The flange is 75mm in diameter, against 58mm on the regular Modux 4 round fitting. The cut out stays at 43.5mm.
Does it come with a driver?
No. It is a low voltage fitting and needs a suitable constant current driver, sold separately. A dimmable driver lets you dim the light. We recommend a registered electrician installs it.
Is stainless steel suitable for outdoor use?
Yes. This version is marine grade 316 stainless steel and the fitting is rated IP68, so it is designed for outdoor use.
Which beam angle should I choose?
Choose 26º to light a single feature, 36º for a medium sized subject, and 74º for a wider wash across a larger area.
Can I change the LED later?
Yes. The Cree LED can be replaced or swapped for a colour LED, and the optic can be changed to alter the beam width.
