LuxR Modux 2 Square Recessed Powder Coat

A Small Square Recessed Spotlight in Four Powder Coated Colours

The LuxR Modux 2 Square Recessed is a very small low voltage outdoor spotlight that sits in a 43.5mm cut out. The recessed body is 41mm across and 62mm long, and the square flange is 53mm wide and 3mm deep, so it sits close to the surface.

UV Powder Coated Aluminium

This version is made from aluminium with a UV powder coat in Matt Black, Matt Bronze, Matt White or Matt Dark Grey, so the flange can blend into the surface around it. The light source is a 2 watt Cree LED with a CRI of 90 plus, so surfaces and planting look true to colour.

Choose Your Colour, Beam and Lens

Powder coat colour: Matt Black and Matt Dark Grey suit darker surfaces, Matt Bronze sits well on warm brick or timber, and Matt White disappears into pale paving or render.

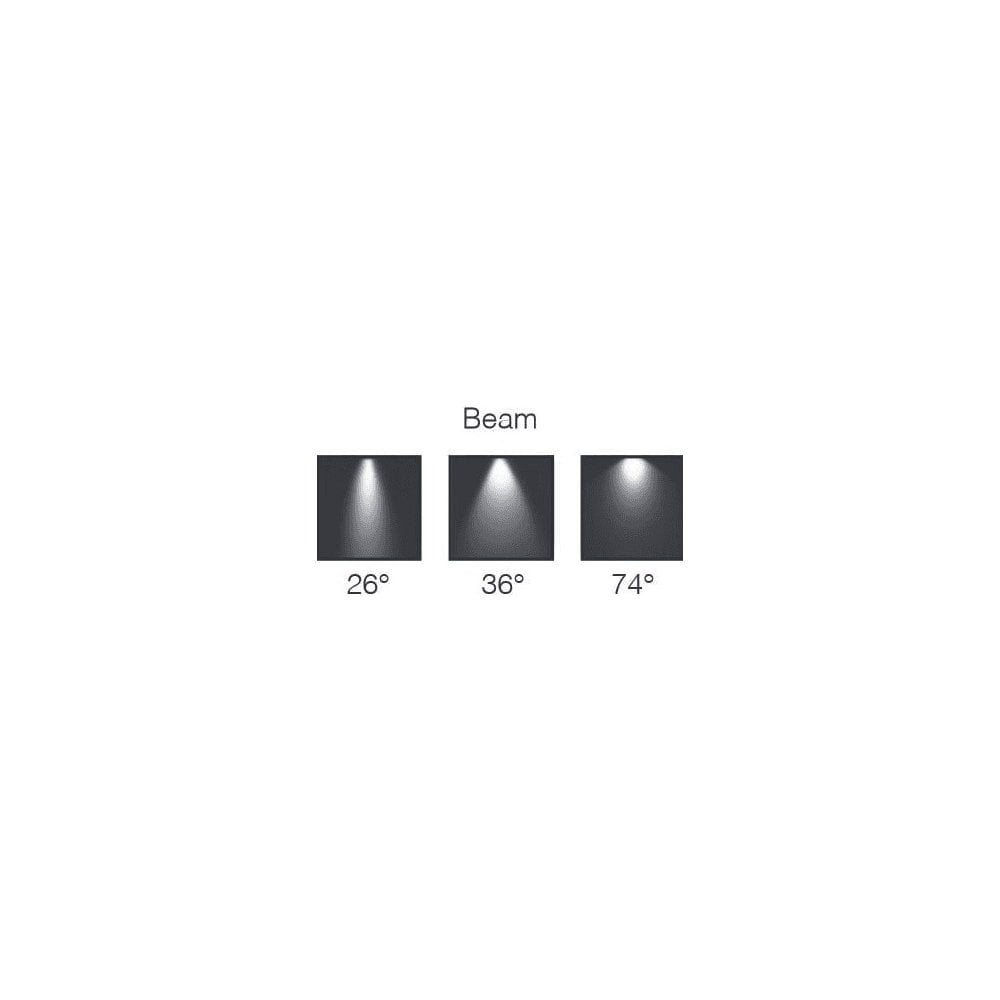

Beam: 26º is the narrowest beam and picks out a single feature, 36º is a little wider, and 74º spreads the light across a broader area.
Colour temperature: 2200K is a very warm glow, 2700K and 3000K are warm white, and 4000K is a crisper neutral white.
Lens: clear gives the sharpest beam, while frosted softens the edges of the light.

How It Works

Cut a 43.5mm hole, drop the body in and fix it in place so the flange sits flat. The fitting runs on low voltage, so it needs a suitable constant current driver, which is not included, and it is wired in series. It is dimmable when paired with a suitable dimmable driver. A 1m cable is supplied. The Cree LED can be replaced or swapped for a colour LED, and the optic can be changed to alter the beam width.

Moonlight Design recommends that all lighting should be installed by a registered NICEIC electrician.

Where It Works Best

The square flange gives a tidy architectural edge, and the colour choice lets you match it to the surface so the light itself takes centre stage. Moonlight Design uses LuxR fittings in its own garden lighting designs and installations. The same design is also available as the M1 and M4.

Good to Know

Dimensions: cut out 43.5mm, recessed body 41mm diameter and 62mm long, flange 53mm wide and 3mm deep. Supplied with 1m of H05RN-F cable.
Rated IP68 for protection against dust and water, so it is built for outdoor use.
2 watt LED at 85 lumens per watt, low voltage, series wiring.
Warranty: 5 years.
Colours marked Non-Returnable in the colour selector cannot be returned once ordered.
Colours shown are for guidance only. Physical colour swatches are available on request.
Designed, engineered and hand assembled in Auckland, New Zealand, by the makers of Hunza.
Usually ships in 2 to 3 days. If out of stock, allow 3 to 5 weeks.

Questions People Ask

What colours can I choose?

Matt Black, Matt Bronze, Matt White and Matt Dark Grey. Matt White and Matt Dark Grey are marked Non-Returnable in the colour selector.

What size hole do I need for the square recessed light?

The cut out is 43.5mm. The recessed body is 41mm across and 62mm long, and the flange is 53mm wide.

Does it come with a driver?

No. It is a low voltage fitting and needs a suitable constant current driver, sold separately. A dimmable driver lets you dim the light. We recommend a registered NICEIC electrician installs it.

Which beam angle should I choose?

Choose 26º to light a single feature, 36º for a wider pool of light, and 74º for a broad spread.

Can I change the LED later?

Yes. The Cree LED can be replaced or swapped for a colour LED, and the optic can be changed to alter the beam width.
