A Stainless Steel Square Light Wash with One Facet
The LuxR Modux 2 Square Light Wash is a very small low voltage feature light that casts a narrow decorative band of light 5º below the flange lip. This is the 1 facet version: a facet is the opening that the light is emitted from, so this one has a single opening. For the exact light distribution, please check the product spec sheet or contact us. The recessed body is 41mm across and 62mm long, with a square flange.

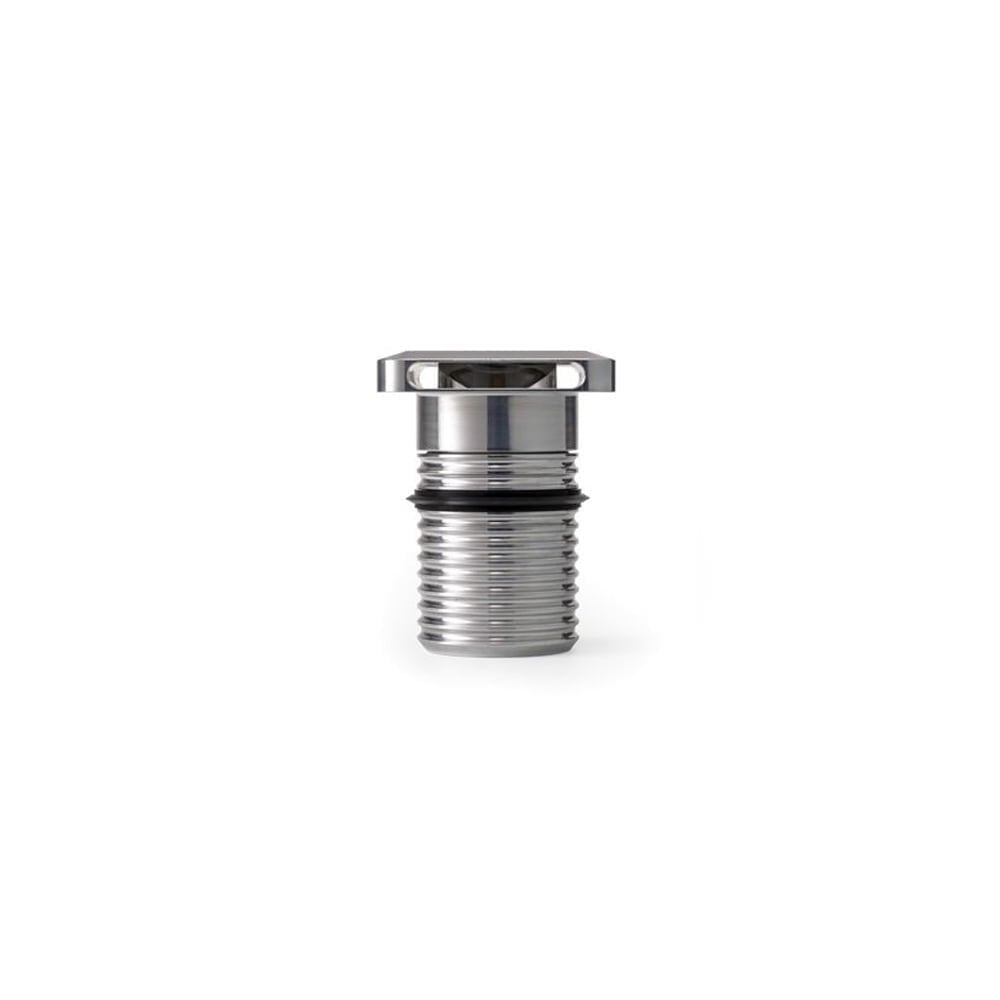

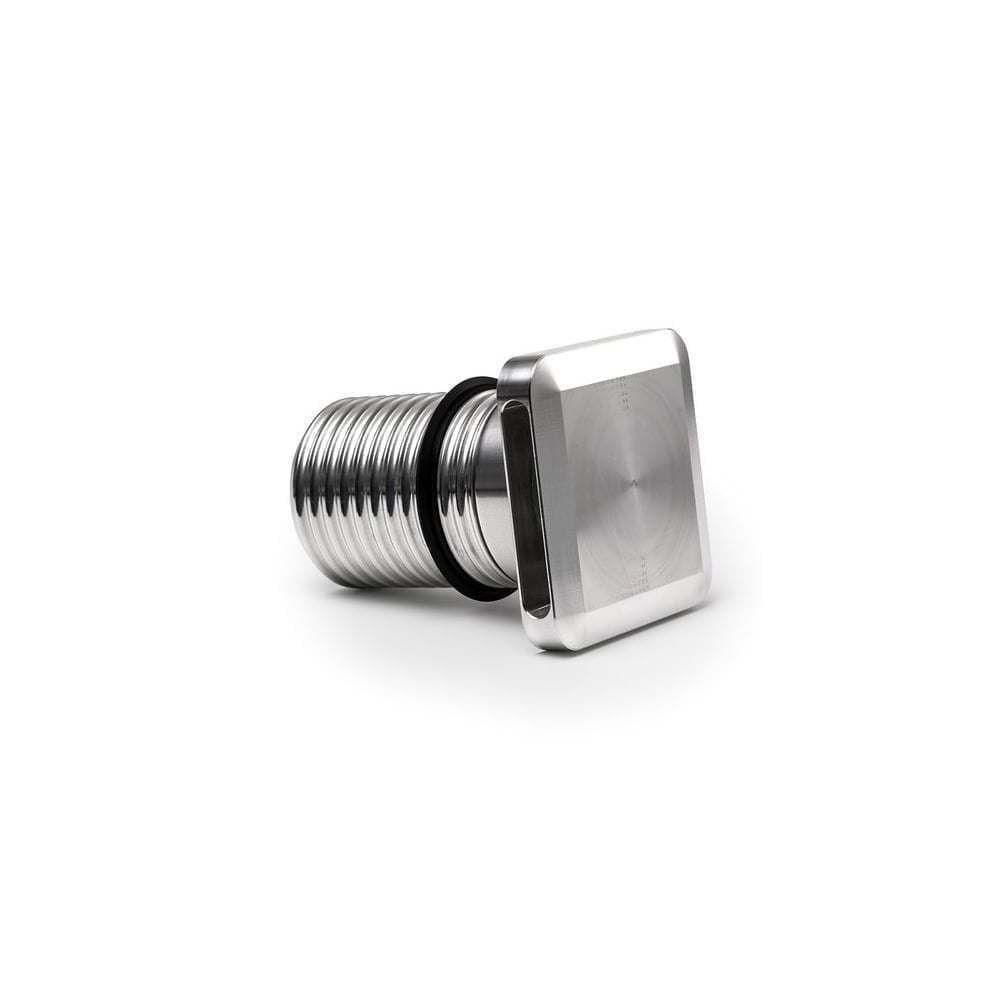

Marine Grade 316 Stainless Steel
This version is precision machined in marine grade 316 stainless steel. The flange has a clean, bright metal look that suits modern steps, rendered walls and stone cladding. The light source is a 2 watt Cree LED.
Choose Your Colour Temperature
- Colour temperature: 2200K is a very warm glow, 2700K and 3000K are warm white, and 4000K is a crisper neutral white that pairs well with the cool tone of stainless steel.
How It Works
The light is recessed into a wall, step riser or other surface using a 43.5mm cut out. The fitting runs on low voltage, so it needs a suitable constant current driver, which is not included, and it is wired in series. It is dimmable when paired with a suitable dimmable driver. A 1m cable is supplied. The LED can be replaced or swapped for a colour LED, and the optic can be changed to alter the beam width.
Moonlight Design recommends that all lighting should be installed by a registered NICEIC electrician.
Where It Works Best
Use it to light the wall beside step treads, the treads themselves, the space above a doorway, or as a path wayfinder. Moonlight Design uses LuxR fittings in its own garden lighting designs and installations. It is also available in M4.
Good to Know

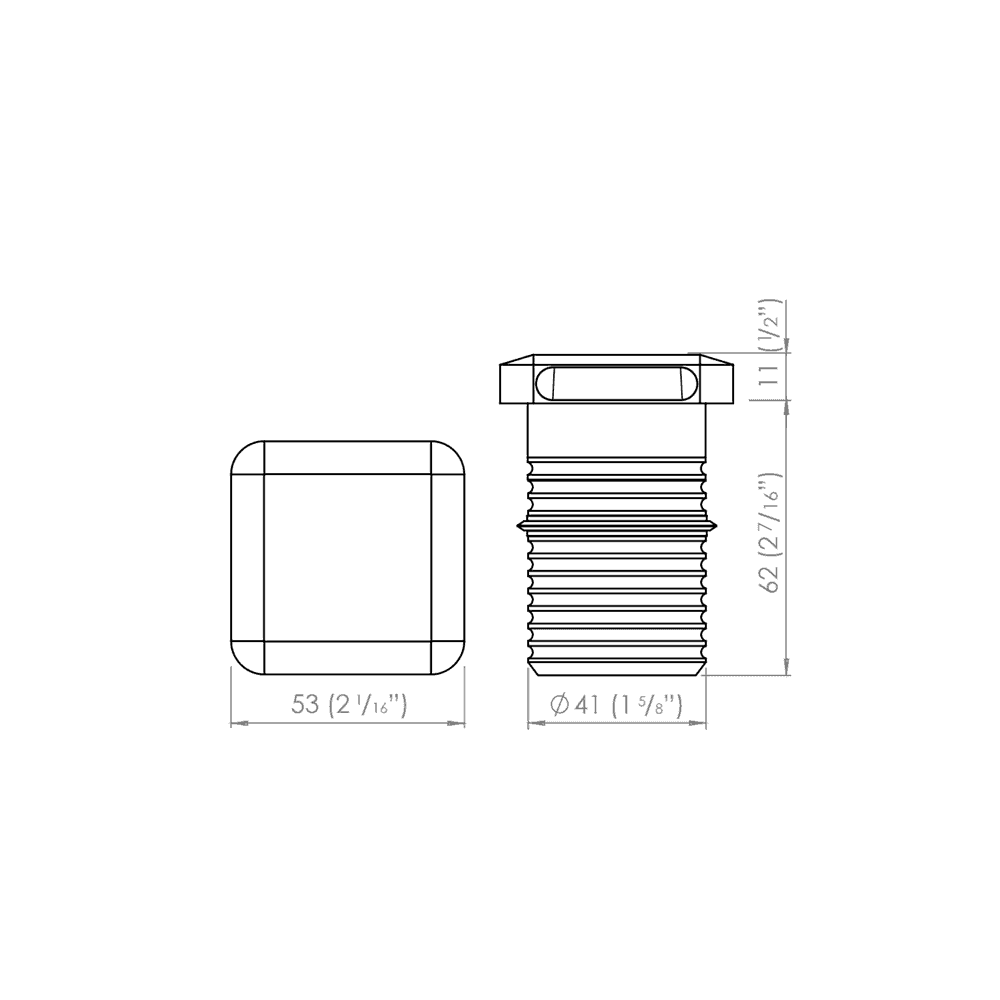

- Dimensions: recessed body 41mm diameter and 62mm long, cut out 43.5mm, flange 53mm wide and 11mm deep. Supplied with 1m of H05RN-F cable.
- Rated IP68 for protection against dust and water, so it is built for outdoor use.
- 2 watt LED at 85 lumens per watt, low voltage, series wiring.
- Warranty: 10 years on the body, with 5 years on the LED.
- Designed, engineered and hand assembled in Auckland, New Zealand, by the makers of Hunza.
- Usually ships in 2 to 3 days. If out of stock, allow 3 to 5 weeks.
Questions People Ask
What is a facet?
A facet is the opening that the light is emitted from.
What is the difference between 1 facet and 2 facet?
A facet is the opening that the light is emitted from. The 1 facet version has one opening and the 2 facet version has two. The two versions share the same body and flange size. Please check the product spec sheet or contact us to confirm the exact light distribution for your project.
What size hole do I need?
The cut out is 43.5mm. The recessed body is 41mm across and 62mm long, and the flange is 53mm wide.
Does it come with a driver?
No. It is a low voltage fitting and needs a suitable constant current driver, sold separately. A dimmable driver lets you dim the light. We recommend a registered NICEIC electrician installs it.
What is the stainless steel grade?
It is marine grade 316 stainless steel, and the fitting is rated IP68 for dust and water protection.
Can I use it on steps?
Yes. It is designed to light the wall beside step treads or the treads themselves, as well as the space above a doorway.
