LuxR Modux 1 Pond Light (Weighted Base) with 12V Integral Driver - Stainless Steel - Low Voltage

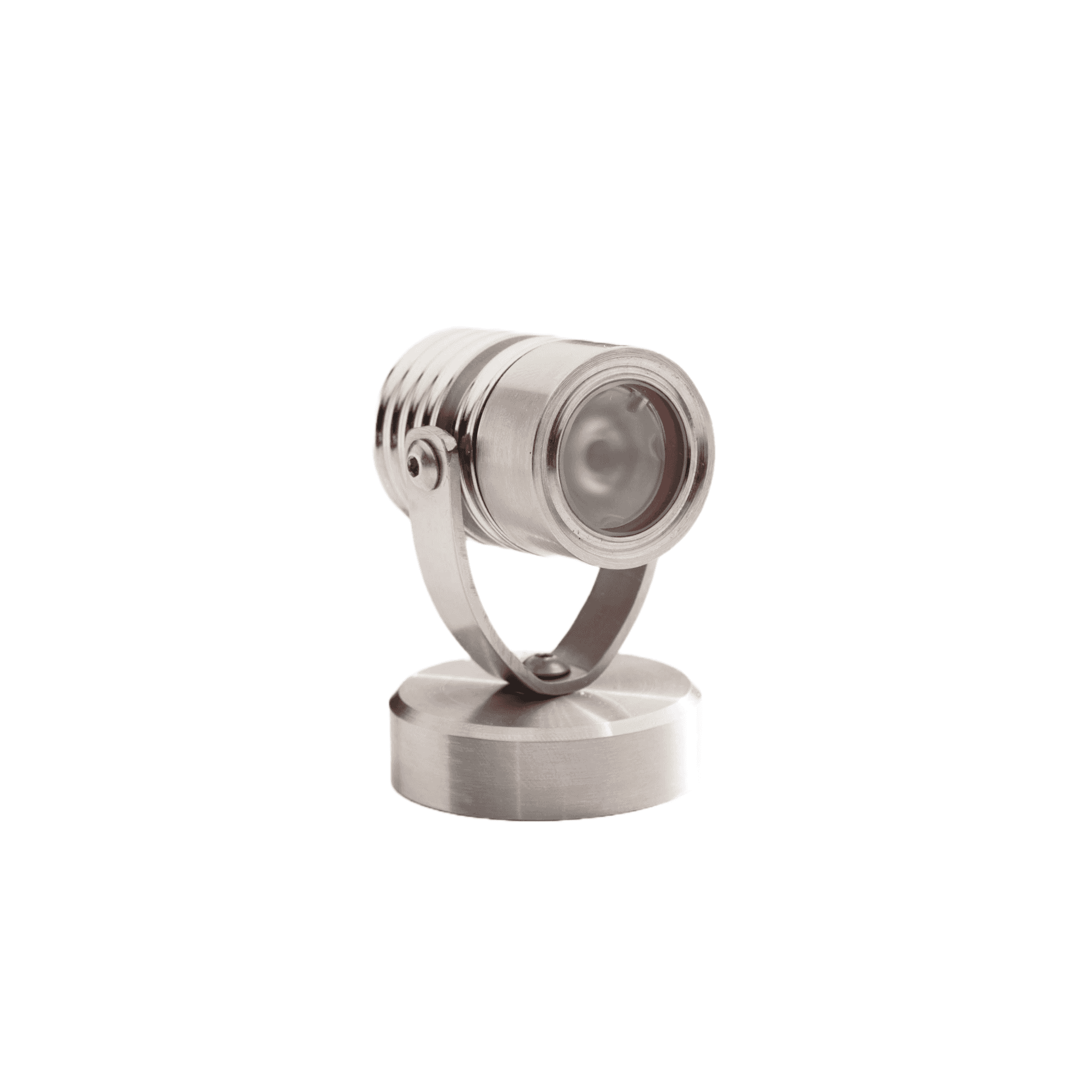

A Tiny Stainless Steel Pond Light with a Weighted Base

The LuxR Modux 1 Pond Light is a very small submersible spotlight for ponds and water features. The body is only 31mm across and 42mm long, and it sits on a weighted base so it stays where you put it. It is rated IP68 and can be submerged up to 9m.

Marine Grade 316 Stainless Steel

This version is machined in marine grade 316 stainless steel, a bright, clean metal chosen for wet conditions. The light source is a 1 watt Cree XPG-3 LED with a CRI of 90 plus, which helps plants, stone and fish look true to colour. The same pond light is also made in copper and powder coat.

Choose Your Beam, Colour and Lens

• Beam: 30º is a narrow beam for a single plant or rock, 53º is wider for a larger feature, and the oval beam stretches the light into a wider, flatter shape.
• Colour temperature: 2200K is a very warm glow, 2700K and 3000K are warm white, and 4000K is a crisper neutral white.
• Lens: clear gives the sharpest beam, while frosted softens the edges of the light.

How It Works

This pond light has a 12V integral driver built in, and comes with 3m of cable. It must be installed in parallel with a remote transformer. It is dimmable with a suitable transformer. The LED can be replaced or swapped for a colour LED, and the optic can be changed to alter the beam width.

Moonlight Design recommends that all lighting should be installed by a registered NICEIC electrician.

Where It Works Best

Use it to light ponds, water features and the planting around them. The stainless finish suits modern water features with clean edges. The same design is also available as the larger M2 and M4. Moonlight Design uses LuxR in its own garden lighting designs and installations.

Good to Know

• Dimensions: body 31mm diameter and 42mm long. Supplied with 3m of H05RN-F cable.
• Rated IP68 and submersible up to 9m.
• 1 watt LED at 80 lumens per watt, low voltage, parallel wiring.
• Warranty: 10 years on the body, with 5 years on the LED.
• Made in New Zealand by the makers of Hunza.
• Usually ships in 2 to 3 days. If out of stock, allow 3 to 5 weeks.

Questions People Ask

Is the stainless steel pond light safe in water?

It is rated IP68 and is submersible up to 9m. The body is marine grade 316 stainless steel.

Do I need a separate driver?

No, the 12V driver is built in. It does need to be wired in parallel to a remote transformer. We recommend a registered electrician installs it.

Which beam angle should I choose?

Choose 30º to light a single plant or rock, 53º for a larger feature, and the oval beam for a broader, flatter wash.

Can I change the LED or the beam later?

Yes. The Cree LED can be replaced or swapped for a colour LED, and the optic can be changed to alter the beam width.

31mm diameter, 42mm body length (refer to spec for more information) & H05RN-F 2x 0.75mm (3m Included)
