Hunza T-D-LCM25 driver - 0-10v dimmable driver -350mA/700mA/1050mA

A Dimmable Driver for Hunza and Luxr Fittings

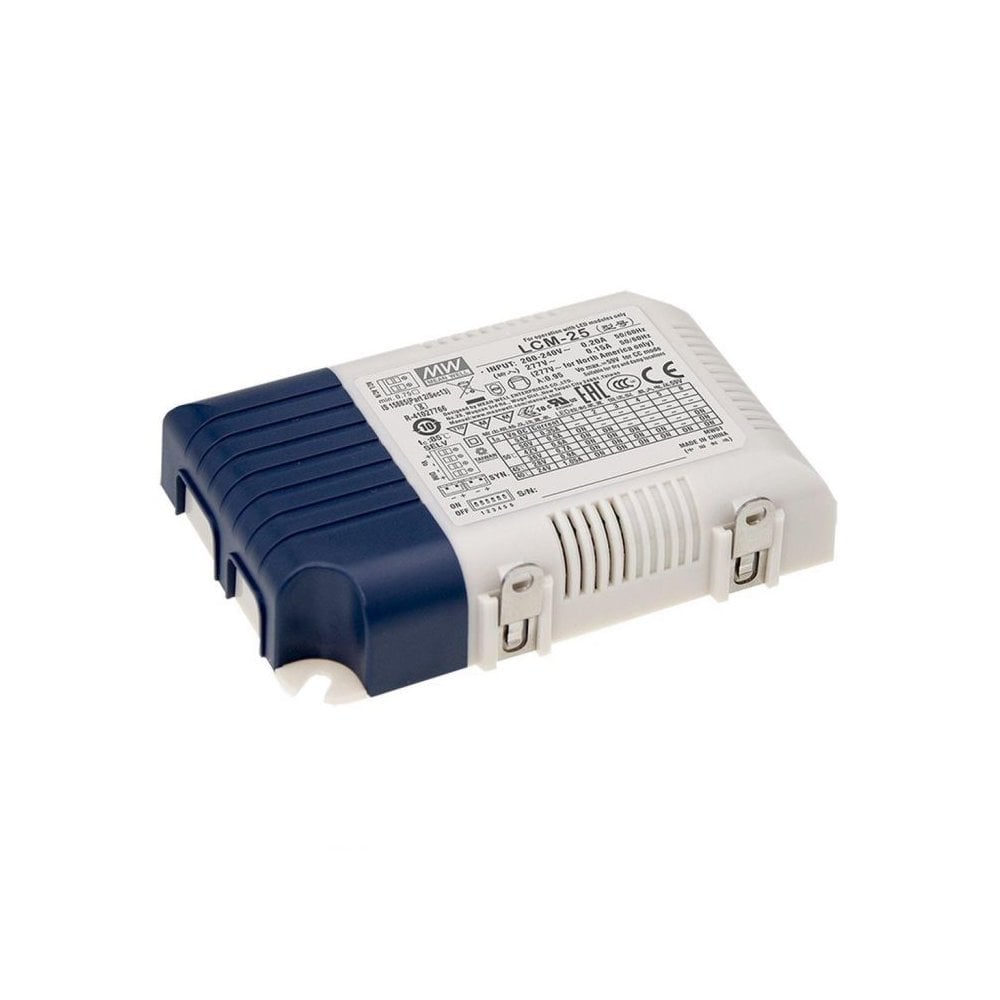

The Hunza LCM25 is a 0 to 10V dimmable driver offered with 350mA, 700mA and 1050mA options. It is intended for use with Luxr and Hunza LED fittings, and the guide below shows how many of each it is suited to. It is based on the Meanwell LCM25, a 25 watt constant current driver.

What the Manufacturer Lists

• The Meanwell LCM25 has a selectable output current set by a DIP switch, from 350mA up to 1050mA.
• It can be dimmed by a 0 to 10V signal, a 10V PWM signal or a resistance.
• It measures 105mm long, 68mm wide and 23mm high.
• Meanwell notes it should only be used behind a switch, and not permanently connected to the mains.

Good to Know

• Suitable for Luxr M1, 1 to 14 fittings at 350mA.
• Suitable for Luxr M2, 1 to 12 fittings at 700mA.
• Suitable for Luxr M4, 1 to 6 fittings at 700mA.
• Suitable for Hunza 700mA fittings, 1 to 6 fittings at 700mA.
• Suitable for Hunza Pure LED, 1 to 4 fittings at 1050mA.
• The driver unit is rated IP20, so for exterior use Hunza recommends fitting it inside a weatherproof box. Ask us about the box Hunza offers.
• When used as a remote power supply, the fittings it feeds are wired in series.
• Made to order: usually ships within 2 to 3 days. If your specification is temporarily out of stock, allow 3 to 5 weeks.
• We recommend installation by a registered NICEIC electrician.

Our Lighting Design Service

Moonlight Design has worked with Hunza since 2003. We design lighting schemes for gardens, supply Hunza fittings and install them with NICEIC registered electricians. Our Design Service page shows schemes we have completed and how we plan and draw them up. Visit that page if you would like help choosing the right driver for your scheme.

Questions People Ask

How many Hunza Pure LED fittings can this driver run?
It can run 1 to 4 Hunza Pure LED fittings at 1050mA.

Can I dim the lights with it?
Yes. It is a 0 to 10V dimmable driver, so it needs a compatible 0 to 10V control to dim the fittings.

Can I mount it outdoors?
Not on its own. The driver is IP20 rated, so Hunza recommends installing it in a weatherproof box for exterior use.
