Hunza Step Light - Powder Coat - Low Voltage

Low Level Light for Steps, Paths and Drives

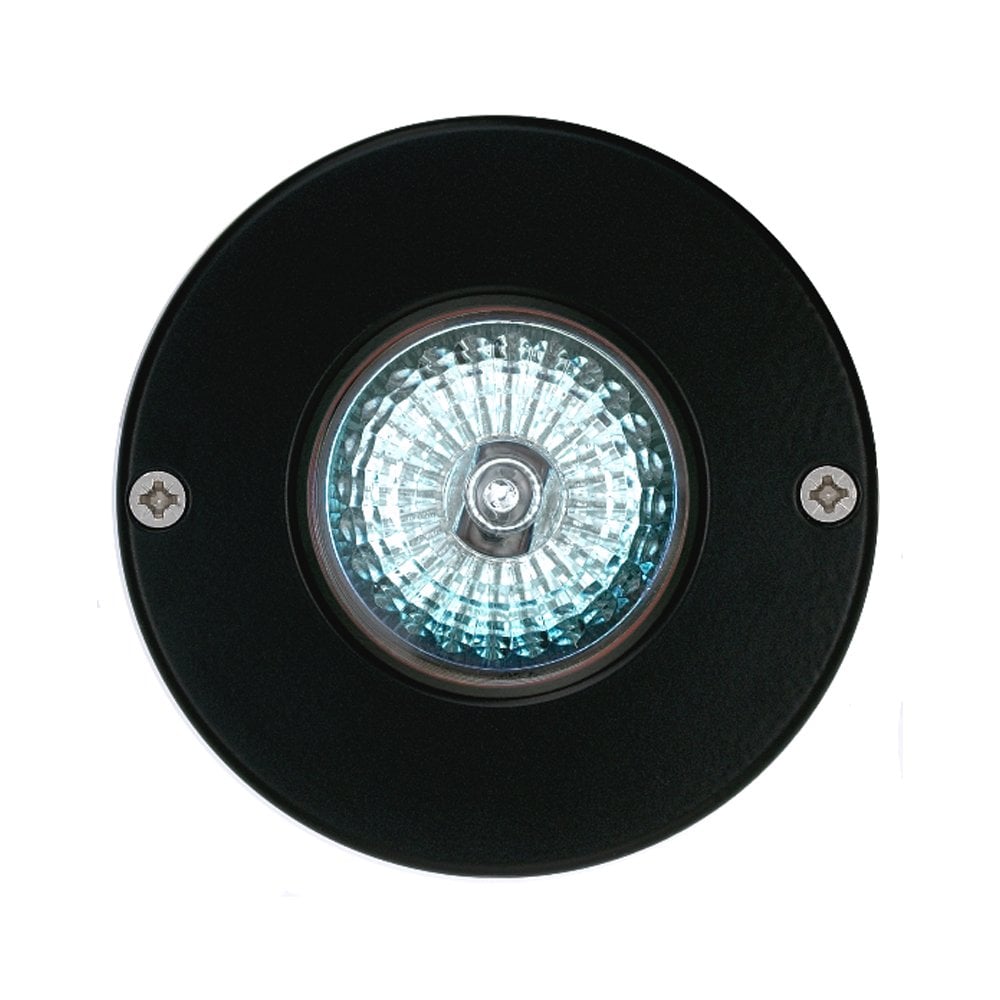

This Hunza Step Light is a recessed low voltage fitting with an 88mm flange, made to be set flush into masonry, stone or wood. It is meant for step lighting and ground level horizontal lighting, such as a driveway or an exterior paved area, and it can also be turned to work as a recessed uplighter. The powder coated aluminium body comes in seven colours.

Pick a Powder Coat to Match the Surface

You can choose from Black, Dark Grey, White, Birch, Bronze, Olive Green and Silver Star, each baked onto aluminium. The colours shown are indicative only and swatches are available on request. Matt Black and Matt Bronze can be returned within 14 days of delivery if unused, uninstalled and in original packaging. Matt Olive Green, Matt White, Matt White Birch, Matt Dark Grey and Matt Silver Star are made to order and are non returnable unless faulty or damaged.

Specification

• Cut out size 63.5mm. Recessed body diameter 63.5mm and length 68.5mm.
• The flange measures 88mm across and 7mm deep, and 1m of cable is supplied.
• Mounting holes come as standard, but are not needed if you fit it in a canister.
• Lamp not supplied. A Hunza approved LED (MR16) must be used to keep the IP rating and warranty.
• Low voltage, wired in parallel, run from a transformer that is sold separately.
• Rated IP67 with a 5 year warranty.
• Select the With or Without option along with your colour.

Where You Might Fit It

• Along the edge of a staircase leading down into the garden
• Set into a paved terrace or driveway to mark its boundary
• In a timber deck or sleeper wall, in a colour that blends in
• Low in a masonry wall, aimed upward as a gentle uplighter

Our Lighting Design Service

We have worked with Hunza since 2003. We design lighting schemes for gardens, supply Hunza fittings and install them with NICEIC registered electricians. Our Design Service page has photographs of our own completed schemes and explains how we plan a layout, draw it up and install it. If you are lighting steps or a long run of path, it can help to see how we spread the fittings.

Good to Know

• Made to order: usually ships within 2 to 3 days. If your specification is temporarily out of stock, allow 3 to 5 weeks.
• Matt Black and Matt Bronze may be returned within 14 days of delivery if unused, uninstalled and still packaged. Other colours are non returnable unless faulty or damaged.
• Lamp and transformer are sold separately.
• Colours are indicative only, and swatches are available on request.
• We recommend installation by a registered NICEIC electrician.

Questions People Ask

How big is the flange and the hole?
The flange is 88mm in diameter and 7mm deep, and the cut out is 63.5mm.

Can I use it somewhere other than steps?
Yes. It also suits ground level horizontal lighting such as driveways and paved areas, and can be used as a recessed uplighter.

Which colours can I return?
Matt Black and Matt Bronze can go back within 14 days of delivery if unused, uninstalled and still packaged. The remaining five colours are non returnable unless faulty or damaged.

Is a lamp included?
No. You need a Hunza approved LED lamp, bought separately.

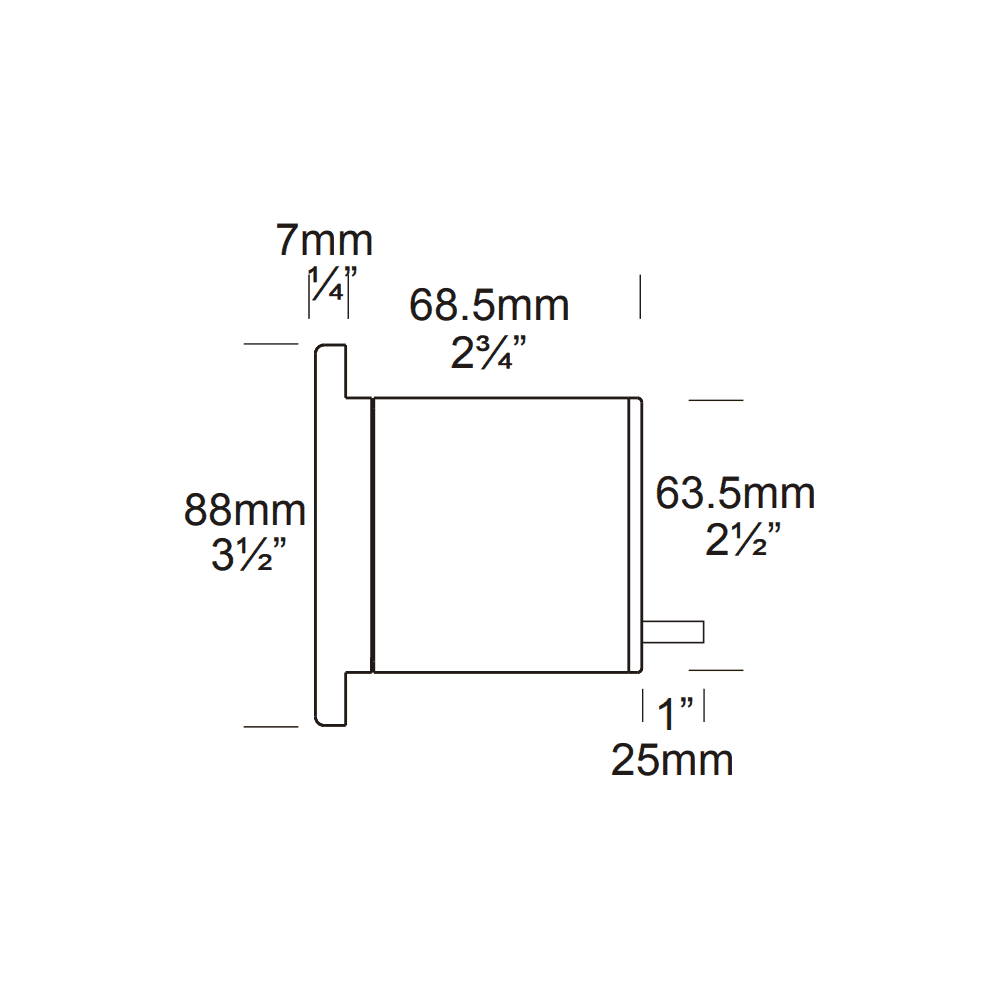

Recessed body
Diameter: 63.5mm
Length: 68.5mm

Flange
Diameter: 88mm
Depth: 7mm
(refer to spec for more information)
Supplied with 1m cable

• Hunza Step Lite Spec Sheet
