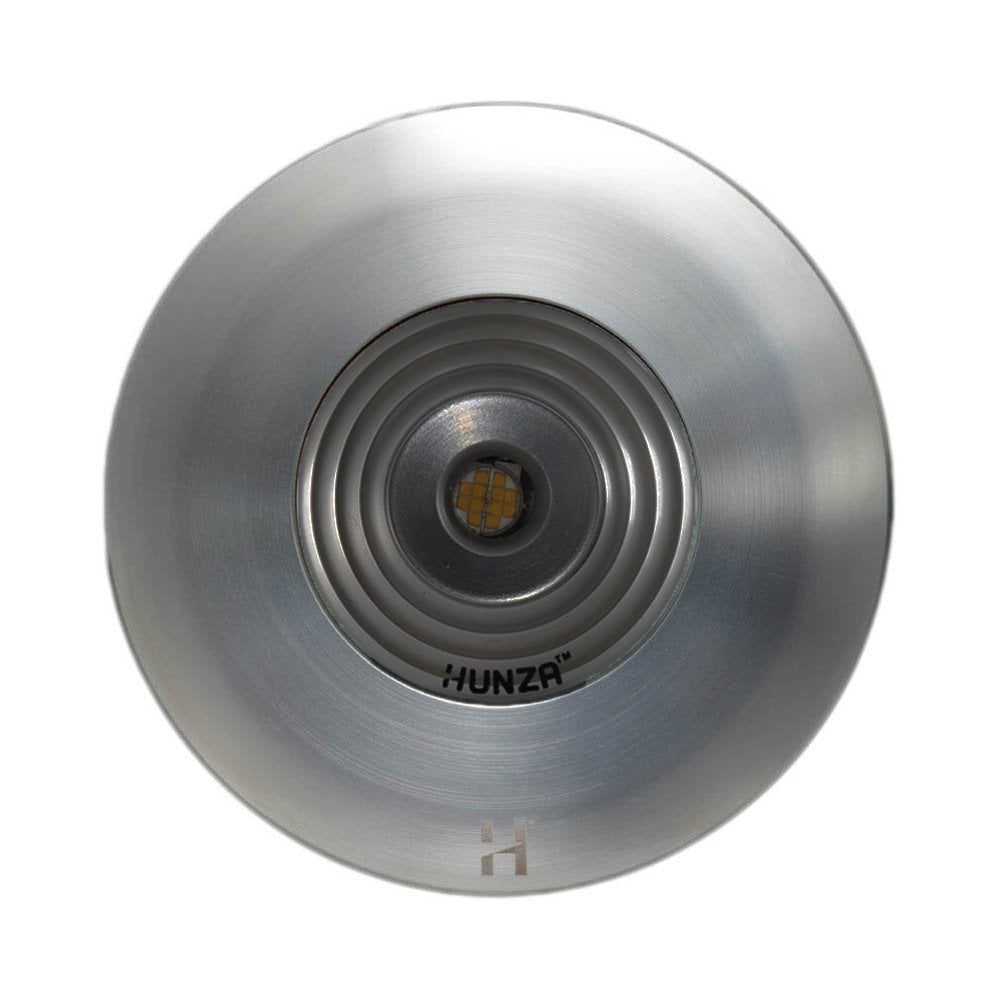

Hunza Pure LED Floor Light Dark Lighter - Stainless Steel - Low Voltage

Low Glare Uplighting in Stainless Steel

The Hunza Pure LED Floor Light Dark Lighter is a compact uplighter designed to keep glare to a minimum. Hunza enhances the glare control with a matt black interior, so you see the lit wall or tree and not the lamp. This low voltage version is in marine grade 316 stainless steel and comes with its mounting canister.

Brushed Stainless, Easy to Live With

The finish is solid 316 stainless steel, which holds a consistent brushed look. It can pick up a light surface tarnish in some environments, and regular washing keeps this in check, but the fitting must not be pressure washed (water blasted). Returns are accepted within 14 days if the fitting is unused, uninstalled and in original packaging.

How It Works

• A plug and play, field replaceable Cree LED board delivers 600 lumens from 6 watts at 1050mA, about 100 lumens per watt, with a CRI of 90 or more at 3000K and 50,000 hours to L70.
• Options at order are 2200K, 2700K, 3000K or 4000K, beam angles of 15, 25, 38 or 60 degrees, and clear or frosted lens. The beam optic is a field replaceable TIR lens.
• The canister is 76mm in diameter and 203mm long, with a 100mm base diameter. The flange is 88mm across and 3mm deep. Cut out size is 63.5mm, and it has 1m of cable.
• The mounting canister is supplied with the fitting. The luminaire pushes into the canister and is held by two silicone O rings, and the canister is cast into concrete, concrete block or brick.
• The lens glass is 10mm thick, extra clear, low iron and shatter resistant.
• Low voltage and series wired at 6Vf, so it needs a remote constant current LED driver, sold separately.
• Dimmable when used with a suitable dimmable driver.
• IP67 rated and covered by a 10 year warranty, with 5 years on the LED.

Where It Works Best

• Beside seating, where a bare uplighter would be too bright to look at
• Close to a doorway or window, lighting the wall without dazzling people inside
• Uplighting a tree near a terrace
• Anywhere visitors will pass close to the light

Planning and Fitting With Care

Moonlight Design has worked with Hunza since 2003. We design lighting schemes for gardens, supply Hunza fittings and install them. Our Design Service page carries photographs of our own completed schemes, and describes how we plan, draw up and install them with NICEIC registered electricians. Take a look, and ask us about a scheme for your own garden.

Good to Know

• Made to order: usually ships within 2 to 3 days. If your specification is temporarily out of stock, allow 3 to 5 weeks.
• Supplied with a mounting canister.
• A remote LED driver is required, sold separately.
• Do not pressure wash the fitting.
• We recommend installation by a registered NICEIC electrician.

Questions People Ask

What makes the Dark Lighter different?
It has a matt black interior that further enhances glare control, and it is supplied with a mounting canister.

How big is the canister?
The canister is 76mm in diameter and 203mm long, with a base diameter of 100mm.

Does it need a driver?
Yes. It runs on low voltage in series and needs a remote LED driver, sold separately.

Can I pick the beam angle?
Yes, from 15, 25, 38 and 60 degrees.

Can I replace the LED later?
Yes. Hunza uses a plug and play LED board and a TIR lens that are both field replaceable.

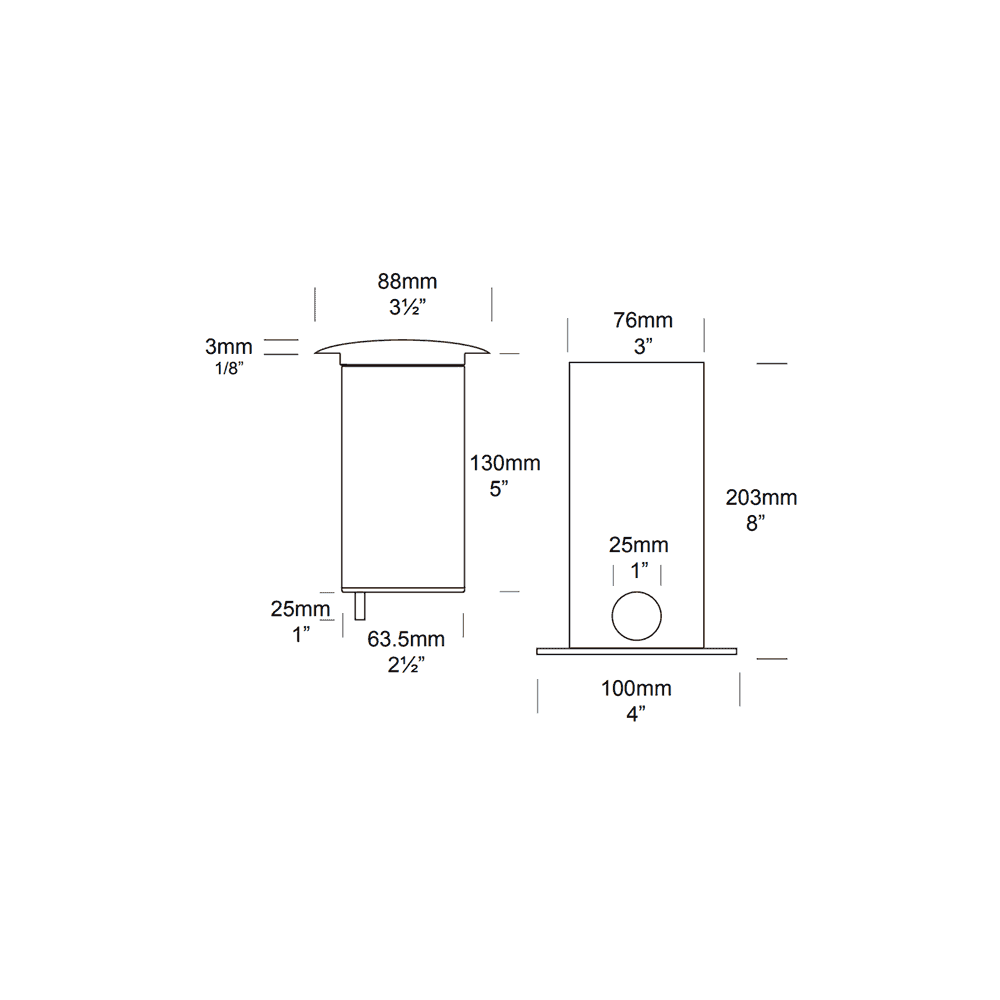

Canister
Diameter: 76mm
Length: 203mm
Base diameter: 100mm

Flange
Diameter: 88mm
Depth: 3mm
(refer to spec for more information)
Supplied with 1m cable

• Hunza Pure LED Floor Lite Dark Lighter Spec Sheet
