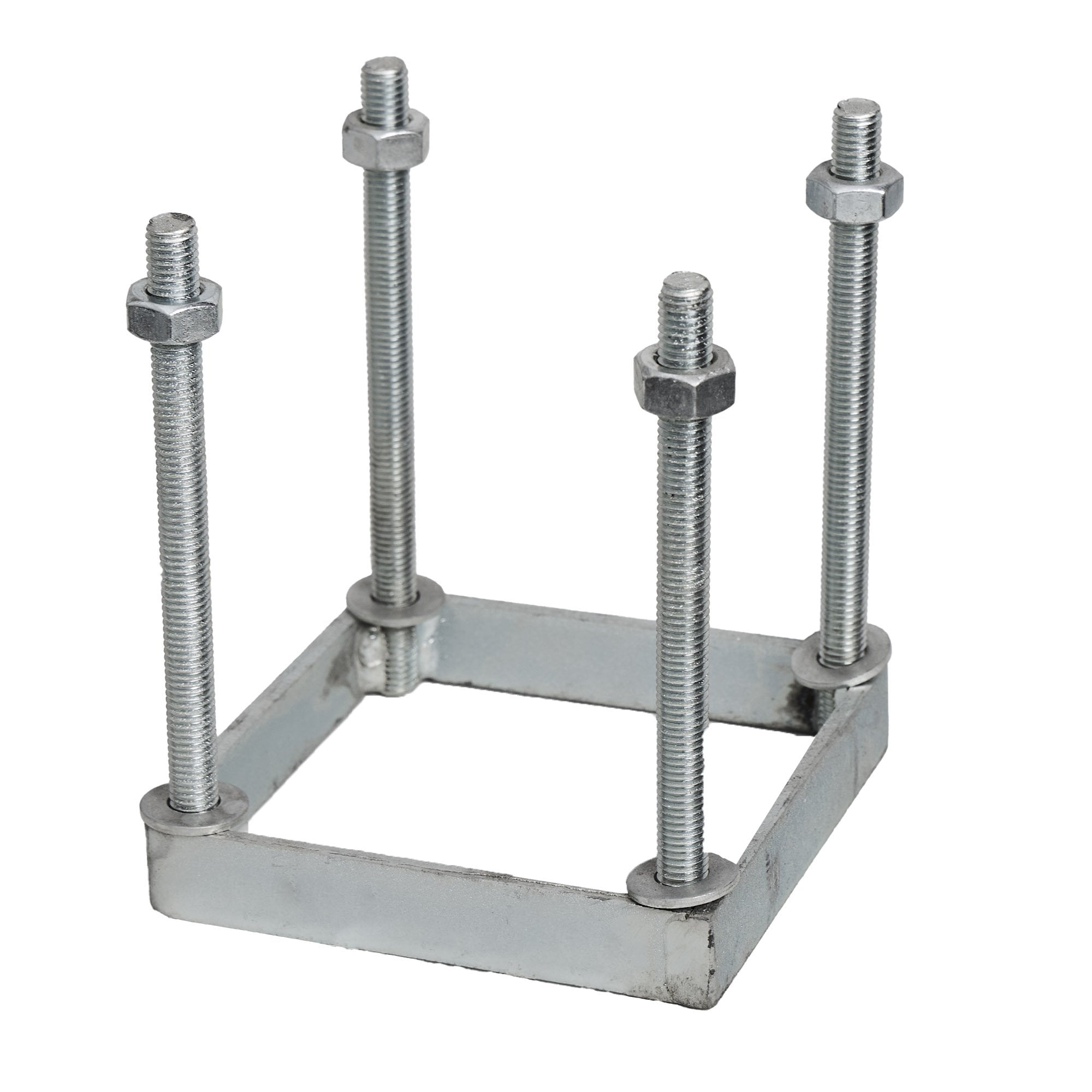

Harte Small 100mm Square Foundation Frame - Galvanised Steel with 4 Threaded Bars

The FF03 is Harte's small foundation frame, a 100mm square galvanised steel frame standing 120mm tall, fitted with four threaded bars. It's installation hardware rather than a light fixture, used to give a Harte lamp post a fixed anchor point in the ground before it's set in place.

How it works

The frame is embedded in a concrete footing, and once the concrete has cured, the four threaded bars are left standing proud of the surface. The lamp post base bolts onto these bars, holding the post securely rather than leaving it to rest on a surface mount or plinth.

Where it's used

At 100mm square, the FF03 is the smallest and most compact frame in the range, suited to Harte lamp posts that need a fixed footing but not the wider base of the FF01 or FF02. It's designed to be paired with a matching Harte lamp post rather than used on its own.

Harte, Irish made hardware

The FF03 is made by Harte Outdoor Lighting, a family run manufacturer based in New Ross, County Wexford, producing outdoor lighting and installation hardware since 1983.

Good to know

• Made to order at Harte's workshop in Ireland, with a lead time of 2 to 5 weeks.
• Non-returnable unless the item arrives faulty.
• Galvanised steel construction, chosen for corrosion resistance in outdoor and in ground use.
• Set the frame in concrete and allow it to cure fully before bolting the lamp post base in place.

Height 120mm x Width 100mm
