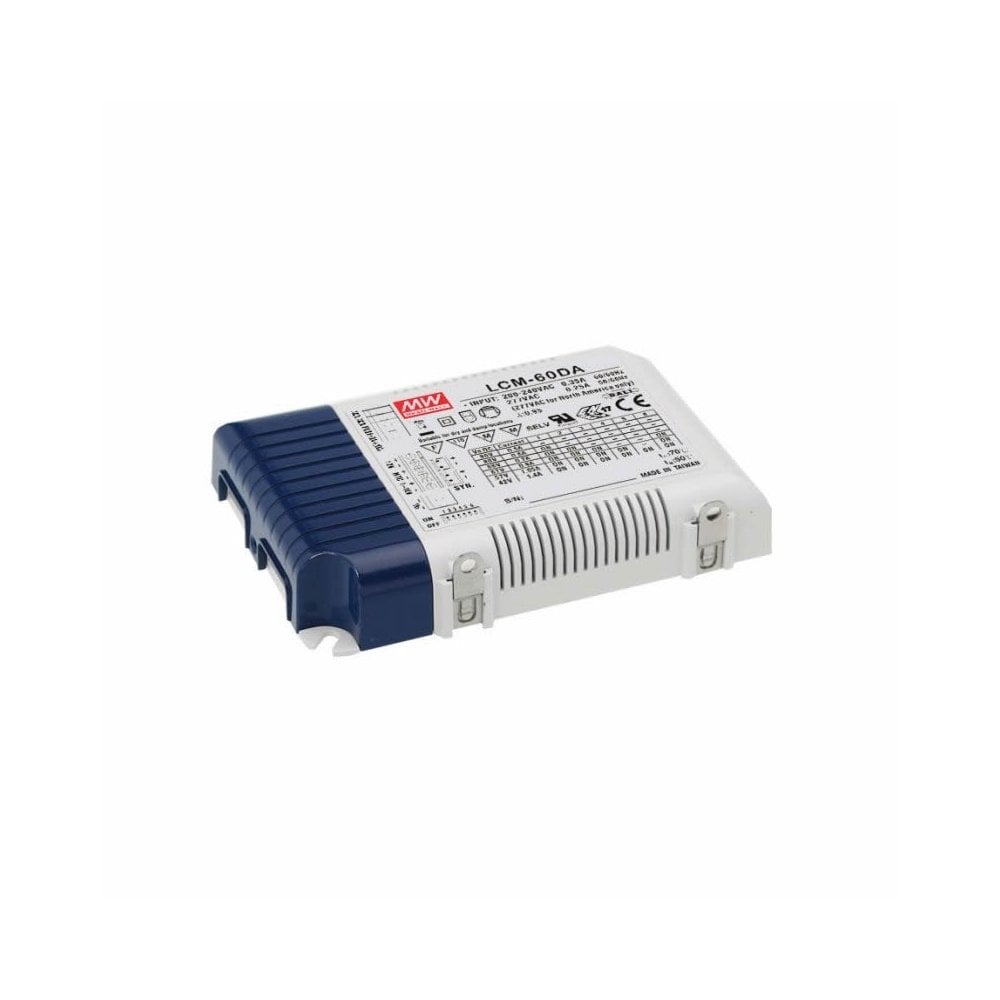

DALI LCM-60DA Driver

A DALI LED Driver With Flexible Control

The LCM 60DA is a 60 watt constant current LED driver rated IP20. It pairs a DALI interface with push dimming, and the DALI dimming curve can be set to logarithmic or linear, so it can sit comfortably in a controlled lighting scheme.

How We Plan and Install Hunza Lighting

Moonlight Design has worked with Hunza since 2003. We design lighting schemes for gardens, supply Hunza fittings and install them with NICEIC registered electricians. Our Design Service page shows completed schemes of our own and explains how we plan a layout and draw it up. Take a look if you would like a scheme planned for your property.

Good to Know

• Made to order: usually ships within 2 to 3 days. If your specification is temporarily out of stock, allow 3 to 5 weeks.
• Rated IP20, so it is not weatherproof. For exterior use Hunza recommends installing it inside a weatherproof box.
• Works from a 180 to 295V AC input, with output current selectable from 500 to 1400mA by DIP switch.
• When used as a remote power supply, fittings must be series wired.
• Active PFC, plus protection against short circuit, over voltage and over temperature. Standby consumption is under 0.5W.
• Fully isolated plastic case, cooled by air convection, measuring 123.5 x 81.5 x 23mm and weighing 0.2kg.
• Up to 10 units can be synchronised with push dimming.
• Compatible with emergency lighting under IEC 61347 2 13.
• Hunza lists a 3 year warranty, which excludes third party lamps and power supplies.
• We recommend installation by a registered NICEIC electrician.

Questions People Ask

Is the LCM 60DA an outdoor driver?
Not by itself. It is rated IP20, so for exterior use it should be mounted inside a weatherproof box.

What dimming does it offer?
It has a DALI interface with a logarithmic or linear dimming curve, plus push dimming, and up to 10 units can be synchronised.

Can the output current be changed?
Yes. Output current is selectable from 500 to 1400mA using the DIP switch.
