Collingwood WL342 Asymmetric Step Light - Antique Brass - Straight to Mains

A Brass Step Light That Aims Its Light On Purpose

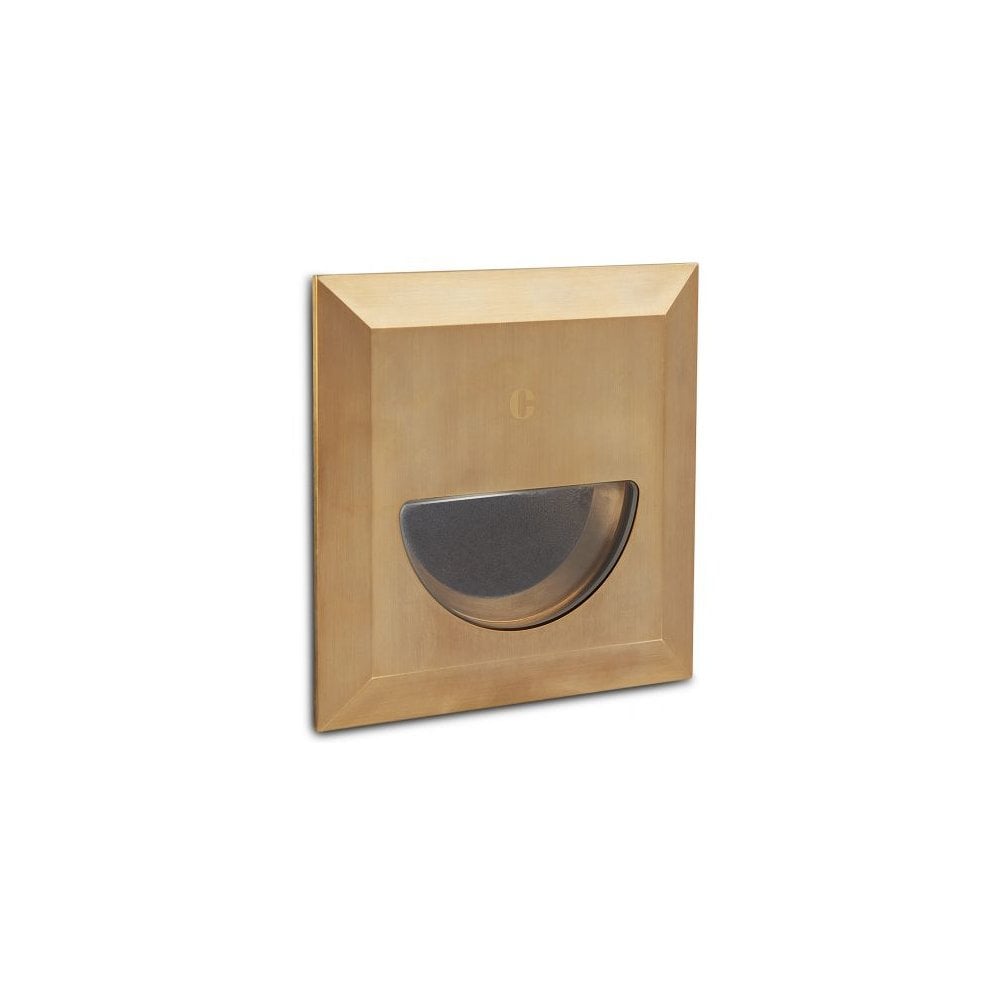

Most step lights just glow. The Collingwood WL342 does something more deliberate. Behind its square antique brass faceplate sits an asymmetric lens that splits the beam, sending part of it straight down onto the tread below and part of it out across the surface in front, so a run of steps gets lit evenly instead of picking up one bright pool per fitting. It sits flush into a wall or step riser, so by day you see a neat brass square, and at night you get a low level wash of light rather than a visible bulb.

Antique Brass, Built To Weather Outdoors

This version comes in antique brass, a warm, slightly aged toned metal that reads well against natural stone, brick, render and timber decking, all common backdrops for outdoor steps. The lens itself is 5mm toughened glass, chosen because it has to survive knocks from feet, tools and garden furniture as well as constant exposure to rain and salt air near the coast. The square shape and neat mitred edge keep the fitting looking intentional rather than bolted on, which matters on a front step or a garden wall where it sits at eye level for anyone walking past.

How It Works

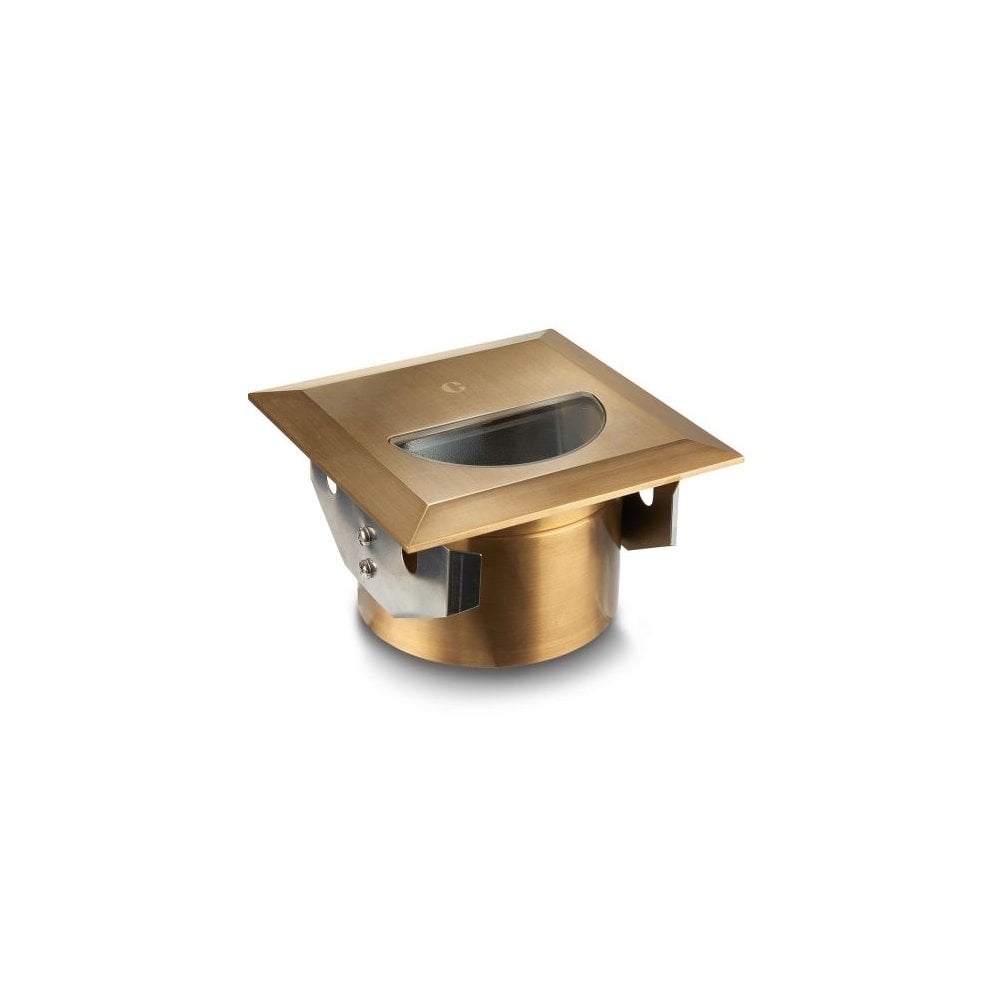

Each WL342 uses a 2.6W integral LED, available in 2700K extra warm white or 3000K warm white, run at an 80 CRI so brickwork and stone read in their true colour rather than washed out. It wires straight to the mains, so there is no separate driver to house or hide, and the wiring is arranged in parallel, meaning several fittings along a run of steps can be connected back to one supply rather than each needing its own feed. It comes with an installation tube for setting the body into loose soil, or for lining the edge when it is being built into a cut stone or masonry opening, plus a metre of rubberised H05RN-F outdoor cable to make the final connection. It is IP65 rated, so it is built to stay outside permanently in all weather, and it is also rated suitable for bathroom zone 2, so it can go in a shower room or bathroom as well as in the garden. Read Moonlight's guide to bathroom lighting zones if you are planning one for a wet room.

Where It Works Best

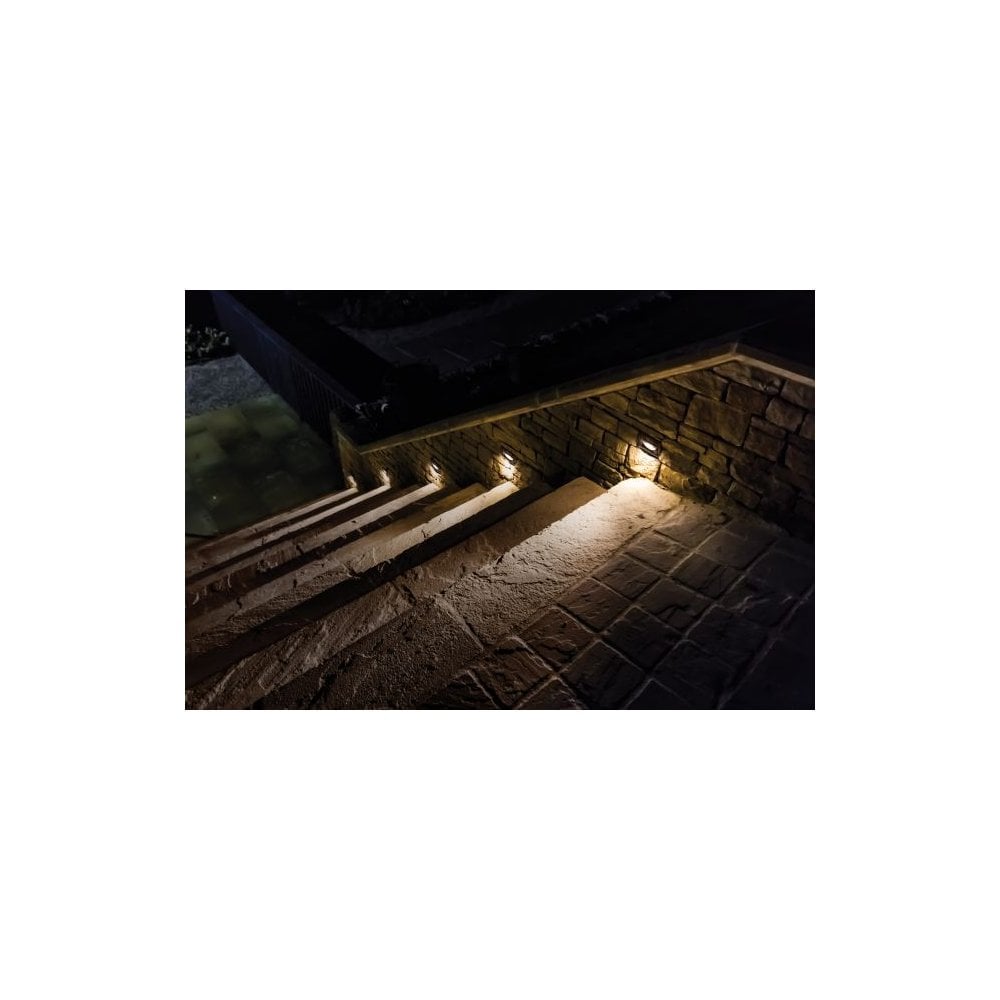

This is a step and walkway light first. It earns its keep along a run of garden steps, a raised patio edge, a driveway retaining wall or the side of a porch, anywhere a change of level needs marking at night without floodlighting the whole area. Because the beam splits down and across, it also works set into a low garden wall to wash light along a path, or beside an entrance to pick out the ground in front of a door. Being IP65 rated and bathroom zone 2 rated, the same fitting can double up indoors around a walk in shower or bath surround where a discreet, low level light is wanted rather than an overhead one.

About Collingwood Lighting

Collingwood designs and builds its LED lighting from Sywell in Northamptonshire, and the business has focused on LED technology since 2002. Collingwood says it was among the first to bring fire rated, fully sealed for life and mains dimmable LED products to the UK electrical wholesale trade, a claim worth noting even if this particular step light is a mains wired fitting rather than a dimmable one. The company has also been awarded an EcoVadis Gold medal, putting it in the top 5% of companies EcoVadis assesses worldwide for sustainability.

Good to Know

• IP65 rated, so it is suitable for permanent outdoor installation and for bathroom zone 2.
• Class I electrical rating, which means it relies on an earth connection as well as insulation, so correct earthing at installation matters.
• Wired straight to mains voltage with no driver required, and wired in parallel so multiple units can share one supply.
• 7 year manufacturer warranty.
• 80 CRI for accurate colour rendering on stone, brick and render.
• Choose between 2700K extra warm white or 3000K warm white to match the rest of your outdoor lighting.
• Wipe the brass faceplate with a soft, dry or lightly damp cloth. Antique brass is designed to age and deepen in tone over time rather than stay perfectly uniform, and abrasive cleaners will strip that finish.
• Moonlight Design recommends installation by a registered NICEIC electrician, since this fitting is wired directly to the mains.

Questions People Ask

What beam angle does the Collingwood WL342 use?
The WL342 uses an asymmetric lens with a 50 degree beam angle, splitting light so it falls both downward onto the step and outward across the surface in front of it.

Does the Collingwood WL342 antique brass step light need a separate driver?
No. It is wired straight to mains voltage and has no separate driver to install or conceal.

Can several WL342 step lights be run from one power supply?
Yes. The fitting is wired in parallel, so multiple units along a run of steps or a wall can be connected back to a single mains supply rather than each needing its own feed.

Is the antique brass WL342 suitable for a bathroom?
Yes. It is IP65 rated and rated for bathroom zone 2, so it can be installed in a shower room or bathroom as well as outdoors.

What colour temperatures does the antique brass WL342 come in?
The antique brass version is available in 2700K extra warm white or 3000K warm white. A 4000K option exists on Collingwood's stainless steel finish of the WL342, but is not offered on the antique brass version.

Flange 98mm length x 98mm width (refer to spec for more details)

• Collingwood Step Light Guide 2025
