Collingwood TR2818 Wi-Fi to RF Transmitter App Control (Requires Driver)

A Wi-Fi Bridge for Your Colour Change Lighting

The TR2818 is a Wi-Fi to RF transmitter, not a light in itself, but the piece of kit that lets you run an existing Collingwood colour change installation from a phone or tablet instead of a handheld remote. It takes the signal from your home Wi-Fi and converts it into the RF signal that Collingwood's colour change receivers and controllers already understand, so app control can be added to a system that was originally set up to work with a remote.

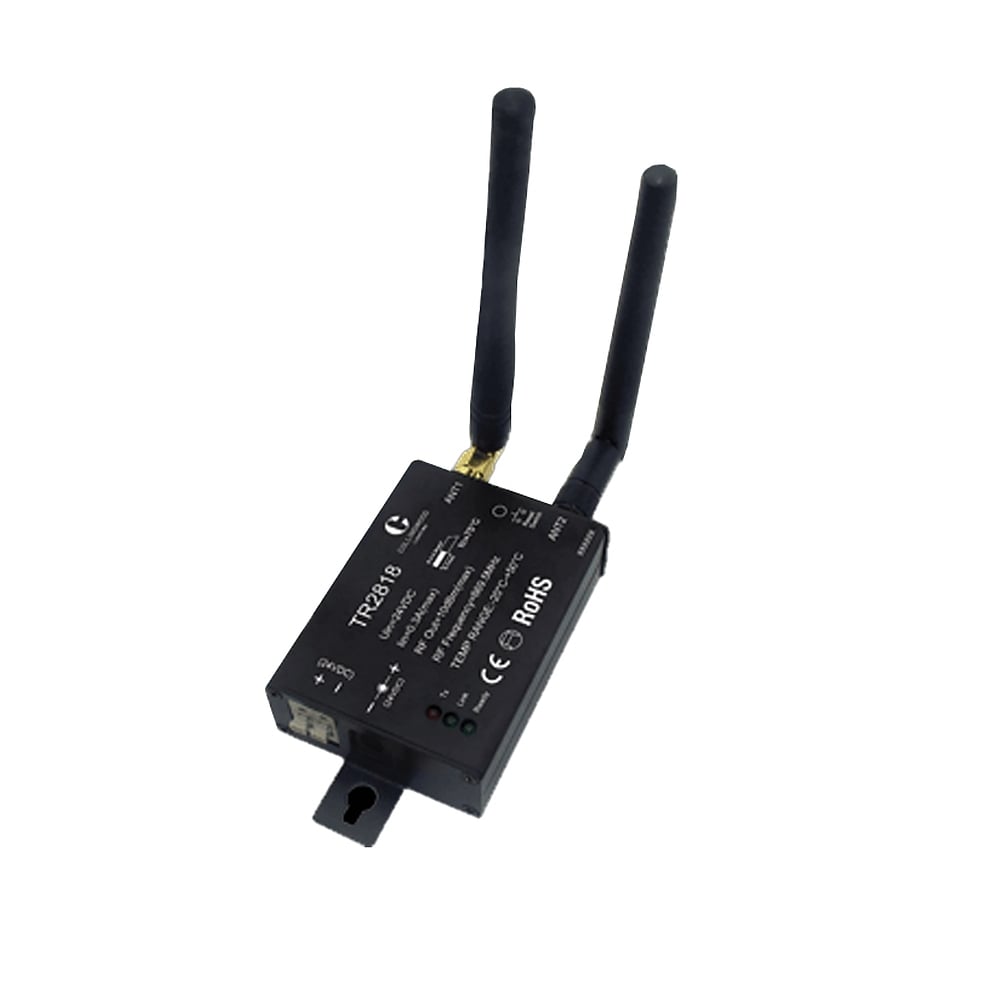

A Compact Metal Unit Built to Disappear

This is a single product with no finish options, and it is built for function rather than display. The case is metal, small enough to sit inside a cabinet or behind a panel, and carries two external aerials, one for the Wi-Fi side of the connection and one for the RF side. A keyhole shaped bracket underneath lets it be screwed flat to a wall or the inside of an enclosure, and a small screw terminal block on the base takes the incoming power feed. Nothing about it is meant to be seen once it is installed, which is exactly the point.

How It Works

Power comes into the unit from a 24V DC source, such as a Collingwood driver already feeding the colour change circuit. Once wired in, the TR2818 pairs with Collingwood's free EASYLIGHTING app for iPhone, iPad and Android, either by connecting your device straight to the transmitter's own signal or by joining it to your home Wi-Fi network so it can be reached from anywhere on that network. From there the app opens up millions of colours, lets you save favourite shades, split the installation into up to eight separately controlled zones, and switch on a sound to light mode that shifts colour in time with music. The box includes the transmitter itself with its two aerials and mounting bracket. It does not include a driver or RF receiver, both of which need to already be part of the installation, such as a Collingwood C100924 controller.

Where It Works Best

The TR2818 is fitted inside the control cabinet or enclosure of a colour change lighting system, wired into the same 24V DC supply as the driver rather than mounted out in the open. It suits gardens, decking, facades and feature walls that already run on Collingwood RF colour change equipment and simply need app control added on top, whether that is a new installation being specified with app control from the start or an existing remote controlled system being upgraded without rewiring the lights themselves.

About Collingwood Lighting

Collingwood Lighting designs and builds its LED products in Sywell, Northamptonshire, and has focused on LED technology since 2002. The brand says it was among the first to bring fire rated, fully sealed for life and mains dimmable LED products to the UK electrical wholesale market, a claim worth noting as Collingwood's own rather than an independent one. Its sustainability work has been recognised with an EcoVadis Gold medal, putting it in the top five per cent of companies assessed worldwide.

Good to Know

• Electrical Class III, meaning it runs on extra low voltage DC from a compatible driver rather than mains voltage.
• No IP rating is listed for this unit and Collingwood's own installation data marks it as not suitable for any bathroom zone, so it should be fitted in a dry space or inside a suitable enclosure.
• Works with Collingwood's own RF colour change receivers and controllers, such as the C100924, and needs one of these already installed. It is not a universal RF bridge for other makes of controller.
• Case measures approximately 114mm high, 160mm long and 50.5mm wide, with a metal finish that just needs a wipe with a dry cloth.
• Covered by Collingwood's standard warranty terms.
• Moonlight Design recommends installation by a registered NICEIC electrician.

Questions People Ask

Does the TR2818 work with RGB controllers from other manufacturers?
No. The TR2818 is designed to work with Collingwood's own RF receivers and controllers, such as the C100924, rather than as a universal Wi-Fi bridge for other brands' systems.

Do I need an existing driver and RF receiver before I can use the TR2818?
Yes. The TR2818 adds Wi-Fi and app control to a colour change lighting system that already has a compatible Collingwood driver and RF receiver in place, and it does not power or drive the lights on its own.

Which app controls the TR2818, and is it free to use?
The TR2818 pairs with Collingwood's free EASYLIGHTING app for iPhone, iPad and Android, which is used to choose colours, save favourites, and set up sound to light effects.

Can the TR2818 be controlled without connecting it to a home Wi-Fi network?
Yes. A phone or tablet can connect directly to the transmitter's own signal, or the TR2818 can be joined to a home Wi-Fi network for control from anywhere on that network.

How many lighting zones can one TR2818 transmitter control?
The EASYLIGHTING app can split a single TR2818 installation into up to eight separately controlled colour zones, so different areas can run different colours or effects from the same transmitter.

114mm height x 160mm length x 50.5mm width

• Collingwood TR2818 Spec Sheet 2025
