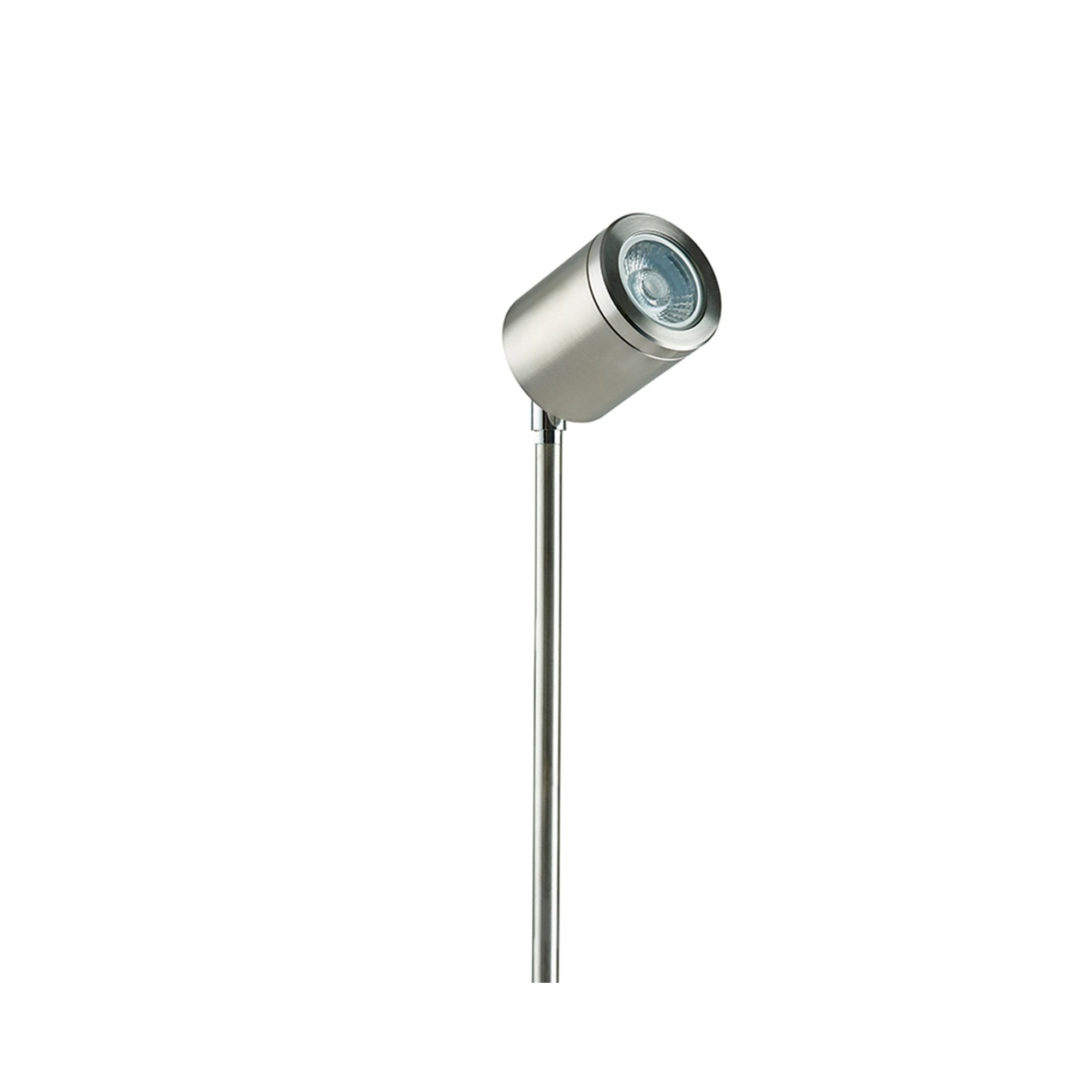

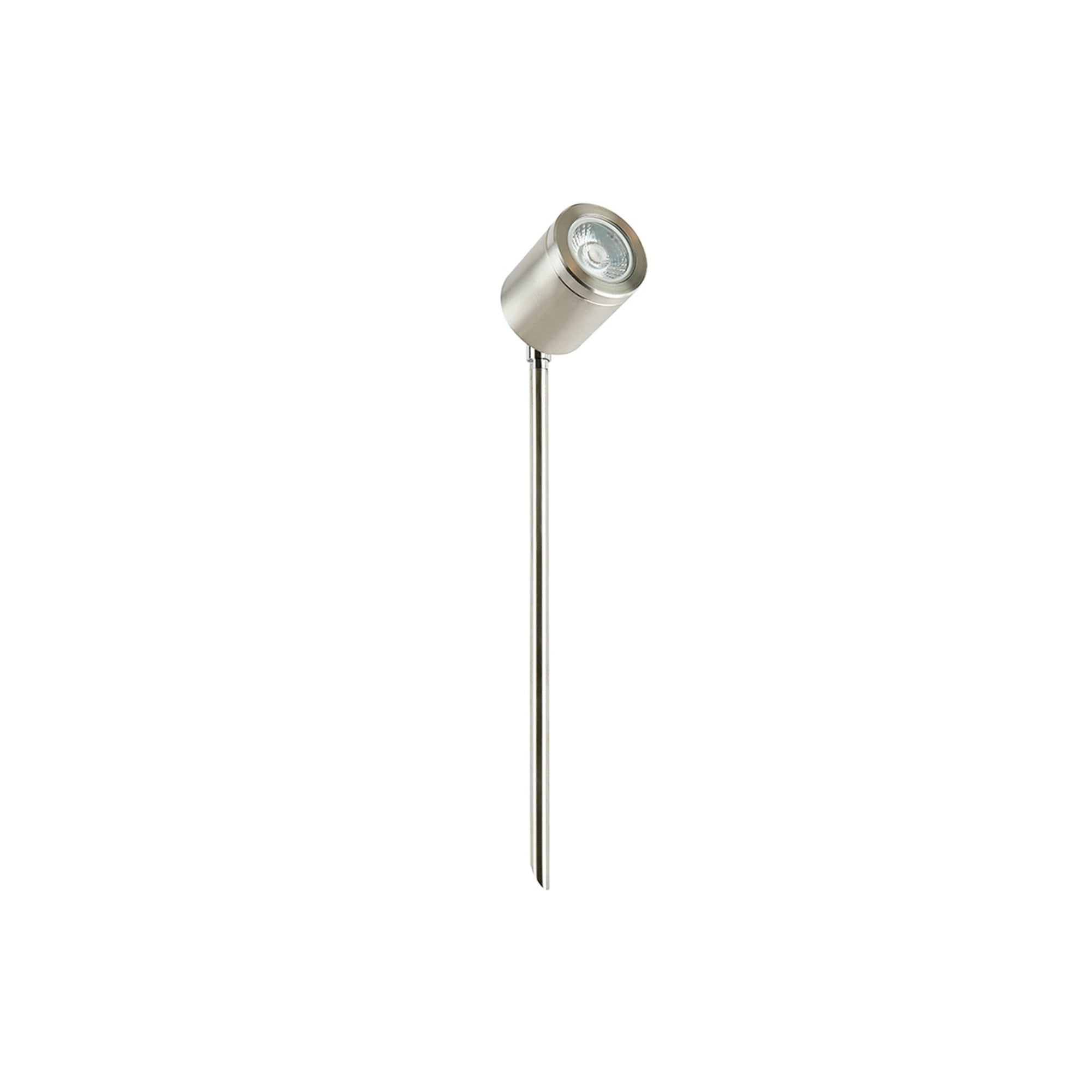

Collingwood SL220 LED Spike Light - Stainless Steel - Straight to Mains

A mains voltage spike light built for exposed ground

The Collingwood SL220 is a compact LED spike light that pushes straight into a lawn, a border or a gravel bed and throws light back up at whatever you aim it at. What separates this version from the rest of the SL220 family is the body. It is made from 316 marine grade stainless steel, the same specification used for coastal handrails and boat fittings, so salt air and wind driven rain do not attack it the way they can with softer finishes. It draws 5.7W and gives out between 515 and 538 lumens depending on the colour temperature you choose, which is a genuinely useful amount of light from a fitting small enough to hide behind a shrub.

The stainless steel finish

The barrel and spike are finished in a soft brushed satin rather than a mirror polish, so the metal reads as a quiet pewter grey instead of a bright flash of chrome. It sits comfortably against Portland stone, weathered timber decking, smooth render and clipped hedging. Left outdoors, 316 stainless tends to dull gently rather than pit or streak, which is why it is the grade specified for seafront gardens, estuary terraces and exposed hilltop plots. Collingwood does offer the SL220 in anodised aluminium and in bronze, but stainless steel is the one to reach for when the site itself is the problem.

How It Works

This is the straight to mains version, so the driver sits inside the fitting and it wires directly to a 230V supply. There is no separate transformer to find room for and no low voltage cable run to calculate. A 3m flying lead comes out of the base of the spike ready to be taken back to a junction box, and the wiring is parallel, so a run of fittings can be teed off one feed. The head tilts through 90 degrees, from pointing straight up to pointing horizontally, so you can plant the spike first and aim it afterwards. Overall it measures 62.5mm across the head and 440mm from the tip of the spike to the top of the barrel, with 240mm of that being the ground spike. Two optics are offered, a narrow 12 degree for picking out a single trunk or a statue, and a wide 40 degree for washing a hedge, a wall or a broad canopy.

Where It Works Best

Uplighting is the obvious job. Set one at the foot of a birch or an olive and the 12 degree optic will carry light up the trunk and into the branches. Use the 40 degree version along a border to graze a rendered garden wall, light a run of topiary, or bring a pergola back into view after dark. Because the spike simply pushes into soft ground, it also suits beds that get replanted seasonally, since the fitting can be lifted and repositioned without any building work. Coastal gardens, estuary plots and windy rural sites are where the 316 stainless really earns its keep. Add the GH220 Glare Guard Hood or the GS220 Glare Guard Snoot if the fitting will be seen from a seating area or an upstairs window, and use the JB5 gel filled junction box to keep connections dry below ground.

About Collingwood Lighting

Collingwood designs and manufactures its LED products in Sywell, Northamptonshire, and has worked in LED technology and nothing else since 2002. The brand states it was among the first to bring fire rated, fully sealed for life and mains dimmable LED products to the UK electrical wholesale trade. It also holds an EcoVadis Gold medal, which places it in the top 5% of companies assessed worldwide for sustainability.

Good to Know

• Covered by a 7 year Collingwood warranty.
• IP65 rated, which means fully protected against dust and against jets of water from any direction, so rain, hosepipes and garden sprinklers are all fine.
• Class I, so the fitting needs an earth connection.
• Not dimmable. The integral mains driver has no dimming function, so it should not go on a dimmer circuit.
• Integrated LED. The light source is built in and is not a replaceable lamp.
• CRI 80, which is perfectly adequate for foliage, stone and brickwork.
• Body and spike in 316 stainless steel, weighing 1.2kg.
• Care is simple. Rinse the lens with clean water now and then and wipe salt deposits off the barrel with a soft cloth. Avoid wire wool and abrasive cleaners, which will scratch the brushed finish.
• Moonlight Design recommends installation by a registered NICEIC electrician.

Questions People Ask

Does the Collingwood SL220 stainless steel spike light need a separate transformer?
No. The straight to mains version of the Collingwood SL220 has an integral driver and wires directly to a 230V mains supply, so no external transformer or low voltage power supply is needed.

How bright is the 5.7W SL220, and how do the three colour temperatures compare?
The mains Collingwood SL220 draws 5.7W and produces 515 lumens at 2700K, 520 lumens at 3000K and 538 lumens at 4000K, so the cooler 4000K option is marginally the brightest of the three.

Is the stainless steel SL220 suitable for a garden near the sea?
Yes. This version of the SL220 is built from 316 marine grade stainless steel, which Collingwood describes as coastal protected, making it the right choice for seafront and estuary gardens where salt air attacks weaker finishes.

Can the Collingwood SL220 mains spike light be dimmed?
No. The mains SL220 is a non dimmable fitting, so it should be wired to a standard switched circuit rather than a dimmer.

Which SL220 beam angle is better for lighting a tree?
The narrow 12 degree beam concentrates light on a single trunk or a slim architectural feature, while the wide 40 degree beam suits broad canopies, hedges and wall washing.

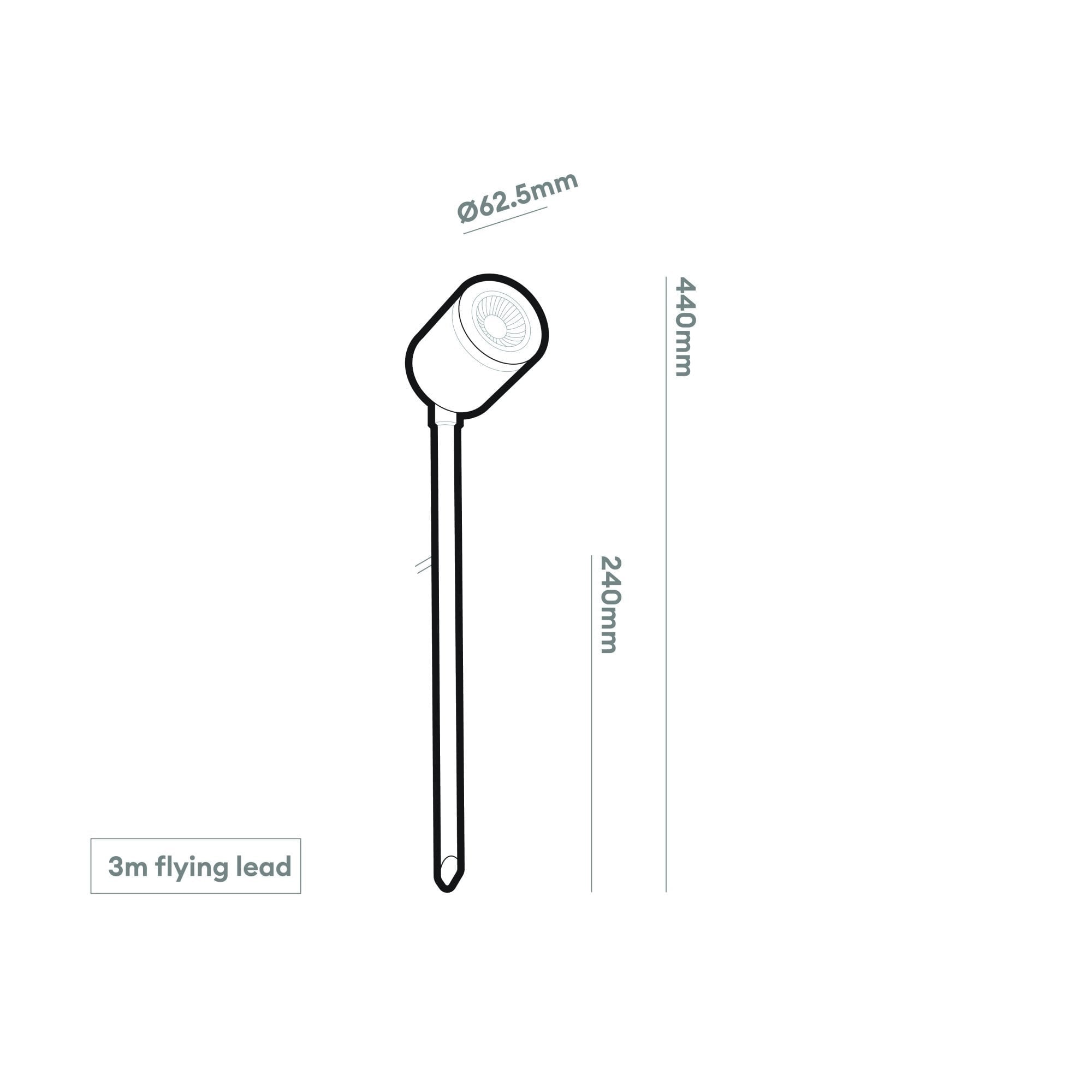

62.5mm diameter x 440mm height (refer to spec for details)

• Collingwood Spike Light Guide 2025
