One Emergency Bulkhead Doing The Work Of Several
The Salvus Max is Collingwood's high output emergency bulkhead, made for buildings where a single fitting has to cover a lot of floor. It puts out up to 1500 lumens at 6500K through a wide 135 degree spread, which is a long way past what a standard emergency bulkhead manages. If you have been pricing up a long run of small emergency units down a warehouse aisle, this is the fitting that lets you space them much further apart instead.
White Polycarbonate With A Clear Prismatic Lens

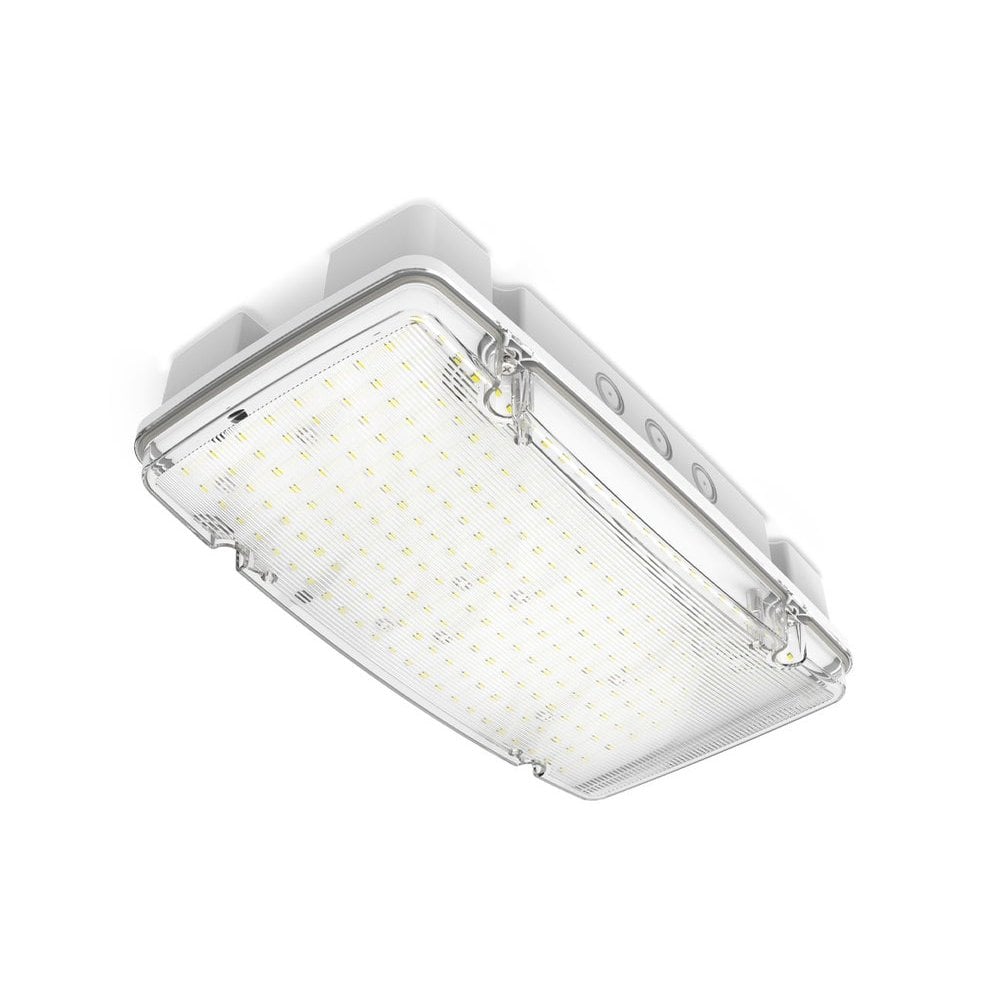

The housing is moulded polycarbonate in plain white, with a clear ribbed lens sitting over a dense grid of LEDs and held down by metal catches around the rim. It is a working look rather than a decorative one, and it sits happily against the surfaces it usually lands on, painted plaster, concrete soffits, steel purlins and blockwork. The unit measures 321mm long by 167mm wide by 83mm deep and weighs 1.5kg, so it stays fairly flat to the ceiling for its size. An IK08 impact rating means it shrugs off the odd clout from a ladder or a passing pallet.
How It Works
This is the non maintained, manual test version. Non maintained means the LEDs stay dark while mains power is present and only strike when the supply drops, so it costs almost nothing to run day to day. Manual test means you or your maintenance contractor carry out the required tests by hand at the fitting and keep the records, rather than the luminaire running its own automatic test routine. Output is switchable between 6W and 10W, giving roughly 1000 to 1500 lumens, so you can set it to match the spacing your design calls for. Collingwood publishes an efficacy figure of 167 lumens per watt. It wires straight to the mains with no separate driver to find room for, the wiring is parallel, and the charge is held in a lithium iron phosphate (LiFePO4) battery, a chemistry Collingwood chose for long service life and quick recharge. Collingwood lists ceiling, wall, suspended, BESA and M20 conduit mounting, so it will go up almost anywhere you need it.
Where It Works Best
Warehouses and distribution centres are the obvious home, especially tall spaces where the ceiling is a long way from the floor. Collingwood's own coverage figures put it at 1 lux at floor level on 29 metre spacings from a 15 metre mounting height, and 0.5 lux on 40 metre spacings from 25 metres. The same output makes sense on factory floors, in workshops and plant rooms, and over loading bays, car parks and covered service yards. Because it is IP66, dust and jetting water are not a concern, so unheated stores and washdown areas are fair game. That rating also puts it comfortably within reach of bathroom and shower room use if you need emergency cover in a wet room, and our guide to bathroom lighting zones sets out where each zone starts and stops.
About Collingwood Lighting
Collingwood designs and manufactures its LED products at Sywell in Northamptonshire, and has worked in LED technology alone since 2002. The brand states it was among the first to put fire rated, fully sealed for life and mains dimmable LED products in front of the UK electrical wholesale trade. It also holds an EcoVadis Gold medal, placing it in the top 5% of companies assessed worldwide for sustainability.
Good to Know
- Covered by a 4 year warranty.
- IP66 rated, meaning it is completely sealed against dust and protected against powerful water jets from any direction.
- Class II construction, so it is double insulated and needs no earth connection.
- Emergency only. A non maintained fitting gives no light in normal use, so it works alongside your everyday luminaires rather than replacing any of them.
- Not dimmable. Brightness is set by the 6W or 10W switch, not by a dimmer.
- Manual test, so scheduled testing and record keeping stay with you or your maintenance contractor rather than an automatic self test cycle.
- Mounts to a ceiling or wall, suspended, on a BESA box or onto M20 conduit.
- Wipe the lens with a soft damp cloth. Cleaning matters more here than on a decorative fitting, because dirt on the diffuser directly cuts the escape lighting level underneath it.
- Moonlight Design recommends installation by a registered NICEIC electrician.
Questions People Ask
How bright is the Collingwood Salvus Max emergency bulkhead?
The Collingwood Salvus Max emergency bulkhead is wattage switchable between 6W and 10W and produces between 1000 and 1500 lumens at a 6500K daylight colour temperature. It has a 135 degree beam angle and a colour rendering index of 80.
What does non maintained mean on an emergency light?
A non maintained emergency luminaire stays switched off while mains power is present and illuminates only when the mains supply fails. The Collingwood Salvus Max EMBMAX is a non maintained fitting, so it provides emergency escape lighting only and contributes nothing to normal everyday lighting.
What is the difference between a manual test and a self test emergency fitting?
A manual test emergency luminaire is tested by a person operating a test facility on the unit and recording the result, while a self test luminaire runs its own test routine automatically. The Collingwood Salvus Max EMBMAX is the manual test version, so scheduled testing and record keeping remain the responsibility of the building owner or their maintenance contractor.
How is the Collingwood Salvus Max mounted?
The Collingwood Salvus Max emergency bulkhead can be ceiling mounted, wall mounted, suspended, fitted to a BESA box or mounted onto M20 conduit. It measures 321mm long by 167mm wide by 83mm deep and weighs 1.5kg, and it runs directly from the mains with no separate driver required.
Can the Collingwood Salvus Max be used outdoors?
The Collingwood Salvus Max carries an IP66 rating, which means it is fully dust tight and protected against powerful water jets, together with an IK08 impact rating. That makes it suitable for exposed and outdoor positions such as loading bays, car parks and covered service yards, as well as damp or dusty interiors.
