Collingwood Salvus Emergency Exit Box Legend - Arrow Left - Label Only

The Left Arrow Legend For The Salvus Exit Box

This is the left arrow legend for Collingwood's Salvus Emergency Exit Box, product code EMBXLE. It is the printed graphic panel rather than the light fitting, so it is the part you order when an escape route runs to the left and the sign above the door needs to say so. Buying the legend separately is what lets one box cover any direction on site.

Green PVC, White Pictogram, Printed To ISO 3864-1

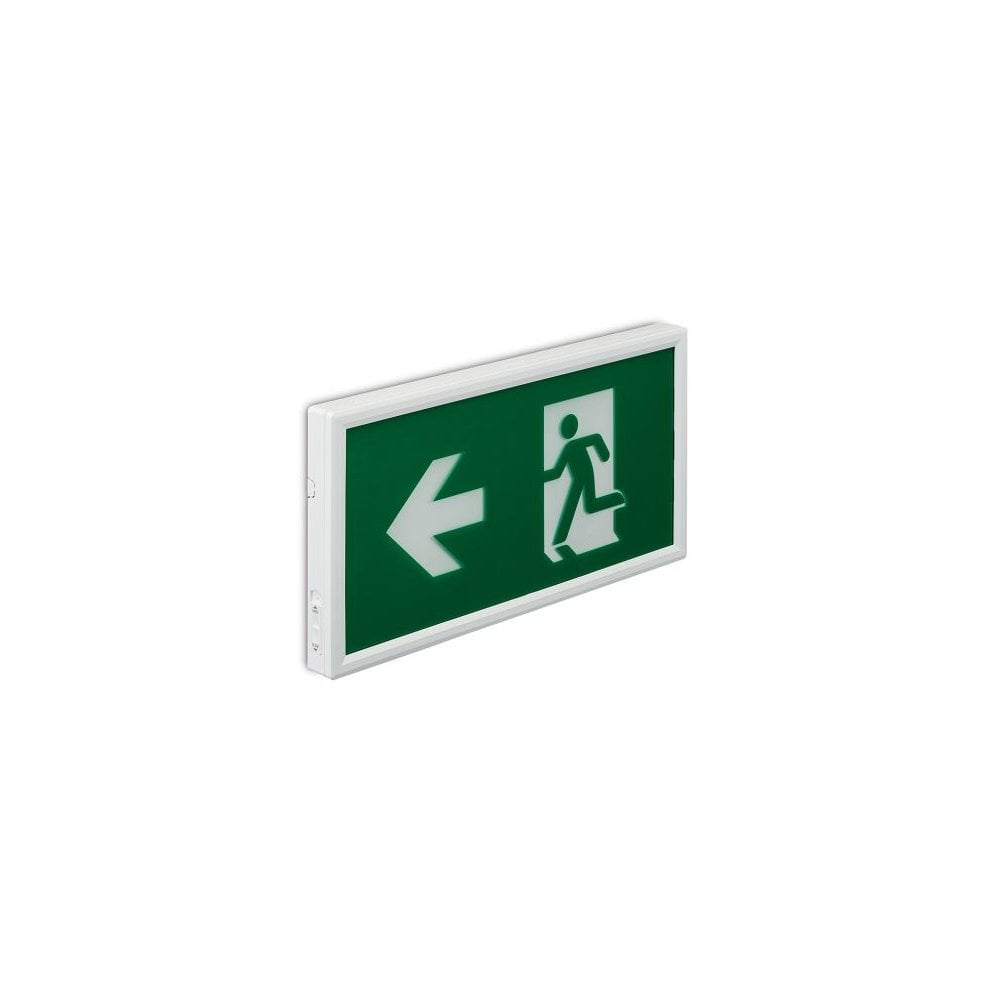

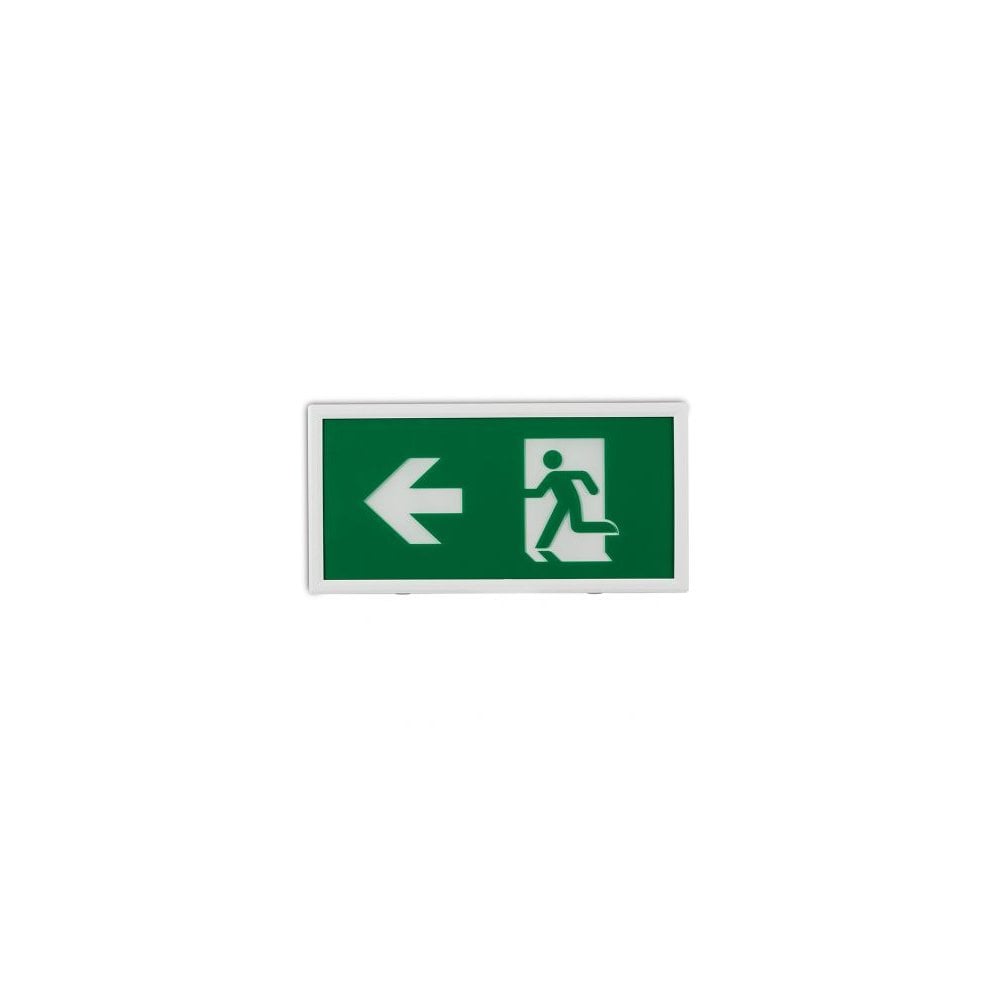

The legend arrives as a PVC label finished in the standard safety green, with the running man figure and a broad arrow pointing left picked out in white. That solid block of green behind the white artwork is what gives the sign its contrast from the far end of a corridor. It is cut to suit the Salvus Emergency Exit Box and sits alongside the up and right legends in the same range, EMBXUP and EMBXRI, so a building needing several directions ends up with artwork that matches panel for panel.

How It Works

What you get is the label on its own. There is no lamp, no battery, no driver and nothing to connect, because the legend simply applies to the face of the Salvus Emergency Exit Box. Collingwood supplies it in PVC for exactly that reason, to keep fitting quick and to let a direction be corrected without touching the wiring. The box itself holds the LED gear and the emergency battery and is quoted by Collingwood at a 35 metre viewing distance, so getting the orientation of the legend right before the sign goes into service is the whole job. Note that this legend is made for the Salvus Emergency Exit Box. The Salvus Exit Blade has its own separate legends.

Where It Works Best

Anywhere a Salvus Emergency Exit Box is mounted above a door head, at a corridor junction or on a stairwell landing and the escape route continues to the reader's left. Offices, schools, retail units, warehouses, hotel corridors and communal areas in flats all tend to run these boxes in numbers, and the direction needed varies door by door. It is also the part to reach for when a fire risk assessment changes a route, or when a refurbishment reverses the way people leave a floor, and the existing boxes need to point somewhere new rather than being replaced.

About Collingwood Lighting

Collingwood Lighting designs and manufactures its LED products in Sywell, Northamptonshire, and has worked specifically in LED technology since 2002. The brand states it was among the first to bring fire rated, fully sealed for life and mains dimmable LED products to the UK electrical wholesale market. It has also been awarded an EcoVadis Gold medal, placing it in the top 5% of companies assessed globally for sustainability.

Good to Know

• Product code EMBXLE, the left arrow legend for the Salvus Emergency Exit Box.
• Material is PVC, finished in green with white artwork.
• Supplied as the label only. The exit box, its LED gear and its battery are separate products.
• Printed in line with ISO 3864-1 safety sign requirements, and Collingwood is a member of ICEL, the emergency lighting industry body.
• Carries a 1 year warranty.
• The Salvus Emergency Exit Box it fits is rated IP20, which means it is for dry indoor locations only and has no protection against water.
• No electrical class applies to the legend itself, as it carries no electrical connection.
• Clean with a dry or barely damp soft cloth. Avoid solvents and abrasive cleaners, which will mark printed PVC.
• Moonlight Design recommends installation by a registered NICEIC electrician for the Salvus Emergency Exit Box the legend fits.

Questions People Ask

Does this include the exit box itself?
No. Collingwood EMBXLE is the left arrow legend supplied on its own as a green PVC label. The Collingwood Salvus Emergency Exit Box, along with its LED gear and emergency battery, is bought as a separate product.

Which way does the arrow point?
The EMBXLE legend shows a white arrow pointing left, next to the standard white running man figure, on a green background. Collingwood also produces up and right versions of the same legend under the codes EMBXUP and EMBXRI.

What is the Collingwood Salvus exit box legend made of?
The Salvus Emergency Exit Box legend is made of PVC. It is supplied as a flat printed label that applies to the face of the exit box, which is why a direction can be changed without removing the fitting.

Does fitting the legend need an electrician?
Changing a Salvus exit box legend involves no wiring, because the PVC label carries no electrical connection of any kind. The Salvus Emergency Exit Box it applies to is a mains powered emergency fitting and should be installed by a qualified electrician.

What safety standard is the exit legend printed to?
Collingwood prints the Salvus exit legends in line with ISO 3864-1, the international standard covering safety sign design, colours and pictograms. Collingwood is also a member of ICEL, the UK emergency lighting industry body.
