Collingwood Remote Control for PIRBOLTDIM

The handheld programmer for the PIRBOLTDIM sensor

Once a presence detector is bolted onto a luminaire six metres up, changing its settings becomes a job involving a ladder. The Collingwood PIRBOLTDIMR exists to stop that happening. It is the handheld remote for the PIRBOLTDIM step dimming PIR sensor, and it lets you set detection sensitivity, daylight threshold, hold time and standby behaviour while standing on the floor. Point, press, done.

What makes it worth having is the depth of control packed onto one small keypad. This is not an on and off wand. It is a proper commissioning tool that turns a fixed sensor into something you can tune to the space it is actually working in.

A flat white keypad with everything labelled

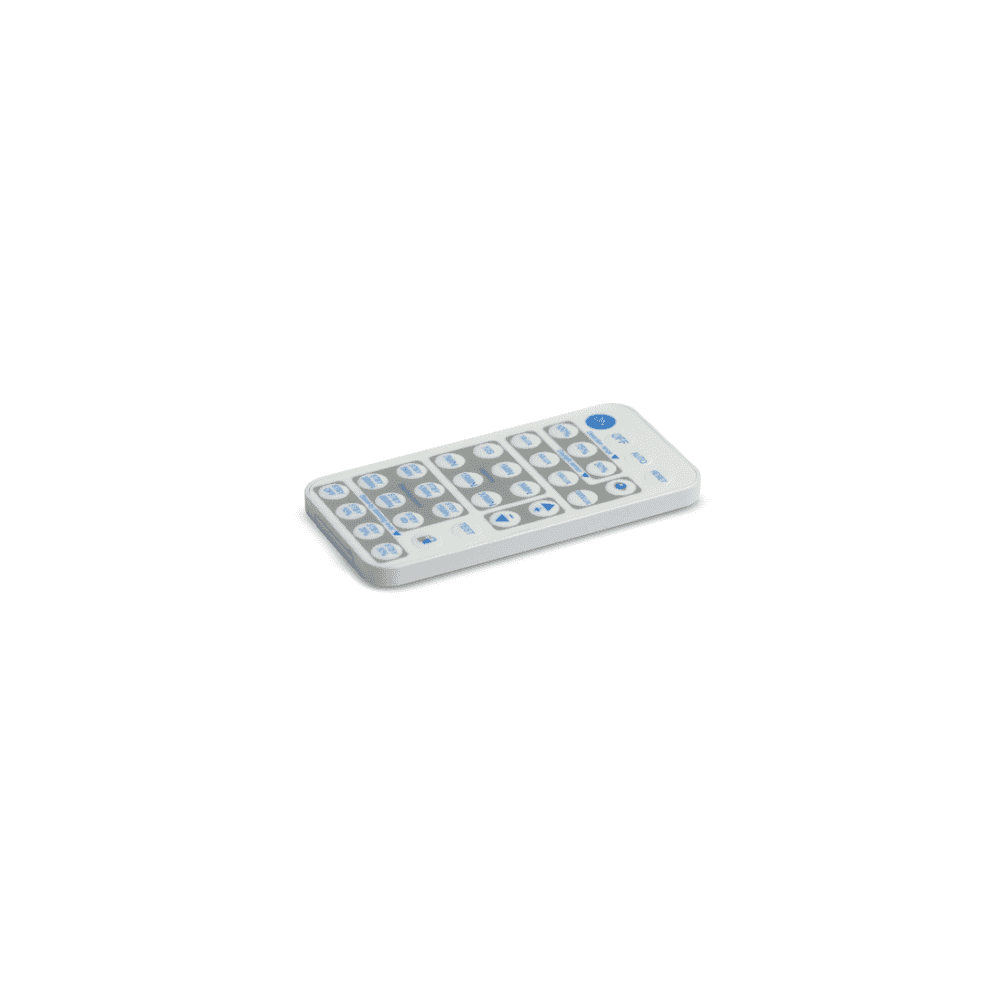

The remote is moulded in white plastic with a slim, flat profile and gently rounded corners, so it slips into a pocket or a toolbox tray without catching. The face is divided into soft grey panels, each grouping one function together, with the key legends printed in blue and the ON key picked out as a solid blue circle. Every button is labelled in plain language, so you are not decoding symbols on site.

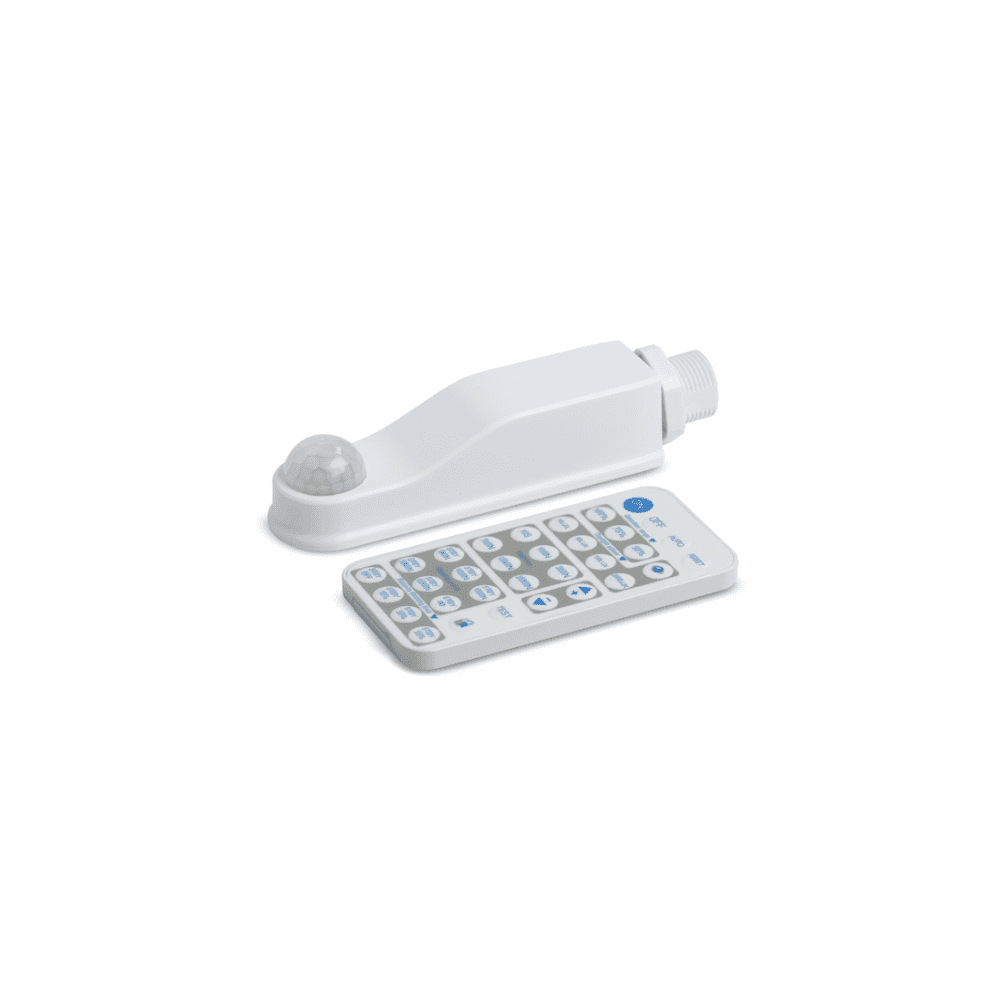

It pairs with the white RAL9016 Salvus PIR bolt on sensor, and the two are clearly designed as a set. Nothing about the remote needs to look good once installed, because it never stays on the wall. It lives in the van or the facilities cupboard and comes out when a setting needs changing.

How It Works

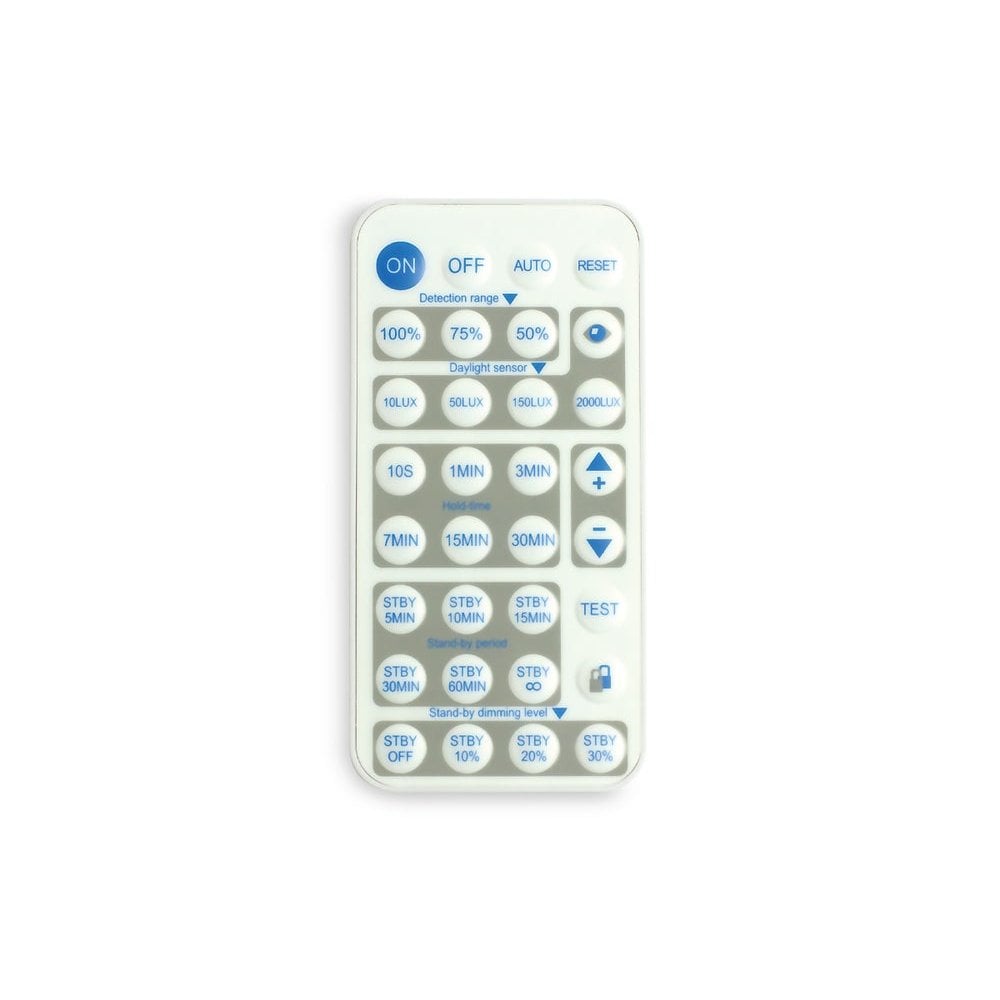

The keypad sends its instructions to the PIRBOLTDIM sensor, which then holds those settings. Along the top row sit ON, OFF, AUTO and RESET, so you can force the light on, force it off, hand control back to the sensor, or wipe your changes and start again.

Below that, the panels cover the settings that actually matter in commissioning. Detection range can be dialled to 100, 75 or 50 percent to stop the sensor picking up movement you do not care about. The daylight sensor can be set to trigger at 10, 50, 150 or 2000 lux, so the fitting stays off while there is enough natural light. Hold time runs from 10 seconds up through 1, 3, 7, 15 and 30 minutes. Standby period offers 5, 10, 15, 30 and 60 minutes plus a continuous option, and standby dimming level can be set to off, 10, 20 or 30 percent. There is also a TEST key for walk testing the detection pattern and a lock key to protect the settings once you are happy with them, plus up and down arrows for fine adjustment.

Power comes from a single CR2025 coin cell. Collingwood does not supply the battery with the remote, so it is worth dropping one in the toolbox before you head to site. No wiring, no driver, no commissioning software.

Where It Works Best

This remote earns its keep anywhere a PIRBOLTDIM has been fitted at height. Collingwood rates the Salvus PIR bolt on sensor for mounting between 2.5 and 6.0 metres, and the higher up that bracket you go, the more useful it becomes to change a hold time without fetching access equipment.

Typical settings are warehouses, workshops, loading bays, plant rooms, stairwells, corridors and car parks, wherever a linear batten or bulkhead is running on presence detection. Collingwood lists the sensor as compatible with its Borealis, Caiman Anti Corrosive and Lentus luminaires, so if the site is running any of those on step dimming, this is the tool that configures them.

It is equally at home in the hands of a facilities team after handover. Occupancy patterns change, a corridor gets busier, a standby level turns out to be too dim for comfort. One person with this remote can walk the building and retune it in an afternoon.

About Collingwood Lighting

Collingwood Lighting designs and manufactures its LED products in Sywell, Northamptonshire, and has built its business around LED technology since 2002. The brand states it was among the first to bring fire rated, fully sealed for life and mains dimmable LED products to the UK electrical wholesale market. It also holds an EcoVadis Gold medal, which places it in the top 5 percent of companies assessed worldwide for sustainability. Small commissioning accessories like this one are a fair sign of that engineering focus, because they only exist to make the main product easier to live with.

Good to Know

• Covered by Collingwood's 5 year warranty.
• Supplied as the remote only. The PIRBOLTDIM sensor and any luminaire are separate purchases.
• Battery powered and completely self contained, so the remote itself needs no wiring, no driver and no mains connection.
• Collingwood publishes IP65, IK07 and Class II ratings for the Salvus PIR bolt on sensor, meaning the sensor is protected against dust and low pressure water jets and is double insulated. No separate IP rating is published for the handheld remote, so treat it as a dry indoor tool and keep it out of the rain.
• The PIRBOLTDIM sensor it programs must be fitted to a luminaire with a 0-10V driver. The non dimming PIRBOLT works with any driver but is an on and off sensor, so this remote is not the tool for it.
• Collingwood lists Borealis, Caiman Anti Corrosive and Lentus as compatible luminaires for the Salvus PIR bolt on sensor.
• Use the lock key after commissioning so settings are not changed by accident.
• Clean with a dry or barely damp cloth. Keep solvents and cleaning sprays away from the printed key legends.
• The PIRBOLTDIM sensor this remote controls is a mains wired device. Moonlight Design recommends installation by a registered NICEIC electrician.

Questions People Ask

What does the Collingwood PIRBOLTDIMR remote control do?
The Collingwood PIRBOLTDIMR is a handheld remote that programs the PIRBOLTDIM step dimming PIR sensor, allowing detection range, daylight threshold, hold time, standby period and standby dimming level to be set from ground level rather than at the fitting.

Does the Collingwood PIRBOLTDIMR remote come with a battery?
No. The Collingwood PIRBOLTDIMR runs on a single CR2025 coin cell, and Collingwood's own specification sheet states that the CR2025 battery is not included with the remote.

Which Collingwood sensor does the PIRBOLTDIMR work with?
The PIRBOLTDIMR is the remote for the Collingwood PIRBOLTDIM, the step dimming version of the Salvus PIR bolt on sensor. Collingwood specifies that the PIRBOLTDIM must be fitted to a luminaire with a 0-10V driver.

What standby dimming levels can the PIRBOLTDIMR set?
The Collingwood PIRBOLTDIMR offers standby dimming levels of off, 10 percent, 20 percent and 30 percent, so a luminaire can hold a low background light level between detections instead of switching off completely.

What mounting heights is the Salvus PIR bolt on sensor rated for?
Collingwood states the Salvus PIR bolt on sensor is suitable for use at heights of 2.5 to 6.0 metres, and the PIRBOLTDIMR remote is what makes settings at the top of that range practical to adjust.
