Collingwood LEDEP10EM Emergency Converter, Manual-Test

Emergency Backup for Your Collingwood Downlights

The LEDEP10EM is an emergency converter built to sit behind a Collingwood downlight or panel and take over the moment mains power fails. Rather than being a separate emergency light, it turns your existing Collingwood fitting into one, so the same downlight that lights a hallway every day also lights it during a power cut.

A Compact, Purpose Built Unit

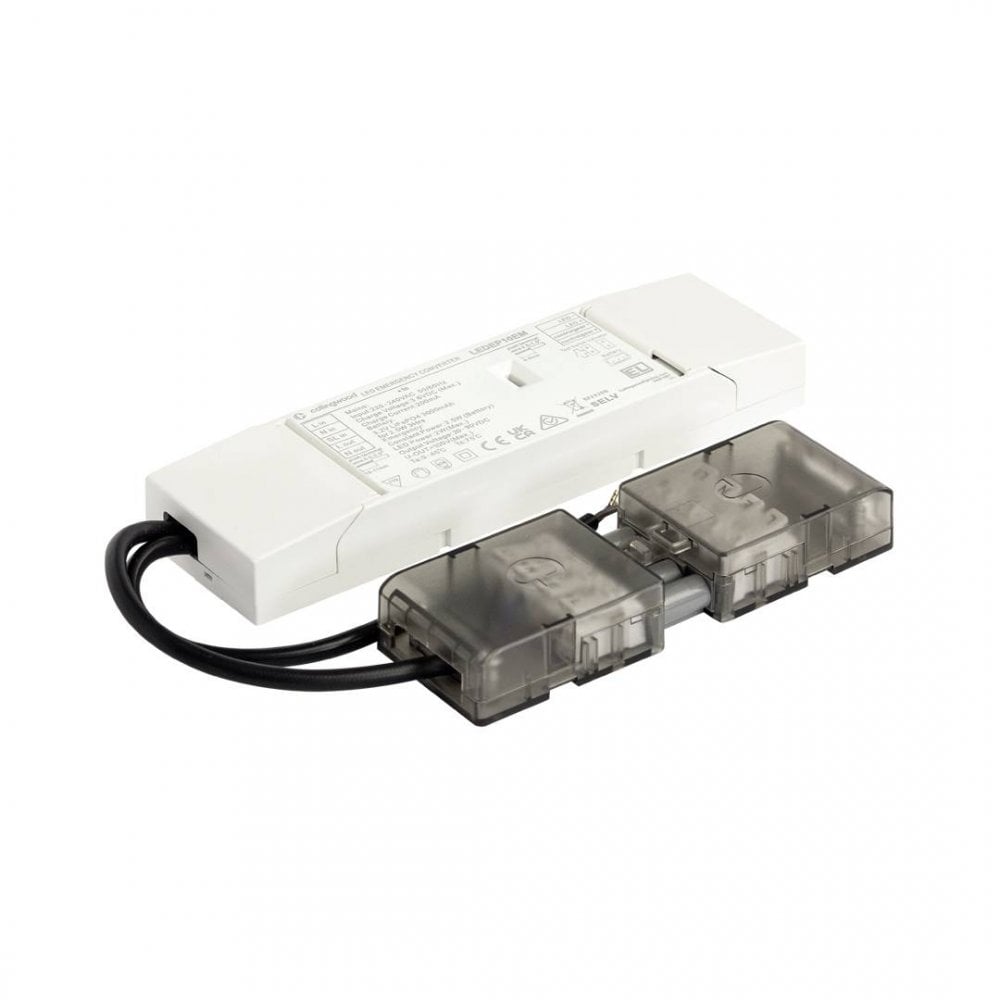

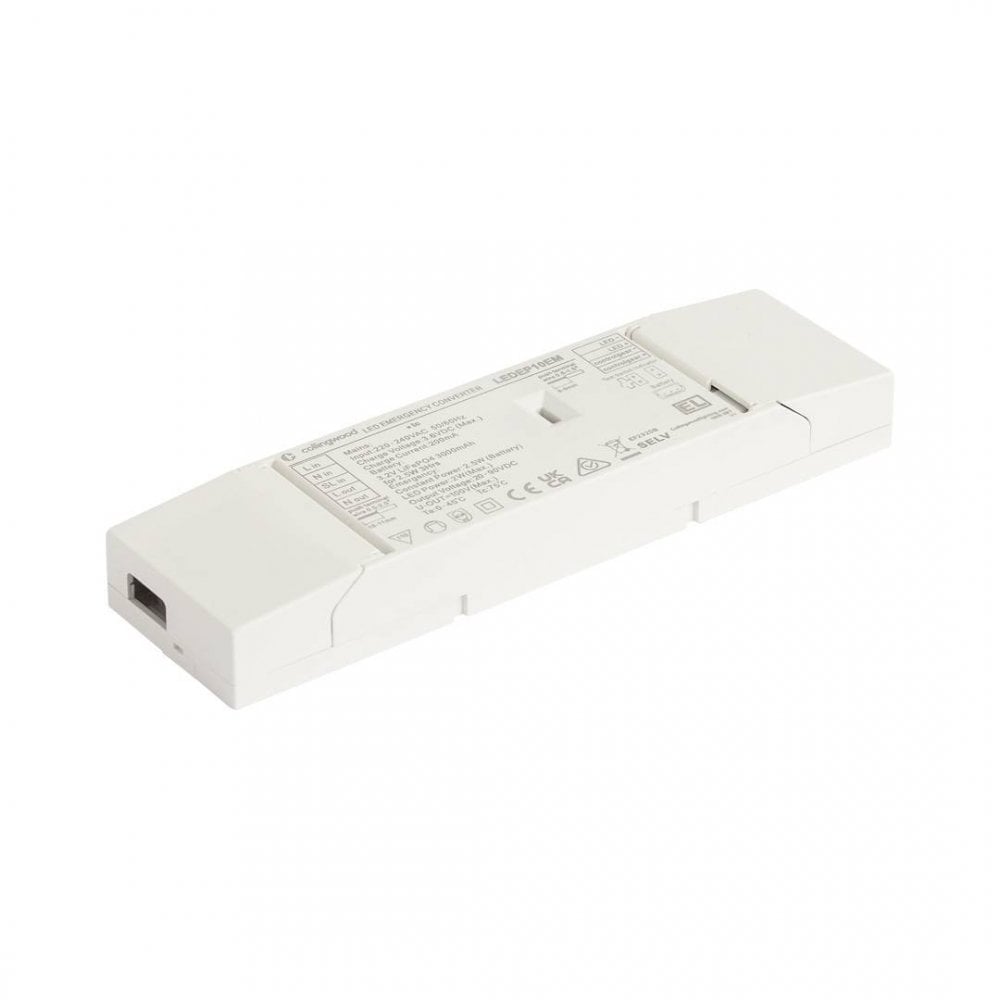

Housed in white polycarbonate, the converter is small enough to sit above the ceiling alongside the downlight or panel it serves. It connects using push-fit terminals for the mains side and DC plug and play connectors for the LED output, so it slots into the wiring during installation rather than adding a separate job. A dual colour LED on the casing gives a quick visual check of charging and fault status.

How It Works

• Runs from an internal rechargeable battery that keeps the connected downlight or panel lit for the standard emergency lighting duration if the mains supply is lost.
• This is the manual test version, so the battery and function are checked by pressing the test button on the unit itself, rather than the converter running its own automatic self-test cycle.
• Rated at 2.5W.
• Compatible with Collingwood's H2 Pro, H4 Pro and H5 downlights (excluding trimless versions), plus the Solis and Domino panels and the Thea commercial downlight.

Where It Works Best

This converter earns its place wherever emergency lighting is a legal requirement rather than an optional extra, in stairwells, corridors, communal entrances and commercial spaces fitted with Collingwood's downlight and panel ranges. Because it's a manual test unit, it suits installations where a facilities team or building manager is happy to carry out a physical test on a schedule, rather than relying on the fitting to log its own test cycle automatically.

Collingwood Lighting

Collingwood Lighting designs and manufactures its LED products from Sywell in Northamptonshire, and has specialised in LED technology since 2002. The brand states it was among the first to bring fire rated, fully sealed for life, and mains dimmable LED products to the UK electrical wholesale market, and it has since been awarded a Gold medal by EcoVadis, placing it in the top 5% of companies assessed globally for sustainability.

Good to Know

• Comes with a 5 year warranty from Collingwood.
• Built in polycarbonate and rated Class II (double insulated), so it doesn't rely on an earth connection.
• Weighs 0.3kg, with a cut out of 18mm for the status LED and 7mm for the test button.
• This is mains wired emergency lighting equipment. Moonlight Design recommends installation and commissioning by a registered NICEIC electrician, to make sure the finished installation meets current emergency lighting regulations.

Questions People Ask

What's the difference between this and an automatic test version?
The LEDEP10EM Manual-Test model checks its battery and function when someone presses the test button on the unit. An automatic test version would run that check itself on a set cycle, without needing anyone to press a button.

Which Collingwood fittings does the LEDEP10EM work with?
It's compatible with the H2 Pro, H4 Pro and H5 downlights (excluding trimless versions), the Solis and Domino panels, and the Thea commercial downlight.

Does fitting the LEDEP10EM mean extra wiring?
No. The LEDEP10EM connects using push-fit terminals on the mains side and DC plug and play connectors on the LED output, so it's added alongside the standard wiring rather than requiring a separate circuit.

How does the LEDEP10EM keep the light on during a power cut?
It switches over to its internal rechargeable battery, which keeps the connected downlight or panel lit for the standard emergency lighting duration until the mains supply returns.

• Collingwood Emergency Guide 2025
