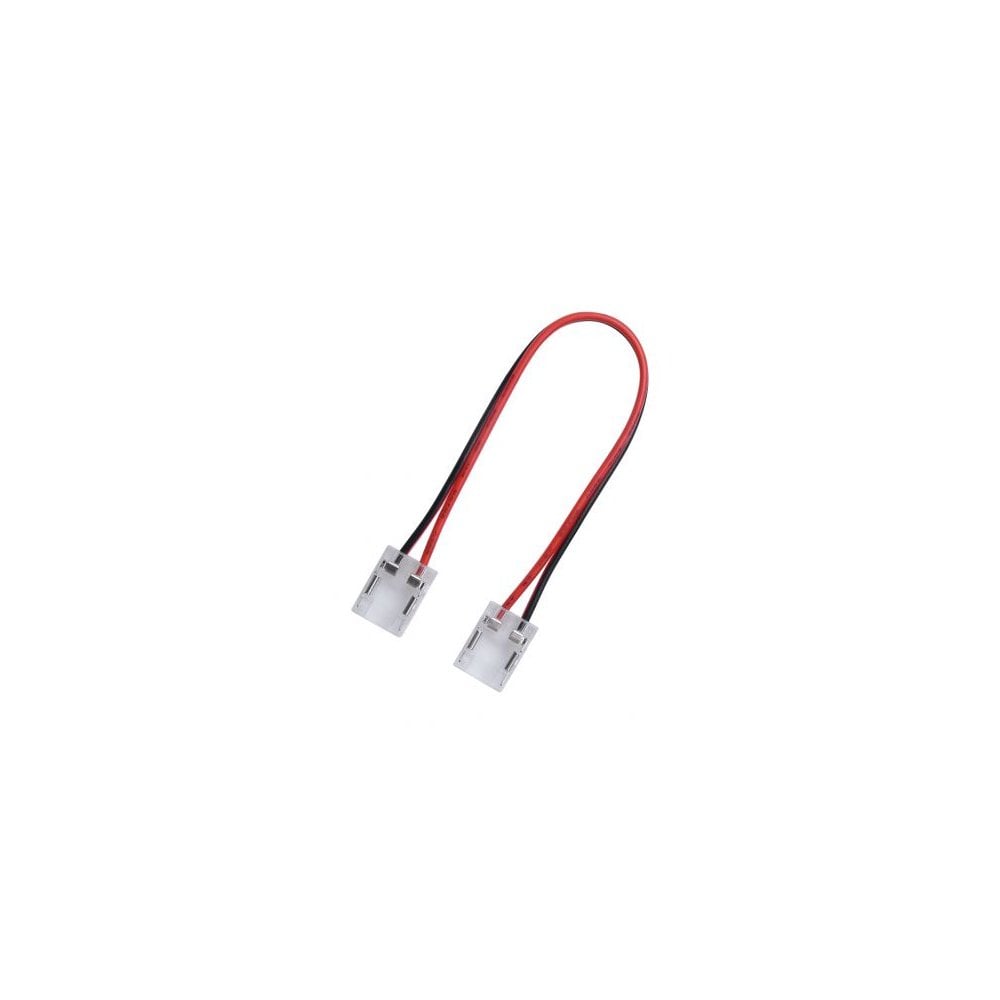

Collingwood Flex Bend Connector for LSP and LSC02 10mm LED Strip
Pay in 3 with Klarna
Rated five stars by thousands of customers since 2014 - see our full review history here
2 Years Warranty
Trusted by thousands of homes
20+ Years of Experience
Free UK Delivery*
Bend Your LED Strip Run Around a Corner
Joining two lengths of Collingwood's LSP or LSC02 10mm LED strip is easy enough with a straight connector, but not every run travels in a straight line. This flex bend connector links two lengths of strip while letting the join follow a curve, so the run can turn a corner or trace a shape rather than stop dead at the first bend.
A Solder Free Clip Together Joint
The connector clips onto each cut end of strip without any soldering, so there's no iron or flux needed on site. Once the two halves are pressed together, the joint sits flush against the strip rather than standing proud of it, and its slim profile is built to tuck inside most of the housings used with this strip.
How It Works
Copper contacts inside the polycarbonate housing make the electrical connection between the two lengths of strip once they're clipped in. A short length of flexible cable links the two connector ends, so the join can flex around a curve rather than forcing the strip to bend on its own. It's built to Class I electrical construction and carries an IP20 rating, so it's designed for use on a completed strip run rather than as a standalone fitting.
Where It Works Best
Reach for this connector wherever an LSP or LSC02 strip run needs to change direction, around a curved cove detail, a rounded cabinet edge, or a run that wraps around a corner rather than continuing in a straight line. Because it's rated IP20, it's meant for dry indoor locations rather than bathrooms or anywhere exposed to the weather.
Collingwood: Built Around a Complete Strip System
Collingwood Lighting designs and manufactures its LED products from Sywell in Northamptonshire, and has specialised in LED technology since 2002. Connectors like this one exist because the company builds its LED strip as a full system of strip, connectors and accessories meant to work together, rather than leaving installers to source generic parts. Collingwood has also been awarded a Gold medal by EcoVadis, placing it in the top 5% of companies assessed globally for sustainability.
Good to Know
- Made from polycarbonate with copper contacts.
- Rated IP20 and Class I, suitable for dry indoor locations only.
- Solder free, clips onto the strip ends without any tools.
- Weighs 0.5kg.
- Built specifically for Collingwood's LSP and LSC02 10mm LED strip, so it's supplied on a non returnable basis.
- Comes with a 2 year warranty.
Questions People Ask
Does this connector work with any 10mm LED strip?
No. It's built specifically for Collingwood's LSP and LSC02 10mm LED strip, so it isn't a universal fit for other strip ranges.
Do I need to solder anything to fit this?
No. It's a solder free, clip together connector, so no soldering iron is needed on site.
Can I use this outdoors or in a bathroom?
No. It's rated IP20, which is intended for dry indoor locations rather than bathrooms or outdoor runs.
Can this connector go around a tight corner?
It's designed to let the strip run follow a curve or turn a corner rather than staying in a straight line, though very tight radii should still be checked against the strip's own minimum bend radius.
Can I return this if I order the wrong one?
No. It's made to match this specific strip system, so it's supplied on a non returnable basis.
