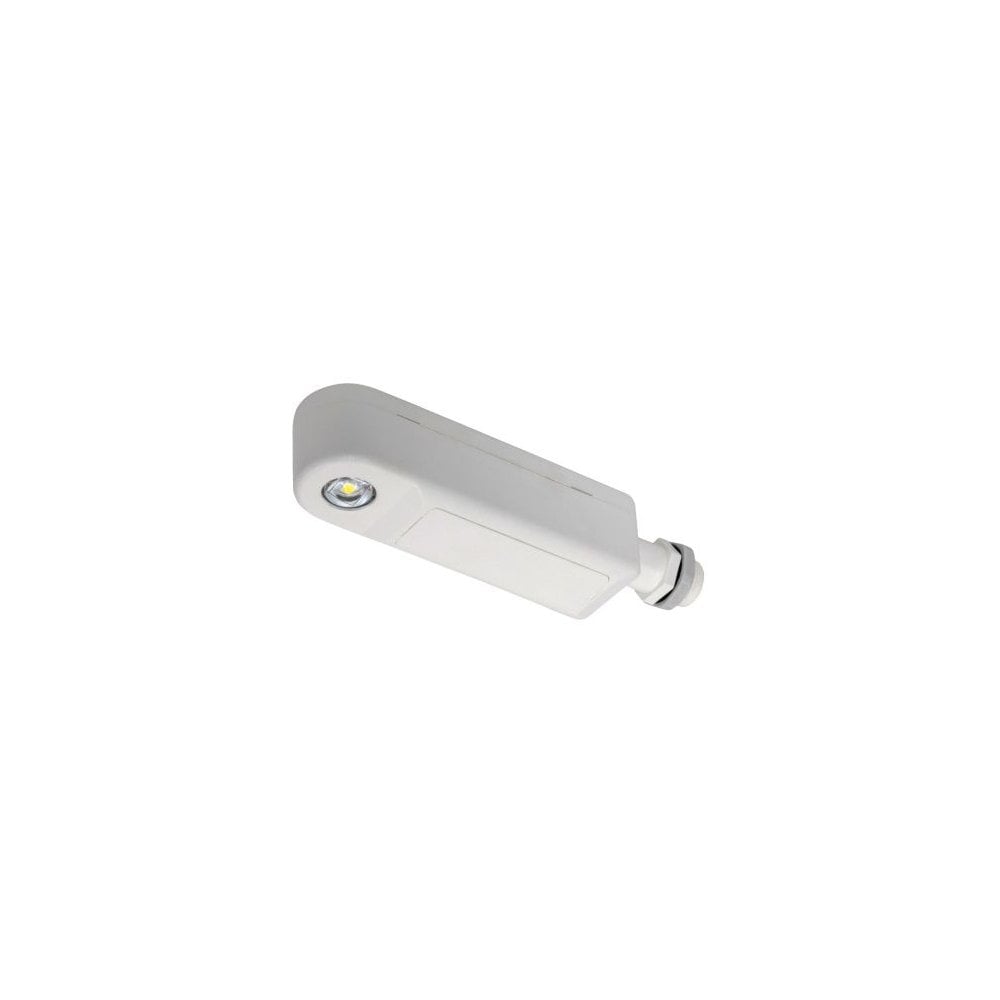

Turn a Caiman luminaire into an emergency light in minutes
This bolt on converter fits through the M20 interface on a compatible Collingwood Caiman luminaire in around four minutes, adding emergency lighting capability without swapping the whole fitting out. No rewiring the entire luminaire, no separate emergency unit hanging off the ceiling nearby. It's a quick way to bring a standard luminaire up to emergency lighting standard.
Open area lens, manual test version
This version uses an open area lens, which spreads light wide and evenly across a room rather than focusing it down a corridor. It suits offices, halls, stairwells and other open spaces where people need to see the whole floor during an emergency, not just a narrow path. It's also the manual test variant, checked by hand with a key or switch rather than running self diagnostics on its own.
How It Works
- Fits into the M20 knockout on a compatible Caiman luminaire
- Draws power in parallel with the main luminaire circuit
- Stays inactive while mains power is present
- Switches on automatically if the mains supply fails
- Can also be switched on by hand with a key or test switch to check it's working
- Delivers up to 2.5W of output at 6000K, CRI 70, with a 145 degree beam angle
Where It Works Best
This converter is built for retrofitting emergency lighting into existing Caiman installations, commonly in commercial and public buildings where fire regulations call for an emergency light source in specific areas. Because the lens spreads light across open floor space, it works well in rooms, halls and reception areas rather than tight corridors, where a narrower beam converter would suit better. Its IP65 and IK07 ratings mean it can handle knocks, dust and moisture, so it also suits busier or less sheltered spaces alongside standard indoor rooms.
About Collingwood Lighting
Collingwood Lighting designs and manufactures its LED products from Sywell in Northamptonshire, and has focused specifically on LED technology since 2002. The brand says it was among the first to bring fire rated, fully sealed for life, and mains dimmable LED products into the UK electrical wholesale market, work that sits close to what this converter does today for emergency safety lighting. Collingwood has also been awarded a Gold medal by EcoVadis, placing it in the top 5% of companies assessed globally for sustainability.
Good to Know
- IP65 rated, with IK07 impact resistance, and a polycarbonate housing
- Class II electrical rating, wired in parallel with the host luminaire
- Output up to 2.5W at 6000K, CRI 70, with a 145 degree beam angle
- Measures 181mm long, 42mm wide and 45mm deep, weighing 0.2kg
- Comes with a 4 year warranty
- Designed to fit a compatible Caiman luminaire rather than work as a standalone light
- Moonlight Design recommends installation by a registered NICEIC electrician
Questions People Ask
Will this work with any Collingwood luminaire?
No. It's designed to bolt on through the M20 interface of a compatible Collingwood Caiman luminaire, not to fit other ranges or work as a standalone emergency light.
What's the difference between this and the automatic test version?
This manual test version is checked by hand using a key or switch. An automatic self test version runs its own diagnostic checks on a set schedule without needing someone to test it manually.
What does the open area lens mean for where I can use it?
The open area lens spreads light evenly across a room, which suits spaces like offices and halls. A corridor lens version throws a narrower beam suited to long, narrow routes instead.
Is it suitable for damp or dusty locations?
Its IP65 rating protects against dust ingress and water jets, and IK07 gives it a solid level of impact resistance, so it can handle tougher indoor environments as well as standard rooms.
