Collingwood Black Bezel for H2 Sense - With PIR Sensor (Bezel only)

Automatic light, no extra hardware

Most PIR downlights need a separate sensor housing sitting on the ceiling next to the light. This bezel builds the sensor straight into the trim, so the whole fitting reads as one clean circle rather than a light with an add on bolted beside it.

Finished in black

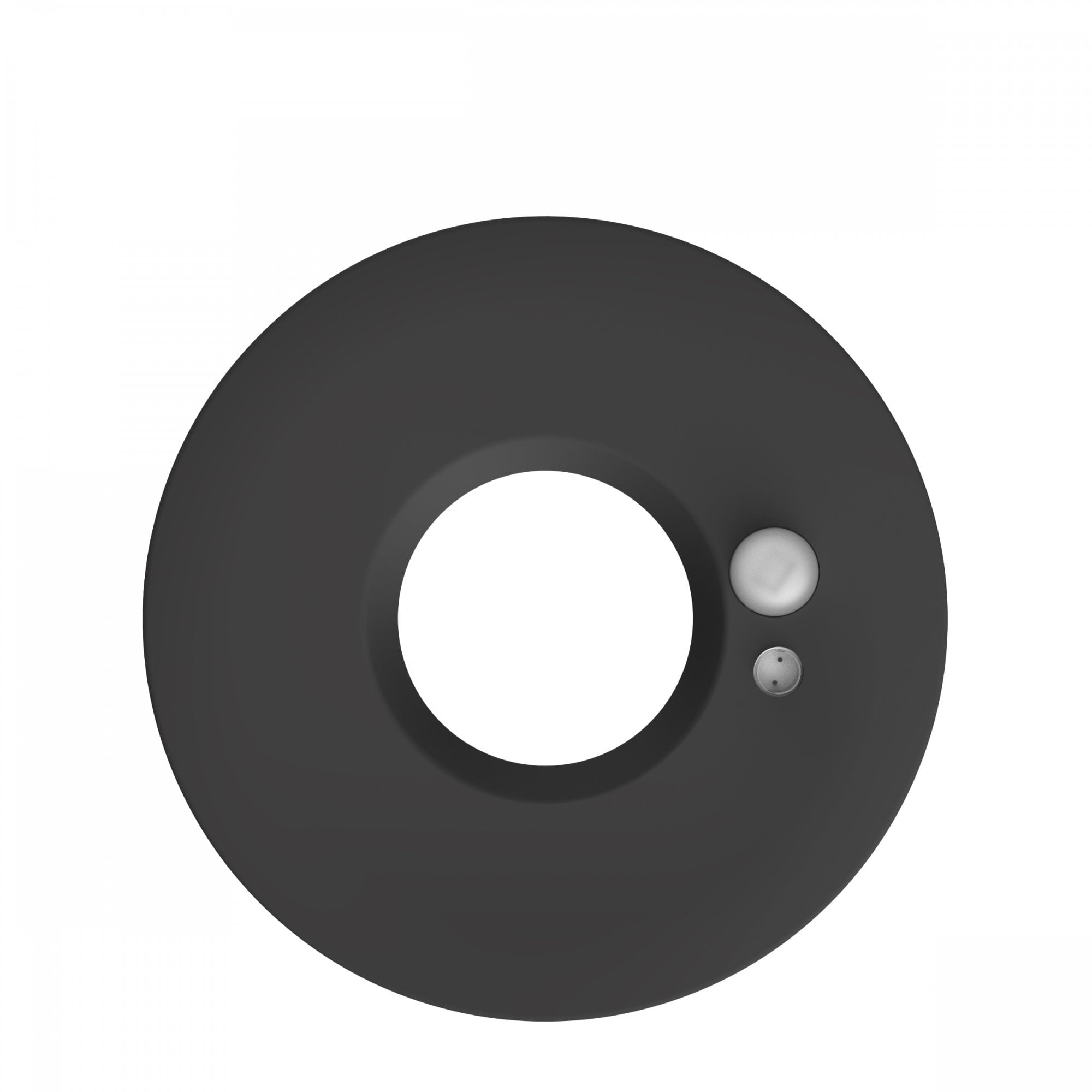

This bezel is finished in black, made to sit against a dark ceiling or match the rest of a black H2 Sense fitting. It replaces the standard bezel on the downlight, and the sensor lens and photocell sit flush within the same ring rather than proud of it.

How It Works

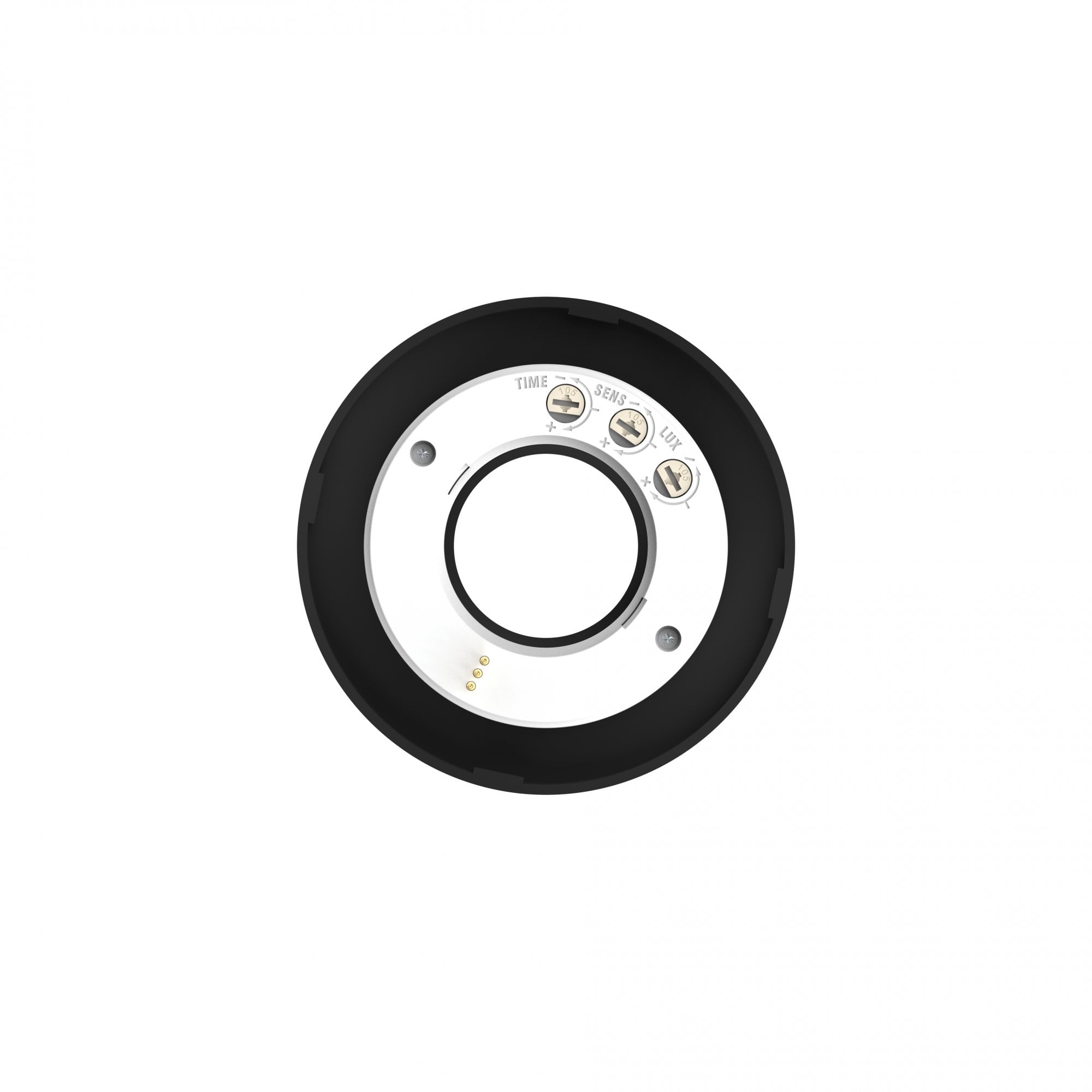

The bezel carries three parts in one moulding: the cutout for the LED lens, a small dome for the passive infrared sensor, and a photocell that reads ambient light. On the rear there are three small dials, marked TIME, SENS and LUX, so an electrician can set how long the light stays on after movement stops, how sensitive the sensor is, and the daylight level it should switch on at.

Because the sensor is moulded into the bezel rather than sold as a separate clip on unit, fitting it is the same job as fitting the standard H2 Sense bezel. There is nothing extra to mount and no separate sensor wire to route.

Where It Works Best

This is the bezel to reach for wherever a light needs to switch itself on and off without anyone thinking about it. Hallways, landings, stairwells, utility rooms and cloakrooms are the obvious candidates, anywhere people walk through with their hands full or don't want to hunt for a switch.

It also makes a straightforward retrofit if you already have H2 Sense downlights fitted and want to swap a plain bezel for a sensor equipped one, or you're replacing a bezel that's failed, without touching the downlight body itself.

About Collingwood Lighting

Collingwood Lighting designs and manufactures its LED products from Sywell in Northamptonshire, and has specialised in LED technology since 2002. Components like this sensor bezel are part of that same in house engineering, built to work as a system with the rest of the H2 Sense range rather than as a bolt on afterthought. Collingwood has also been awarded a Gold medal by EcoVadis, placing it among the top 5% of companies assessed globally for sustainability.

Good to Know

• Bezel only. This does not include the H2 Sense downlight body or a separate sensor module, it's designed to fit onto the existing H2 Sense fitting.
• Backed by a 1 year guarantee.
• Colour: Black.
• Sensor settings for time, sensitivity and light level are adjustable via dials on the rear of the bezel.
• Moonlight Design recommends installation by a registered NICEIC electrician.

Questions People Ask

Does this bezel come with the PIR sensor module fitted?
Yes. The sensor housing and photocell are built into the bezel itself, so you get the complete sensor assembly, not just a blank trim.

Will this fit my existing H2 Sense downlight?
It's designed to fit the H2 Sense range as a replacement or upgrade bezel. The downlight body and driver are sold separately.

Can I adjust how long the light stays on?
Yes. The rear of the bezel has a TIME dial alongside SENS, for sensitivity, and LUX, for the daylight threshold, so an electrician can tune all three during installation.

Is the sensor module sold separately from this bezel?
No. On this version the sensor is moulded into the bezel, so there is nothing extra to buy or mount separately.

• Collingwood H2 Sense Spec Sheet 2025
