Collingwood 2P Connector for LSNT Top Bend Neon LED Strip - Cable at Right

Join your neon strip without breaking the run

Long runs of LED neon strip usually need to be joined or extended at some point, whether that's turning a corner, spanning a longer wall, or reaching from one section of coving to the next. This 2 pin connector does exactly that job for Collingwood's LSNT top bend neon strip, letting you link two lengths together while keeping the finished line looking continuous.

The Cable at Right Version

This is the cable at right variant, meaning the flying lead exits from the right hand side of the connector housing rather than the left. That small detail matters on site: pick the version that sends the cable the way you actually need it to go, so you're not fighting an awkward loop when you route it into a wall void or back to the driver.

• 50cm, 2 core flying lead with a 0.5mm² cross section
• Handles up to 2.75A
• Cable exits to the right of the connector body

How It Works

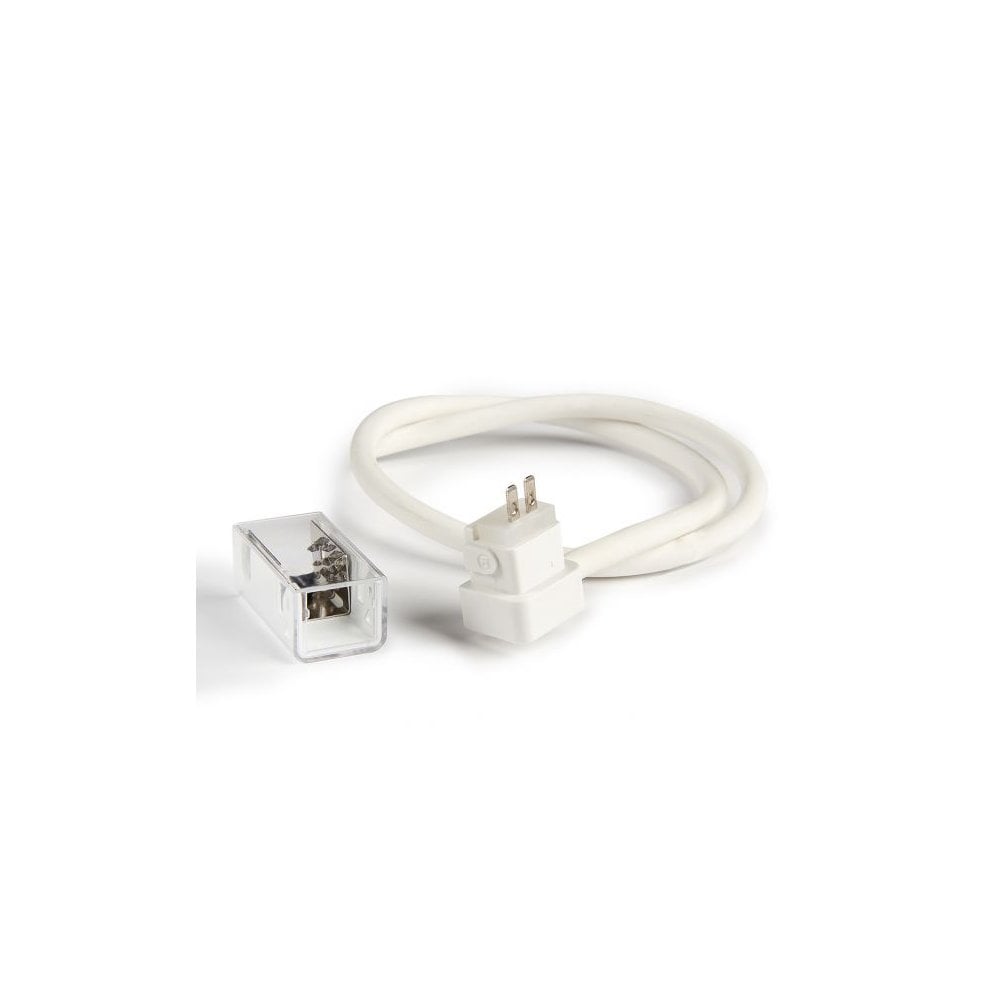

The strip ends sit inside a clear polycarbonate housing with steel contacts that make the electrical connection between the two runs. Once the connector is properly seated, it's rated IP67 and IK08, so it carries on protecting against water and knocks in the same way the strip itself does. You get a joint that's mechanically sound and just as weatherproof as the cable either side of it.

Where It Works Best

Reach for this connector anywhere a single length of LSNT strip won't cover the whole run, indoors or out. It's a natural fit for coving and cove lighting that continues around more than one wall, for signage and shopfront runs that need to keep going past a joint, and for exterior strip work where the IP67 rating means a joined section still stands up to damp and rain. Because it's a like for like match to the strip's own build, it doesn't compromise the finish or the performance of the run.

About Collingwood Lighting

Collingwood has focused on LED technology since 2002, and connectors like this one are part of how the brand keeps its strip systems working as complete, properly engineered runs rather than a collection of separate parts. The company designs and manufactures from Sywell in Northamptonshire, and says it was among the first to bring fully sealed, waterproof for life LED products to the UK electrical wholesale market, an approach you can see in the IP67 build of this connector. Collingwood has also been awarded a Gold medal by EcoVadis, placing it in the top 5% of companies assessed globally for sustainability.

Good to Know

• IP67 rated once fitted, suitable for damp or exterior locations as well as indoor use
• IK08 impact rated for extra protection against knocks
• Made to match a specific strip run, so it's supplied on a non-returnable basis
• Covered by a 1 year warranty

Questions People Ask

• Can this connector join two lengths of LSNT strip together? Yes, it's designed to connect two runs of Collingwood's LSNT top bend neon strip end to end.
• Does the strip stay waterproof once it's joined? Yes, the connector is IP67 rated once properly seated, matching the strip's own waterproof performance.
• What's the difference between this and the cable at left version? The connectors are identical apart from which side the flying lead exits. Choose whichever direction suits your cable routing on site.
• Can I shorten or re-terminate the flying lead? The 50cm lead is fixed at manufacture, so if you need a different cable length, choose a suitable extension lead instead of cutting this one.
• How much current can the connector carry? It's rated to handle up to 2.75A, which comfortably covers a typical LSNT strip run.
