Collingwood 2P Connector for LSNT Top Bend Neon LED Strip - Cable at Bottom
Pay in 3 with Klarna
Rated five stars by thousands of customers since 2014 - see our full review history here
1 Year Warranty
Trusted by thousands of homes
20+ Years of Experience
Free UK Delivery*
A Connector That Drops Straight Down
This 2 pin connector joins or extends a run of Collingwood's LSNT top bend neon LED strip, with the cable leaving from the bottom of the connector rather than the side or the end. That means it can drop straight down into a wall void or a channel running below the strip, keeping the join tidy and out of sight.

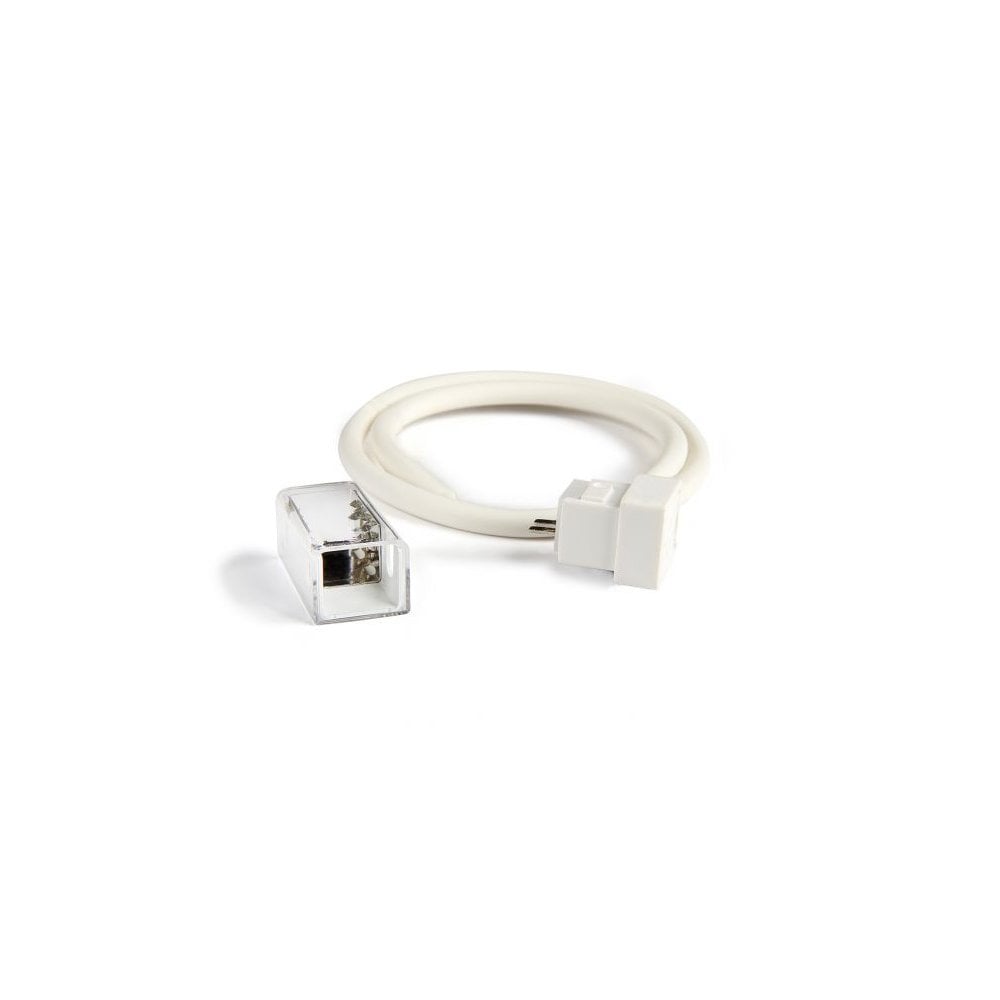

Clear Polycarbonate Housing, Steel Contacts
The housing is a clear polycarbonate shell, rated IP67 with IK08 impact resistance, so it can take a knock on site without cracking. Inside, steel contacts make the electrical connection between the strip and the flying lead, sealed against moisture and dust once fitted.
How It Works
A 50cm, 2 core flying lead runs from the connector, rated to 2.75A, giving enough length to reach a driver or the next section of strip. It clips onto the end of an LSNT top bend neon strip run and completes the electrical connection, while keeping the same seal rating as the strip either side of it.
Where It Works Best
Reach for this version wherever an LSNT top bend run needs to feed down into the structure below it, such as a strip fitted along the top of a wall or bulkhead where the cable needs to disappear into a void or conduit beneath. It suits coving, shopfronts, signage and any other run where keeping the cable hidden below the strip matters more than routing it off to one side.
Collingwood: Part of a Wider LED Strip System
Collingwood Lighting designs and manufactures its LED products from Sywell in Northamptonshire, and has specialised in LED technology since 2002. Connectors like this one are part of a wider system of strip, drivers and accessories the brand builds to work together, and Collingwood states it was among the first to bring fully waterproof, sealed for life LED products to the UK electrical wholesale market. The brand has also been awarded a Gold medal by EcoVadis, placing it among the top 5% of companies assessed globally for sustainability.
Good to Know
- Comes with a 1 year warranty.
- Supplied non-returnable, as it's made specifically to fit the LSNT profile.
- IP67 rated with IK08 impact resistance once connected, suitable for wet locations and areas at risk of knocks.
- Flying lead is 50cm long, 2 core, rated to 2.75A.
- Made for Collingwood's LSNT top bend neon LED strip specifically, not a universal fit.
Questions People Ask
What's different about the cable at bottom version compared to cable at side or end?
The cable leaves from the underside of the connector rather than the side or the end, so it drops straight down into a wall void or channel running beneath the strip instead of routing off to one side.
Does this connector keep the LED strip's waterproof rating intact?
Yes. The IP67 rated polycarbonate housing with steel contacts keeps the same protection level as the strip either side of it once the connection is made.
Can this be used with other Collingwood strip ranges?
No. It's built specifically for the LSNT top bend neon LED strip and matched to that profile, so it isn't a universal connector.
What's the maximum current the flying lead can carry?
The 2 core flying lead is rated to 2.75A.
