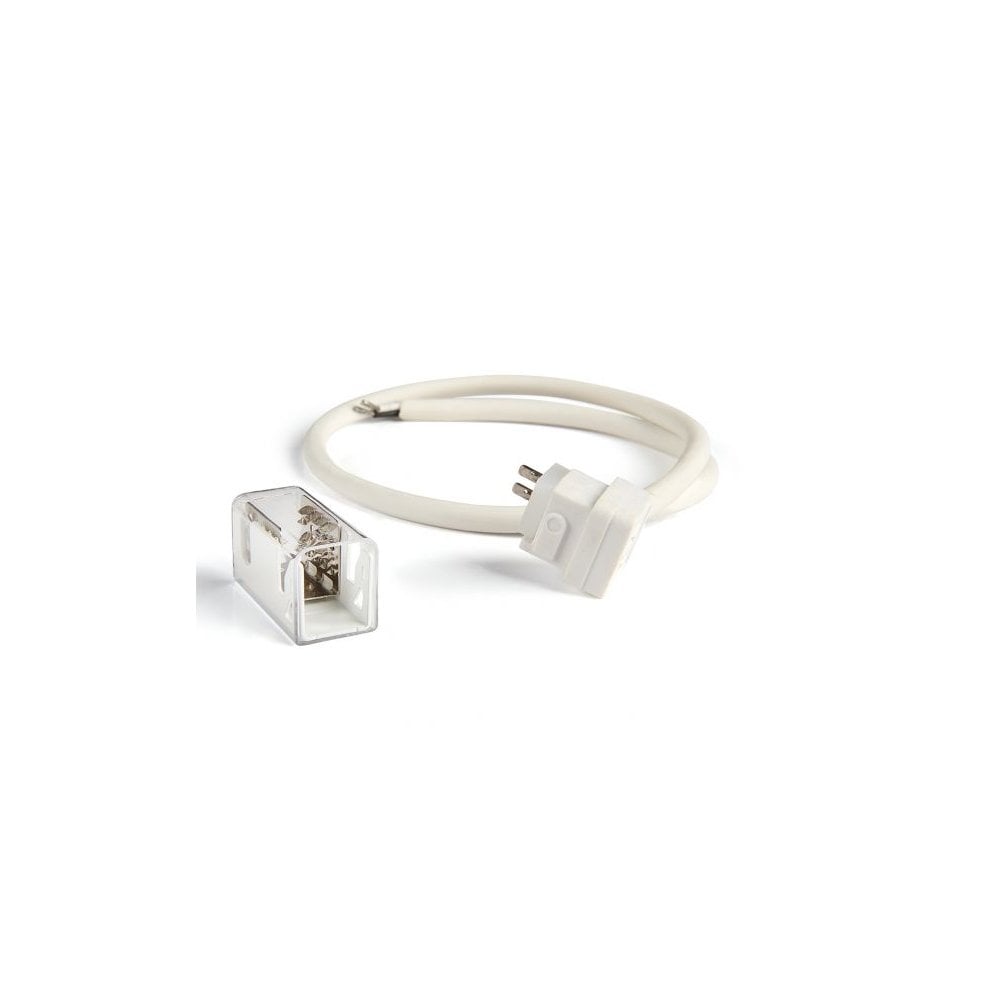

Collingwood 2P Connector for LSNS Side Bend Neon LED Strip - Cable at Right

A Clean Cable Exit to the Right

This 2 pin connector joins or extends a run of Collingwood's LSNS side bend neon LED strip, with the cable exiting to the right of the joint. That means you can carry a run along in one direction without the lead doubling back on itself or crossing over the strip.

Polycarbonate Housing, Steel Contacts

The connector body is clear polycarbonate, rated IP67 and IK08, so it copes with both moisture and the odd knock without cracking. Inside, steel contacts make the join between the two lengths of strip, keeping the same protection the strip carries along the rest of the run.

How It Works

A 50cm, 2 core, 0.5mm² flying lead runs off the connector, rated to 2.75A. It clips onto the end of an LSNS side bend neon strip run and completes the electrical connection while sealing the joint against dust and water.

Where It Works Best

Choose the cable at right version when the next connector, driver or feed point sits to the right of the strip run, such as along a continuous cove or perimeter line where you want the lead tucked in neatly rather than looping back across the fitting.

Part of a Wider LED Strip System

Collingwood Lighting has specialised in LED technology since 2002, designing and manufacturing its products from Sywell in Northamptonshire. Connectors like this one sit alongside its LED strip and driver ranges, built so the whole system works together, and the brand states it was among the first to bring fully waterproof, sealed for life LED products to the UK electrical wholesale market.

Good to Know

• Comes with a 1 year warranty.
• Supplied non-returnable, as it's matched to a specific strip run.
• IP67 and IK08 rated once connected, suitable for wet locations and areas at risk of knocks.
• Flying lead is 50cm long, 2 core, 0.5mm², rated to 2.75A.
• Made specifically for Collingwood's LSNS side bend neon LED strip, not a universal fit.

Questions People Ask

How do I know if I need the cable at right version rather than cable at left or cable at end?
It depends which way the run needs to continue. Choose cable at right if the next connector, driver or feed point sits to the right of this joint, so the lead runs off without crossing back over the strip.

Does this keep the LED strip waterproof once fitted?
Yes. The IP67 and IK08 rated polycarbonate housing keeps the strip's own waterproof rating intact once the connection is made.

Can I use this connector with any Collingwood LED strip?
No. It's built specifically for the LSNS side bend neon LED strip and is matched to that strip profile, so it isn't a universal connector.

What current can the flying lead carry?
The 2 core, 0.5mm² flying lead is rated to 2.75A.
