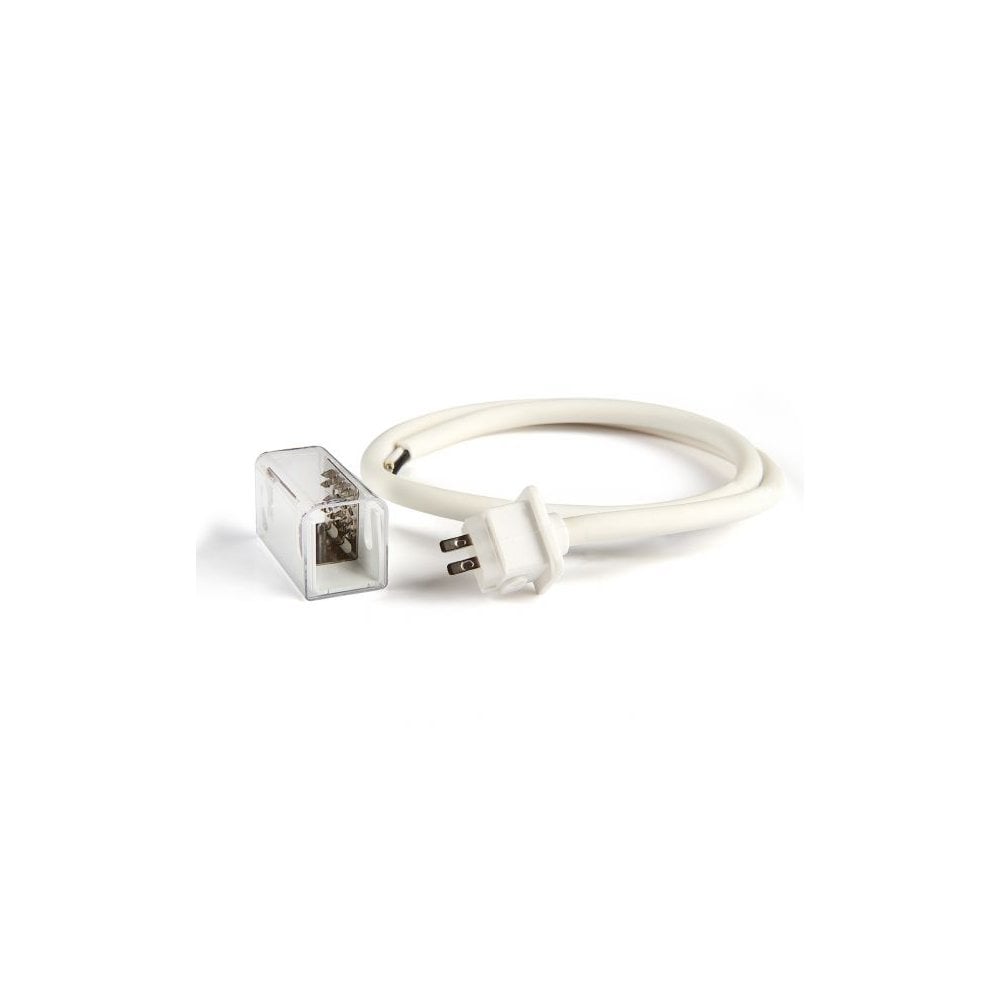

Collingwood 2P Connector for LSNS Side Bend Neon LED Strip - Cable at End

The Right Connector for a Straight Run

This 2 pin connector is built for Collingwood's LSNS side bend neon LED strip, made for runs that carry straight on rather than turn a corner. The cable exits directly off the end of the connector, rather than out to one side, so it sits flush and in line with the strip.

Polycarbonate Housing, Steel Contacts

The housing is IP67 and IK08 rated polycarbonate, built to take a knock without cracking and to keep the strip's own waterproof rating intact once it's connected. Inside, steel contacts make the connection between strip and cable.

How It Works

A 50cm, 2 core, 0.5mm² flying lead runs off the connector, rated to 2.75A, giving enough slack to route back to a driver or the next section of strip. It clips onto the end of an LSNS side bend neon strip run and completes the electrical connection while sealing it against moisture and dust.

Where It Works Best

Useful anywhere an LSNS side bend neon strip needs to continue in a straight line rather than change direction, such as long cove or perimeter runs, shopfronts, or signage where the strip travels in one direction from a single feed point.

Collingwood: British LED Design Since 2002

Collingwood Lighting designs and manufactures its LED products from Sywell in Northamptonshire, and has specialised in LED technology since 2002. Alongside downlights, the brand builds a wider system of LED strip, connectors and accessories designed to work together, and states it was among the first to bring fully waterproof, sealed for life LED products to the UK electrical wholesale market.

Good to Know

• Comes with a 1 year warranty.
• Supplied non-returnable, as it's matched to a specific strip run.
• IP67 and IK08 rated once connected, suitable for wet locations and areas at risk of impact.
• Flying lead is 50cm long, 2 core, 0.5mm², rated to 2.75A.
• Designed specifically for Collingwood's LSNS side bend neon LED strip, not a universal fit.

Questions People Ask

What's the difference between this and the connector with cable at the side?
The cable exits straight off the end of this connector rather than out to one side, so it's the right choice when the LED strip run continues in the same direction rather than turning a corner.

Does this keep the LED strip waterproof once connected?
Yes. The IP67 and IK08 rated polycarbonate housing keeps the strip's own waterproof rating intact once the connection is made.

Can this be used with any Collingwood LED strip?
No. It's built specifically for the LSNS side bend neon LED strip and is matched to that strip run, so it isn't a universal connector.

What's the maximum current the flying lead can carry?
The 2 core, 0.5mm² flying lead is rated to 2.75A.

• Collingwood Strip Light Guide 2025
