Collingwood 28mm Deep Surface Mount Profile & Diffuser

A clean line of light, not a row of dots

LED strips are brilliant, but on their own they show up as a string of individual points rather than one smooth beam. This Collingwood profile fixes that. Slot a strip inside, snap the diffuser over the top, and what comes out is a single even line of light with no visible dots.

The 28mm Deep Surface Mount Profile

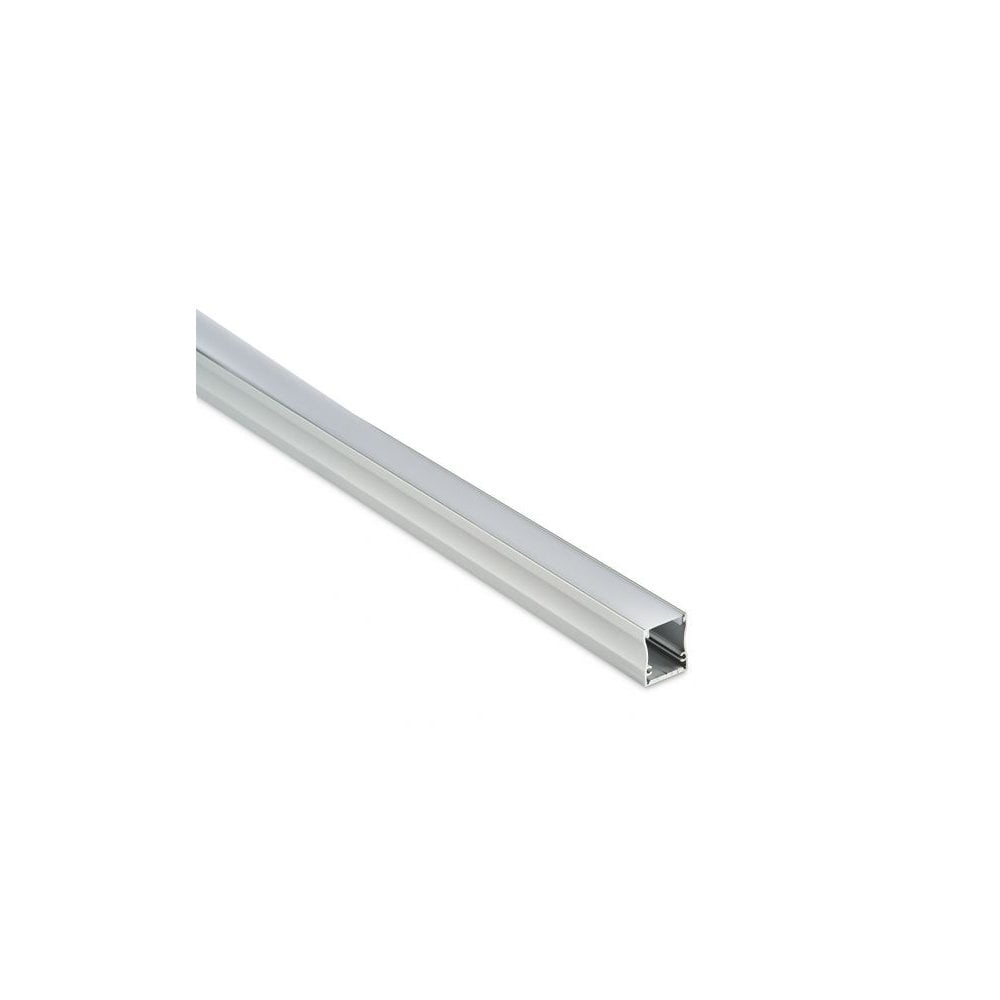

This is the deep surface mount version of Collingwood's aluminium profile range, 23.2mm wide and 28mm deep, made from anodised aluminium with a frosted plastic diffuser that clips into the channel. It's sold in two lengths, 100cm and 200cm, so you can pick the run that matches the space you're lighting.

How It Works

• The aluminium channel holds an LED strip along its length and doubles as a heatsink, helping the strip run cooler.

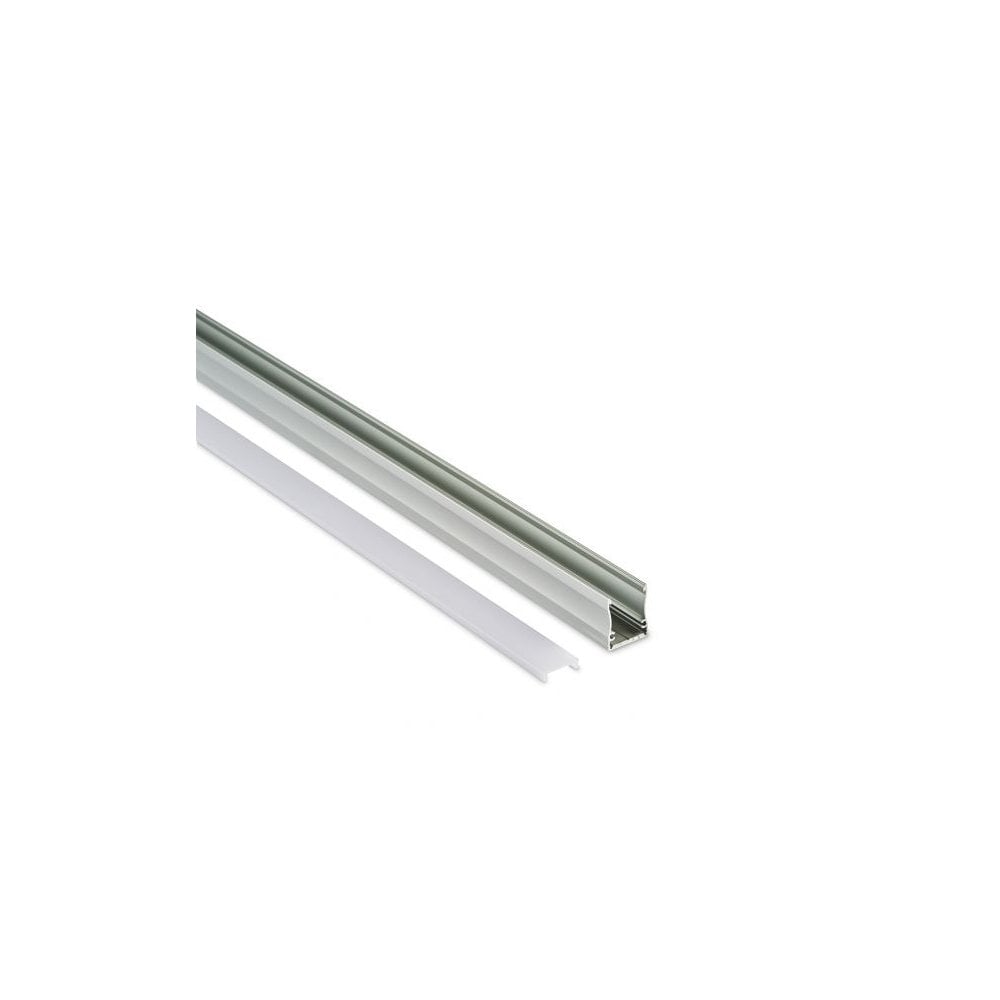

• The frosted diffuser clips over the open face and spreads the light from each LED into one continuous line rather than a row of bright points.
• A cable exit hole needs to be drilled through the rear of the profile on site, there isn't one pre cut, so plan the position before you fix it in place.
• Matching end caps are sold separately and give the finished ends of the profile a neat, closed off look.

Where It Works Best

Because it's suited to indoor and outdoor use, this profile turns up in a lot of different jobs. Electricians and fitters use it to line ceiling voids and coving for a hidden wash of light, to edge shelves and display units, and to run continuous light under kitchen cabinets. Being surface mounted rather than recessed, it's a good option where there's no depth to chase a channel into the structure, on an existing ceiling or an external wall for example.

Collingwood Lighting

Collingwood Lighting designs and manufactures its LED products at its base in Sywell, Northamptonshire, and has focused specifically on LED technology since 2002. Profiles like this one sit alongside Collingwood's wider range of LED strip and driver components, built to work together as one system rather than a collection of unrelated parts. The company has also been awarded a Gold medal by EcoVadis, ranking it in the top 5% of companies assessed worldwide for sustainability.

Good to Know

• Comes with a 1 year warranty.
• Made from anodised aluminium with a plastic diffuser.
• Available in 100cm and 200cm lengths.
• Suitable for indoor and outdoor installation.
• A cable exit hole must be drilled through the rear during fitting, it isn't supplied pre drilled.
• End caps are sold as a separate accessory.

Questions People Ask

Does this profile come with an LED strip included?
No, this is the aluminium profile and diffuser only. The LED strip and end caps are bought separately.

Is there a shorter or longer option than 100cm and 200cm?
Collingwood supplies this profile in those two fixed lengths only, so choose whichever is closer to the run you need.

Can the diffuser be removed if I need to get to the strip later?
Yes, the diffuser clips into the channel and can be unclipped by hand to access the LED strip for maintenance or replacement.

Can this profile be used outside?
Collingwood specifies this profile for both indoor and outdoor installation, though the LED strip fitted inside it will have its own separate rating to check.

23.2mm width x 28mm depth

• Collingwood Strip Light Guide 2025
