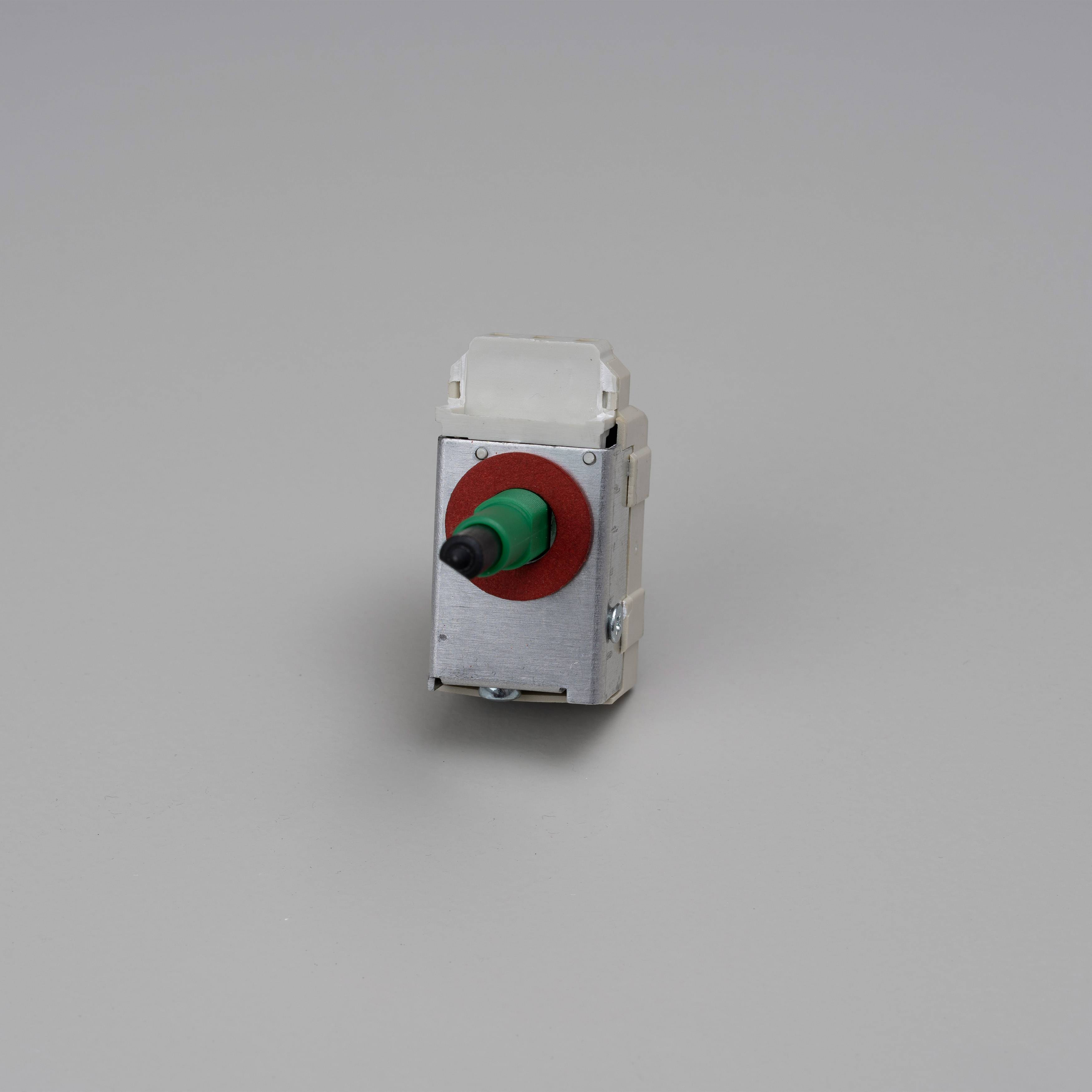

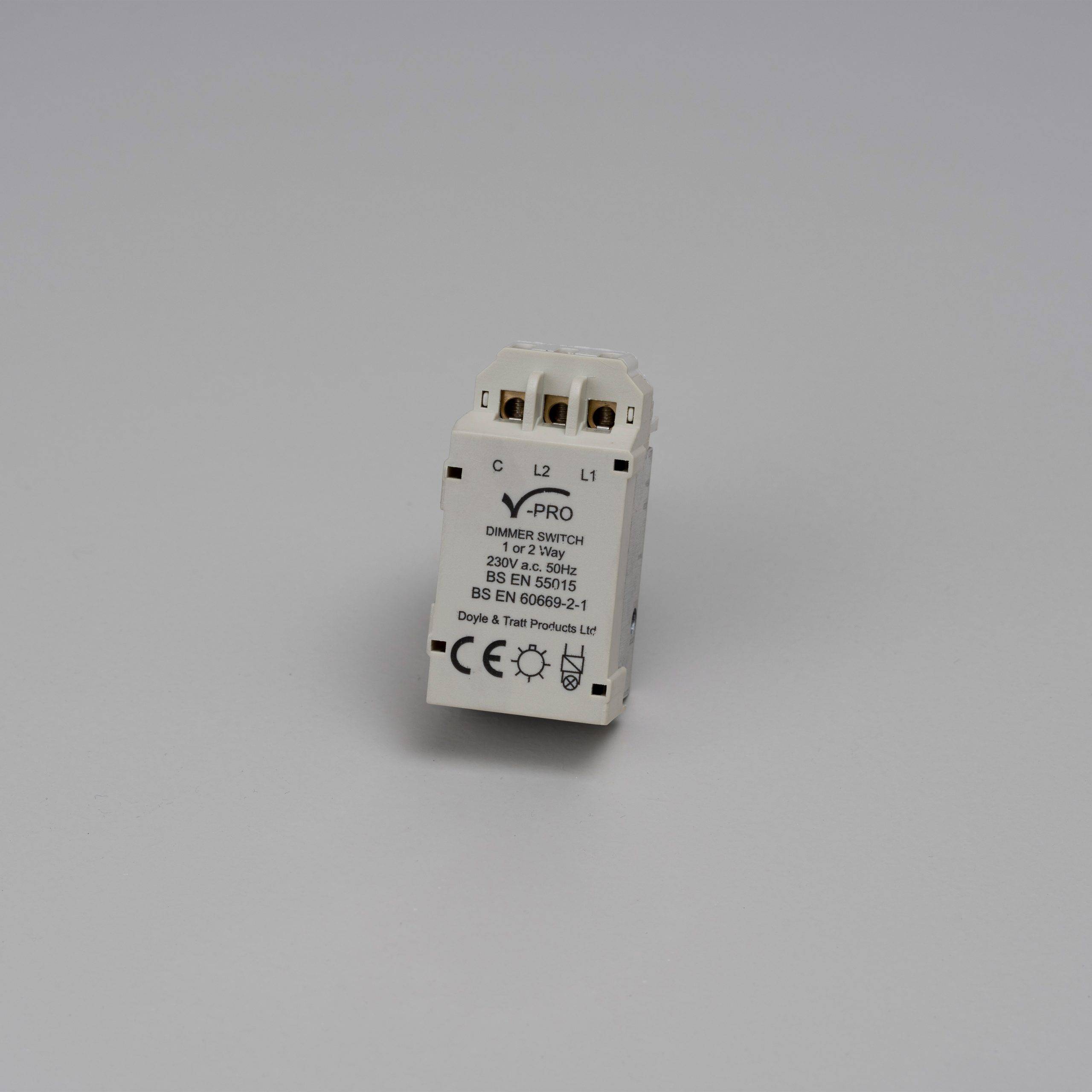

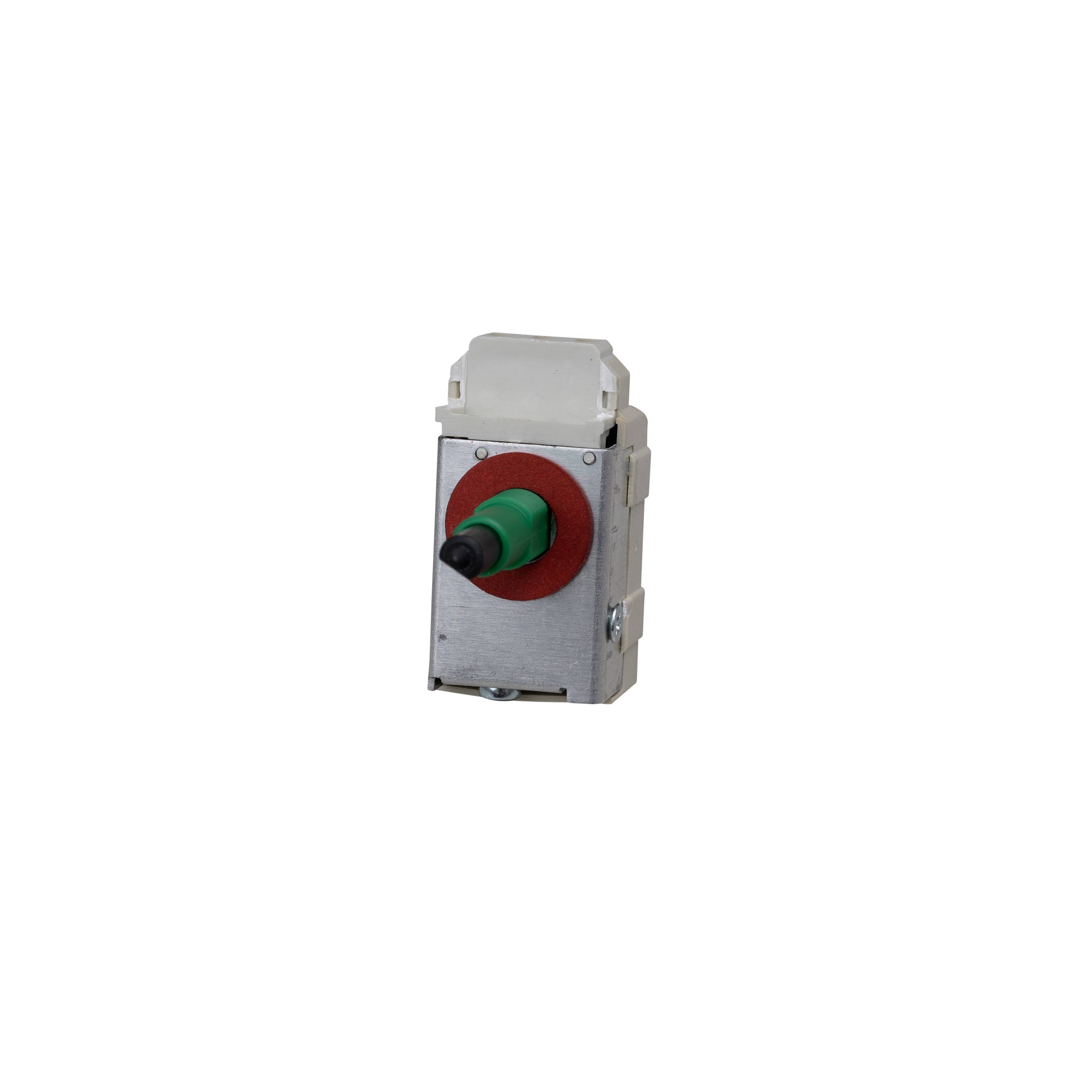

Buster + Punch Dimmer Module 120W Led - 2 way

The Dimmer Module Built for Mixed Systems

This is the working part of a Buster + Punch dimmer, the mechanism behind whichever detail kit you've chosen, and it's built with a wider compatibility than the standard module: alongside Buster + Punch's own lighting, it's designed to work with a broad range of third party lighting products too.

Choose Your Finish

As a module, this has no finish of its own, it's fitted behind a separately chosen wall plate and detail kit. Pick whichever Buster + Punch finish and knurl suits your room, and this module does the actual dimming underneath it.

How It Works

It's a push on/off rotary mechanism, smooth and silent in use, wired two way on 230 to 240V AC at 50Hz. It dims LED bulbs from 5 to 120W, or incandescent and halogen from 60 to 400W, using trailing edge dimming by default with simulated leading edge available, and includes an intelligent soft start that eases each circuit up over a second or two rather than snapping it to full brightness. It isn't compatible with non dimmable fittings, CFLs, electric motors, retractive switches or Buster + Punch's multipoint dimmers.

Where It Works Best

This is the module to choose if your lighting scheme mixes Buster + Punch fittings with other manufacturers' dimmable LED products, since it's built for that wider compatibility. If everything on the circuit is already Buster + Punch lighting, the standard module covers the same 120W range at a more accessible price point.

Made By Buster + Punch

The idea of a swappable module like this comes straight from founder Massimo Buster Minale's years building motorbikes in a Shoreditch garage, where a part that could be replaced or upgraded mattered more than one bolted in for good. Buster + Punch, started in 2013, built its entire switch range around that same logic: plate, detail kit and module as three separate parts, so a component like this can be fitted or swapped without touching the rest of the switch.

Good To Know

• Module size: 26 x 48mm, 24mm depth plus 32mm terminal projection
• Style: push on/off rotary dimmer, two way
• Electrical rating: 230 to 240V AC, 50Hz
• Dimming range: LED 5 to 120W, or incandescent and halogen 60 to 400W
• Dimming type: trailing edge as standard, simulated leading edge available
• Compatible with Buster + Punch lighting and a wide range of third party lighting products
• Works only with Buster + Punch Cross and Linear knurled dimmer knobs
• In the box: one dimmer module, one anti rotation adapter
• For indoor, dry domestic circuits only
• Warranty: two year Buster + Punch manufacturer's warranty as standard

Questions People Ask

What makes this different from the standard dimmer module?
Both dim the same 5 to 120W LED or 60 to 400W incandescent and halogen range, but this version is built and tested for wider compatibility with third party lighting products, not just Buster + Punch's own.

Can I use any detail kit with this module?
It works only with Buster + Punch's Cross and Linear knurled dimmer knobs, not third party dimmer knobs or modules.

Why is there a delay before my lights reach full brightness?
The module includes an intelligent soft start that can cause a one to two second delay before full illumination, which reduces inrush current and extends lamp life.

2.60 Min Width (cm) X 4.80 Min Height (cm) X 2.40 Internal Depth (cm) X 3.20X External Depth (cm)
