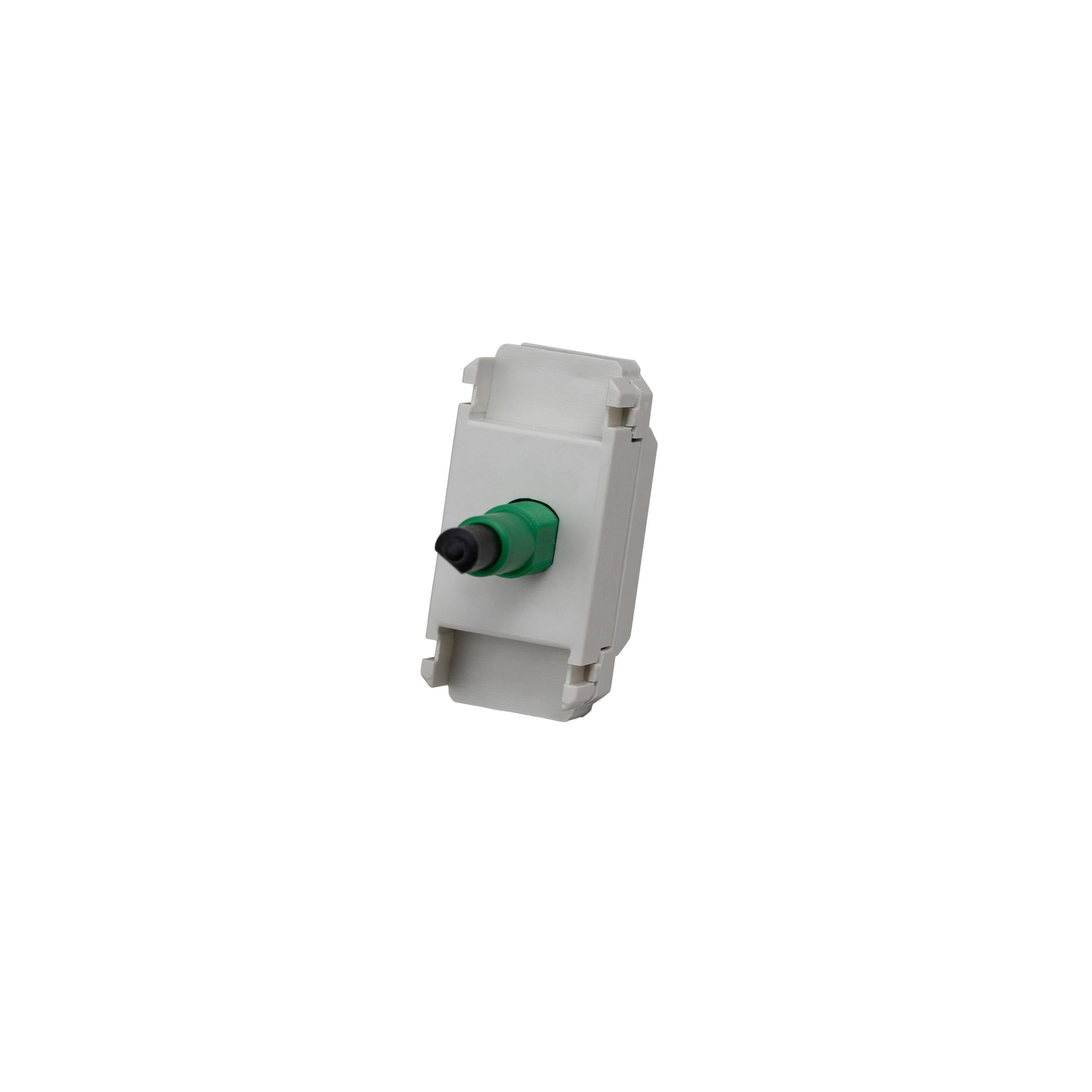

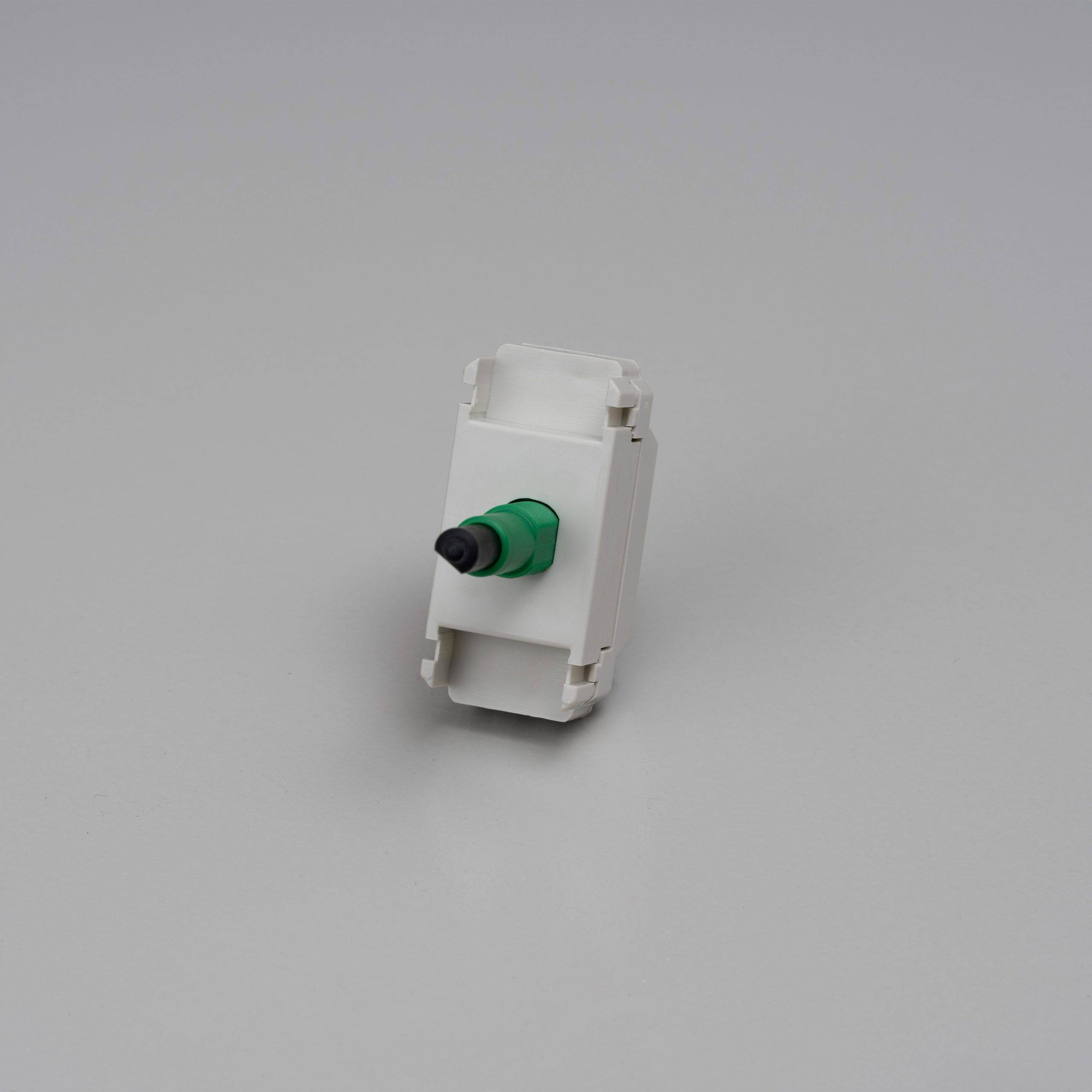

Buster + Punch Dimmer Module 1-10V - 2 way

The Module for Driver Controlled Lighting

Not every dimmable light is dimmed the same way. This module is built specifically for fittings that take a 0 to 10V or 1 to 10V control signal, the kind of low voltage dimmable driver used in a lot of built in LED lighting, rather than the mains dimming most household bulbs expect.

Choose Your Finish

This is a behind the plate component with no finish of its own. It's designed to sit under whichever Buster + Punch detail kit, knob and coin screws, you've already chosen for the plate, so the finish comes entirely from that detail kit rather than the module itself.

How It Works

Inside, it's a push on/off rotary mechanism, smooth and silent to turn, wired for two way switching on a 250V AC, 50Hz supply with a 6A rating. It's built specifically to send a 0 to 10V or 1 to 10V control signal to compatible dimmable ballasts and drivers, and Buster + Punch is explicit that it shouldn't be used for anything else, including standard mains dimming, since that would damage the module and invalidate the guarantee.

Where It Works Best

Choose this module where the fitting you're controlling already has a 0 to 10V or 1 to 10V dimmable driver built in, a kitchen with integrated LED strip lighting, for example, rather than a standard dimmable LED bulb in a normal fitting. For ordinary dimmable bulbs, the 120W LED dimmer module is the correct choice instead.

Made By Buster + Punch

A specialist part like this only exists because Buster + Punch builds its switches as a proper modular system, plate, module and detail kit as separate pieces, rather than one fixed unit. Founder Massimo Buster Minale set that approach up in 2013, having spent years building and rewiring motorbikes from scratch in a Shoreditch garage, and it's still what lets a technical module like this slot behind exactly the same detail kits as the standard dimmer.

Good To Know

• Module size: 23 x 50mm, 24mm depth plus 32mm terminal projection
• Control type: 0 to 10V / 1 to 10V dimming signal, two way

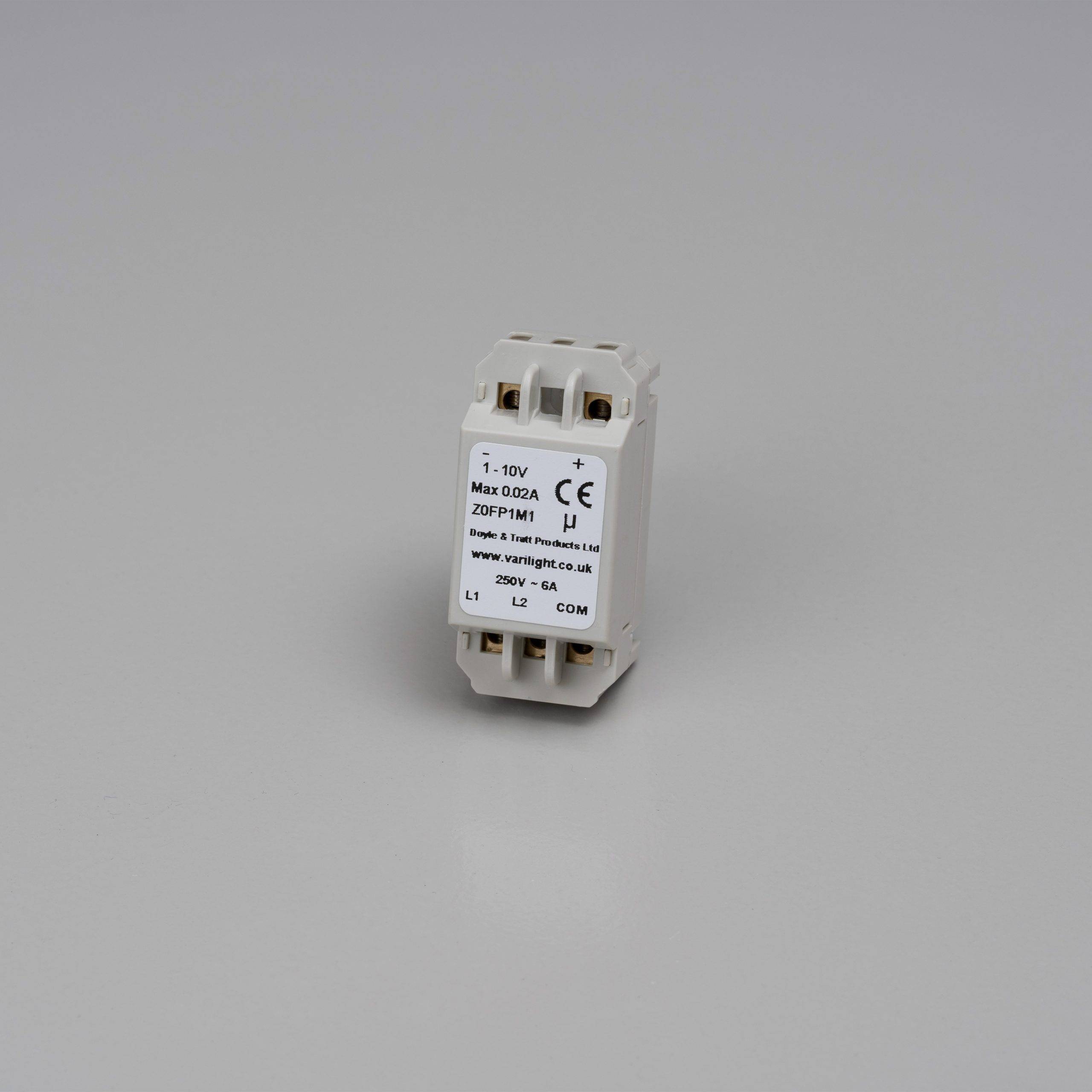

• Electrical rating: 250V AC, 50Hz, 6A
• Compatible only with high frequency dimmable ballasts and drivers requiring a 0 to 10V or 1 to 10V control signal
• Not for use with standard mains dimmable bulbs or connection to mains supply on the control terminals
• In the box: one 1 to 10V dimmer module, one anti rotation adapter
• For indoor, dry domestic and light commercial circuits only
• Care: wipe with a dry, lint free cloth, no chemical cleaners
• Warranty: two year Buster + Punch manufacturer's warranty as standard

Questions People Ask

Can I use this to dim a normal dimmable LED bulb?
No, this module is built only for fittings with a 0 to 10V or 1 to 10V control signal driver. Using it for standard mains dimming can damage the module and will invalidate the warranty.

Does this module come with its own knob and finish?
No, it's a behind the plate component designed to work with a separately chosen Buster + Punch detail kit.

What's the maximum current rating?
6A. Check that the in rush current of your LED bulbs or drivers doesn't exceed this before connecting, fitting inrush current limiters if needed.

2.50 Min Width (cm) X 5.00 Min Height (cm) X 2.40 Internal Depth (cm) X 3.20X External Depth (cm)
