Orluna Cloud Mini Fixed Spotlight - Floats in Ceiling

Cloud Mini Fixed: Small Fitting, Sharp Focus

Cloud Mini Fixed takes the simplicity of the Fixed spotlight and shrinks it down to a 43mm housing, a small, surface mounted point of light for spaces where every millimetre of visual clutter counts.

Choosing your configuration

Configuration on this compact fitting mirrors the other Mini options in the Cloud range. Choose the driver based on the existing control system: Dali for building management or scene control, 0 to 10V Dimming for architectural low voltage systems, Mains Dimming for a standard wall dimmer, or Non-Dimming for a fixed light level. Two engines are offered, Origin (General Use) for everyday applications and Origin Natural (Highest Quality) for the most accurate colour rendering. Colour temperature is set at 2700K or 3000K. Beam angle ranges from a narrow 22° through to a 49° flood. IP54 is the standard rating, with IP65 also available on this fitting for bathrooms, wet rooms or sheltered outdoor use. Bezel and baffle both come in Black or White (RAL 9010).

How It Works

Cloud Mini Fixed is surface mounted rather than recessed, sitting directly on the ceiling or a track system in a compact 43mm housing with the beam direction set at installation. Because there is no adjustable gimbal mechanism to house, Orluna has kept the fitting as small and unobtrusive as possible. As with the rest of the range, an aluminium body doubles as a heat sink, drawing heat away from the LED engine to protect colour output over the long term.

Where It Works Best

Mini Fixed is the smallest surface mounted option in the Cloud collection, ideal for tight spaces where even the standard Fixed spotlight's 60mm housing would feel too large, display cabinets, shelving, small joinery details and compact track runs all suit it well. With the IP65 option selected, it also becomes one of only two fittings in this range rated for bathrooms and other wet areas, the other being the larger Cloud Fixed, making it a useful small scale accent light for ensuites and similar spaces where the full size fitting would be disproportionate.

Made By Orluna

Orluna remains a British design and manufacturing led business, building on precision engineering roots that stretch back to 1973, while supplying architectural lighting projects internationally. That combination, small scale UK manufacture paired with a global specification base, sits behind even a compact fitting like Cloud Mini Fixed, which is built to the same tolerances and long term support standard as the largest luminaire in Orluna's catalogue.

Good To Know

• 43mm diameter surface mounted housing
• Fixed beam direction (non adjustable)
• IP54 or IP65 available
• Black or White (RAL 9010) bezel and baffle
• Aluminium housing acts as an integrated heat sink
• 20 year spares, repair and reuse programme
• Made to order and non refundable
• Installation by a registered NICEIC electrician recommended

Questions People Ask

Is Cloud Mini Fixed suitable for a bathroom?
With the IP65 option selected, yes. IP54 is the standard rating for drier interior spaces.

What is the difference between Cloud Mini Fixed and Cloud Fixed?
Mini Fixed uses a smaller 43mm housing compared with the 60mm Fixed spotlight, and offers a narrower beam range of 22° to 49° rather than 30° to 56°, but both share the same fixed, non adjustable design and IP65 option.

Can the beam be angled after installation?
No, Cloud Mini Fixed has a set beam direction. For an adjustable version, look at the Rose Adjustable or recessed fittings in the Cloud range.

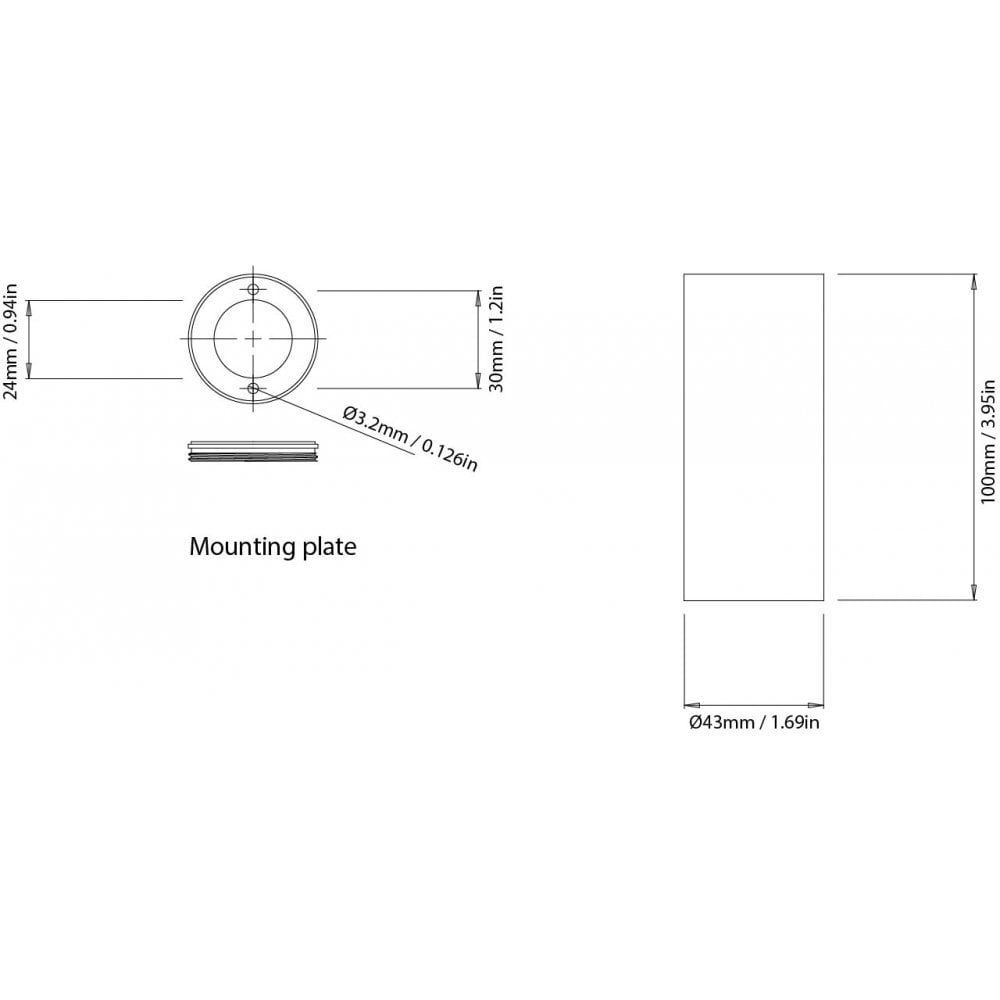

43mm diameter x 100mm length (refer to spec for details)
