Orluna Cloud Butterfly Recessed Spotlight - Floats in Ceiling

Cloud Butterfly Recessed: Effortless Light, Engineered Precision

Cloud Butterfly Recessed brings the full size, full specification version of Orluna's spring fixed recessed spotlight, larger than its Mini sibling and built for spaces that need a stronger beam without losing the collection's signature disappearing act.

Choosing your configuration

This full size Cloud fitting offers the broadest set of configuration choices among the smaller recessed range. Choose the driver to match the control system: Dali for scene control or building management, 0 to 10V Dimming for architectural low voltage systems, Mains Dimming for a standard dimmer, or Non-Dimming for a fixed level. Three engines are available: Origin (General Use), Origin Natural (Highest Quality) for the truest colour rendering, and Origin Warm Dim (1800K to 3000K) for a warm dimming curve reminiscent of halogen lamps. Colour temperature can be fixed at 2700K or 3000K, or run across the 1800K to 3000K range with Warm Dim. Beam angle spans a narrow 30° up to a wide 56°, allowing a choice between a focused spot or a broader wash depending on the space. IP54 is the rating offered. Bezel and baffle are available in Black or White (RAL 9010).

How It Works

Like its smaller Mini counterpart, Cloud Butterfly Recessed is held in place using spring loaded butterfly clips that grip the ceiling material from behind, avoiding the need for a deep recessed housing. At 60mm in diameter with a 62mm to 68mm cut out, it is built to a larger scale to accommodate the wider engine and beam choices on offer. A 360° rotation and 90° tilt mechanism allows the beam to be aimed after installation, and an aluminium housing manages heat from the LED engine to protect colour consistency and long term output.

Where It Works Best

Choose Butterfly Recessed over the Mini version when the wider engine choice, including Origin Warm Dim, or the broader 30° to 56° beam range this larger housing allows are needed, living spaces, hospitality interiors and retail settings that need more punch than the compact Mini fitting can give all suit it well. It offers the same forgiving butterfly clip fixing as Cloud Mini Butterfly Recessed, simply scaled up, so it remains a good option where ceiling depth is limited but a fully adjustable, recessed look is still wanted.

Made By Orluna

Reviewing Orluna's output, arc magazine described it as having well differentiated colours and a clean, soft edged beam without visible imperfections, a verdict that reflects the breadth of optics Orluna builds into ranges like Cloud, from very narrow accent beams through to broad floods, plus elliptical and asymmetric distributions elsewhere in its catalogue. Deep set light sources, black baffles and honeycomb louvres are used across the brand's fittings to control glare, so that light is directed exactly where it is wanted rather than spilling into the eye line.

Good To Know

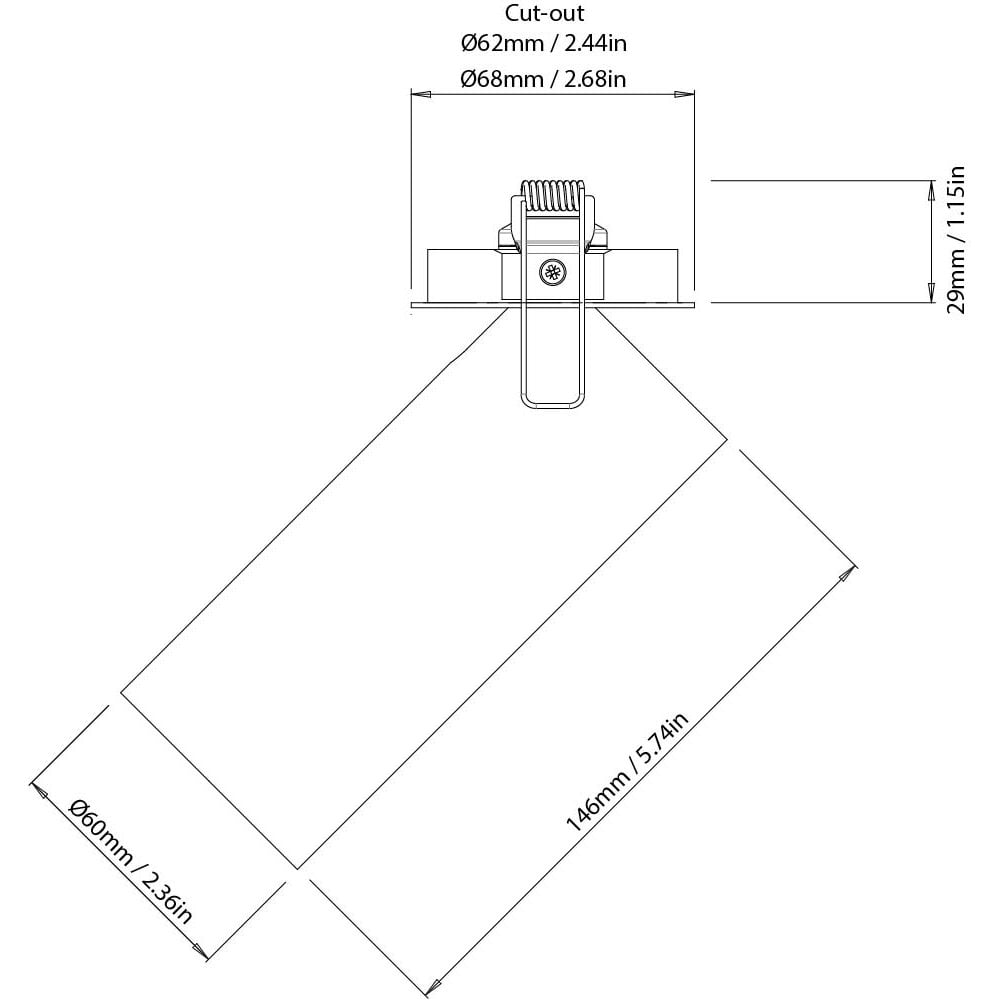

• 60mm diameter, 62mm to 68mm cut out

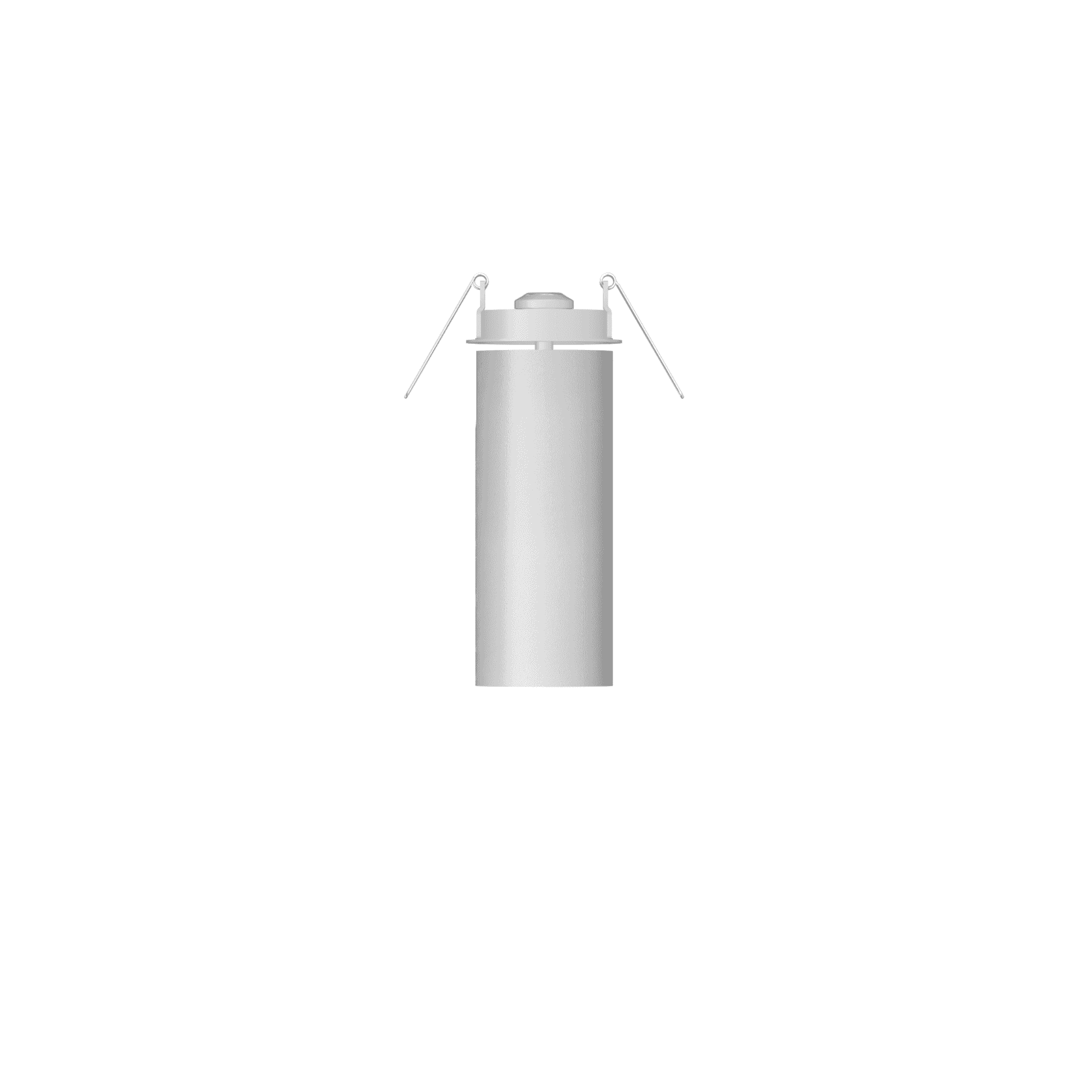

• Fitted using spring loaded butterfly clips
• 360° rotation and 90° tilt adjustment
• IP54 rated

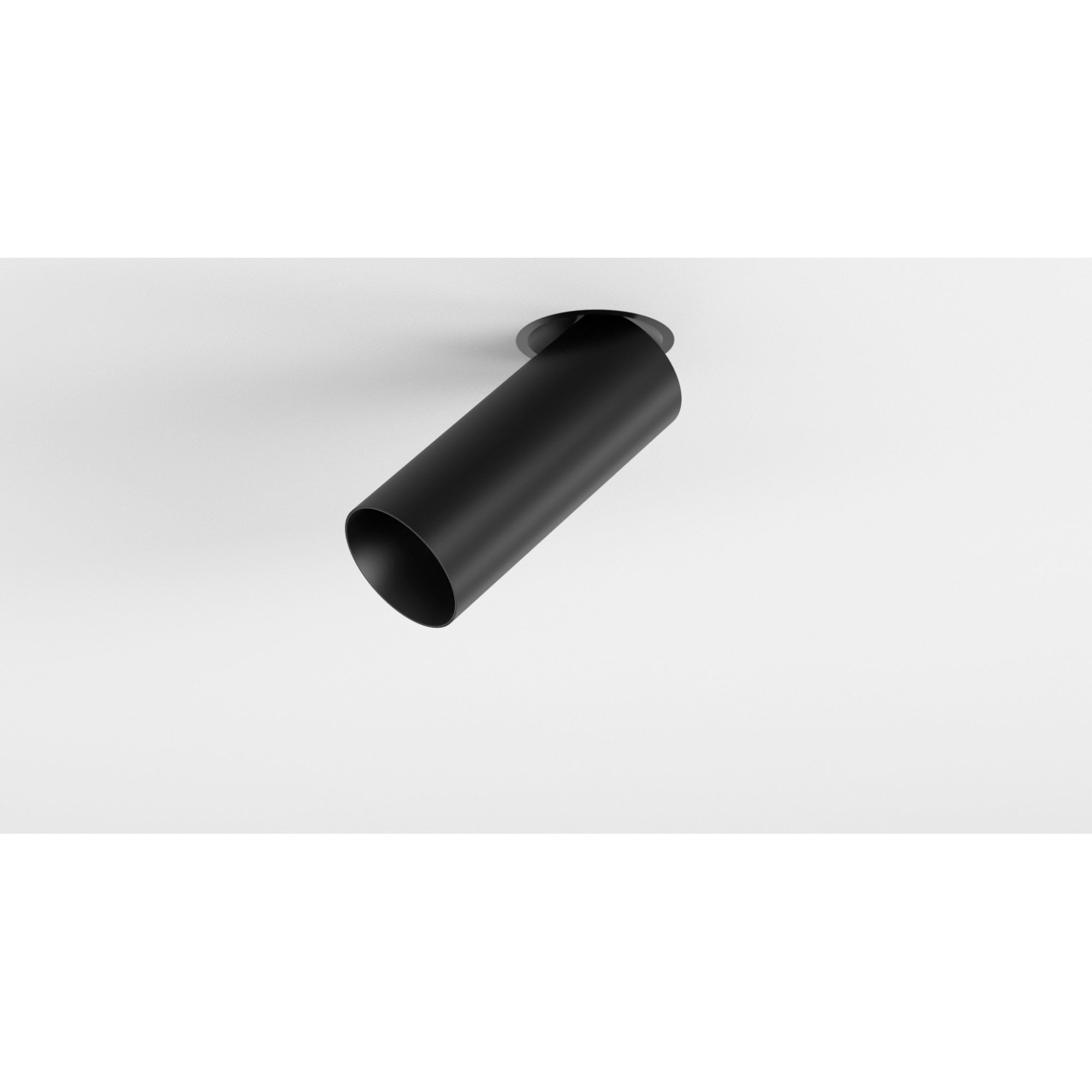

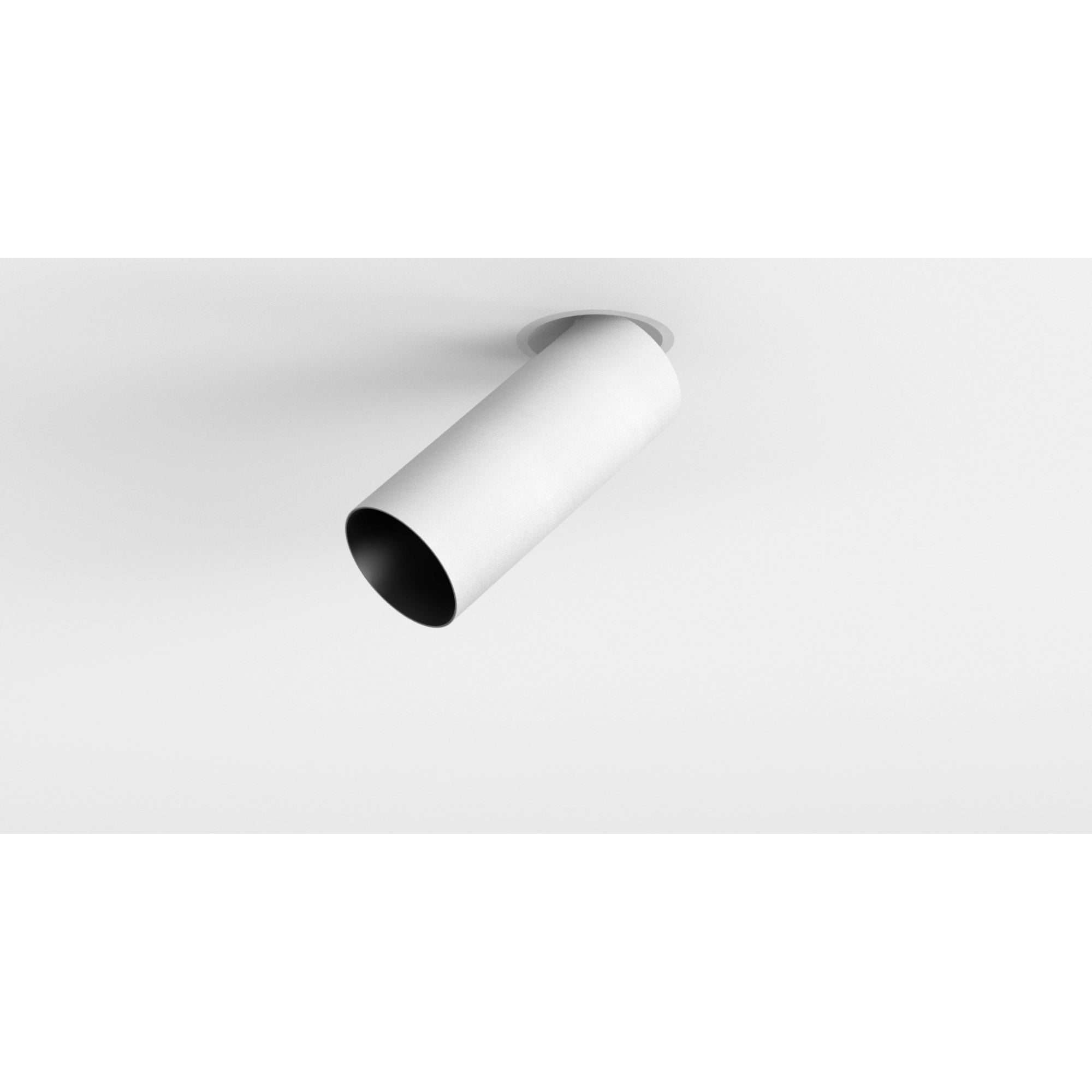

• Black or White (RAL 9010) bezel and baffle
• 20 year spares, repair and reuse programme
• Made to order and non refundable
• Installation by a registered NICEIC electrician recommended

Questions People Ask

What is the difference between Cloud Butterfly Recessed and Cloud Mini Butterfly Recessed?
Both use the same spring loaded butterfly clip fixing, but this full size version has a larger 60mm housing, a wider 62mm to 68mm cut out, and access to the Origin Warm Dim engine and a broader beam range not offered on the Mini.

Can the beam be adjusted after fitting?
Yes, it has 360° rotation and 90° tilt built in.

What cut out size is needed?
Between 62mm and 68mm.

60mm diameter x 146mm length (refer to spec for details)
