Non Dimmable Driver T-D-LPC-35 Driver -700mA

A 700mA Non Dimmable LED Driver

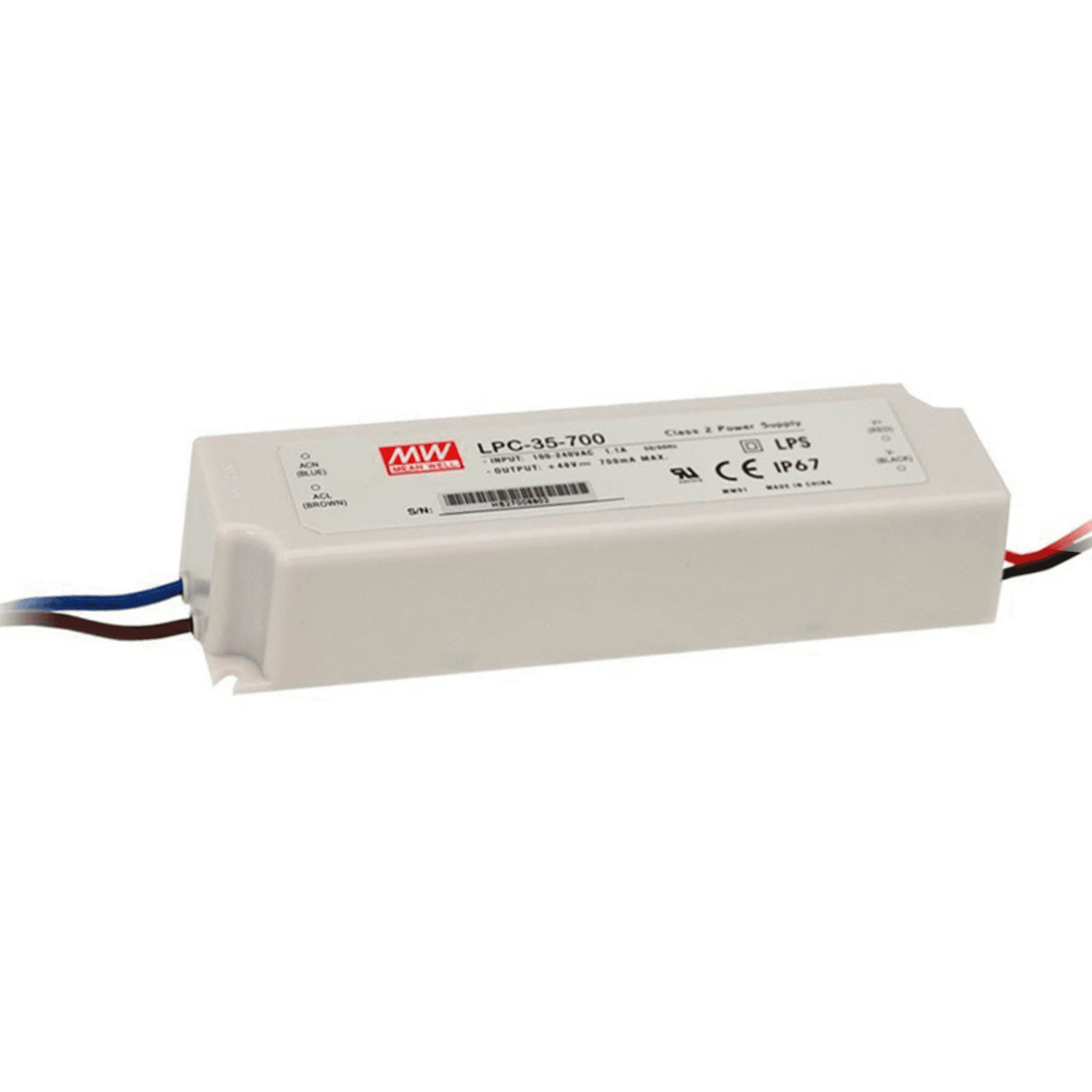

This is a Mean Well LPC-35-700 constant current LED driver with a 700mA output, used to power Hunza and Luxr LED fittings that are wired from a remote driver. It is non dimmable, so it suits schemes where the lights run at one level.

What the Manufacturer Lists

• Constant current output of 700mA across a voltage range of 9 to 48V, with a rated power of 33.6 watts.
• Accepts a 90 to 264VAC mains input.
• Rated IP67 and fully encapsulated in a plastic case. Mean Well notes it is suitable for indoor use, or outdoor use without direct sunlight, and should not be immersed in water for more than 30 minutes.
• Short circuit and over voltage protection built in.
• Measures 148mm long, 40mm wide and 30mm high.
• The warranty is 2 years.

Good to Know

• Suitable for Luxr M2 (2 to 10 fittings at 700mA).
• Suitable for Luxr M4 (1 to 8 fittings at 700mA).
• Suitable for Hunza Pure LED (1 to 8 fittings at 700mA).
• Non dimmable.
• Made to order: usually ships within 2 to 3 days. If your specification is temporarily out of stock, allow 3 to 5 weeks.
• Fitting by a registered NICEIC electrician is recommended.

Planning Your Scheme With Us

Since 2003 we have designed garden lighting schemes around Hunza fittings, supplied them and installed them, so we know how drivers and fittings pair up. Our Design Service page has photographs of our finished schemes and describes how we plan, draw up and wire a layout with NICEIC registered electricians. Visit it if you would like help choosing and wiring the right driver for your scheme.

Questions People Ask

Which fittings can this driver run?
It is listed as suitable for Luxr M2 (2 to 10 fittings), Luxr M4 (1 to 8 fittings) and Hunza Pure LED (1 to 8 fittings), all at 700mA.

Can I dim lights on this driver?
No. It is a non dimmable driver.

Is it weatherproof?
It is rated IP67 and fully encapsulated, but Mean Well advises outdoor use without direct sunlight. Installation should be planned and carried out by a registered NICEIC electrician.

What mains voltage does it accept?
It accepts a 90 to 264VAC input and delivers a 700mA constant current output.
