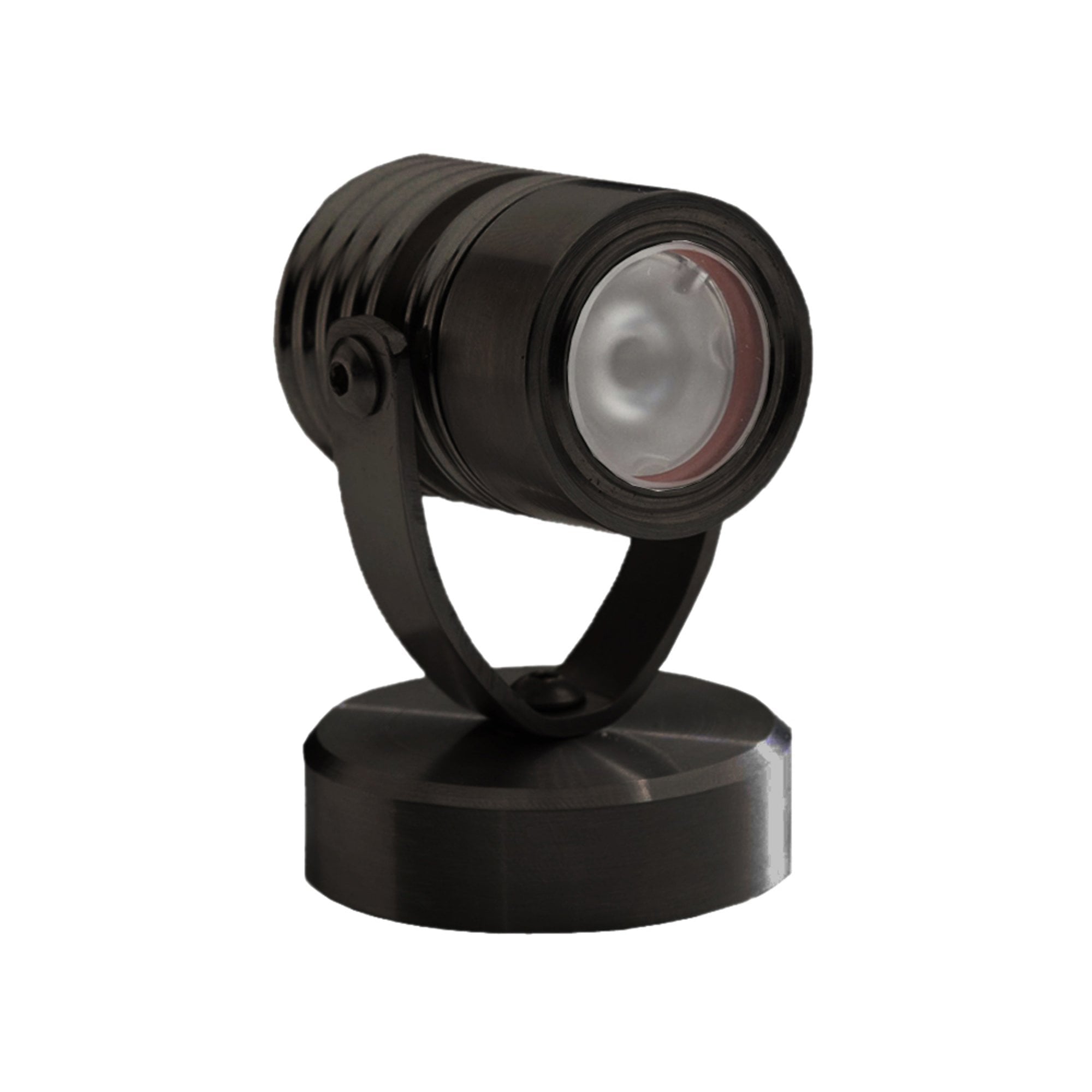

LuxR Modux 1 Pond Light (Weighted Base) with 12V Integral Driver - Powder Coat - Low Voltage

A Tiny Powder Coated Pond Light in Four Colours

The LuxR Modux 1 Pond Light is a very small submersible spotlight for ponds and water features. The body is only 31mm across and 42mm long, and it sits on a weighted base so it stays where you put it. It is rated IP68 and can be submerged up to 9m.

UV Powder Coated Aluminium

This version is UV powder coated aluminium, so you can pick a colour that suits your pond. The light source is a 1 watt Cree XPG-3 LED with a CRI of 90 plus, which helps plants, stone and fish look true to colour. The same pond light is also made in copper and stainless steel.

Choose Your Colour, Beam and Lens

• Powder coat colour: Matt Black is the darkest and least visible, Matt Bronze is a warm tone that suits stone and planting, Matt White (Non-Returnable) is bright, and Matt Dark Grey (Non-Returnable) is a softer alternative to black.
• Beam and colour temperature: 30º is a narrow beam for a single plant or rock, 53º is wider, and oval gives a broader, flatter wash. 2200K is a very warm glow, 2700K and 3000K are warm white, and 4000K is a crisper neutral white.
• Lens: clear gives the sharpest beam, while frosted softens the edges of the light.

How It Works

This pond light has a 12V integral driver built in, and comes with 3m of cable. It must be installed in parallel with a remote transformer. It is dimmable with a suitable transformer. The LED can be replaced or swapped for a colour LED, and the optic can be changed to alter the beam width.

Moonlight Design recommends that all lighting should be installed by a registered NICEIC electrician.

Where It Works Best

Use it to light ponds, water features and the planting around them. A dark colour makes it easy to hide among stones and pond plants. The same design is also available as the larger M2 and M4. Moonlight Design uses LuxR in its own garden lighting designs and installations.

Good to Know

• Dimensions: body 31mm diameter and 42mm long. Supplied with 3m of H05RN-F cable.
• Rated IP68 and submersible up to 9m.
• 1 watt LED at 80 lumens per watt, low voltage, parallel wiring.
• Warranty: 5 years.
• Made in New Zealand by the makers of Hunza.
• Colours marked Non-Returnable in the colour selector cannot be returned once ordered.
• Colours shown are for guidance only. Physical colour swatches are available on request.
• Usually ships in 2 to 3 days. If out of stock, allow 3 to 5 weeks.

Questions People Ask

How deep can the powder coated pond light go?

It is rated IP68 and is submersible up to 9m.

Do I need a separate driver?

No, the 12V driver is built in. It does need to be wired in parallel to a remote transformer. We recommend a registered electrician installs it.

Which colours cannot be returned?

Matt White and Matt Dark Grey are marked Non-Returnable in the colour selector, so they cannot be returned once ordered. Physical colour swatches are available on request.

Which beam angle should I choose?

Choose 30º to light a single plant or rock, 53º for a larger feature, and the oval beam for a broader, flatter wash.

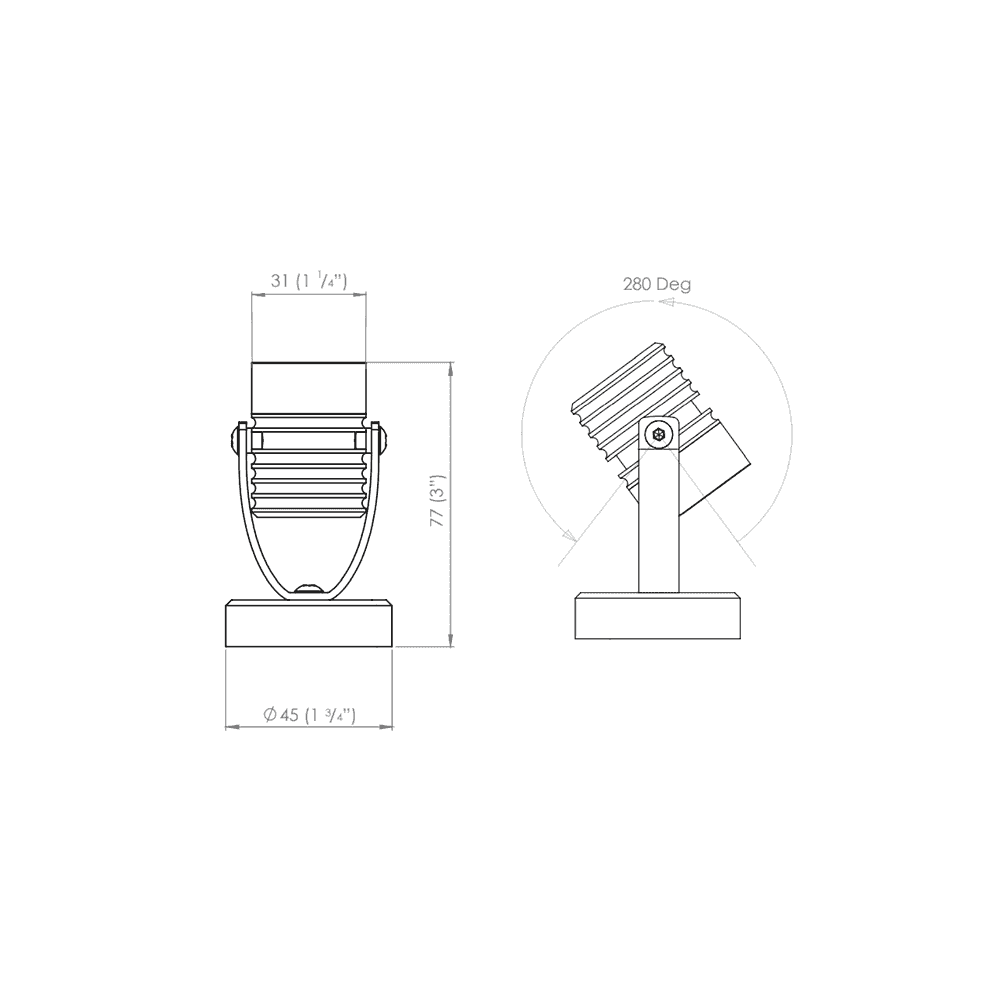

Body
Diameter: 31mm
Length: 42mm

(refer to spec for more information)

Cable: Supplied with H05RN-F 3m

• M1 Spotlight
