Collingwood White Bezel for H2 Sense - With PIR Sensor (Bezel only)

A Bezel With the Sensor Built Right In

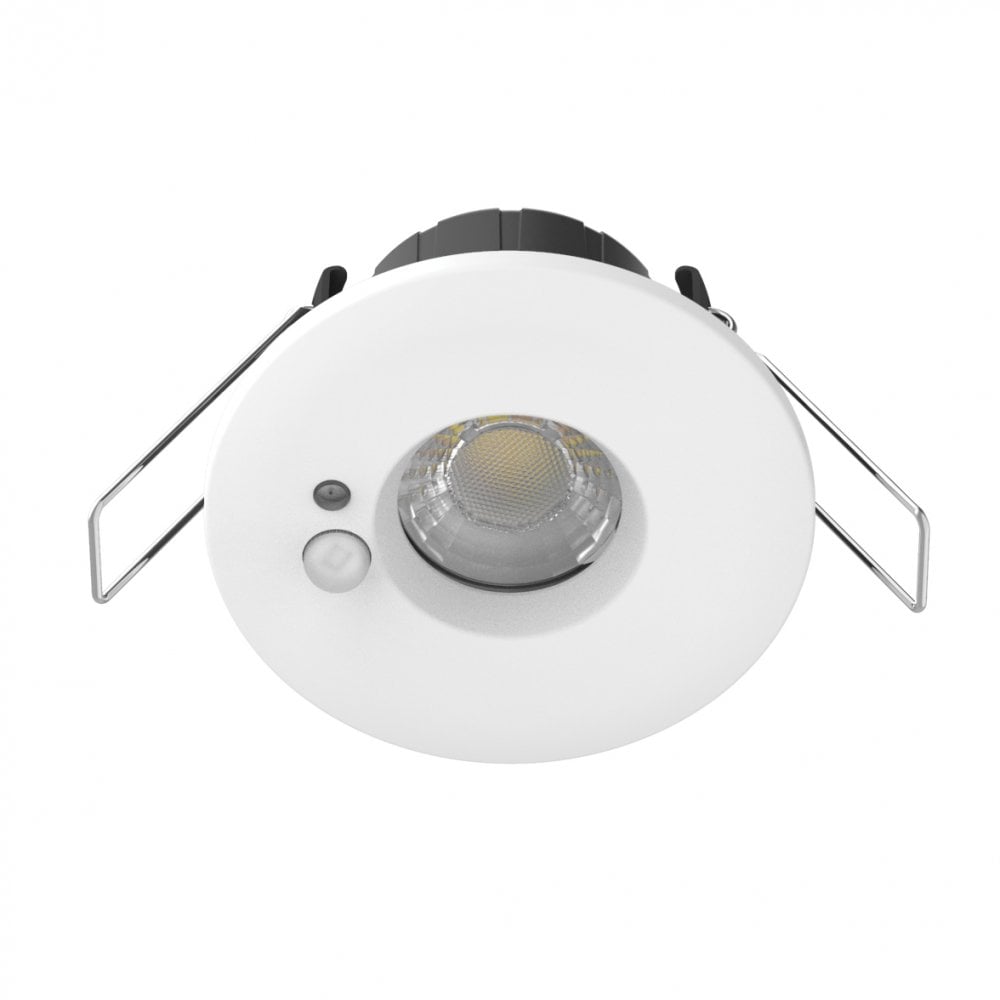

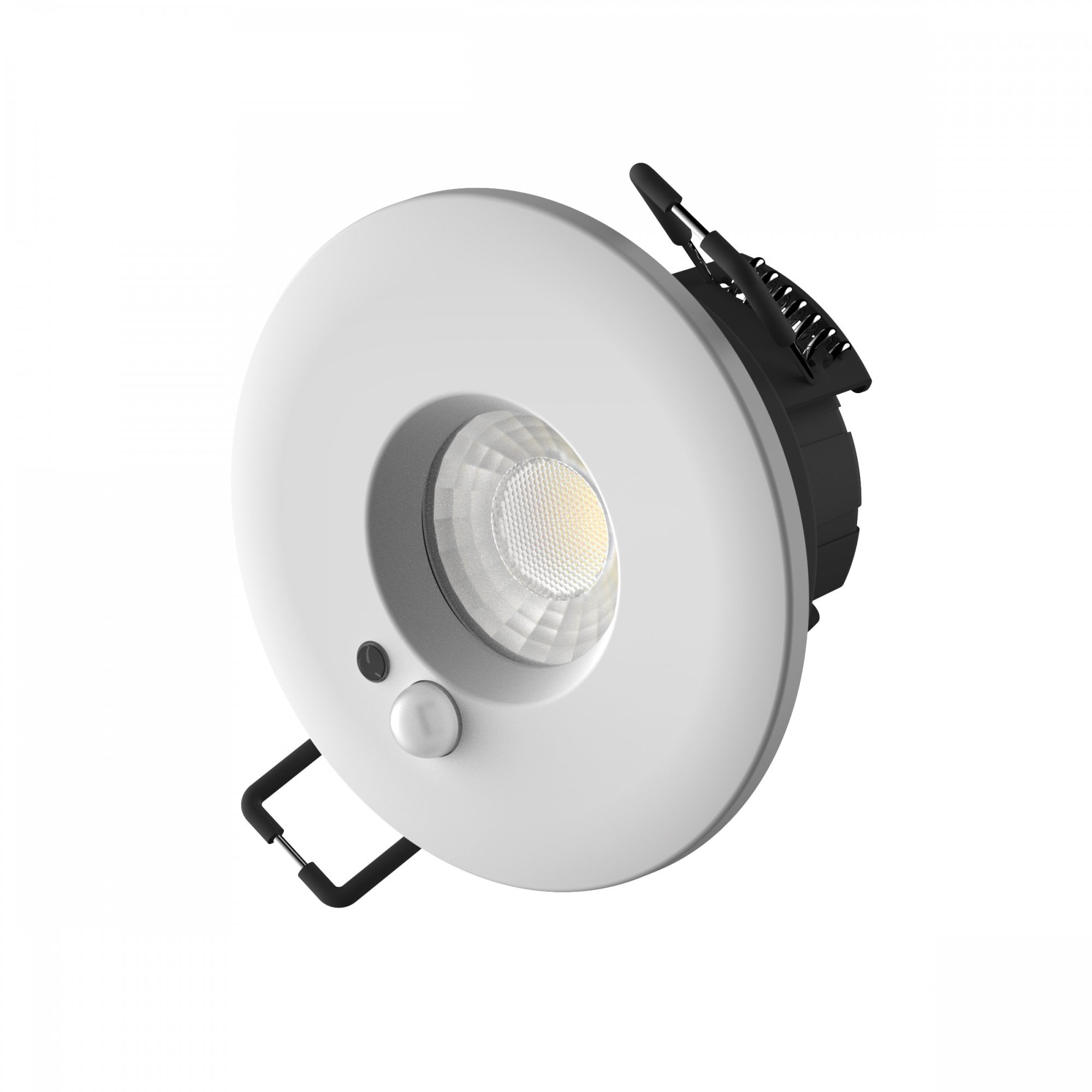

This is the white replacement bezel for Collingwood's H2 Sense downlight, and what sets it apart is where the PIR sensor lives. Instead of fitting a separate sensor puck next to the downlight, Collingwood has built the motion detector straight into the faceplate. The result is a single round fitting in the ceiling rather than a light and a sensor sitting side by side, which makes for a noticeably tidier finish on any ceiling run.

Finish and Fit

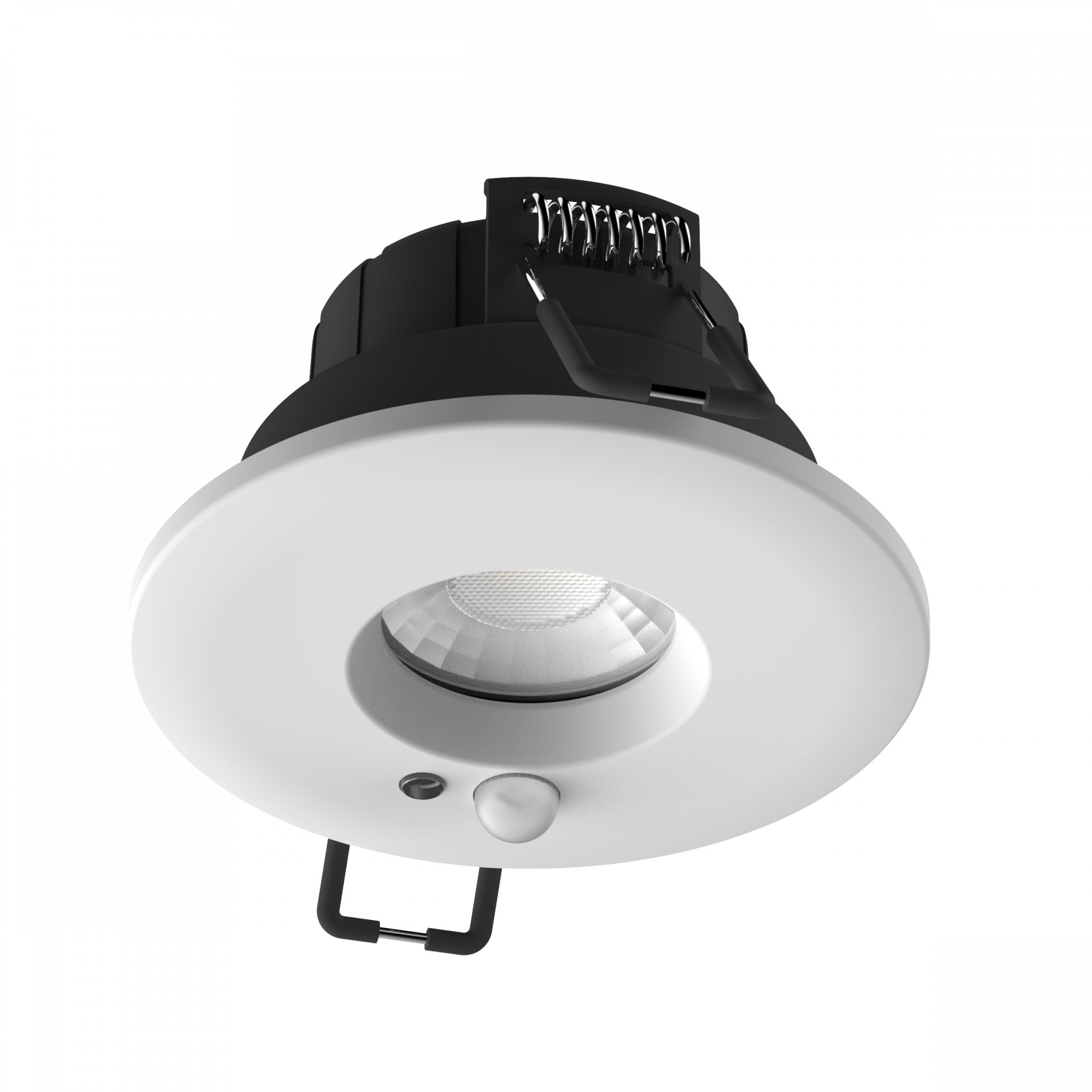

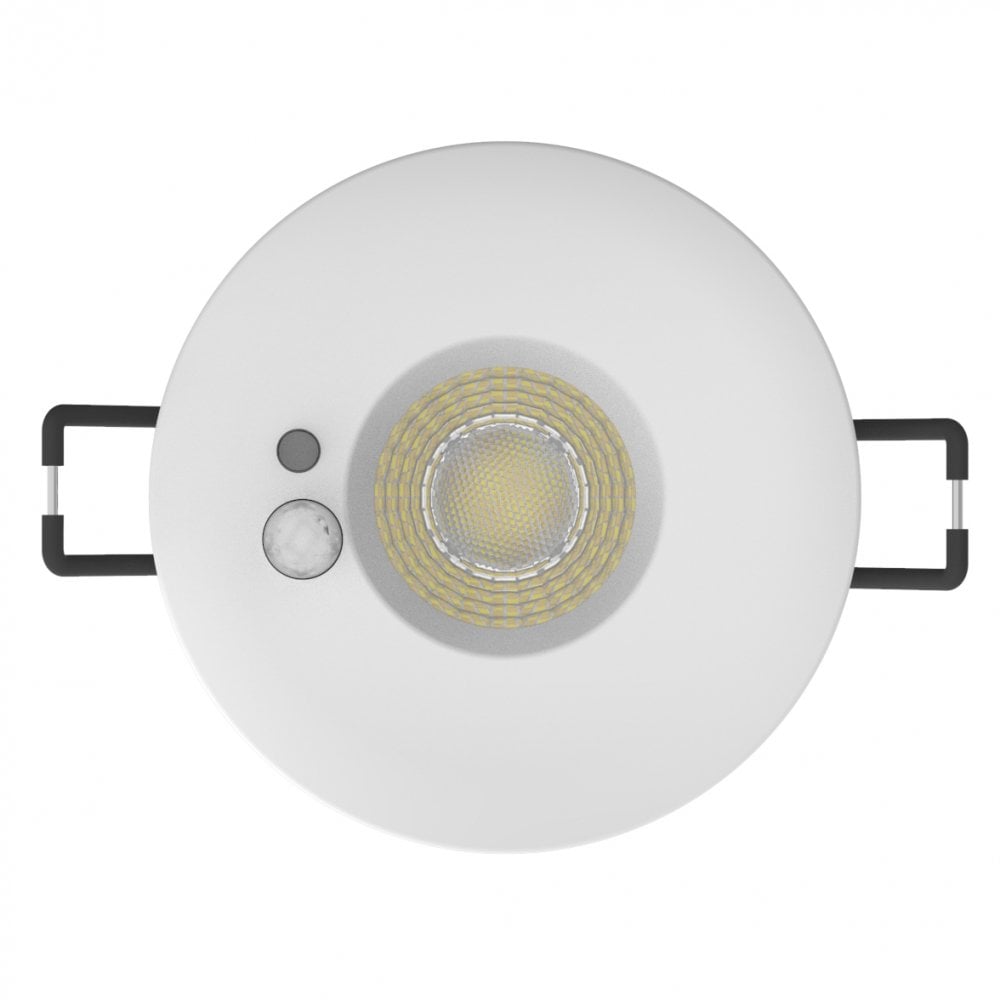

The bezel is finished in a clean matte white to match the standard H2 Sense downlight housing, so it disappears into a white ceiling rather than drawing attention to itself. It's a moulded plastic faceplate with a recessed lens surround, a small rotary dimmer style adjuster, and the raised PIR sensor dome sitting just off centre. Sprung retaining clips fold flat for insertion into the ceiling cutout and spring open to grip the plasterboard once pushed home, the same fixing method used across the H2 Sense range.

How It Works

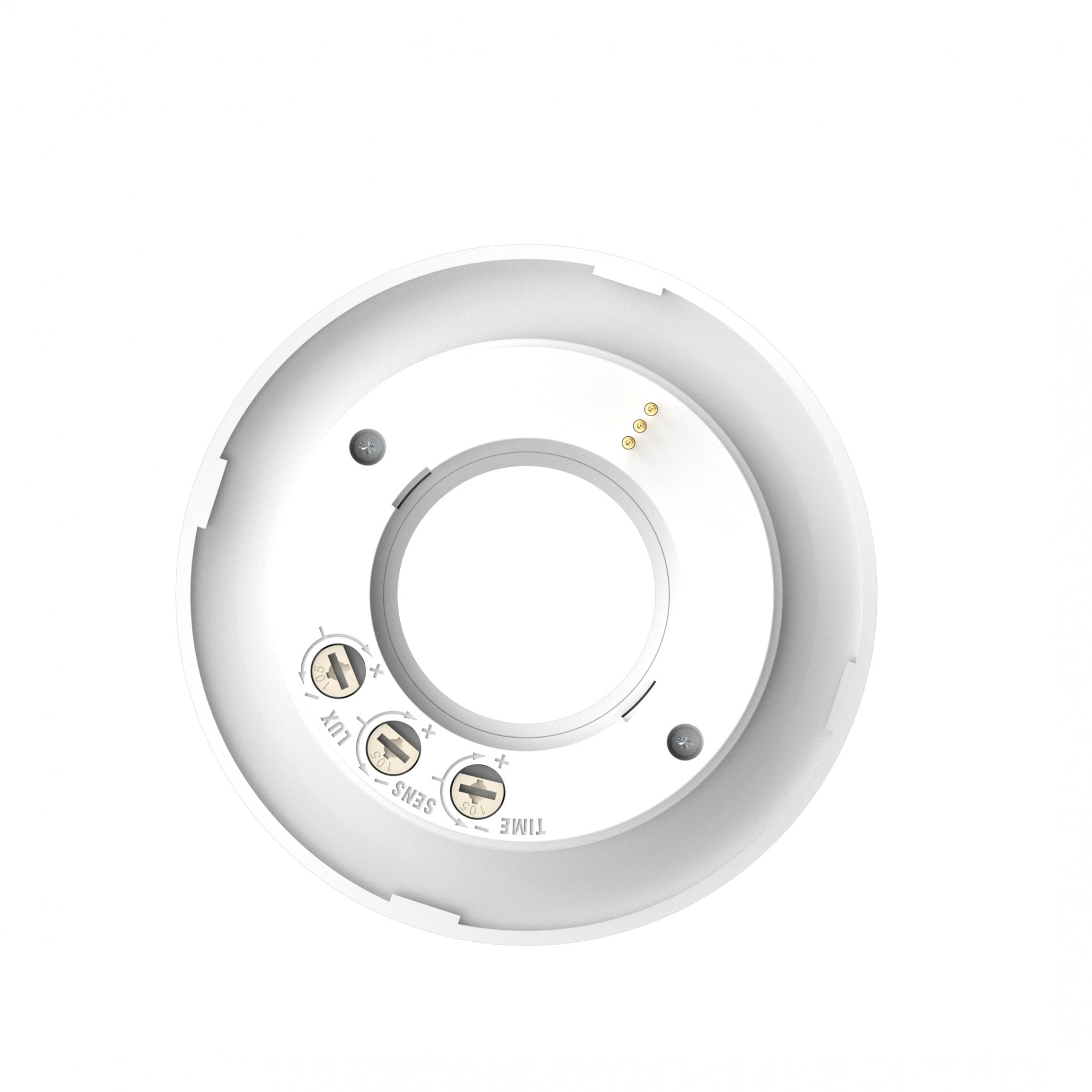

Fit this bezel to a compatible H2 Sense downlight body and the built in PIR sensor takes over switching duties for that fitting and up to 200W of additional lighting on the same circuit, equivalent to around 30 further 6W H2 Sense downlights. It isn't limited to lighting either. Provided the combined connected load stays under that 200W ceiling, it can also switch a non lighting load such as an extractor fan. On the back of the bezel are three small rotary dials marked LUX, SENS and TIME, which let an installer fine tune how bright the room needs to get before the sensor stops firing, how far away it should pick up movement, and how long the light stays on after the last movement is detected. Gold contact pins on the rear connect the sensor straight into the downlight's own driver, so no extra low voltage wiring is needed beyond the standard connection. This listing is for the bezel and integrated sensor only. It does not include the H2 Sense downlight body or lamp, so it's intended either as a spare part for an existing installation or to add PIR control to a downlight body bought separately.

Where It Works Best

Because it mounts into an existing H2 Sense downlight aperture, this bezel is really a retrofit or upgrade part rather than something specified from scratch. It suits hallways, stairwells, cloakrooms, utility rooms, storerooms and back of house spaces where lights are needed briefly and automatically rather than left running, and where wiring a separate wall mounted PIR isn't practical or worth the extra cable run. It's equally useful as a straight swap if an existing H2 Sense bezel has failed or if a non sensor bezel is being upgraded to add occupancy switching without changing the downlight itself.

About Collingwood Lighting

Collingwood designs and builds its LED fittings in Sywell, Northamptonshire, and has worked exclusively in LED technology since 2002. The brand states it was among the first to bring fire rated, fully sealed for life and mains dimmable LED products into the UK electrical wholesale market, a claim Collingwood makes about its own early positioning in the category rather than an independently verified industry first. The company has also been awarded an EcoVadis Gold medal, placing it in the top 5% of businesses assessed globally for sustainability performance.

Good to Know

• Covered by a 1 year warranty on this bezel and sensor unit.
• Fits Collingwood's H2 Sense downlight body only. It is not a universal PIR bezel and will not fit downlights from other ranges or manufacturers.
• The PIR sensor's brightness threshold, detection sensitivity and hold time are all adjustable from the rear mounted dials before the bezel is fitted.
• Switches up to 200W of additional connected load, lighting or otherwise, alongside the downlight it's fitted to.
• Wipe clean with a soft, dry cloth. Avoid abrasive cleaners on the white finish.
• Moonlight Design recommends installation by a registered NICEIC electrician.

Questions People Ask

• Does this bezel come with the downlight itself? No, this listing is for the white bezel and integrated PIR sensor only, and it needs to be fitted to a compatible Collingwood H2 Sense downlight body.
• How much extra lighting can the sensor control? The sensor built into this bezel can switch up to 200W of additional connected load on the same circuit, equivalent to roughly 30 further 6W H2 Sense downlights.
• Can the sensor be adjusted after fitting? Yes, three rotary dials on the back of the bezel, marked LUX, SENS and TIME, adjust the daylight threshold, motion sensitivity and how long the light stays on before switching off.
• Can this bezel switch anything other than lights? Yes, as long as the total connected load stays under 200W, the sensor can also control a non lighting load such as an extractor fan.
• Will this bezel fit a downlight from a different brand? No, it is designed specifically to fit Collingwood's own H2 Sense downlight body and is not a universal replacement bezel.

• Collingwood H2 Sense Spec Sheet 2025
