Collingwood 1901 Adjustable Square Downlight - All Black (Fire-Rated)

A Square Edge on a Fire Rated Downlight

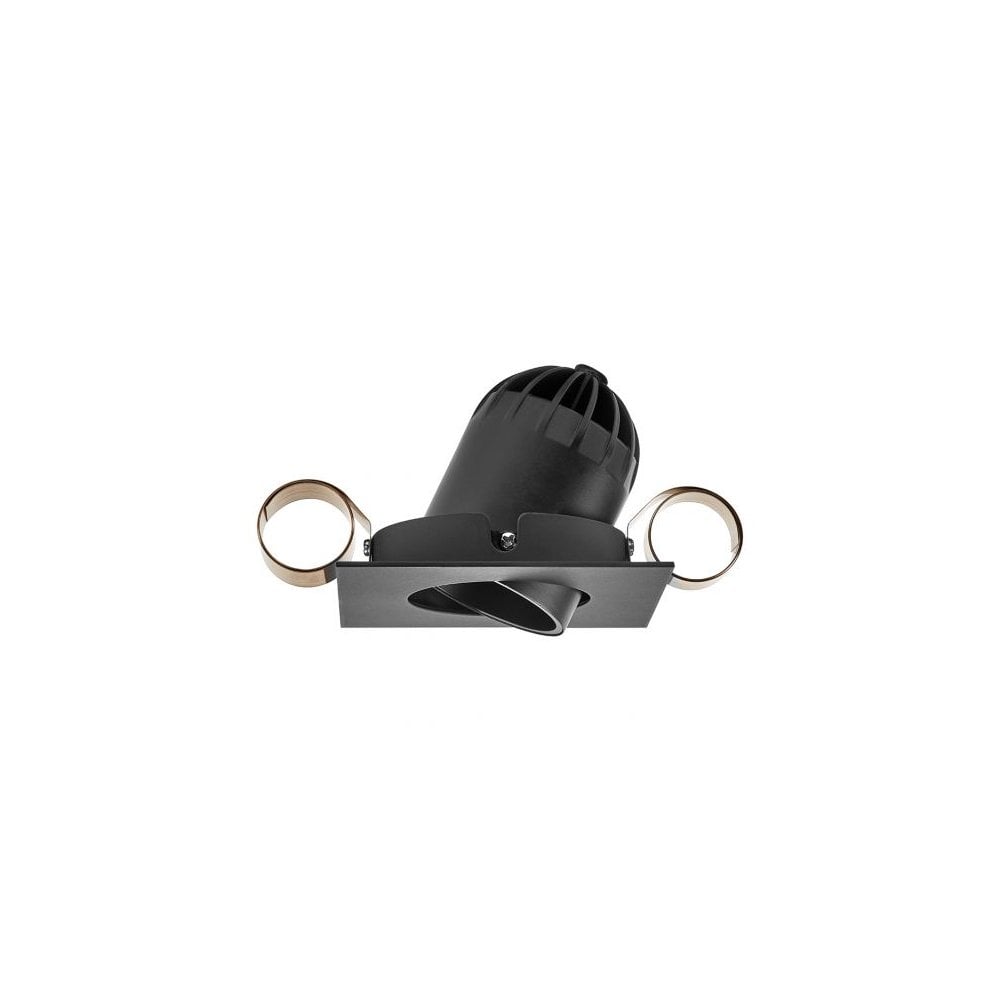

This is the square bezel version of Collingwood's 1901 adjustable downlight, built for anyone who wants straight edges lining up with square tiles or a grid ceiling rather than a round trim breaking the pattern. The head still tilts and rotates like the rest of the 1901 range, so you get the adjustability with a cleaner geometric look on the ceiling.

Finished All Black

The bezel and housing are finished in matte black aluminium, with the fitting's spring clips left in a contrasting bronze tone. It sits flush and low key against a dark ceiling, and reads as a deliberate design choice rather than a plain fitting on a pale one.

How It Works

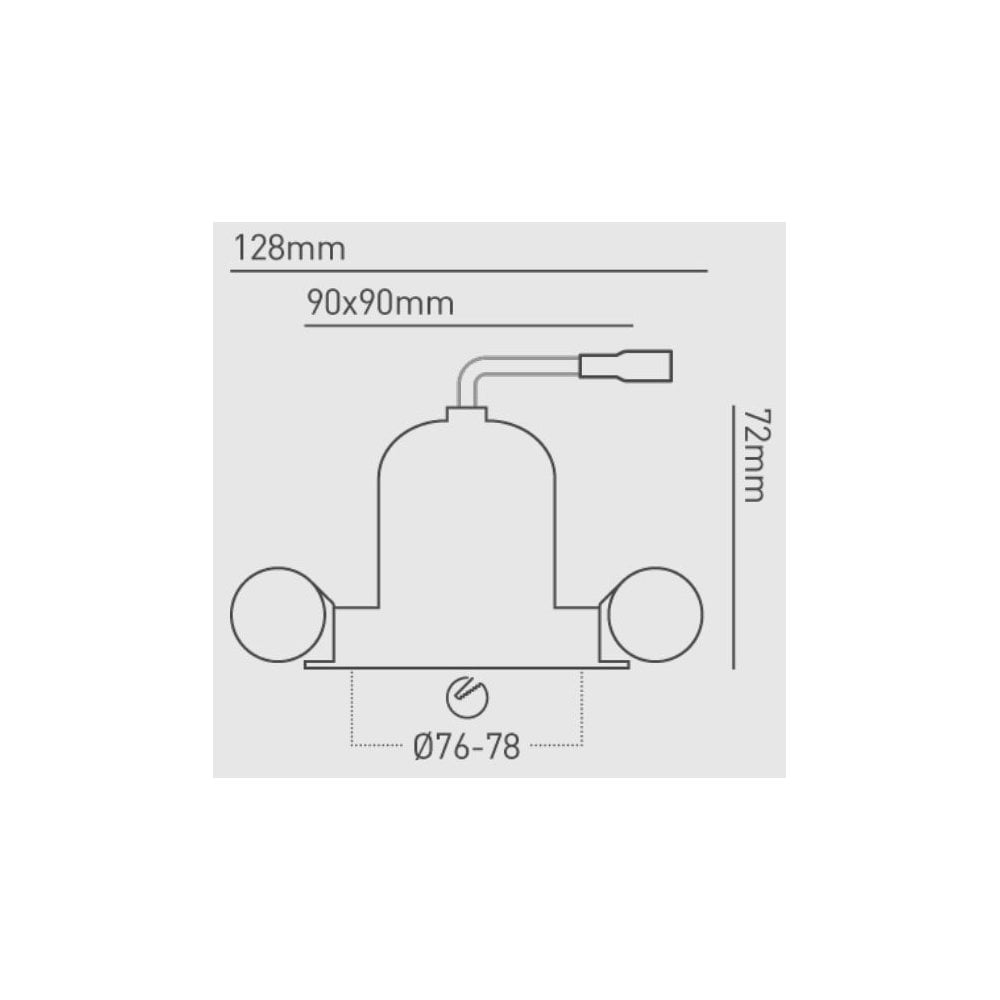

• Cutout is 76 to 78mm, with a 90 x 90mm square bezel and 72mm overall depth.
• The head tilts up to 20 degrees and rotates a full 360 degrees, so it can be aimed after it's fitted.
• Runs at 9.6W total, with a choice of 12, 24 or 50 degree beam angle.
• Colour temperature options are 2700K extra warm white, 3000K warm white, 4000K cool white, or a dim to warm setting that runs down to 1800K as it dims.
• A driver is supplied with the fitting and wired in via cable, with a choice of mains, 1 to 10V or DALI dimming.

Where It Works Best

Rated IP20, this downlight is built for dry indoor rooms rather than anywhere damp. It suits living rooms, kitchens, dining rooms and hallways, and works equally well in offices, stairwells and commercial interiors where a neat, square recessed light and a fire rated ceiling matter. The adjustable head is useful over a kitchen island, a hallway run, or anywhere you want to angle light onto a wall or feature after the ceiling is finished.

Collingwood Lighting

Collingwood Lighting designs and manufactures its LED products from Sywell in Northamptonshire, and has specialised in LED technology since 2002. The brand states it was among the first to bring fire rated LED downlights to the UK electrical wholesale market, which is the exact quality this fitting is built around. Collingwood has also been awarded a Gold medal by EcoVadis, placing it in the top 5% of companies assessed globally for sustainability.

Good to Know

• Backed by a 7 year warranty from Collingwood Lighting.
• This product is marked non returnable, so check the specification carefully before ordering.
• IP20 rated, suited to dry spaces such as living rooms, kitchens, hallways, offices and stairwells. Not intended for bathrooms or other wet zones.
• Fire rated to 30 minutes in solid timber, I-joist and metal web ceiling joists.
• Certified to Part P and Part L.
• Moonlight Design recommends installation by a registered NICEIC electrician.

Questions People Ask

What size hole do I need to cut for this downlight?
The cutout is 76 to 78mm in diameter, and the square bezel measures 90 x 90mm on the ceiling face.

Can I redirect the beam after it's fitted?
Yes. The head tilts up to 20 degrees and rotates a full 360 degrees, so it can be aimed once it's already in the ceiling.

Which colour temperature should I choose?
It's available in 2700K extra warm white, 3000K warm white, 4000K cool white, or a dim to warm option that shifts from 3000K down to 1800K as it's dimmed.

Do I need to buy a separate driver?
No. A driver is supplied with the fitting and wired in via cable, with a choice of mains, 1 to 10V or DALI dimming.

Can this be used in a bathroom?
No. It's rated IP20, which means it's designed for dry indoor spaces only, not bathrooms or other zones with moisture.

Is it suitable for a fire rated ceiling?
Yes. It carries a 30 minute fire rating for solid timber, I-joist and metal web ceiling joists.
